Hammond 1554VB2GYSL 240x160x120mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94 V-0) on a deep light gray polycarbonate box
- 240 x 160 x 120 mm with 113.30 mm inside height
- cUL and UL 508A listed, file E65324
- IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13 tested
- Six stainless M4 lid screws in corrosion resistant inserts
- PC boards to 145.5 x 226.82 mm; DIN rail tabs molded in
- IK08 impact, -40°C to +110°C, UV stabilized for outdoor use

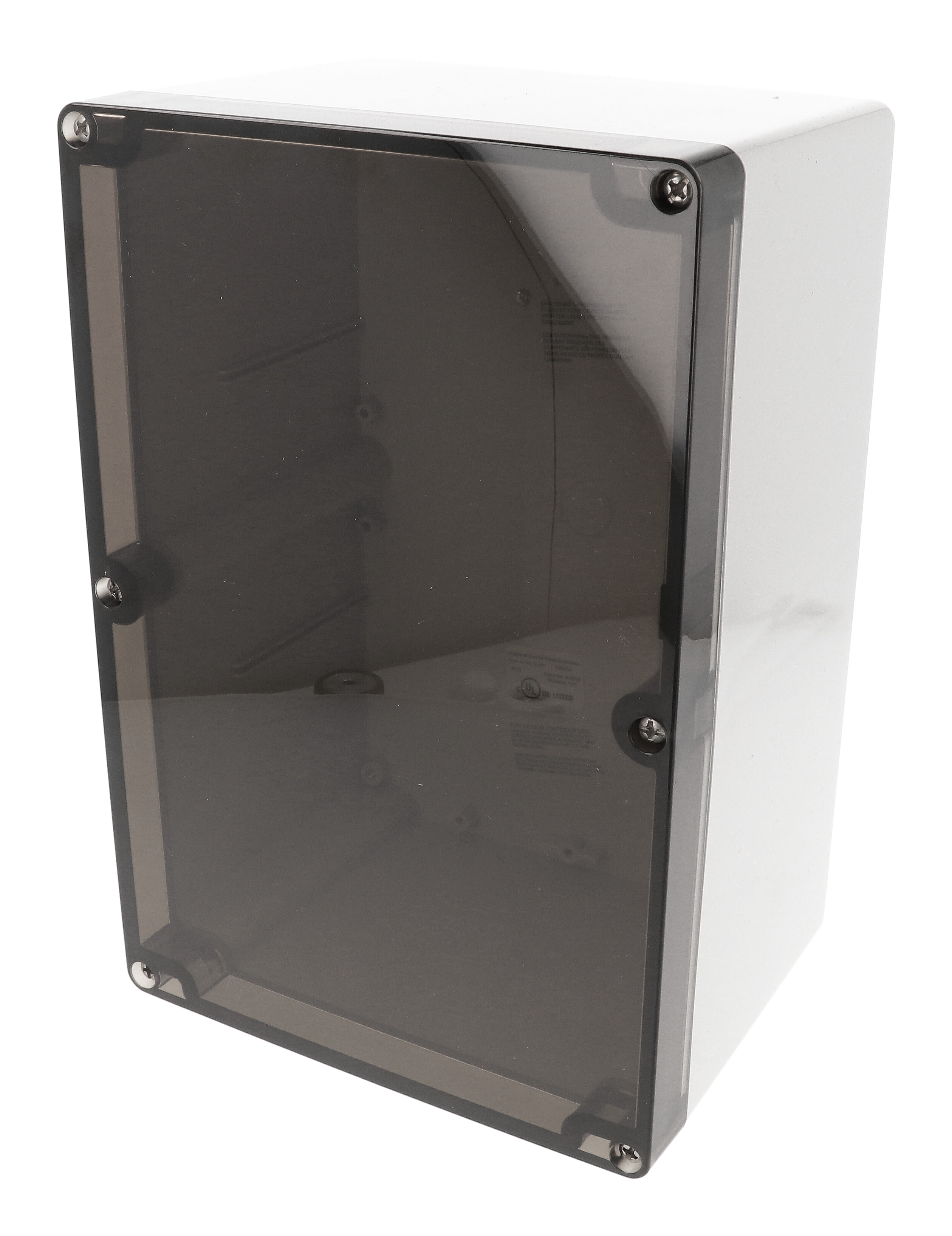

The 1554VB2GYSL is a deep light gray (RAL 7035) polycarbonate enclosure with a smoked polycarbonate lid, giving a tinted window onto internal indicators in a 240 x 160 x 120 mm package. Integrators and OEM builders use this size where DIN rail devices or stacked boards need more height than the shallower models allow.
Ordering dimensions are 9.45 x 6.30 x 4.72 in (240 x 160 x 120 mm), with a part page nominal size of 239 x 160 x 119 mm (9.4 x 6.3 x 4.7 in). The drawing gives inside dimensions of 230.24 x 146.24 x 113.30 mm. Internal features include molded DIN rail tabs, vertical card guides for 1.5 mm PC boards, M3 brass inserts and #6 self-tapping standoffs, with a maximum board size of 145.5 x 226.82 mm.
The smoked lid is rated UL94 V-0. As a polycarbonate version it is UV stabilized for outdoor use, cUL and UL 508A listed under E65324 (drawing mark UL Listed Type 4, 4X, 6, 6P), and tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. It carries IK08 impact per IEC 62262:2021 and a recommended operating range of -40°C to +110°C.
Six self-captivating stainless steel M4 screws, included, thread into corrosion resistant inserts and should be torqued to 71-85 ozf-in (50-60 cN-m). The silicone gasket ships loose inside. Four 4.50 mm holes outside the gasket channel allow wall mounting or the 1554FT foot kit. Accessories include the 1554VAPL inner panel and SC583-50 screws. The 1554VB2GYSL weighs 1.35 lbs (0.61 kg) shipped.
Ideal For
- Outdoor controls with tinted status window
- Deep DIN rail assemblies
- UL 508A industrial control panels
- Sealed electronics in wet locations
Overview
| Series | 1554 (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Box / Lid | Polycarbonate box / smoke polycarbonate lid |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Product Type | Screw cover watertight enclosure |
| Enclosure Type | Water-tight |
| Short Description | 240X160X120MM P/C NEMA SMK LID |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 9.45 in (240 mm) |
| Inside Width | 146.24 mm [5.76 in] |
| Total Height | 4.72 in (120 mm) |
| Inside Height | 113.30 mm [4.46 in] |
| Inside Length | 230.24 mm [9.06 in] |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 4.7 in (239 mm x 160 mm x 119 mm) |
| Overall Height (Drawing) | 120.00 mm [4.72 in] |
Identifiers
| UPC | 623980401478 |
| UNSPSC | 39121301 |
| Part Number | 1554VB2GYSL |
Lid & Hardware
| Gasket | One piece, replaceable, high temperature UL listed silicone; black, pre-formed; supplied loose inside the enclosure (not pre-installed) |
| Lid Screws | Included stainless steel M4 machine screws, self-captivating |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Lid Screws (Qty) | 6 |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Cover Screws | SC583-50 (stainless steel, M4-0.7 x 25 mm, pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
| Panel / P.C. Board Screw (Accessory) | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Panel / P.C. Board Self Tapping Screw (Accessory) | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Packaging & Shipping

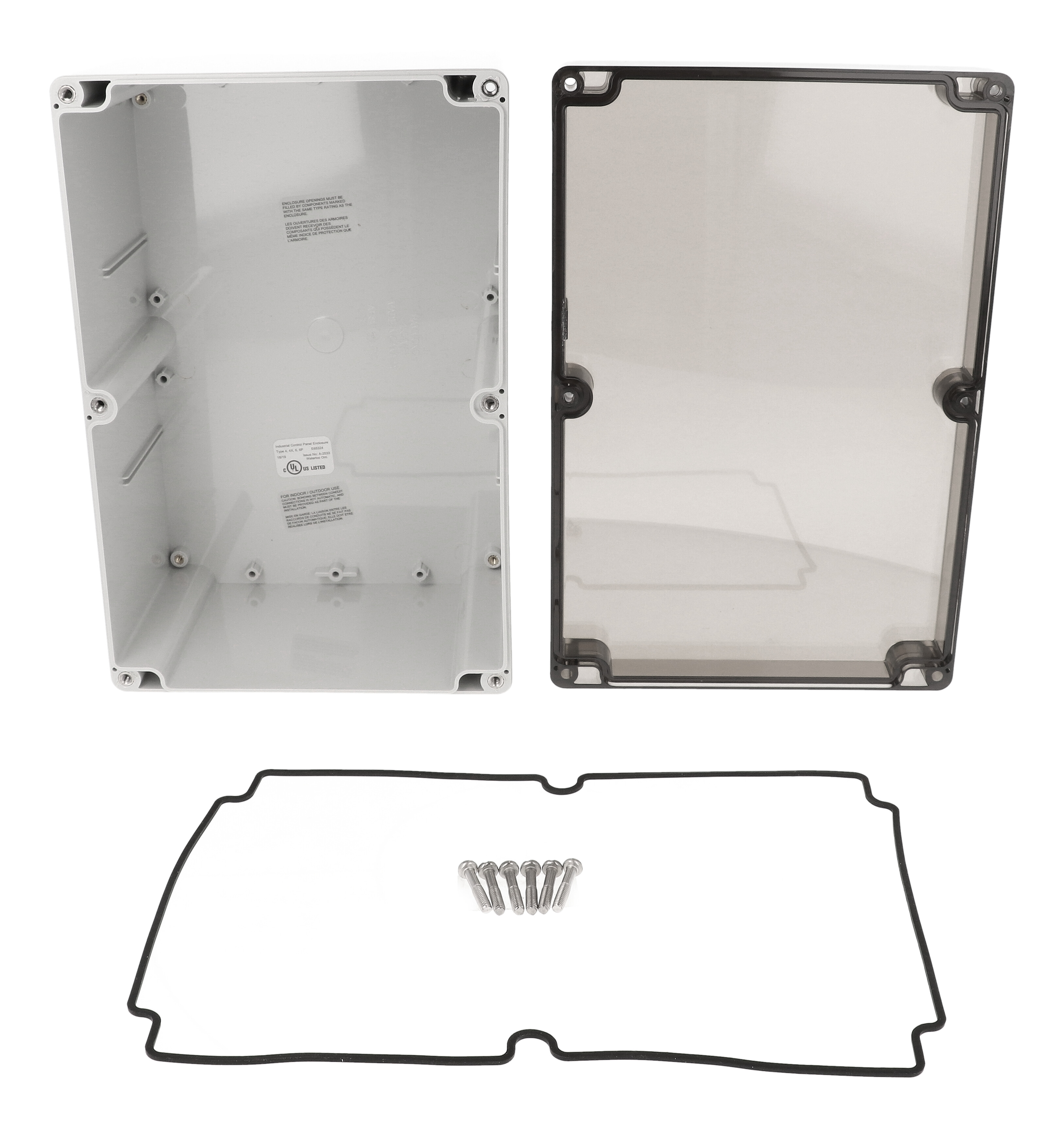

| Included | Box, lid, 6 cover screws and preformed silicone gasket |
