Hammond 1554V2GYCL 240x160x90mm Type 4X Polycarbonate Box, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid for viewing internal displays and indicators
- 240 x 160 mm, 91 mm total height; inside 83.50 mm high
- Type 4, 4X per spec sheet; IP66 and UL94 V-0 per part page
- cUL and UL 508A listed, file E65324
- Includes 4 cover screws and preformed silicone gasket
- UV stabilized; IK08; -40°C to +110°C
- Shrink wrapped, 1.33 lbs (0.60 kg)

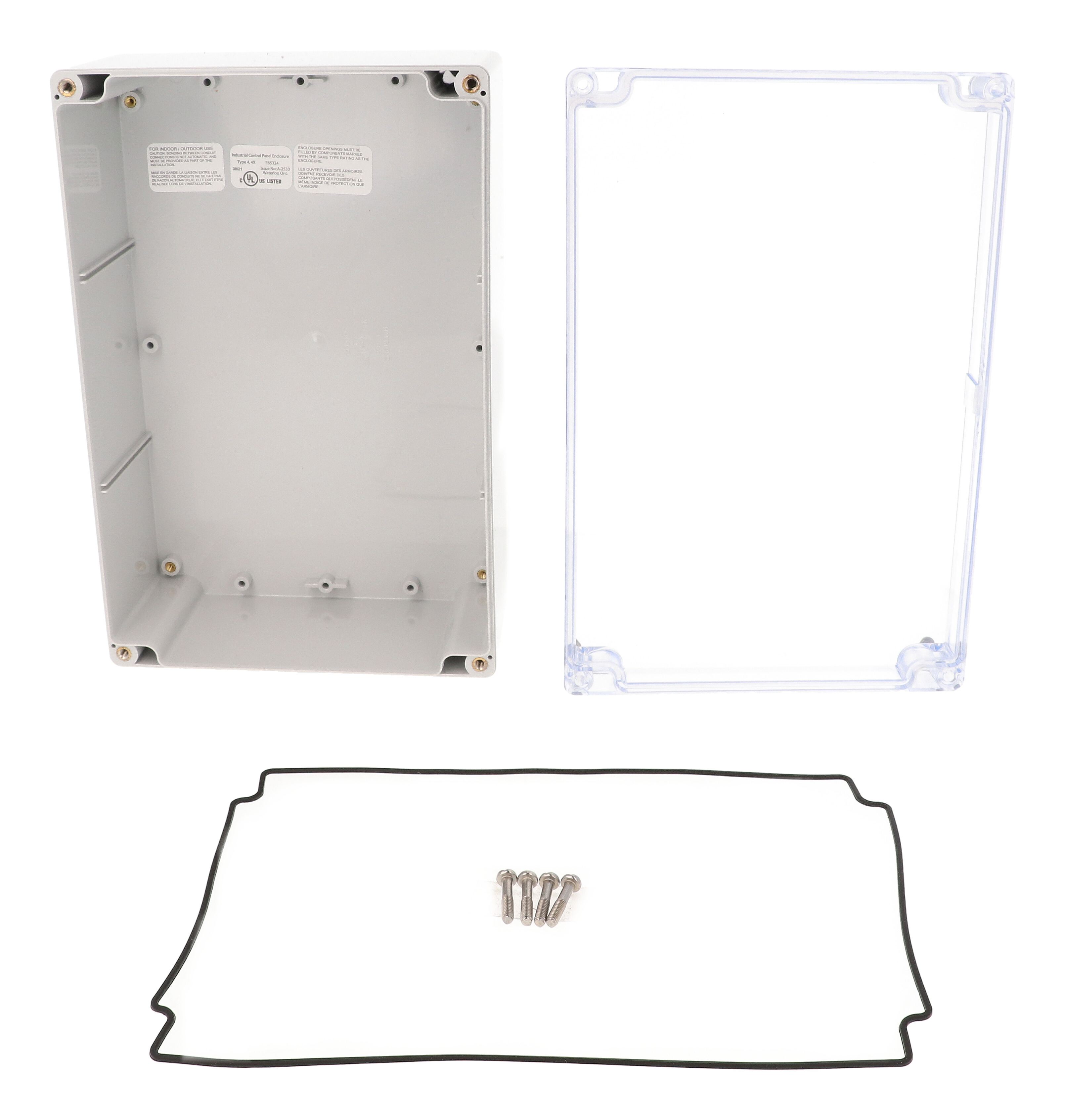

The 1554V2GYCL is the clear-lid version of the 240 x 160 mm, 91 mm high polycarbonate enclosure, combining a polycarbonate box with a clear polycarbonate lid. It is aimed at builds where indicators, displays or meters inside a larger enclosure must remain visible, such as field control and monitoring equipment.
The series specification sheet states this part is Type 4, 4X only, and the drawing carries the cUL US Listed mark (file E65324) with Type 4, 4X. The part page lists IP66, UL94 V-0, a NEMA rating of 1, 4, 4X, 12 & 13, and a color attribute of Clear. Polycarbonate versions are UV stabilized for outdoor use, UL 508A listed, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C.
- Inside dimensions: 232.26 x 148.26 x 83.50 mm
- Maximum P.C. board dimensions (part page): 146.74 mm and 231.47 mm
- Four M4-0.7 x 25 mm stainless cover screws, 71-85 oz f-in (50-60 cN-m)
- Four Ø4.57 mm wall mounting holes outside the gasket channel
The drawing notes that the assembly includes the box, lid, four cover screws and preformed silicone gasket, and the tongue and groove lid protects against oil, dust and water. Molded DIN rail tabs, card guides for 1.5 mm boards and M3 brass inserts are provided, with the 1554VPL inner panel and 1554FT foot kit available. The 1554V2GYCL ships shrink wrapped at 1.33 lbs (0.60 kg).
Ideal For
- Outdoor monitoring equipment with visible displays
- Control electronics needing a view window
- PC board and inner-panel assemblies
- UL 508A control sub-panels
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Lid Version | Clear polycarbonate lid |
| Part Number | 1554V2GYCL |
| Short Description | 240X160X90MM P/C NEMA CLR LID |
Dimensions
| Inside Width | 148.26 mm [5.84 in] |
| Inside Height | 83.50 mm [3.29 in] |
| Inside Length | 232.26 mm [9.14 in] |
| Max. P.C. Board Width | 231.47 mm |
| Max. P.C. Board Length | 146.74 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Nominal Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Overall Length X Width (Drawing) | 240.00 mm [9.45 in] x 160.00 mm [6.30 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554VPL |
| Replacement Gasket | 1554VGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Screws (50-pk) | SC583-50 (stainless steel cover screws, M4-0.7 x 25 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980842479 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554V (Rev 28.02.2020) |
| ABS Gray Lid Version | 1554VGY |
| Polycarbonate Gray Lid Version | 1554V2GY |
| Polycarbonate Clear Lid Version | 1554V2GYCL |
| Polycarbonate Smoked Lid Version | 1554V2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws, and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 1.33 lbs (0.60 kg) |
Construction & Finish
| Lid | Clear polycarbonate |
| Color | Clear |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Cover Screw Size | M4-0.7 x 25 mm (stainless steel) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
| Recommended Cover Screw Torque | 71-85 oz f-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| NEMA Rating (Part Page) | 1, 4, 4X, 12 & 13 |
| Series Flammability Note | Solid gray polycarb UL94-5VA; clear and smoked lids UL94V-0 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Rating (Spec Sheet & Drawing) | Type 4, 4X only |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cUL US Listed, File #E65324, Type 4, 4X |
| REACH Compliant | Yes |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554VPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.57 mm [Ø.18 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554V2GYCL rated NEMA 6P?▾
No. The series spec sheet lists 1554V2GY, 1554V2GYCL and 1554V2GYSL as Type 4, 4X only.
What flame rating does the clear lid have?▾
UL94 V-0 per the part page.
What torque is recommended for the cover screws?▾
71-85 oz f-in (50-60 cN-m).
What are the inside dimensions?▾
232.26 mm long, 148.26 mm wide and 83.50 mm high per the drawing.
Which replacement gasket and screws fit?▾
1554VGASKET (black silicone, pkg 2) and SC583-50 (M4-0.7 x 25 mm stainless, pkg 50).
