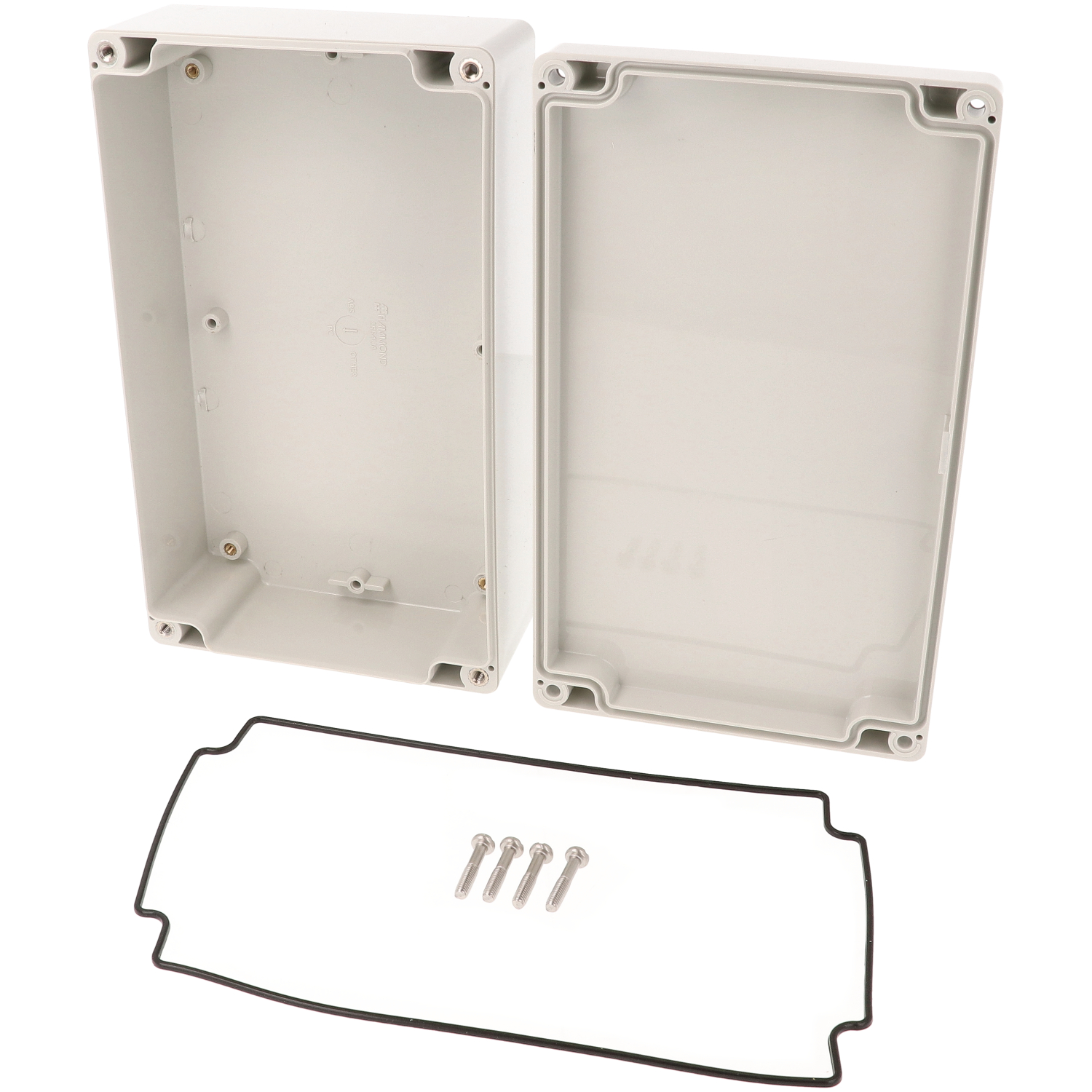

Hammond 1554UAGY 200x120x60mm Gray ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS in light gray RAL 7035 with gray lid, for indoor use
- 200 x 120 x 60 mm; inside 192.47 x 112.47 x 53.60 mm
- Tested to and meets IP66; IK07 impact per IEC 62262:2021
- UL94 HB flame rating; -20°C to +60°C recommended range
- Accepts PC boards up to 190.5 x 106.6 mm
- DIN rail tabs, card guides and M3 brass inserts molded in
- 4 included M4 stainless steel lid screws, self-captivating
The 1554UAGY is the general purpose ABS version of the 200 x 120 x 60 mm size in the 1554 family. Its light gray (RAL 7035) body and matching gray lid make it an option for indoor electronics, controls and DIN rail components where a sealed, screw-cover box is needed but UL listing and outdoor UV resistance are not.
ABS versions are molded from general purpose material rated UL94-HB and are intended for indoor use. They are not UL listed but have been tested to and meet IP66, and carry an IK07 impact rating per IEC 62262:2021. Recommended operating temperature is -20°C to +60°C (-4°F to +140°F).
The lid seals with a two piece tongue and groove design and a replaceable one-piece gasket of high temperature UL listed silicone, which is supplied loose. Four included M4 stainless steel machine screws are self-captivating and thread into corrosion resistant inserts in the lid. Inside, there is 192.47 x 112.47 mm of floor area and 53.60 mm of height, with a maximum P.C. board size of 190.5 x 106.6 mm.
Mounting options include molded DIN rail tabs, vertical card guides for 1.5 mm boards and M3 brass inserts that accept #6 self-tapping screws; the 1554UPL steel inner panel is available separately. The 1554UAGY has four Ø4.30 mm wall mounting holes outside the gasket channel, compatible with the 1554FT foot kit, and a shipping weight of 0.7 lbs (0.32 kg).
Ideal For
- Indoor electronics and PC board housings
- DIN rail terminal and component boxes
- Instrument and control enclosures for indoor equipment
- Prototype and OEM product housings
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Cover Style | Screw cover, flat lid |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Lid Version | Gray lid (ABS, gray only) |
| Part Number | 1554UAGY |
| Short Description | 200X120X60MM ABS NEMA ENCL |
Dimensions
| Inside Width | 112.47 mm [4.43 in] |
| Inside Height | 53.60 mm [2.11 in] |
| Inside Length | 192.47 mm [7.58 in] |
| Max. P.C. Board Width | 106.6 mm |
| Max. P.C. Board Length | 190.5 mm |
| Width (Ordering Table) | 4.72 in (120 mm) |
| Length (Ordering Table) | 7.87 in (200 mm) |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 2.36 in (201 mm x 119 mm x 60 mm) |
| Overall Height (Drawing) | 60.40 mm [2.38 in] |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
| Overall Length X Width (Drawing) | 200.00 mm [7.87 in] x 120.00 mm [4.72 in] |
Accessories
| Foot Kit | 1554FT |
| Inner Panel | 1554UPL |
| Replacement Gasket | 1554UGASKET |
| Replacement Screws (50-pk) | SC576-50 |
Identifiers
| UPC | 623980425825 |
| UNSPSC | 39121301 |
| Drawing Reference | 1554UA (Rev 16.01.2025) |
| ABS Gray Lid Version | 1554UAGY |
| Polycarbonate Gray Lid Version | 1554UA2GY |
| Polycarbonate Clear Lid Version | 1554UA2GYCL |
| Polycarbonate Smoked Lid Version | 1554UA2GYSL |
Packaging & Shipping
| Included | Enclosure with lid, M4 stainless steel lid screws, and silicone gasket (supplied loose) |
| Shipping Weight | 0.7 lbs (0.32 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | M4 stainless steel machine screws (included), self-captivating |
| Qty Lid Screws | 4 |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes threaded with the first installation of lid screws |
Environmental & Protection
| IP Rating | IP66 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Environment | For indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Material Flammability | General purpose ABS, UL94-HB |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | ABS versions are not UL listed (tested to and meet IP66) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Mounting & Internal Features
| Foot Kit | 1554FT (uses the wall mounting holes) |
| Inner Panel | 1554UPL steel panel (order separately) |
| Solid Models | Available in .stp or .x_t |
| PC Card Guides | Vertical PC card guides molded in (for 1.5 mm thick PC boards) |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Wall Mounting Holes | 4X Ø4.30 mm [Ø.17 in], located outside of the gasket channel |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board / Inner Panel Mounting | M3 brass inserts inside box; accepts #6 self-tapping screw |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554UAGY UL listed?▾
No. ABS versions are not UL listed, but they have been tested to and meet IP66. The polycarbonate 1554UA2GY is the UL listed alternative in this size.
Can the 1554UAGY be used outdoors?▾
The ABS versions are specified for indoor use. Polycarbonate versions are the UV stabilized option for outdoor use.
What is the operating temperature range?▾
-20°C to +60°C (-4°F to +140°F) is recommended for ABS versions.
Are other lid colors available?▾
The ABS version is available only in gray. Clear and smoked lids are offered on polycarbonate versions (1554UA2GYCL, 1554UA2GYSL).
What replacement parts fit?▾
Gasket 1554UGASKET, screws SC576-50 (50-pk), inner panel 1554UPL and foot kit 1554FT.
Related Products

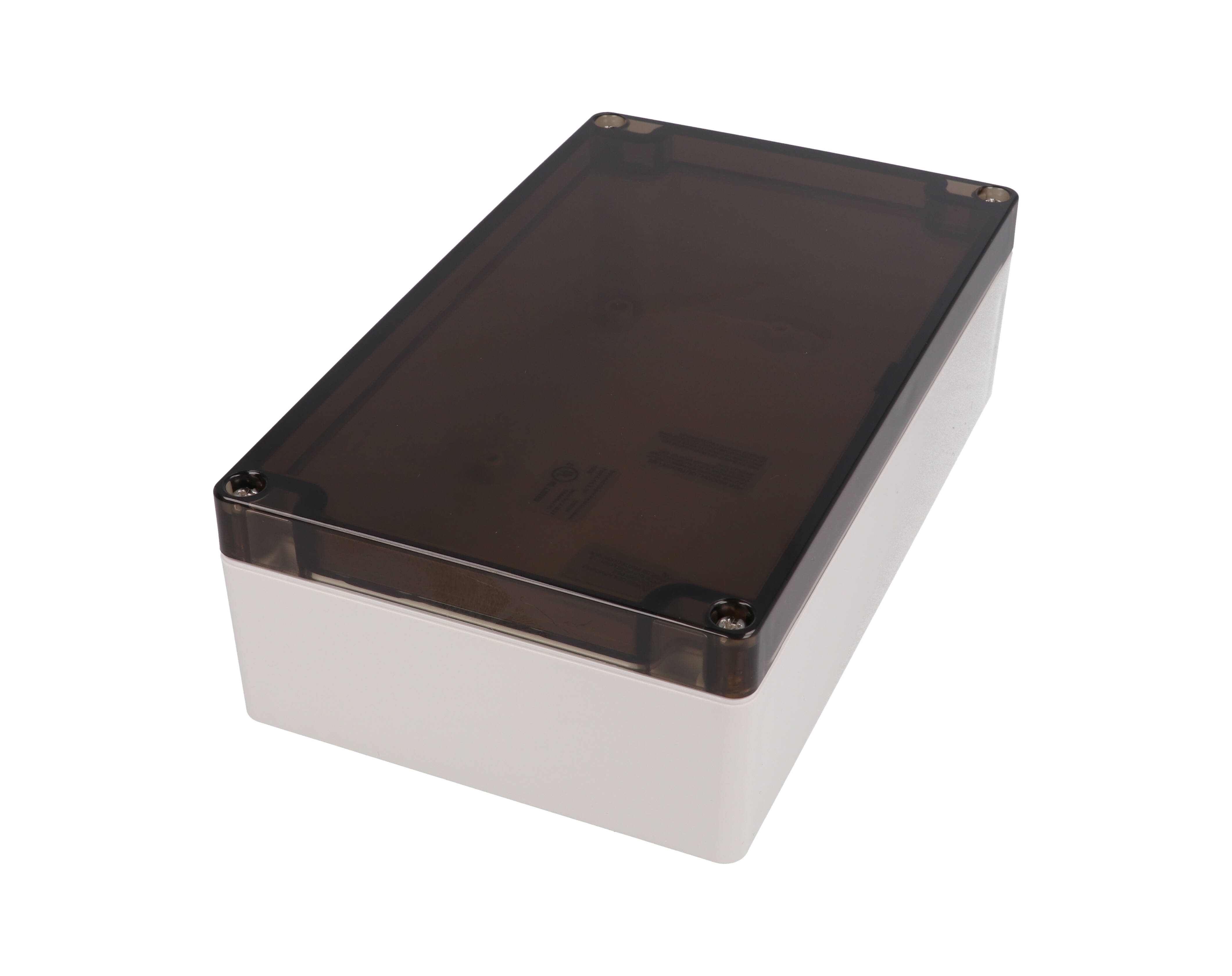

Save 52%1554UA2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoke lid
Hammond Manufacturing · 1554UA2GYSL
Save 52%1554UCL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554UCL

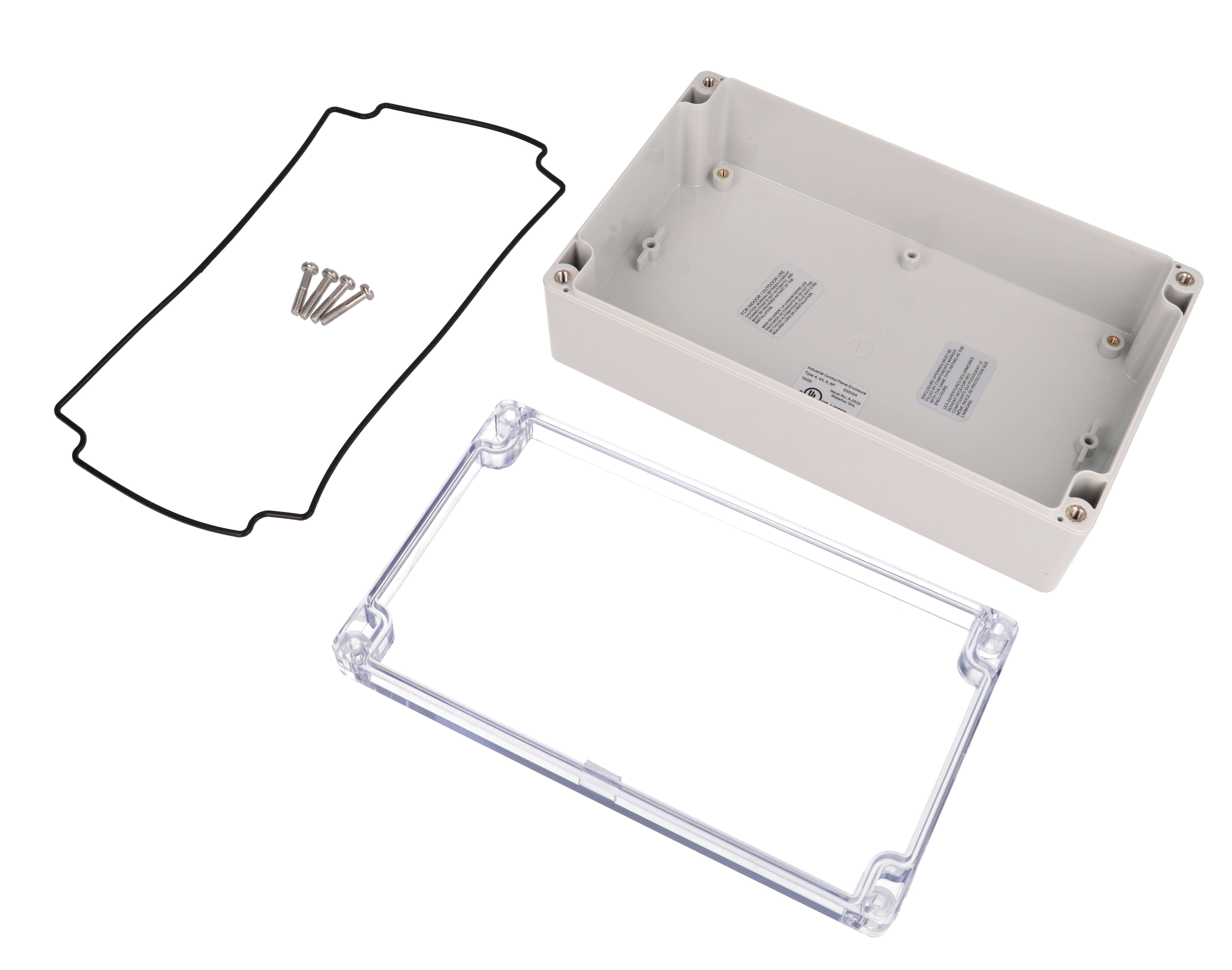

Save 52%1554UA2GYCL — RAL7035 grey polycarb plastic watertight enclosure, clear lid
Hammond Manufacturing · 1554UA2GYCL
Save 52%1554UGASKET — replacement gaskets for 1554 series, 2-pack
Hammond Manufacturing · 1554UGASKET

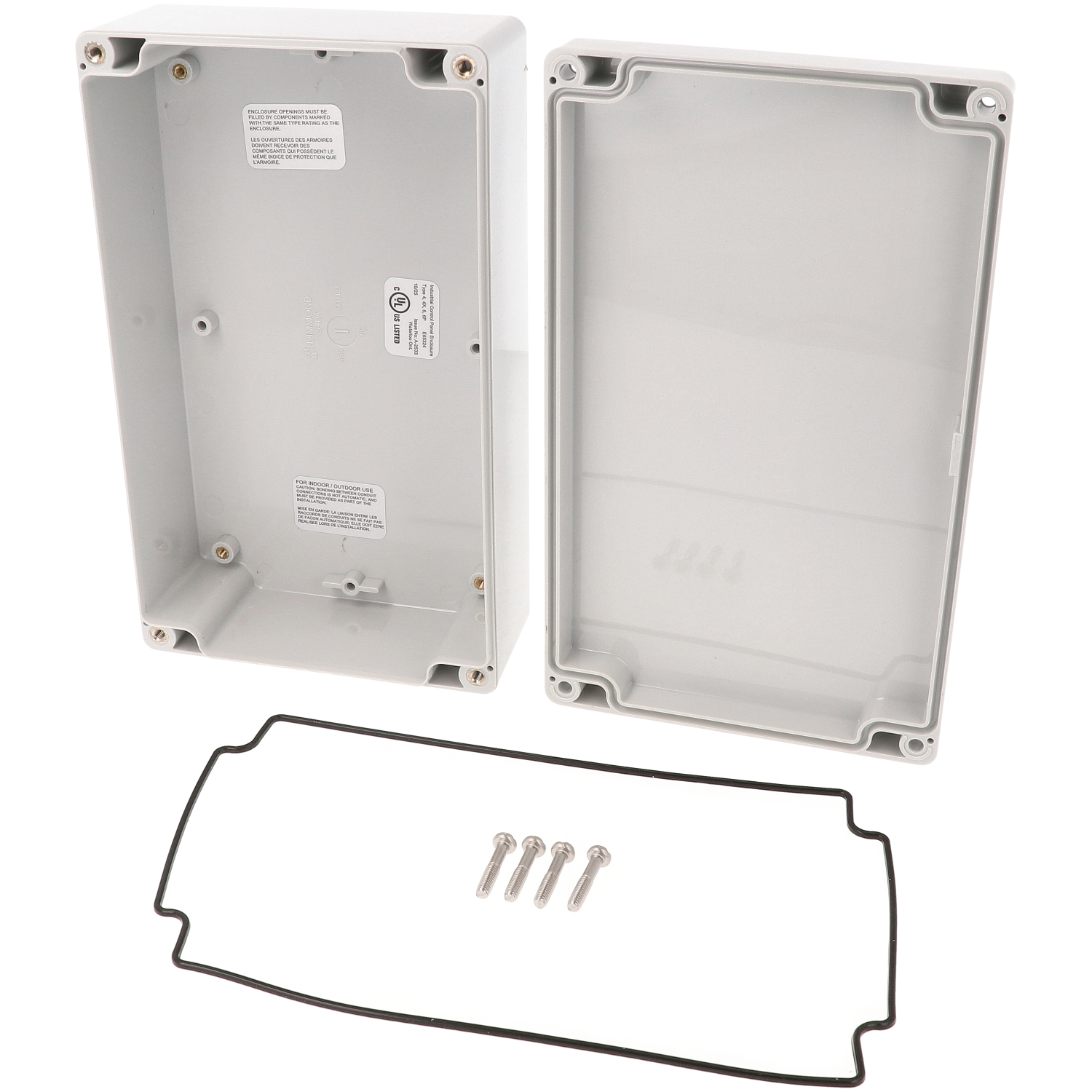

Save 52%1554UA2GY — RAL7035 grey polycarb plastic watertight enclosure
