Hammond 1554T2GYCL 180x120x90mm Clear Lid Polycarbonate NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid over a light gray polycarbonate box
- 180 x 120 x 90 mm nominal, 91 mm total height
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13 per part page
- UL94 V-0; cUL and UL 508A listed, file E65324
- UV stabilized for outdoor use, IK08 impact rating
- PC boards up to 106.68 x 167.13 mm; 84.50 mm inside height

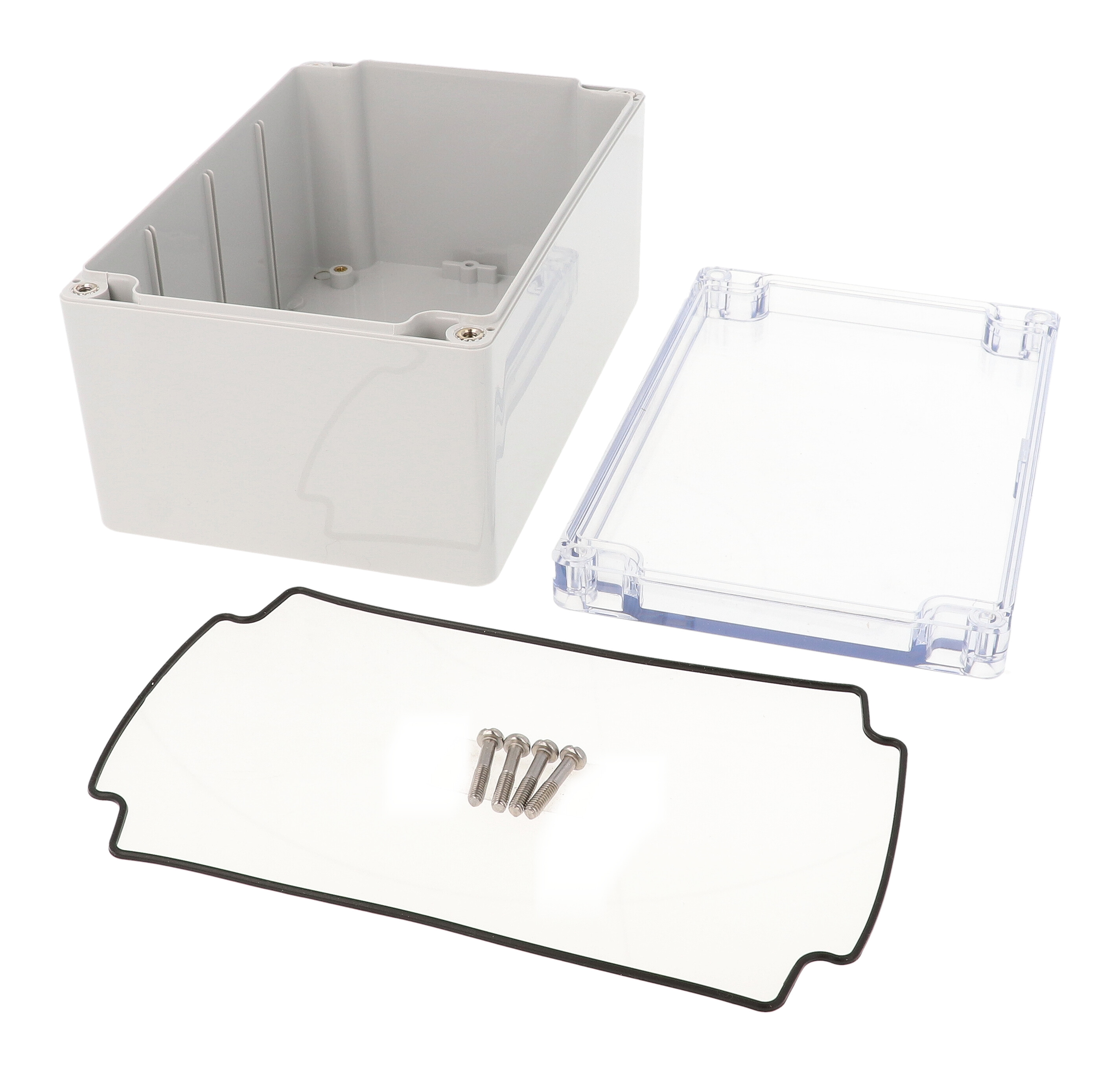

- Box, lid, 4 cover screws and preformed gasket included

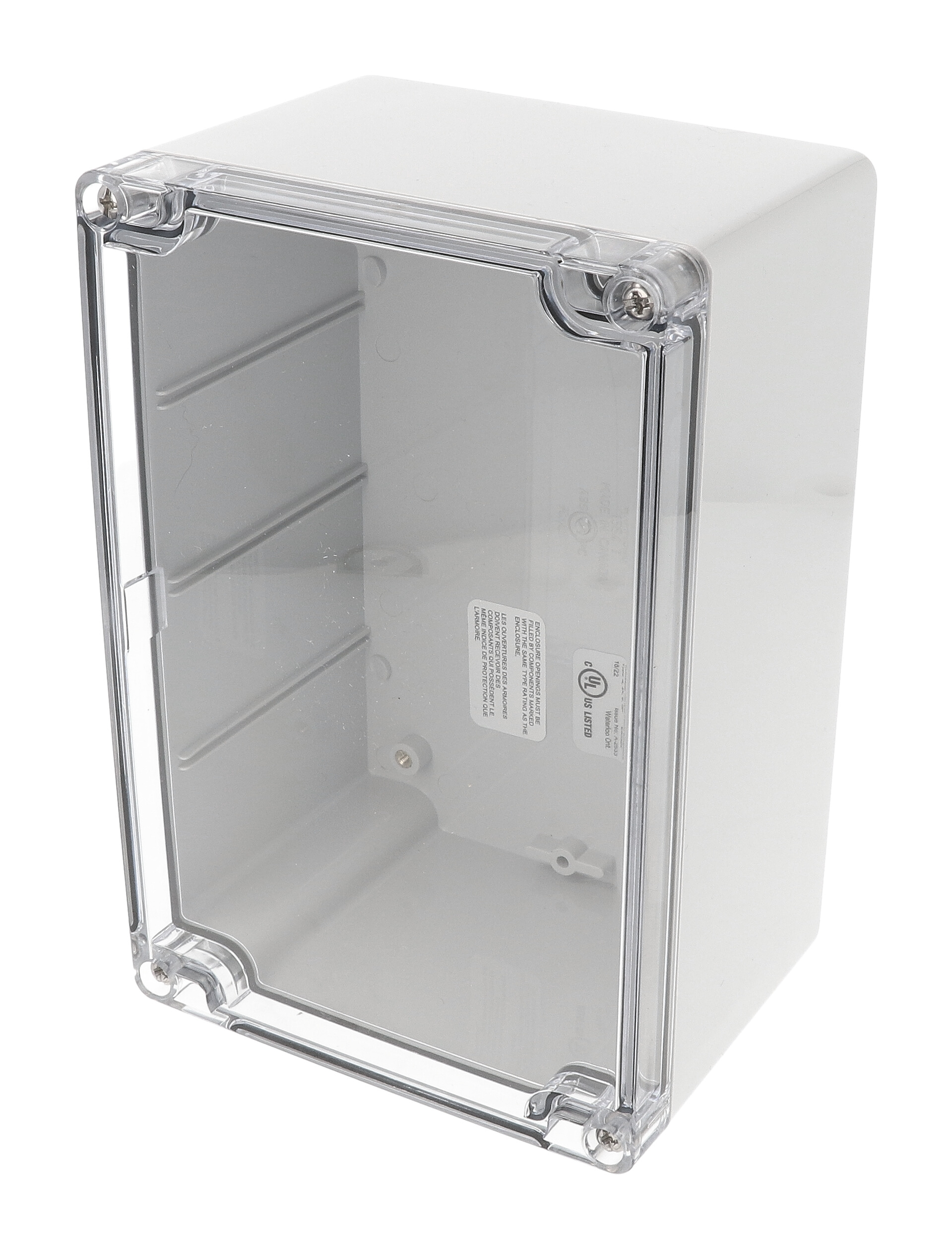

The 1554T2GYCL is the clear-lid version of the 180 x 120 x 90 mm nominal rectangular size in the 1554 Series, pairing a light gray RAL 7035 polycarbonate box with a transparent polycarbonate lid. It is a good fit for field instruments, displays and DIN rail devices that technicians need to read or inspect without opening the enclosure.
This part lists a UL94 V-0 flame rating, IP68, and NEMA 4, 4X, 6, 6P, 12 & 13. As a polycarbonate version it is UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C (-40°F to +230°F).
- Ordering-table size: 7.09 x 4.72 x 3.58 in (180 x 120 x 91 mm)
- Inside height 84.50 mm (3.33 in); inside length 172.13 mm (6.78 in)
- Maximum PC board: 106.68 x 167.13 mm
- Shipping weight: 0.89 lbs (0.40 kg)
Included are the box, lid, four cover screws and a preformed silicone gasket, which ships loose. The lid closes with self-captivating M4 stainless steel screws into corrosion resistant inserts; recommended torque is 43-57 oz f-in (30-40 cN-m). Inside the 1554T2GYCL, DIN rail tabs, M3 brass inserts and card guides take components directly, or you can add the 1554HPL steel inner panel, ordered separately.
Ideal For
- Outdoor display and meter housings
- Visible-indicator control enclosures
- DIN rail devices needing inspection
- Wet-location instrumentation
Overview
| Lid | Clear polycarbonate lid |
| Type | Water-tight |
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Screw cover, flat lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Short Description | 180X120X90MM P/C NEMA CLR LID |
Dimensions
| Inside Height | 84.50 mm [3.33 in] |
| Inside Length | 172.13 mm [6.78 in] |
| Mounting Holes | 4X 4.00 mm [.16 in] |
| Size L X W X H | 7.1 in x 4.7 in x 3.5 in (180 mm x 119 mm x 89 mm) |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
| Nominal Width (Ordering Table) | 4.72 in (120 mm) |
| Nominal Length (Ordering Table) | 7.09 in (180 mm) |
| Steel Inner Panel Size (Drawing) | 167.13 x 106.68 mm [6.58 x 4.20 in] |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554HGASKET (silicone pre-formed gasket, black, pkg 2) |
| Replacement Lid Screws (50-pk) | SC576-50 (stainless steel, M4-0.7 x 20 mm) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Steel Inner Panel (Order Separately) | 1554HPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers

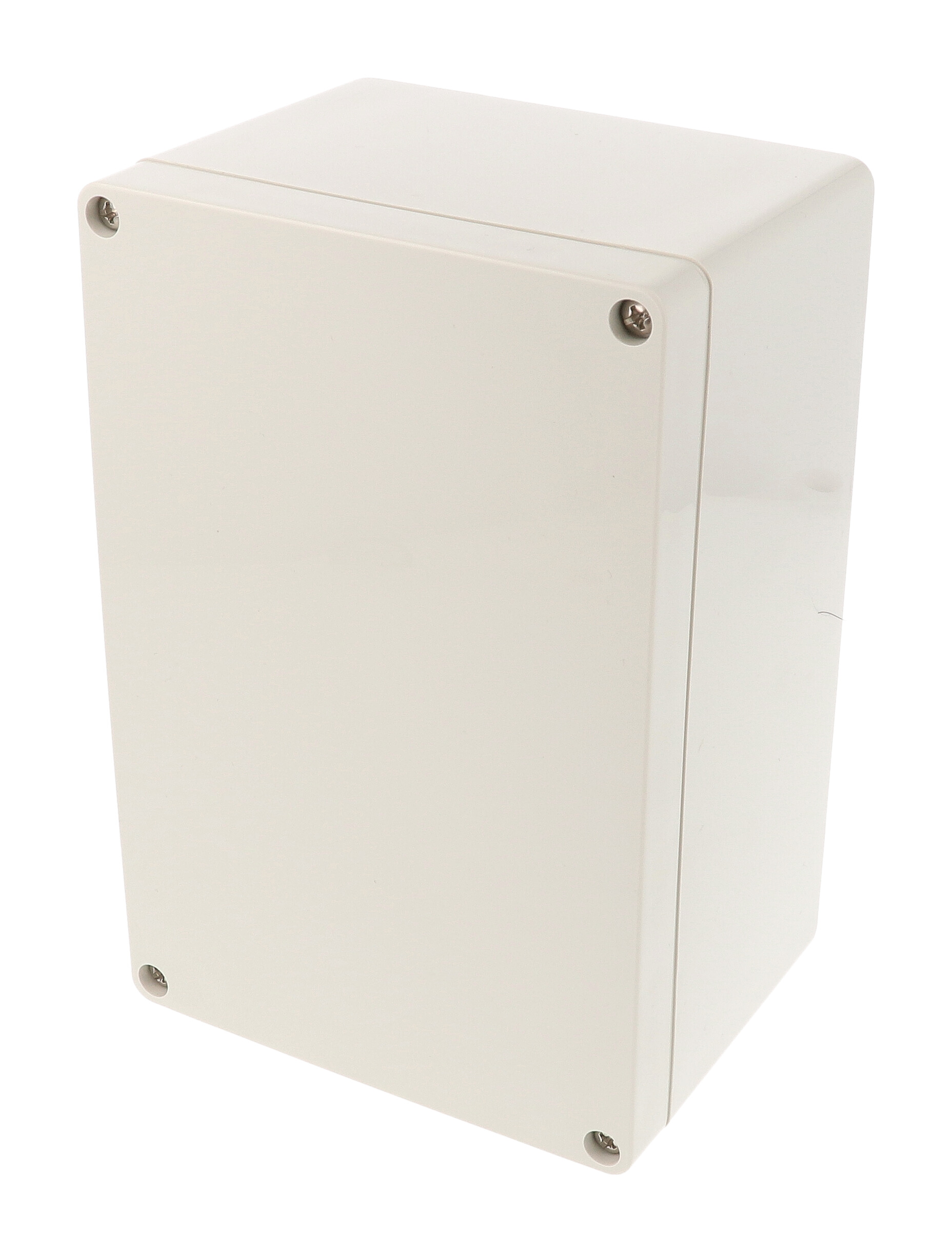

| UPC | 623980842431 |
| UNSPSC | 39121301 |
| Part Number | 1554T2GYCL |
| Drawing Revision | 28.02.2020 |
| Same-Size Versions | ABS gray lid 1554TGY; polycarbonate gray lid 1554T2GY; clear lid 1554T2GYCL; smoked lid 1554T2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.89 lbs (0.40 kg) |
Construction & Finish
| Color | Clear |
| Gasket | Replaceable one-piece gasket, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | Qty 4, M4 stainless steel machine screws (included), self-captivating |
| Wall Mounting | Wall-mounting holes located outside the gasket channel |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts and/or standoffs accepting #6 self-tapping screws; vertical PC card guides for 1.5 mm thick PC boards |
| Lid Screw Inserts | M4 corrosion resistant inserts/bushings |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Flame Rating (Series) | Solid gray polycarbonate carries UL94-5VA; clear and smoked lids carry UL94 V-0 |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| IP Ratings (Series Testing) | IP66, IP67, IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| NEMA Type Ratings (Series Testing) | Type 4, 4X, 6, 6P, 12 and 13 |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | C-UL-US Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why does the clear lid version list UL94 V-0 instead of 5VA?▾
In the series, solid gray polycarbonate carries UL94-5VA while clear and smoked lids carry UL94 V-0.
What is the usable inside height?▾
84.50 mm (3.33 in) per the drawing.
What comes in the box?▾
The box, lid, four cover screws and a preformed silicone gasket (supplied loose, not pre-installed).
Which foot kit and gasket fit?▾
Foot kit 1554FT and replacement gasket 1554HGASKET.
Can Hammond modify the enclosure?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.) and solid models are available in .stp or .x_t.
