Hammond 1554R2GYCL 160mm Square, 61mm High Polycarbonate Box, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid over a light gray polycarbonate box
- 160 x 160 x 61 mm (6.3 x 6.3 x 2.4 in) overall
- IP68; NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed (E65324); clear lid rated UL94 V-0
- UV stabilized, IK08 impact rated, -40°C to +110°C
- PC boards up to 147.4 x 150.95 mm; 54.00 mm inside height
- DIN rail tabs, M3 brass inserts and card guides molded in

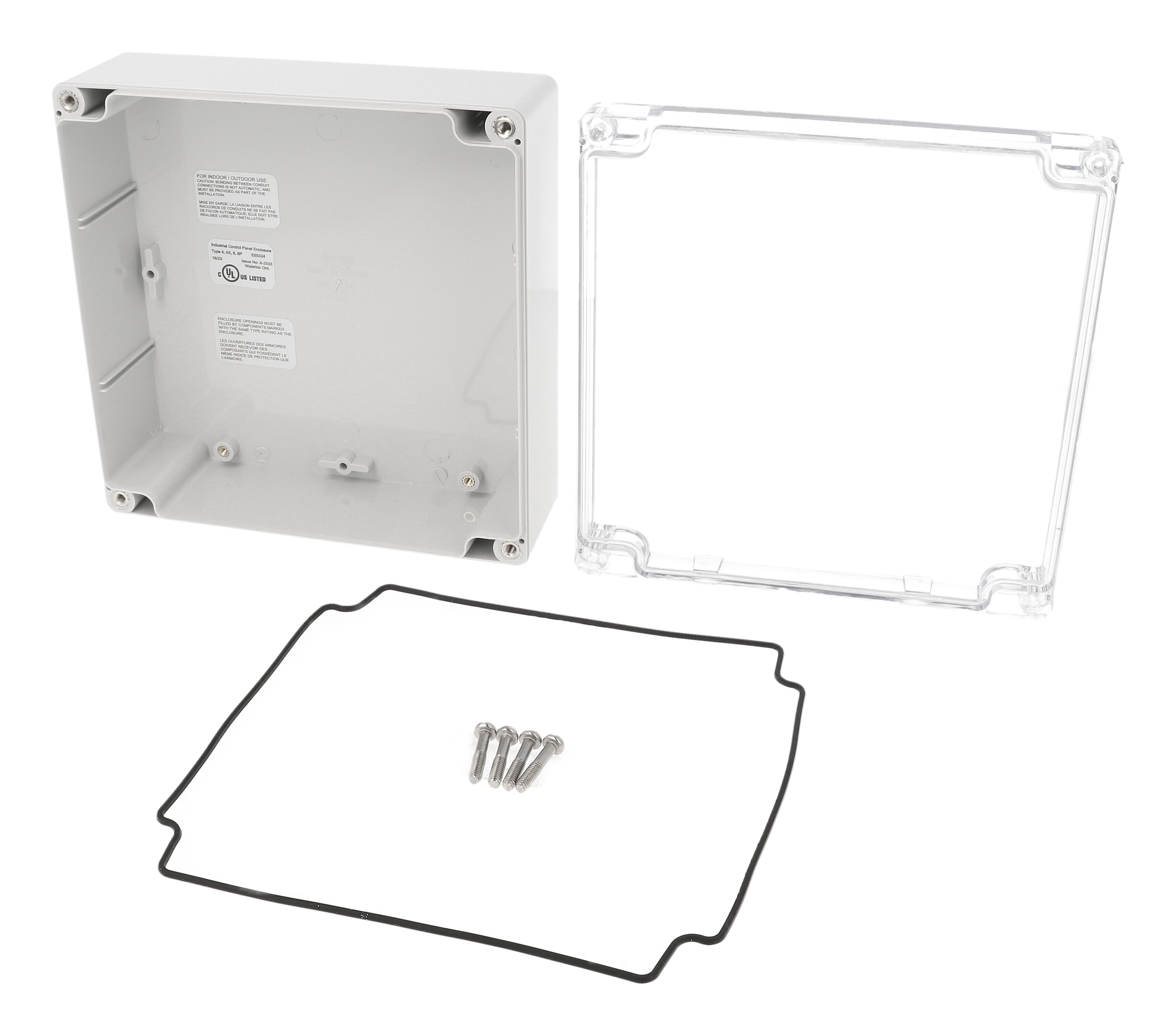

The 1554R2GYCL is a 160 x 160 x 61 mm (6.3 x 6.3 x 2.4 in) polycarbonate enclosure with a clear polycarbonate lid over a light gray RAL 7035 polycarbonate box. The see-through cover lets technicians check displays, meters or indicator LEDs without breaking the seal.
The clear lid carries a UL94 V-0 flame rating. Polycarbonate 1554 enclosures are UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, rated IP68 and independently tested to IP66, IP67 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The impact rating is IK08 per IEC 62262:2021 and the recommended operating range is -40°C to +110°C.
The drawing shows 152.91 x 148.91 mm inside with 54.00 mm of height, and the maximum PC board is 147.4 x 150.95 mm. DIN rail mounting tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and 1.5 mm card guides are molded in; the 1554RPL steel inner panel is optional.
A two-piece tongue and groove lid with a loose-supplied one-piece silicone gasket keeps out oil, dust and water. Four included M4 stainless steel screws thread into corrosion resistant bushings (43-57 oz f-in recommended torque). Mount through four 4.00 mm holes outside the gasket channel or with the 1554FT foot kit. Shipping weight is 0.82 lbs (0.37 kg).
Ideal For
- Outdoor display and meter enclosures
- Indicator-visible control boxes
- DIN rail equipment in wet areas
- Field-mounted PC board housings
Overview
| Lid | Clear polycarbonate lid |
| Color | Clear |
| Series | 1554 |
| Material | Polycarbonate |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554R2GYCL |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 160X160X60MM P/C NEMA CLR LID |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Total Height | 2.40 in (61 mm) |
| Size (L X W X H) | 6.3 in x 6.3 in x 2.4 in (160 mm x 160 mm x 61 mm) |
| Max. P.C. Board Width | 150.95 mm |
| Inside Width (Drawing) | 148.91 mm [5.86 in] |
| Max. P.C. Board Length | 147.4 mm |
| Inside Height (Drawing) | 54.00 mm [2.13 in] |
| Inside Length (Drawing) | 152.91 mm [6.02 in] |
| Assembled Height (Drawing, Side View) | 60.50 mm [2.38 in] |
Accessories
| Inner Panel | 1554RPL (steel, order separately) |
| Replacement Gasket | 1554RGASKET (silicone pre-formed gasket, black, pkg of 2) |
| Panel / PC Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg of 100) |
| Replacement Lid Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg of 50) |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Panel / PC Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg of 100) |
Identifiers
| UPC | 623980842455 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
Related Versions
| ABS, Gray Lid | 1554RGY |
| Polycarbonate, Gray Lid | 1554R2GY |
| Polycarbonate, Clear Lid | 1554R2GYCL |
| Polycarbonate, Smoked Lid | 1554R2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| Flame Rating Note | Clear and smoked lids carry UL94 V-0; solid gray polycarbonate carries UL94-5VA |
| NEMA Type Ratings | 4, 4X, 6, 6P, 12 and 13 (independently tested) |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X 4.00 mm [.16 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1554R2GYCL have a see-through lid?▾
Yes, it has a clear polycarbonate lid; the part page lists its color as Clear.
What flame rating does the clear lid carry?▾
UL94 V-0.
Is the 1554R2GYCL suitable for outdoor mounting?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use and are rated IP68.
What is the internal space?▾
152.91 x 148.91 mm inside with 54.00 mm of height per the drawing; maximum PC board 147.4 x 150.95 mm.
What accessories fit?▾
Inner panel 1554RPL, foot kit 1554FT, replacement gasket 1554RGASKET and SC576-50 lid screws.
Related Products
Save 52%1554R2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554R2GY
Save 52%1554R2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554R2GYSL
Save 52%1554QPL — Panel for 1554Q, QA - Galv
Hammond Manufacturing · 1554QPL
Save 52%1554RCL — CLEAR PC LID ONLY
Hammond Manufacturing · 1554RCL

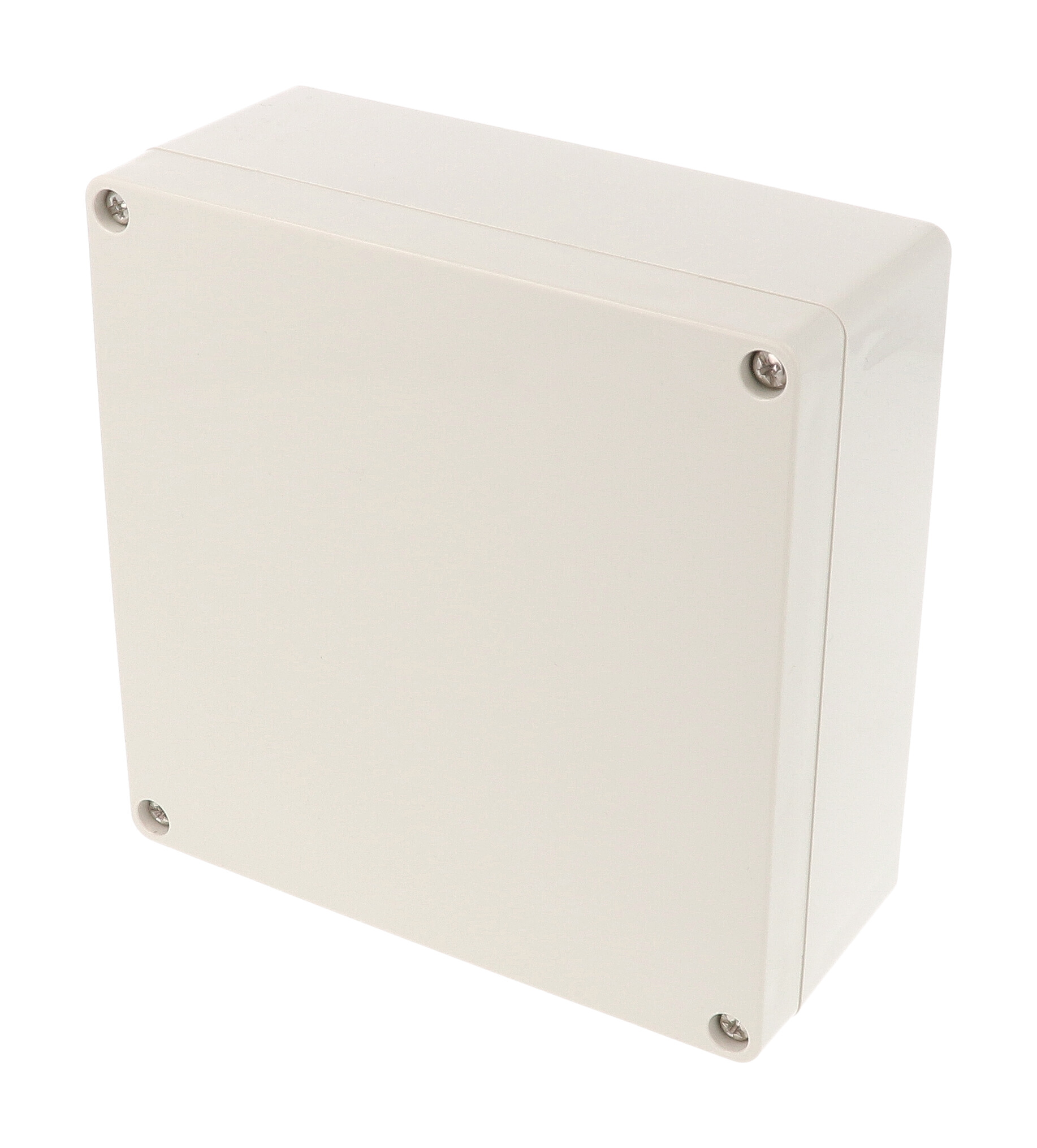

Save 52%1554QGY — RAL7035 grey ABS plastic watertight enclosure
