Hammond 1554Q2GYSL 140mm Square, 60mm Polycarbonate Box, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid on a light gray RAL 7035 polycarbonate box
- 140 x 140 x 60 mm (5.51 x 5.51 x 2.36 in) overall
- cUL and UL 508A listed (E65324); smoked lid rated UL94 V-0
- IP68 rated; NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- UV stabilized for outdoor use, IK08 impact rated
- Molded DIN rail tabs, M3 brass inserts and 1.5 mm PC card guides
- Max PC board 127 x 127.5 mm; optional 1554QPL steel inner panel
- Mounting holes outside the gasket channel; 1554FT foot kit compatible

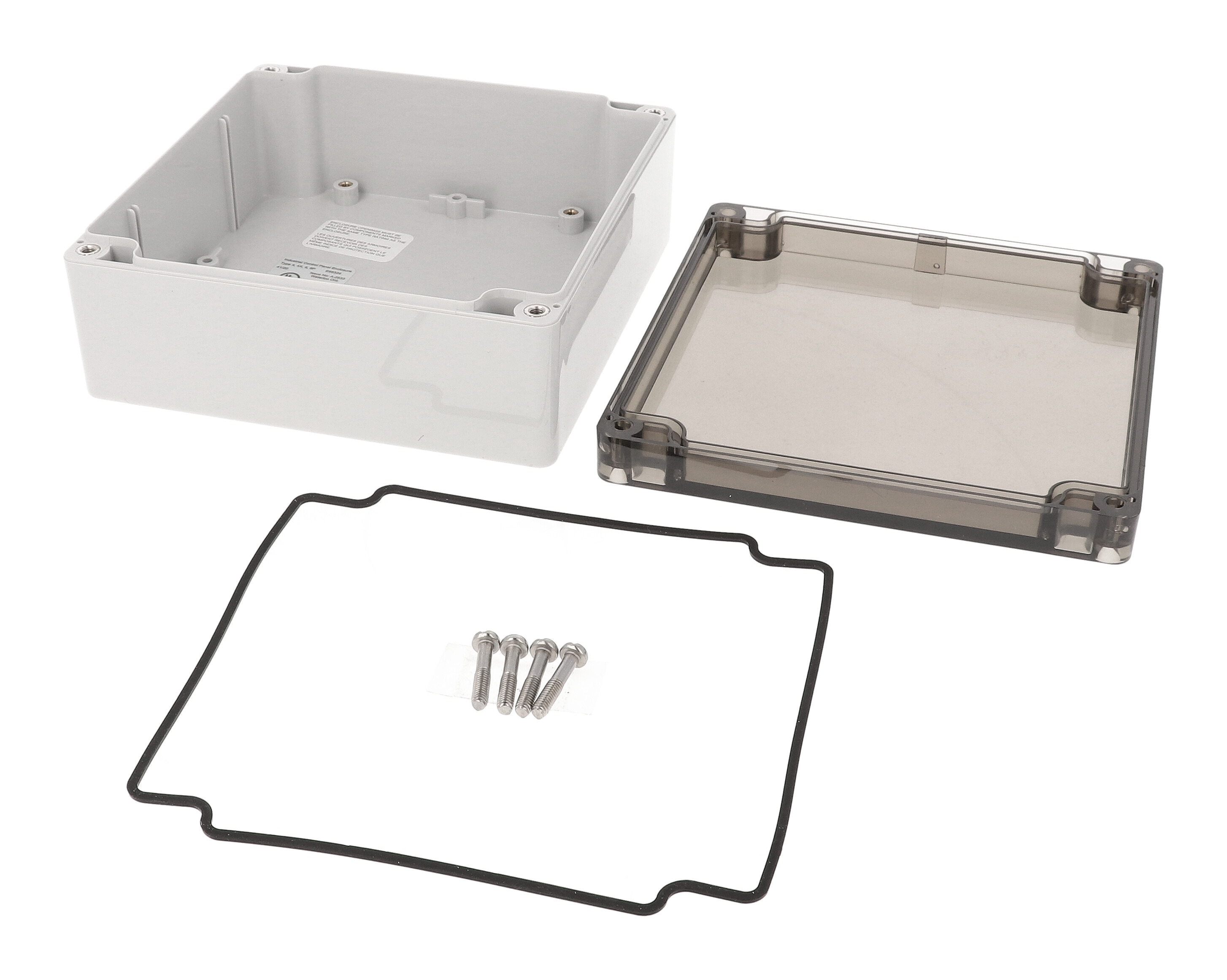

The 1554Q2GYSL is a 140 x 140 x 60 mm (5.51 x 5.51 x 2.36 in) polycarbonate enclosure with a light gray RAL 7035 base and a smoked polycarbonate lid. The tinted cover lets status LEDs or displays show through while giving a more subdued look than a clear lid, a good fit for OEM products and field-installed electronics.
Like the other polycarbonate 1554 enclosures, it is UV stabilized for outdoor use, independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and cUL and UL 508A listed under file E65324. The smoked lid carries a UL94 V-0 flame rating, the enclosure has an IK08 impact rating, and the recommended operating range is -40°C to +110°C (-40°F to +230°F).
A two-piece tongue and groove lid and a replaceable silicone gasket (supplied loose) keep out oil, dust and water. The lid fastens with four included M4 stainless steel machine screws into corrosion resistant bushings, torqued to 43-57 oz f-in (30-40 cN-m).
Per the drawing, inside dimensions are 132.36 x 128.69 mm with 53.70 mm of height. Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides support boards up to 127 x 127.5 mm or the optional 1554QPL steel panel. Mounting holes (4 x 4.30 mm) sit outside the gasket and also fit the 1554FT foot kit. Shipping weight: 0.64 lbs (0.29 kg).
Ideal For
- Outdoor sensor and controller housings
- LED status indicator enclosures
- DIN rail terminal and relay boxes
- OEM PCB enclosures
Overview
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Series | 1554 |
| Material | Polycarbonate |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Part Number | 1554Q2GYSL |
| Enclosure Type | Water-tight, screw cover, flat lid |
| Enclosure Color | Light gray (RAL 7035) |
| Short Description | 140X140X60MM P/C NEMA SMK LID |
Dimensions
| Width | 5.51 in (140 mm) |
| Length | 5.51 in (140 mm) |
| Total Height | 2.36 in (60 mm) |
| Size (L X W X H) | 5.51 in x 5.51 in x 2.36 in (140 mm x 140 mm x 60 mm) |
| Max. P.C. Board Width | 127.5 mm |
| Inside Width (Drawing) | 128.69 mm [5.07 in] |
| Max. P.C. Board Length | 127 mm |
| Inside Height (Drawing) | 53.70 mm [2.11 in] |
| Inside Length (Drawing) | 132.36 mm [5.21 in] |
| Assembled Height (Drawing, Side View) | 60.10 mm [2.37 in] |
Accessories
| Inner Panel | 1554QPL (steel, order separately) |
| Replacement Gasket | 1554QGASKET (silicone pre-formed gasket, black, pkg of 2) |
| Panel / PC Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg of 100) |
| Replacement Lid Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg of 50) |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Panel / PC Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg of 100) |
Identifiers
| UPC | 623980781655 |
| UNSPSC | 39121301 |
| Drawing Revision | 28.02.2020 |
Related Versions
| ABS, Gray Lid | 1554QGY |
| Polycarbonate, Gray Lid | 1554Q2GY |
| Polycarbonate, Clear Lid | 1554Q2GYCL |
| Polycarbonate, Smoked Lid | 1554Q2GYSL |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Gasket | Replaceable one-piece gasket of high temperature UL listed silicone, supplied loose inside the enclosure (not pre-installed) |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant bushings/inserts |
| Lid Construction | Gasketed lid with two-piece tongue and groove construction; protects against access of oil, dust and water |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents or cleaners not listed as plastic safe, and some greases and oils |
| Lid Screw Retention | Self-captivating; lid holes are threaded with the first installation of the lid screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); quotes from the factory |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV / Outdoor Use | UV stabilized for outdoor use |
| Flame Rating Note | Clear and smoked lids carry UL94 V-0; solid gray polycarbonate carries UL94-5VA |
| NEMA Type Ratings | 4, 4X, 6, 6P, 12 and 13 (independently tested) |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Mounting & Internal Features
| DIN Rail | Internal DIN rail mounting tabs molded in |
| Foot Kit | 1554FT (installs using the wall-mounting holes) |
| Mounting Holes | 4X 4.30 mm [.17 in], located outside the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick PC boards |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs accepting #6 self-tapping screws |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1554Q2GYSL and 1554Q2GYCL?▾
Both are 140 x 140 x 60 mm polycarbonate enclosures; the 1554Q2GYSL has a smoked lid while the 1554Q2GYCL has a clear lid. A solid gray lid version is 1554Q2GY.
Is the 1554Q2GYSL rated for wet or outdoor locations?▾
Yes. It is rated IP68, the polycarbonate versions are tested to NEMA Type 4, 4X, 6, 6P, 12 and 13, and they are UV stabilized for outdoor use.
What flame rating does the smoked lid have?▾
Clear and smoked lids carry a UL94 V-0 rating.
How much internal space is there?▾
The drawing shows 132.36 x 128.69 mm inside with 53.70 mm of inside height; the maximum PC board is 127 x 127.5 mm.
Is the gasket pre-installed?▾
No, the silicone gasket is supplied loose inside the enclosure. The replacement part is 1554QGASKET.
