Hammond 1554P2GYCL Deep 120x120x80mm Clear Lid Polycarbonate Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear UL94 V-0 polycarbonate lid on a deep light gray polycarbonate box
- 80 mm total height, 74 mm inside height, 120 x 120 mm footprint
- IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13 tested
- cUL and UL 508A listed, file E65324
- UV stabilized for outdoor use; IK08 impact rating
- Accepts 1554NPL inner panel and 1554FT foot kit

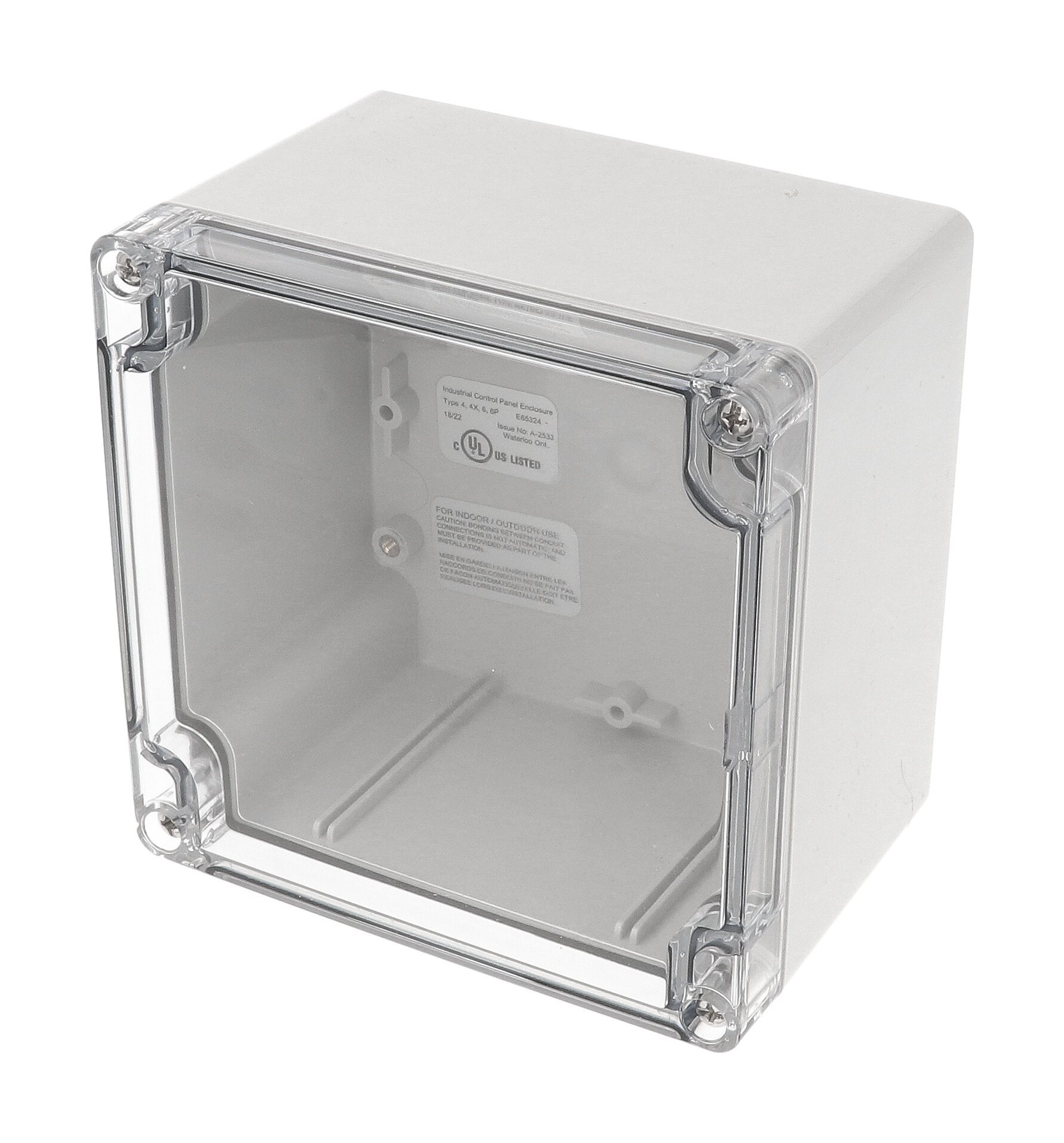

The 1554P2GYCL gives the deep 1554P enclosure a clear polycarbonate lid, so taller assemblies, displays and indicator lamps remain visible inside a sealed, UL listed box. The base is light gray RAL 7035 polycarbonate.
Nominal size from the ordering table is 120 x 120 x 80 mm (4.72 x 4.72 x 3.15 in), consistent with the 80.00 mm overall height on the drawing; the part page lists 4.7 x 4.7 x 3.5 in (119 x 119 x 89 mm). Inside height is 74.00 mm and inside length 111.89 mm, and P.C. boards up to 106.68 x 107.7 mm fit.
- Clear polycarbonate lid, UL94 V-0
- Tongue and groove seal with one-piece silicone gasket, supplied loose
- Four self-captivating M4 stainless steel screws, 43-57 ozf-in (30-40 cN-m)
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs, 1.5 mm card guides
Polycarbonate versions including the 1554P2GYCL are cUL and UL 508A listed (E65324), UV stabilized for outdoor use, tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, IK08 impact rated and recommended for -40°C to +110°C. Four 4.00 mm wall-mounting holes sit outside the gasket channel, and the 1554NPL panel and 1554FT foot kit are available.
Ideal For
- Deep enclosures with visible displays or indicators
- Outdoor control and monitoring electronics
- DIN rail modules requiring visual checks
- UL 508A control applications
Overview
| Type | Water-tight |
| Version | Polycarbonate box / clear polycarbonate lid |
| Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Part Number | 1554P2GYCL |
| Short Description | 120X120X90MM P/C NEMA CLR LID |
| Enclosure Size Code | P |
Dimensions
| Inside Height | 74.00 mm [2.91 in] |
| Inside Length | 111.89 mm [4.41 in] |
| Max. P.C. Board Width | 107.7 mm |
| Max. P.C. Board Length | 106.68 mm |
| Nominal Size (L X W X H) | 4.72 in x 4.72 in x 3.15 in (120 mm x 120 mm x 80 mm) |
| Overall Height (Drawing) | 80.00 mm [3.15 in] |
| Size L X W X H (Part Page) | 4.7 in x 4.7 in x 3.5 in (119 mm x 119 mm x 89 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554NGASKET (silicone, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (M4-0.7 x 20 mm stainless, pkg 50) |
| Inner Panel (Order Separately) | 1554NPL steel inner panel |
| Panel / P.C. Board Self-Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980842417 |
| UNSPSC | 39121301 |
| Drawing Revision | 01.04.2026 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.6 lbs (0.27 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Clear |
| Gasket | One-piece replaceable high-temperature UL listed silicone, supplied loose (not pre-installed) |

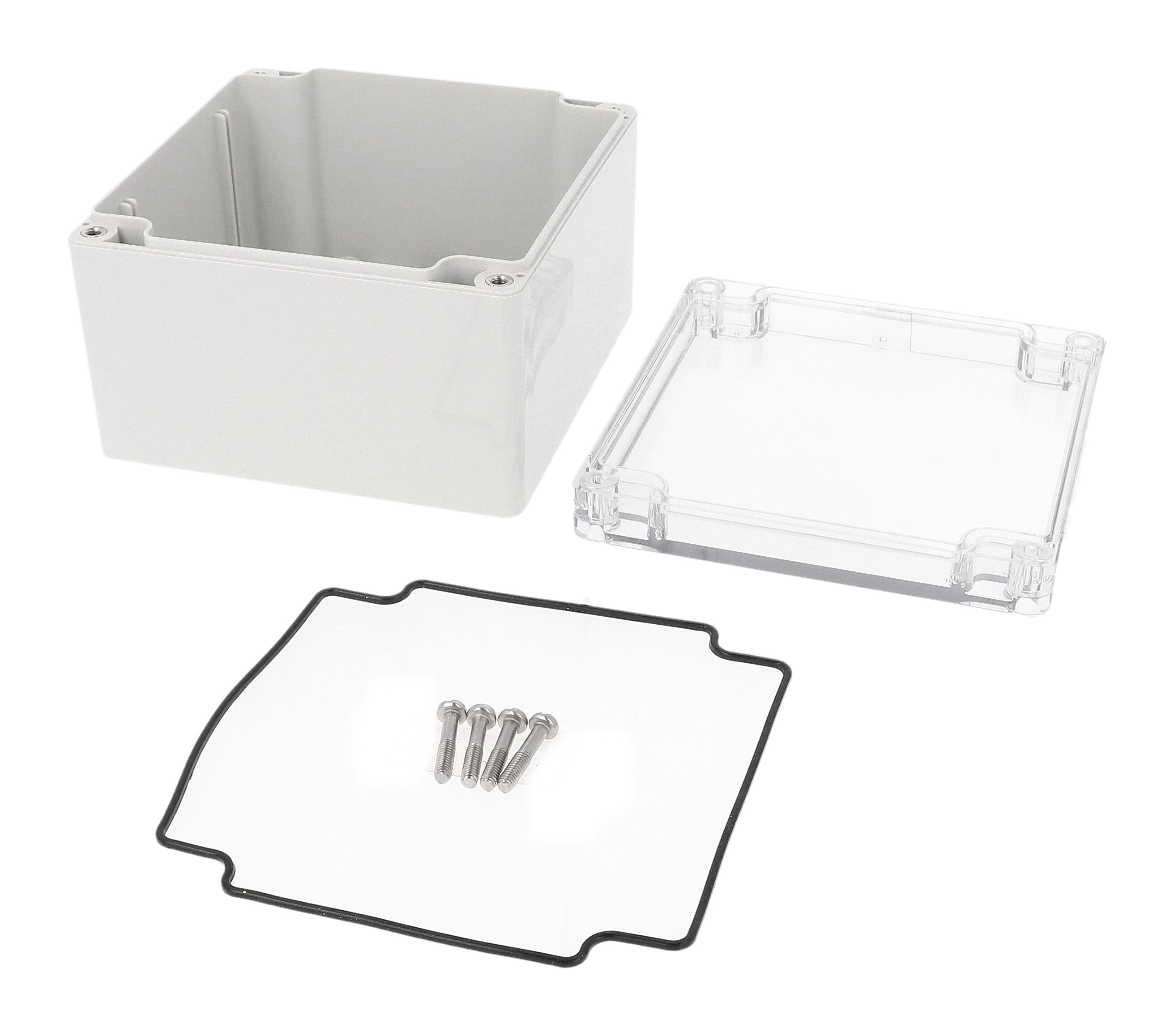

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| Box Color | Light gray (RAL 7035) |
| Lid Style | Flat, screw cover |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating |
| PC Card Guides | Vertical, for 1.5 mm thick PC boards |
| Lid Construction | Gasketed, two-piece tongue and groove |
| Internal Mounting | Molded DIN rail mounting tabs; M3 brass inserts; standoffs accept #6 self-tapping screws |
| Lid Screw Inserts | M4 corrosion resistant inserts |
| Wall-Mounting Holes | 4 x Ø4.00 mm [0.16 in], located outside the gasket channel |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers, cutting/tapping fluid, strong solvents |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 (clear/smoked lid) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Why choose the 1554P2GYCL over the 1554N2GYCL?▾
It is the deeper version: 80 mm total height and 74.00 mm inside height versus 61 mm for the 1554N size, with the same clear lid.
What is the clear lid's flame rating?▾
Clear and smoked lids carry a UL94 V-0 rating.
Is it suitable for washdown or wet areas?▾
Polycarbonate versions are tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What is included?▾
Box, lid, 4 cover screws and a preformed silicone gasket supplied loose.
Which replacement gasket fits?▾
1554NGASKET, per the ordering table.
Related Products
Save 52%1554P2GY — RAL7035 grey polycarb plastic watertight enclosure
Hammond Manufacturing · 1554P2GY
Save 52%1554P2GYSL — RAL7035 grey polycarb plastic watertight enclosure, smoked lid
Hammond Manufacturing · 1554P2GYSL
Save 52%1554NPL — galvanized steel inner panel doe 1554/55 sizes N & P
Hammond Manufacturing · 1554NPL

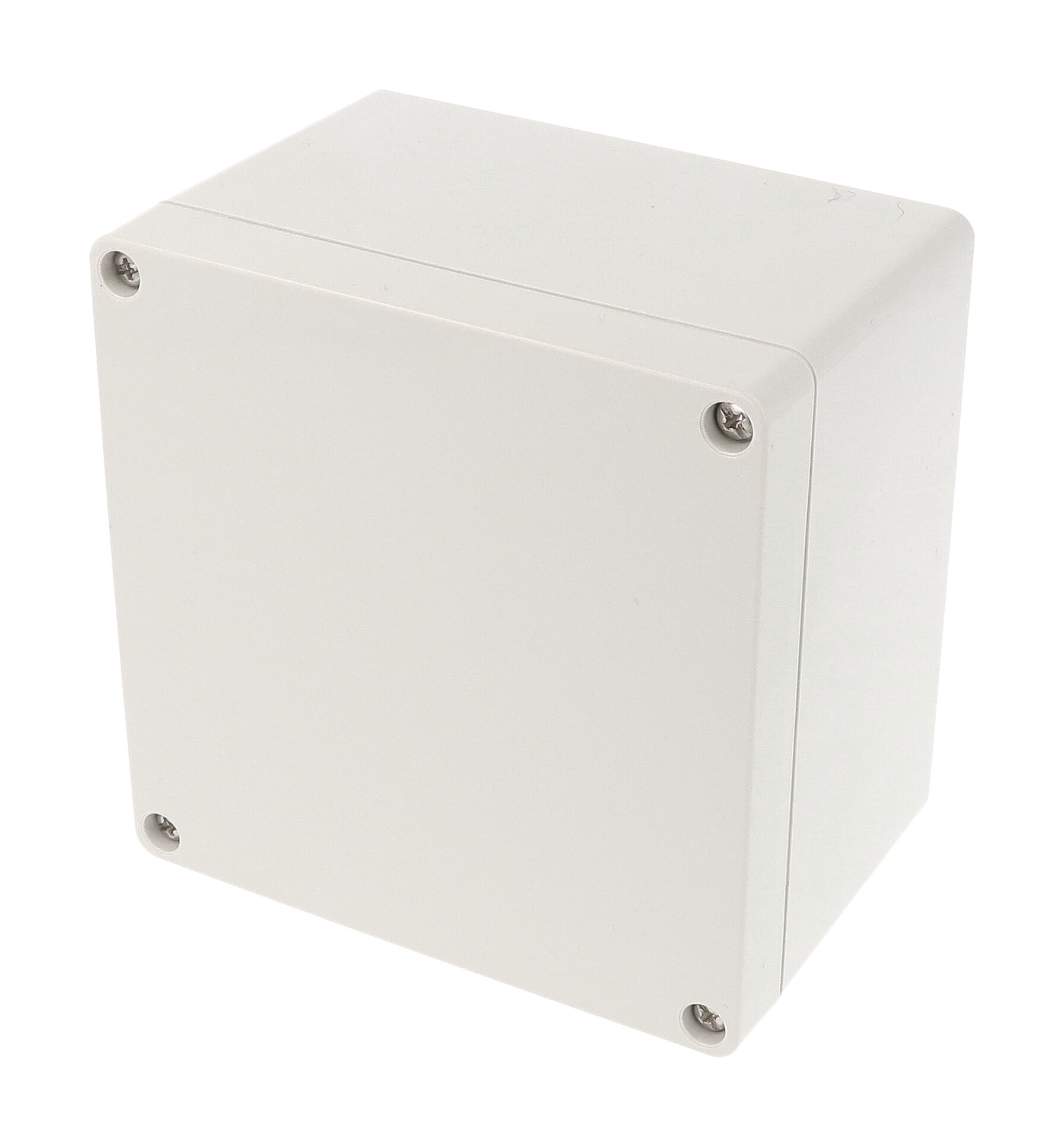

Save 52%1554PGY — RAL7035 grey ABS plastic watertight enclosure
