Hammond 1554HLGY 180x120x46mm Gray ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Compact 46 mm height on a 180 x 120 mm footprint
- General purpose ABS, RAL 7035 light gray, for indoor use
- Tested to and meets IP66; IK07 impact rating
- Fits PC boards up to 106.68 x 167.13 mm
- DIN rail tabs, M3 brass inserts and 1.5 mm card guides molded in
- Gasketed tongue and groove lid with captive M4 stainless screws
- Shipping weight 0.53 lbs (0.24 kg)

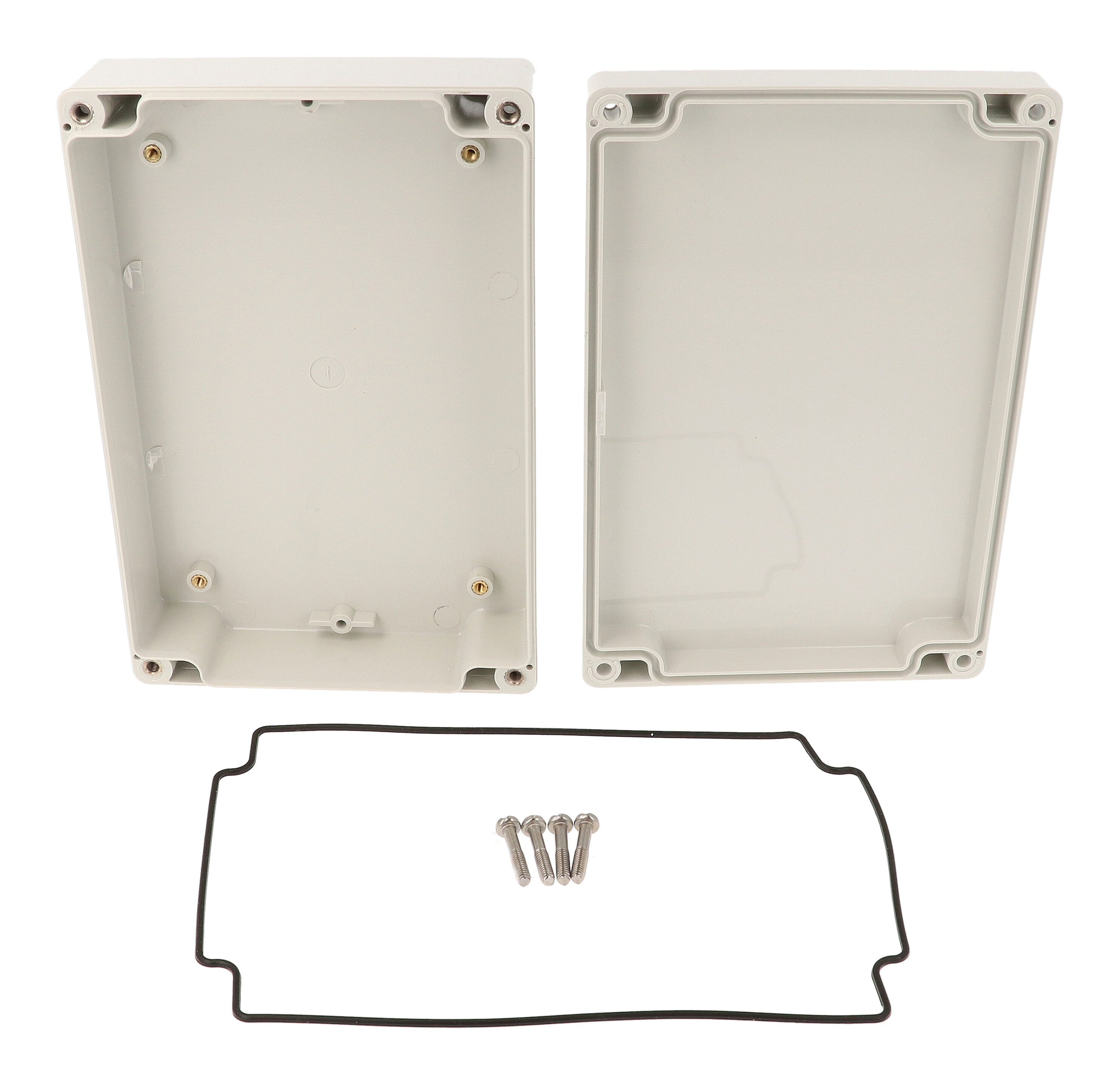

The 1554HLGY is the lower-height ABS member of the 1554 family at 180 x 120 x 46 mm (45 mm on the part page), molded in RAL 7035 light gray with a gray lid. It is intended for indoor electronics and control projects that need a sealed, compact housing at a general purpose material grade.
ABS versions use general purpose material rated UL94-HB and are specified for indoor use. They are not UL listed but have been tested to and meet IP66, with an IK07 impact rating per IEC 62262:2021 and a recommended operating temperature of -20°C to +60°C (-4°F to +140°F).
The drawing gives inside dimensions of about 173.09 x 107.00 x 39.45 mm and a maximum PC board size of 106.68 x 167.13 mm. Molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self-tapping screws and vertical guides for 1.5 mm boards cover most internal mounting needs, and a 1554HPL steel inner panel is available to order separately.
A two-piece tongue and groove lid with a replaceable one-piece silicone gasket keeps out oil, dust and water. Four self-captivating M4 stainless steel screws thread into corrosion resistant bushings, so the 1554HLGY can be opened and closed repeatedly. It ships shrink wrapped at 0.53 lbs (0.24 kg).
Ideal For
- Indoor electronics housings with limited depth
- DIN rail mounted indoor controls
- PC board enclosures for dry or damp indoor locations
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Gray ABS lid (ABS version available only in gray) |
| Description | RAL7035 grey ABS plastic watertight enclosure |
| Enclosure Type | Water-Tight |
| Short Description | 180X120X45MM ABS NEMA ENCL |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 107.00 mm [4.21 in] |
| Nominal Size | 180 x 120 x 45 mm |
| Total Height | 1.81 in (46 mm) |
| Inside Height | 39.45 mm [1.55 in] |
| Inside Length | 173.09 mm [6.81 in] |
| Size L X W X H | 7.09 in x 4.72 in x 1.77 in (180 mm x 120 mm x 45 mm) |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554HLGY; polycarbonate gray lid 1554HL2GY; clear lid 1554HL2GYCL; smoked lid 1554HL2GYSL |
| Replacement Gasket | 1554HGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554HPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980513942 |
| UNSPSC | 39121301 |
| Part Number | 1554HLGY |
| Drawing Revision | 23.06.2020 |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Lid | Gray ABS |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.30 mm [.17 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB (general purpose material) |
| Intended Use | Indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Status | ABS version is not UL listed / not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554HLGY UL listed?▾
No. ABS versions are not UL listed; the part is molded from UL94-HB material and tested to IP66. The polycarbonate 1554HL2GY is the UL 508A listed equivalent size.
What is the recommended operating temperature?▾
-20°C to +60°C (-4°F to +140°F).
What is the difference between the 1554HLGY and 1554HGY?▾
Both are 180 x 120 mm ABS enclosures; the ordering table lists 46 mm total height for the 1554HLGY and 61 mm for the 1554HGY.
Is the gasket installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. Replacement gaskets are part number 1554HGASKET.
