Hammond 1554HL2GYSL 180x120x46mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94V-0) over a light gray RAL 7035 box
- Reduced 46 mm total height on a 180 x 120 mm footprint
- IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12, 13 tested
- cUL and UL 508A listed, file #E65324
- UV stabilized polycarbonate for outdoor use
- Accepts PC boards up to 106.68 x 167.13 mm
- Replaceable silicone gasket 1554HGASKET and SC576-50 screws

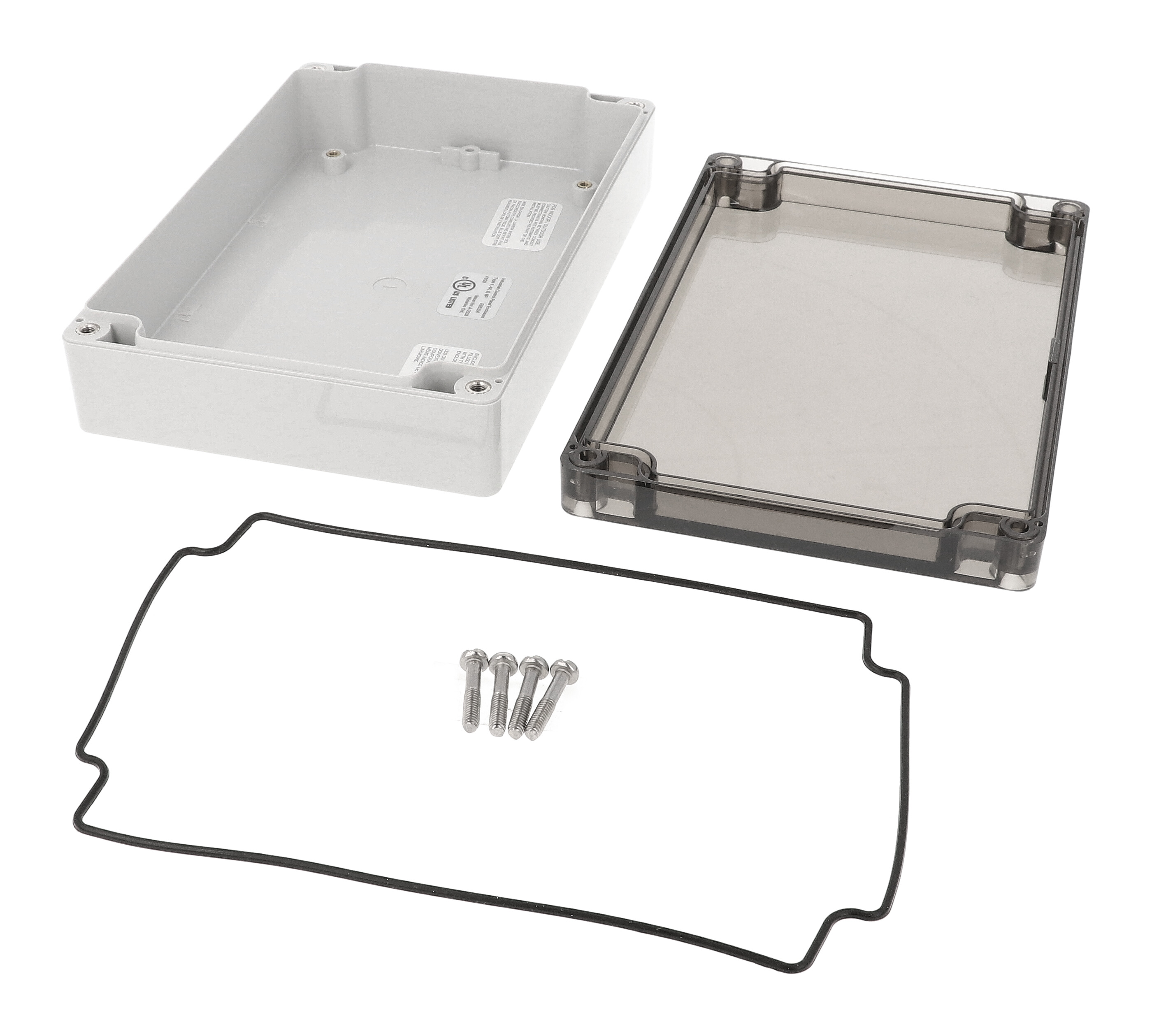

Designed for projects that want a tinted cover in a shallow housing, the 1554HL2GYSL combines a smoked polycarbonate lid with a RAL 7035 light gray polycarbonate box at 180 x 120 x 46 mm. It is aimed at OEMs and integrators building outdoor or washdown-rated electronics where a lower profile matters.
The smoked lid is rated UL94V-0. The enclosure is cUL and UL 508A listed (file #E65324), UV stabilized for outdoor use and independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. Polycarbonate versions carry an IK08 impact rating per IEC 62262:2021, and Hammond recommends -40°C to +110°C (-40°F to +230°F) as the operating range.
Inside you have approximately 173.09 mm of length, 107.00 mm of width and 39.45 mm of height, with room for a PC board up to 106.68 x 167.13 mm. Components mount on molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs or vertical 1.5 mm card guides; the 1554HPL steel inner panel is available separately.
The gasketed tongue and groove lid closes with four self-captivating M4 stainless steel screws into corrosion resistant bushings. The one-piece silicone gasket ships loose, and 1554HGASKET and SC576-50 are the listed replacements. Shipping weight is 0.6 lbs (0.27 kg).
Ideal For
- Low-profile outdoor electronics with tinted cover
- NEMA 4X / 6P sensor and controller housings
- UL 508A listed control enclosures
- PC board and DIN rail component mounting
Overview
| Series | 1554 Series, Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Smoked polycarbonate lid on light gray polycarbonate box |
| Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Enclosure Type | Water-Tight |
| Short Description | 180X120X45MM P/C NEMA SMK LID |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.09 in (180 mm) |
| Inside Width | 107.00 mm [4.21 in] |
| Nominal Size | 180 x 120 x 45 mm |
| Total Height | 1.81 in (46 mm) |
| Inside Height | 39.45 mm [1.55 in] |
| Inside Length | 173.09 mm [6.81 in] |
| Size L X W X H | 7.09 in x 4.72 in x 1.77 in (180 mm x 120 mm x 45 mm) |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
Accessories
| Foot Kit | 1554FT |
| Related Versions | ABS gray lid 1554HLGY; polycarbonate gray lid 1554HL2GY; clear lid 1554HL2GYCL; smoked lid 1554HL2GYSL |
| Replacement Gasket | 1554HGASKET (silicone pre-formed gasket, black, pkg 2) |
| Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel, M4-0.7 x 20 mm, pkg 50) |
| Inner Panel (Order Separately) | 1554HPL steel inner panel |
| Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980513973 |
| UNSPSC | 39121301 |
| Part Number | 1554HL2GYSL |
| Drawing Revision | 23.06.2020 |
Packaging & Shipping
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.6 lbs (0.27 kg) |
Construction & Finish
| Lid | Smoked polycarbonate (UL94V-0) |
| Color | Light Gray |
| Gasket | Replaceable one-piece high temperature UL listed silicone, preformed; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | 4 x M4 stainless steel machine screws (M4-0.7 x 20 mm), self-captivating, threaded into corrosion resistant bushings |
| Solid Models | Available in .stp or .x_t |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel; 4X 4.30 mm [.17 in] mounting holes |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Holes | Threaded with the first installation of lid screws |
| Internal Inserts | M3 brass inserts; M4 corrosion resistant inserts |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| Internal Mounting | Internal DIN rail mounting tabs; threaded (M3) integral brass inserts and/or standoffs (#6 self-tapping screws) for PC board or inner panel mounting; vertical PC card guides for 1.5 mm thick PC boards |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (independently tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilization | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners and some greases and oils |
| Material Flame Rating (Drawing) | UL94-5VA @ 3 mm |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Marking (Drawing) | cULus Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554HL2GYSL?▾
It is a watertight 1554 Series enclosure with a RAL 7035 gray polycarbonate box and a smoked polycarbonate lid, 180 x 120 x 46 mm per the ordering table.
What flame rating does the smoked lid have?▾
Clear and smoked lids in this series carry a UL94V-0 rating.
What is the inside height?▾
About 39.45 mm (1.55 in), according to the drawing.
Is an inner panel included?▾
No. The 1554HPL steel inner panel is ordered separately. The assembly includes the box, lid, 4 cover screws and a preformed silicone gasket.
What impact rating does it have?▾
Polycarbonate versions carry IK08 per IEC 62262:2021.
