Hammond 1554F2GY 120x90x61mm Gray Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated light gray polycarbonate enclosure
- Nominal 120 x 90 x 61 mm; inside 112.91 x 80.91 x 54.50 mm per drawing
- cUL and UL 508A listed (file E65324); UL94-5VA gray polycarbonate
- UV stabilized for outdoor use; -40°C to +110°C recommended operating range; IK08 impact
- Holds PC boards up to 77.47 x 108.41 mm; M3 brass inserts, card guides and DIN rail tabs
- 4 included M4 stainless steel, self-captivating lid screws in corrosion resistant inserts
- Replaceable one-piece silicone gasket, supplied loose; wall holes outside the gasket channel

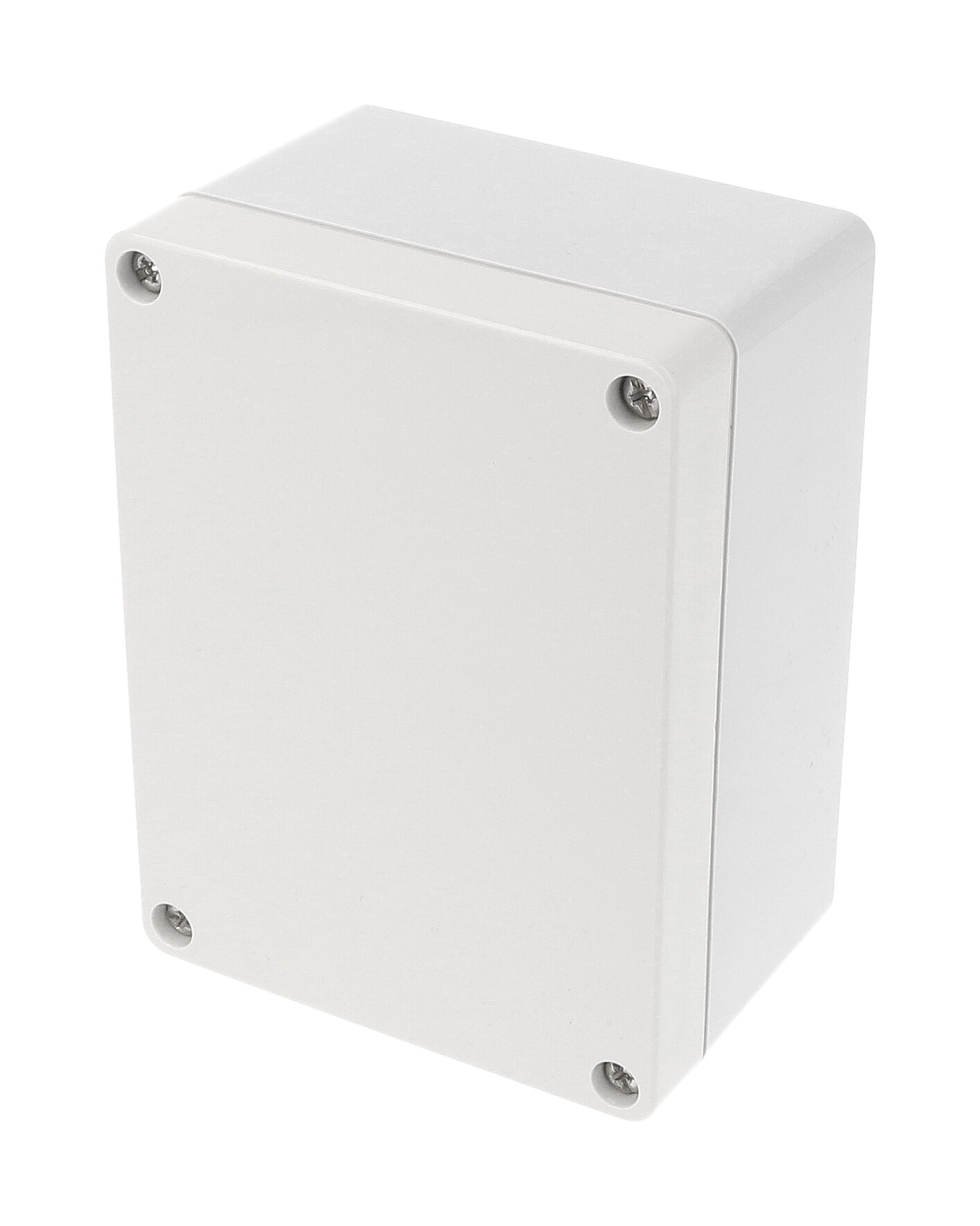

The 1554F2GY is a light gray (RAL 7035) polycarbonate enclosure with a matching gray polycarbonate flat lid, sized at a nominal 120 x 90 x 61 mm. It is built for OEM engineers, panel builders and field technicians who need a sealed, UL listed housing for a printed circuit board or DIN rail mounted components, indoors or out.

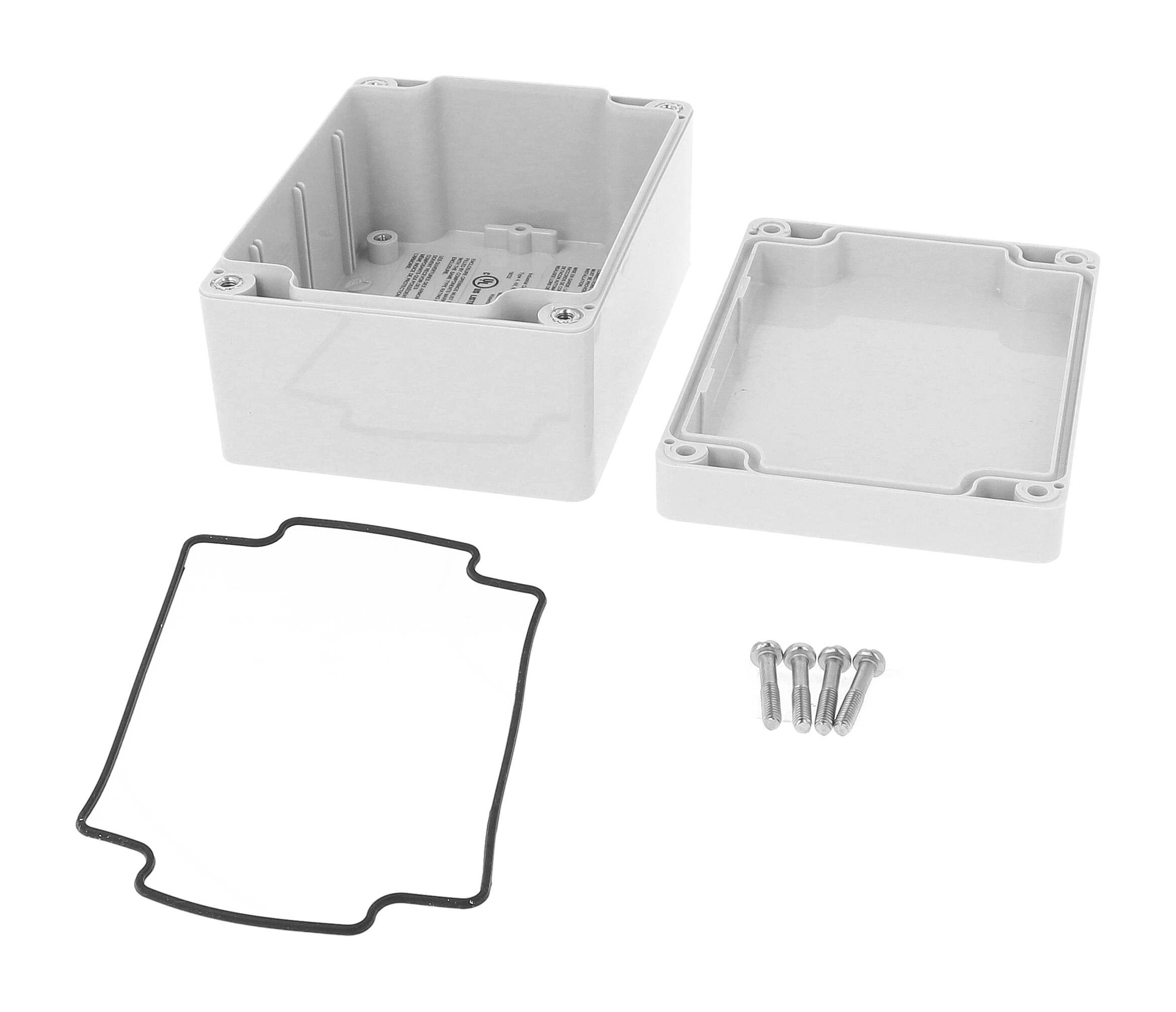

Polycarbonate versions of the 1554 series are UV stabilized for outdoor use, and the solid gray material carries a UL94-5VA flame rating. The lid seals through a two piece tongue and groove joint with a one-piece, replaceable silicone gasket, which ships loose inside the box for you to fit. Four included M4 stainless steel lid screws thread into corrosion resistant inserts, are self-captivating, and are designed for repeated opening.
The drawing shows an overall footprint of 120.00 x 90.00 mm and a height of 60.50 mm, with an inside length of 112.91 mm, inside width of 80.91 mm and inside height of 54.50 mm. The part page lists a maximum PC board of 77.47 x 108.41 mm. Inside you get M3 brass inserts, standoffs that accept #6 self-tapping screws, vertical card guides for 1.5 mm boards and molded DIN rail tabs; the optional 1554FPL steel inner panel is ordered separately.
For protection, this size is listed at IP68 and NEMA 4, 4X, 6, 6P, 12 and 13, with an IK08 impact rating and a recommended operating range of -40°C to +110°C. The 1554F2GY is cUL and UL 508A listed under file E65324, REACH and RoHS compliant, and ships shrink wrapped at 0.42 lbs (0.19 kg). Four Ø4.00 mm wall-mounting holes sit outside the gasket channel and also take the 1554FT foot kit.
Ideal For
- Outdoor PCB and control electronics housings
- DIN rail component enclosures for washdown or wet areas
- UL 508A industrial control panel builds
- Sensor and instrumentation junction boxes
Overview
| Type | Water-tight |
| Series | 1554 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Lid Style | Flat lid, screw cover |
| Description | RAL7035 grey polycarb plastic watertight enclosure |
| Drawing Reference | 1554F (REV: 19.12.2025) |
| Short Description | 120X90X60MM POLYCARB NEMA ENCL |
Dimensions
| Inside Width (Drawing) | 80.91 mm [3.19 in] |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Inside Height (Drawing) | 54.50 mm [2.15 in] |
| Inside Length (Drawing) | 112.91 mm [4.45 in] |
| Length (Ordering Table) | 4.72 in (120 mm) |
| Nominal Size (L X W X H) | 4.7 in x 3.5 in x 2.4 in (119 mm x 89 mm x 61 mm) |
| Overall Height (Drawing) | 60.50 mm [2.38 in] |
| Total Height (Ordering Table) | 2.40 in (61 mm) |
| Overall Length X Width (Drawing) | 120.00 x 90.00 mm [4.72 x 3.54 in] |
Accessories
| Inner Panel | 1554FPL (steel, order separately) |
| Replacement Gasket | 1554FGASKET |
| Other Series Accessories | Breather kit, small rainproof ventilator, pressure compensation plug, hole plugs, pole mount kit, liquid-tight cordgrips (nylon or nickel plated brass) |
| Replacement Lid Screws (50-pk) | SC576-50 |
Identifiers
| UPC | 623980304045 |
| UNSPSC | 39121301 |
| Part Number | 1554F2GY |
Wall Mounting
| Foot Kit | 1554FT (installs in the same wall-mounting holes) |
| Mounting Holes | 4X Ø4.00 mm [Ø.16 in], located outside of the gasket channel |
Related Versions
| ABS, Gray Lid | 1554FGY |
| Polycarbonate, Gray Lid | 1554F2GY |
| Polycarbonate, Clear Lid | 1554F2GYCL |
| Polycarbonate, Smoked Lid | 1554F2GYSL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.42 lbs (0.19 kg) |
Construction & Finish
| Lid | Light gray polycarbonate (RAL 7035) |
| Color | Light Gray |
| Gasket | One-piece, replaceable, high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Two piece tongue and groove construction |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, included; self-captivating |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
PCB & Internal Mounting
| DIN Rail | Internal DIN rail mounting tabs molded in |
| PC Card Guides | Vertical guides molded in, for 1.5 mm thick PC boards |
| Internal Inserts | M3 brass inserts inside box |
| Internal Standoffs | Accept #6 self-tapping screws |
| Max. P.C. Board Width | 108.41 mm |
| Max. P.C. Board Length | 77.47 mm |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection and anti-seize paste, strong solvents and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
| Series IP Testing (Polycarbonate) | Independently tested to meet IP66, IP67 and IP68 |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed, file #E65324 |
| Flame Rating | UL94 5VA |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1554F2GY?▾
The nominal size is 4.7 x 3.5 x 2.4 in (119 x 89 x 61 mm); the ordering table lists 120 x 90 x 61 mm. The drawing gives inside dimensions of 112.91 mm long, 80.91 mm wide and 54.50 mm high.
Can the 1554F2GY be used outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use, rated IP68 and NEMA 4, 4X, 6, 6P, 12 and 13, with a recommended operating temperature of -40°C to +110°C. Hammond advises testing suitability for your specific application.
Is the gasket already installed?▾
No. The one-piece high temperature silicone gasket is supplied loose inside the enclosure. A replacement gasket is available as 1554FGASKET.
What size circuit board fits?▾
The part page lists a maximum PC board length of 77.47 mm and width of 108.41 mm. Vertical card guides accept 1.5 mm thick boards, and M3 brass inserts are provided for board or panel mounting.
Is there a clear or smoked lid version?▾
Yes. The same size is offered with a clear polycarbonate lid as 1554F2GYCL, a smoked lid as 1554F2GYSL, and in general purpose ABS as 1554FGY.
Does it include an inner panel?▾
No. The 1554FPL steel inner panel is ordered separately.
