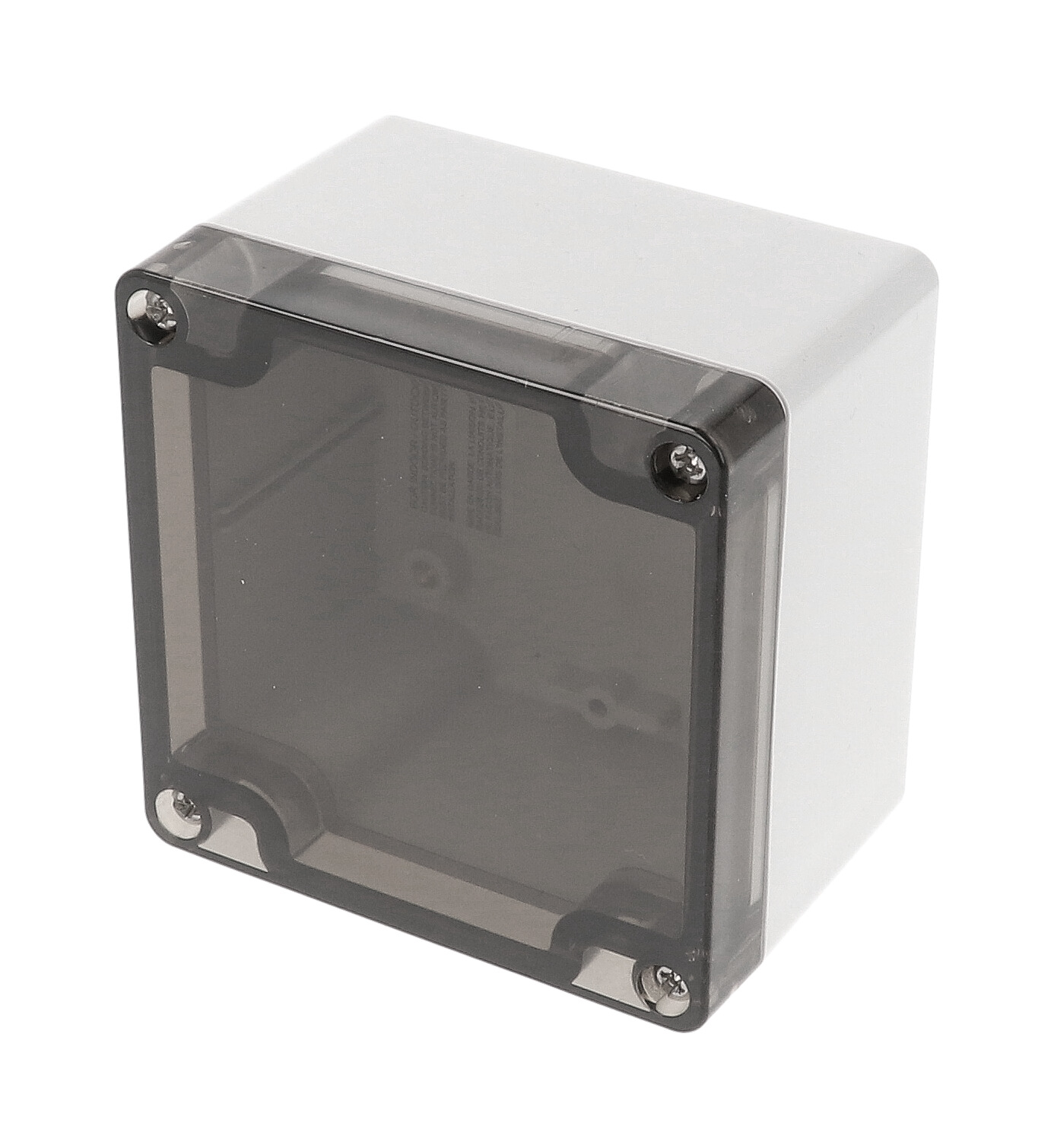

Hammond 1554E2GYSL 90x90x61mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid, UL94 V-0, on a light gray RAL 7035 box
- NEMA Type 4, 4X, 6, 6P, 12, 13; IP66, IP67 and IP68 tested
- cUL and UL 508A listed under file E65324
- UV stabilized for outdoor use, -40°C to +110°C, IK08
- Square 90 x 90 x 61 mm with 82.91 x 78.91 x 54.50 mm interior
- Molded DIN rail tabs and M3 brass inserts for internal mounting
- Four self-captivating M4 stainless lid screws in corrosion resistant inserts

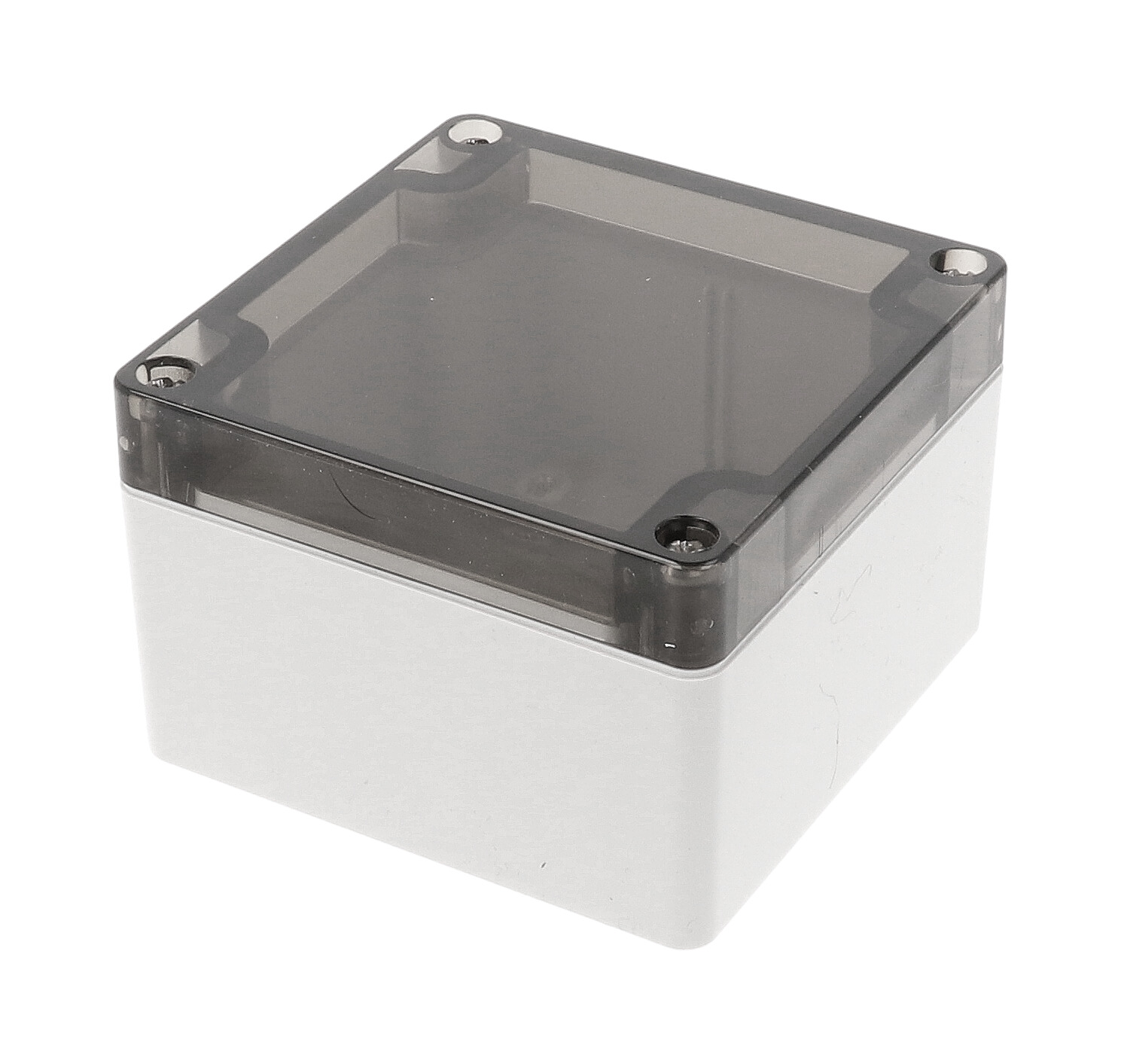

The 1554E2GYSL is a square polycarbonate watertight enclosure, 3.54 x 3.54 x 2.40 in (90 x 90 x 61 mm), with a light gray RAL 7035 box and a smoked polycarbonate lid. It suits outdoor electronics where indicators or a display should be visible through a tinted cover.
Being polycarbonate, it is UV stabilized for outdoor use, cUL and UL 508A listed (file E65324), and independently tested to NEMA Type 4, 4X, 6, 6P, 12 and 13 and to IP66, IP67 and IP68. The smoked lid is rated UL94 V-0. It carries an IK08 impact rating per IEC 62262:2021 and a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
- Inside dimensions: 82.91 x 78.91 mm, 54.50 mm high
- Max PC board: 77.47 x 78.41 mm
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping standoffs, 1.5 mm card guides
A tongue and groove lid with a one-piece high temperature silicone gasket (supplied loose, replacement 1554EGASKET) guards against oil, dust and water. The four included M4 stainless steel lid screws are self-captivating and thread into corrosion resistant inserts; recommended torque is 43-57 oz f-in (30-40 cN-m). Four 4 mm mounting holes outside the gasket channel accept wall fasteners or the 1554FT foot kit. The 1554E2GYSL ships shrink wrapped at 0.35 lbs (0.16 kg) and is REACH and RoHS compliant.
Ideal For
- Outdoor electronics with tinted viewing lid
- DIN rail devices in wet locations
- Sealed sensor and telemetry housings
- UL 508A control sub-enclosures
Overview
| Type | Water-tight |
| Style | Screw cover, flat lid |
| Series | 1554 Series |
| Application | Mounting printed circuit boards or DIN rail mounted components |
| Part Number | 1554E2GYSL |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Short Description | 90X90X60MM P/C NEMA SMK LID |
| Enclosure Size Code | E |
Dimensions
| Width | 3.54 in (90 mm) |
| Length | 3.54 in (90 mm) |
| Inside Width | 78.91 mm [3.11 in] |
| Nominal Size | 90 x 90 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 82.91 mm [3.26 in] |
| Size (L X W X H) | 3.5 in x 3.5 in x 2.4 in (89 mm x 89 mm x 61 mm) |
| Box Height (Drawing) | 60.50 mm [2.38 in] |
| Max. P.C. Board Width | 78.41 mm |
| Max. P.C. Board Length | 77.47 mm |
Accessories
| Foot Kit | 1554FT (installs using the wall mounting holes) |
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554EGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Inner Panel (Steel, Order Separately) | 1554EPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132518 |
| UNSPSC | 39121301 |
Packaging & Shipping

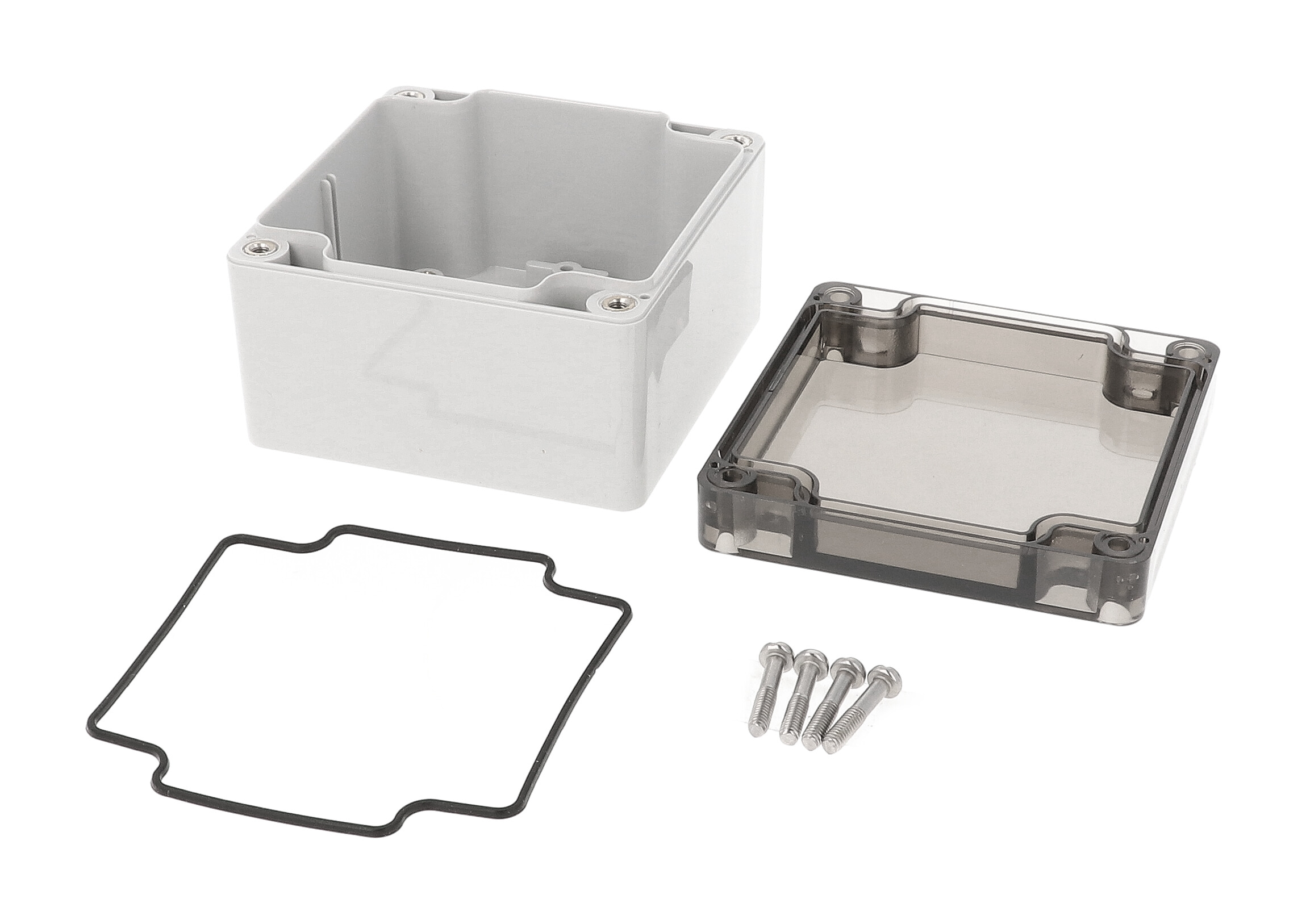

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high temperature UL listed silicone, preformed, black; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two-piece tongue and groove construction |
| Material | Polycarbonate |
| Lid Screws | 4 included M4 stainless steel machine screws, self-captivating |
| Material Grade | UV stabilized polycarbonate for outdoor use |
| Mounting Holes | 4X 4.00 mm [.16 in] diameter; wall-mounting holes located outside the gasket channel |
| PC Card Guides | Vertical, molded in, for 1.5 mm thick PC boards |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| DIN Rail Mounting Tabs | Molded in |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
| Internal PC Board / Panel Mounting | Threaded M3 integral brass inserts inside box; standoffs accept #6 self-tapping screws |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Flame Rating Note | Solid gray polycarbonate is UL94-5VA; clear and smoked lids are UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate version) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1554E2GYSL?▾
A size E, 90 x 90 x 61 mm polycarbonate watertight enclosure with a light gray box and smoked polycarbonate lid.
Is it rated for submersion?▾
It has been independently tested to IP67 and IP68 and NEMA Type 6 and 6P, along with IP66 and NEMA 4, 4X, 12 and 13.
Can it be mounted on feet instead of a wall?▾
Yes. The same wall mounting holes can be used to install the 1554FT accessory foot kit.
What torque should the lid screws get?▾
Recommended cover screw torque is 43-57 oz f-in (30-40 cN-m).
Is an inner panel available?▾
Yes, the 1554EPL steel inner panel is ordered separately.
