Hammond 1554D2GYSL 120x65x61mm Polycarbonate Enclosure, Smoked Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Smoked polycarbonate lid (UL94 V-0) over a light gray RAL 7035 box
- Tested to NEMA Type 4, 4X, 6, 6P, 12, 13 and IP66, IP67, IP68
- cUL and UL 508A listed, file E65324
- UV stabilized for outdoor use, -40°C to +110°C, IK08 impact
- 120 x 65 x 61 mm with 112.91 x 53.91 x 54.50 mm interior
- Self-captivating M4 stainless lid screws in corrosion resistant inserts
- Accepts 1554CPL inner panel and 1554FT foot kit

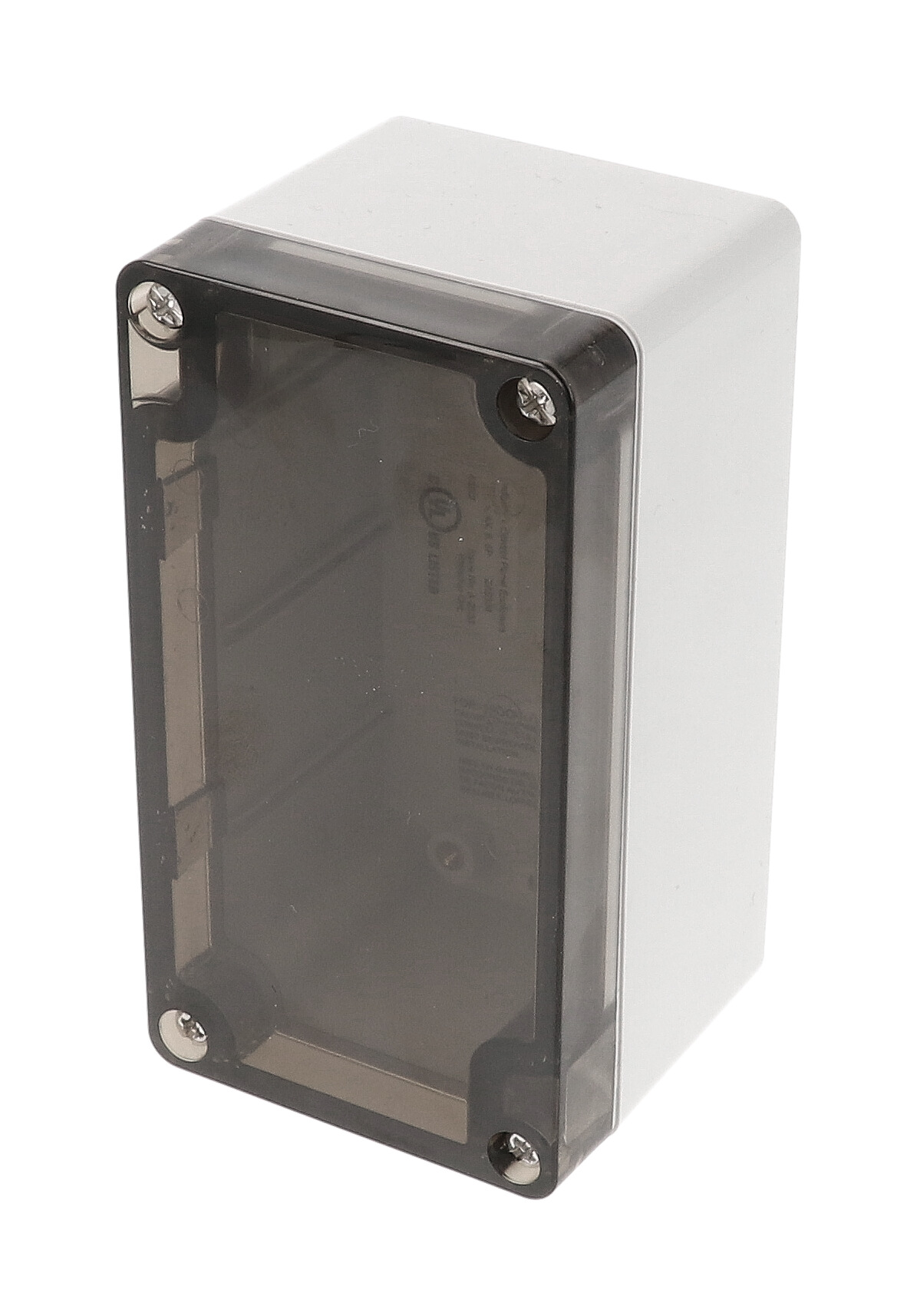

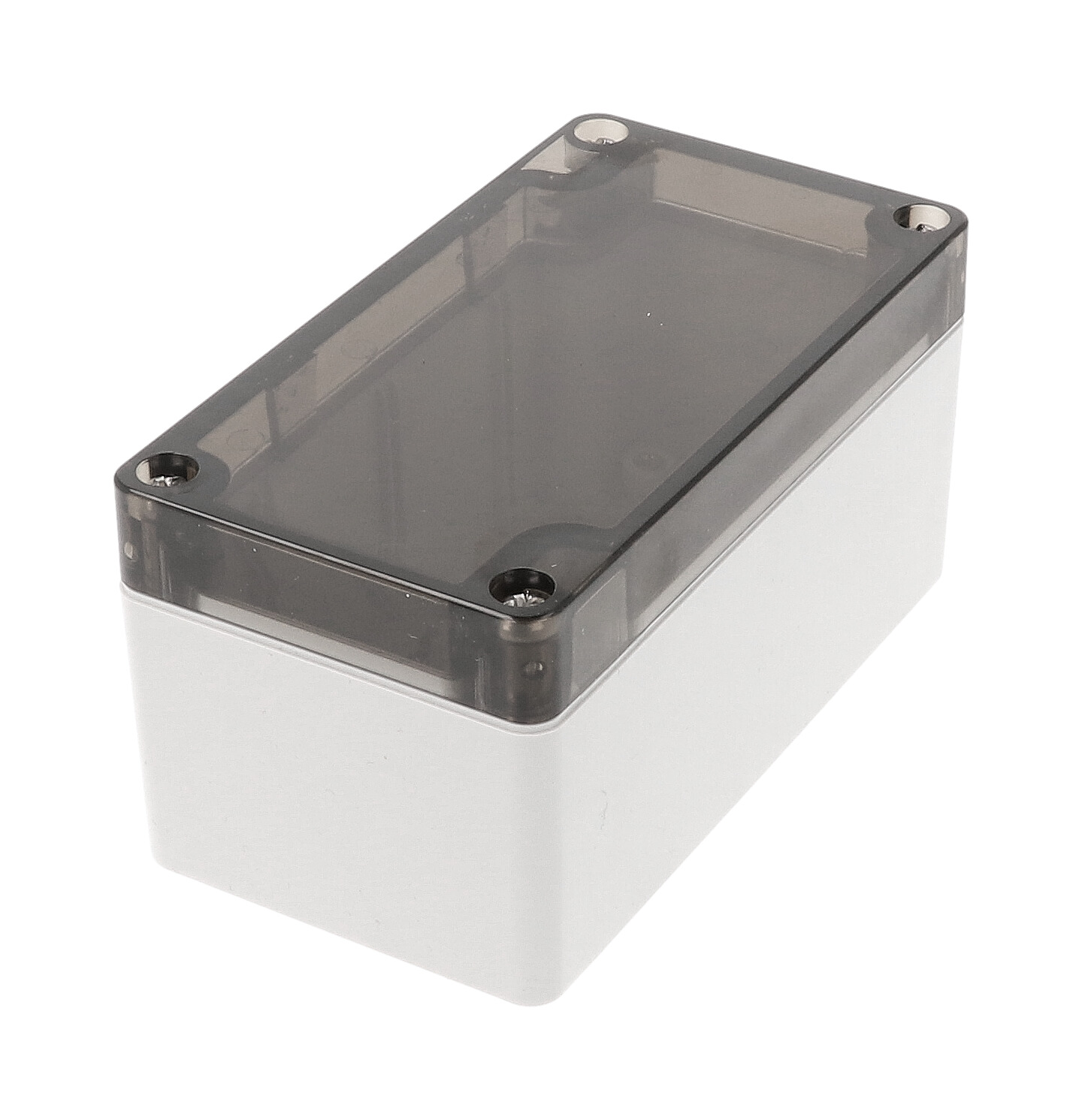

The 1554D2GYSL is the smoked-lid option in the 1554 size D polycarbonate range: a light gray RAL 7035 box at 4.72 x 2.56 x 2.40 in (120 x 65 x 61 mm) with a tinted polycarbonate lid. It is a fit for designers who want internal indicators or displays visible through a darker cover.
Its polycarbonate construction is UV stabilized for outdoor use. The enclosure is cUL and UL 508A listed (file E65324) and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The smoked lid carries a UL94 V-0 flame rating, the impact rating is IK08 per IEC 62262:2021, and the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Four self-captivating M4 stainless steel machine screws, included, secure the lid into corrosion resistant inserts for repeated access; recommended torque is 43-57 oz f-in (30-40 cN-m). A two-piece tongue and groove joint and a one-piece high temperature silicone gasket, supplied loose, protect against oil, dust and water.
Internal space is 112.91 x 53.91 mm with 54.50 mm height. Mount a PC board of up to 52.83 x 110.49 mm on the M3 brass inserts or #6 self-tapping standoffs, or slide 1.5 mm boards into the molded card guides; size D has no DIN rail tabs. Two 4 mm wall-mounting holes outside the gasket also accept the 1554FT foot kit. Shipping weight of the 1554D2GYSL is 0.35 lbs (0.16 kg).
Ideal For
- Outdoor electronics with visible indicators
- Sealed display housings
- Wet-location control electronics
- UL 508A listed sub-enclosures
Overview
| Type | Water-tight |
| Style | Screw cover, flat lid |
| Series | 1554 Series |
| Application | Mounting printed circuit boards |
| Part Number | 1554D2GYSL |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure, smoked lid |
| Short Description | 120X65X60MM P/C NEMA SMK LID |
| Enclosure Size Code | D |
Dimensions
| Width | 2.56 in (65 mm) |
| Length | 4.72 in (120 mm) |
| Inside Width | 53.91 mm [2.12 in] |
| Nominal Size | 120 x 65 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 112.91 mm [4.45 in] |
| Size (L X W X H) | 4.7 in x 2.6 in x 2.4 in (119 mm x 66 mm x 61 mm) |
| Box Height (Drawing) | 60.50 mm [2.38 in] |
| Max. P.C. Board Width | 110.49 mm |
| Max. P.C. Board Length | 52.83 mm |
Accessories
| Foot Kit | 1554FT (installs using the wall mounting holes) |
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554CGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Inner Panel (Steel, Order Separately) | 1554CPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980132501 |
| UNSPSC | 39121301 |
Packaging & Shipping

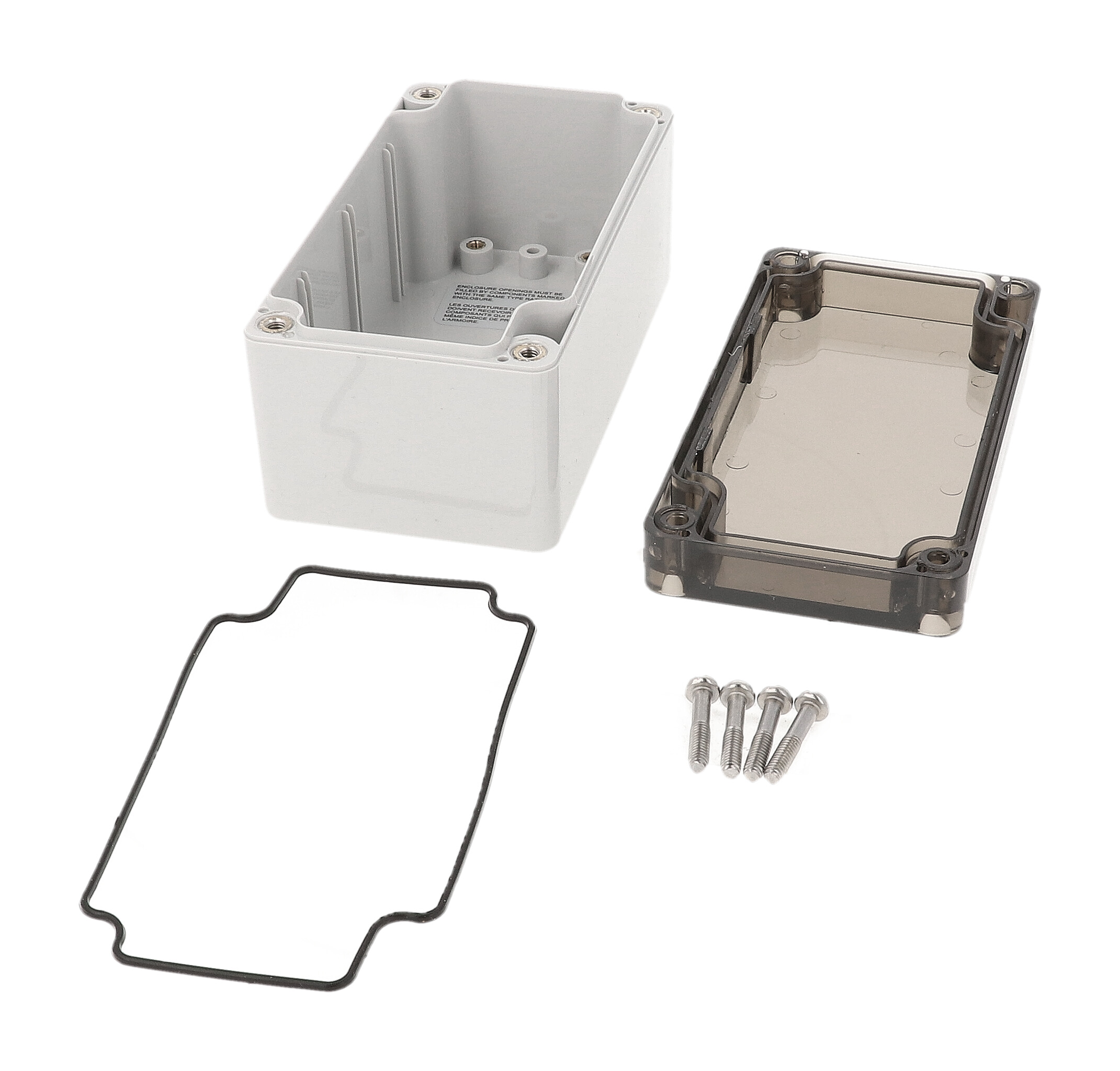

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Lid | Smoked polycarbonate lid |
| Color | Light Gray |
| Gasket | One-piece replaceable high temperature UL listed silicone, preformed, black; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two-piece tongue and groove construction |
| Material | Polycarbonate |
| Lid Screws | 4 included M4 stainless steel machine screws, self-captivating |
| Material Grade | UV stabilized polycarbonate for outdoor use |
| Mounting Holes | 2X 4.00 mm [.16 in] diameter; wall-mounting holes located outside the gasket channel |
| PC Card Guides | Vertical, molded in, for 1.5 mm thick PC boards |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| DIN Rail Mounting Tabs | Not included on size D (sizes C and D have no internal DIN rail tabs) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
| Internal PC Board / Panel Mounting | Threaded M3 integral brass inserts inside box; standoffs accept #6 self-tapping screws |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Flame Rating Note | Solid gray polycarbonate is UL94-5VA; clear and smoked lids are UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate version) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1554D2GYSL differ from the 1554D2GYCL?▾
They share the same size D polycarbonate box and ratings; the 1554D2GYSL has a smoked lid and the 1554D2GYCL a clear lid. Both lids are UL94 V-0.
Is the 1554D2GYSL waterproof?▾
It has been independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What temperatures can it handle?▾
The recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F). The manufacturer recommends your own testing for any specific application.
Can it be mounted on a wall?▾
Yes. Two 4 mm mounting holes are located outside the gasket channel, and the same holes accept the 1554FT foot kit.
Which chemicals should be avoided?▾
The chemical resistance statement advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, and strong solvents, among others.
