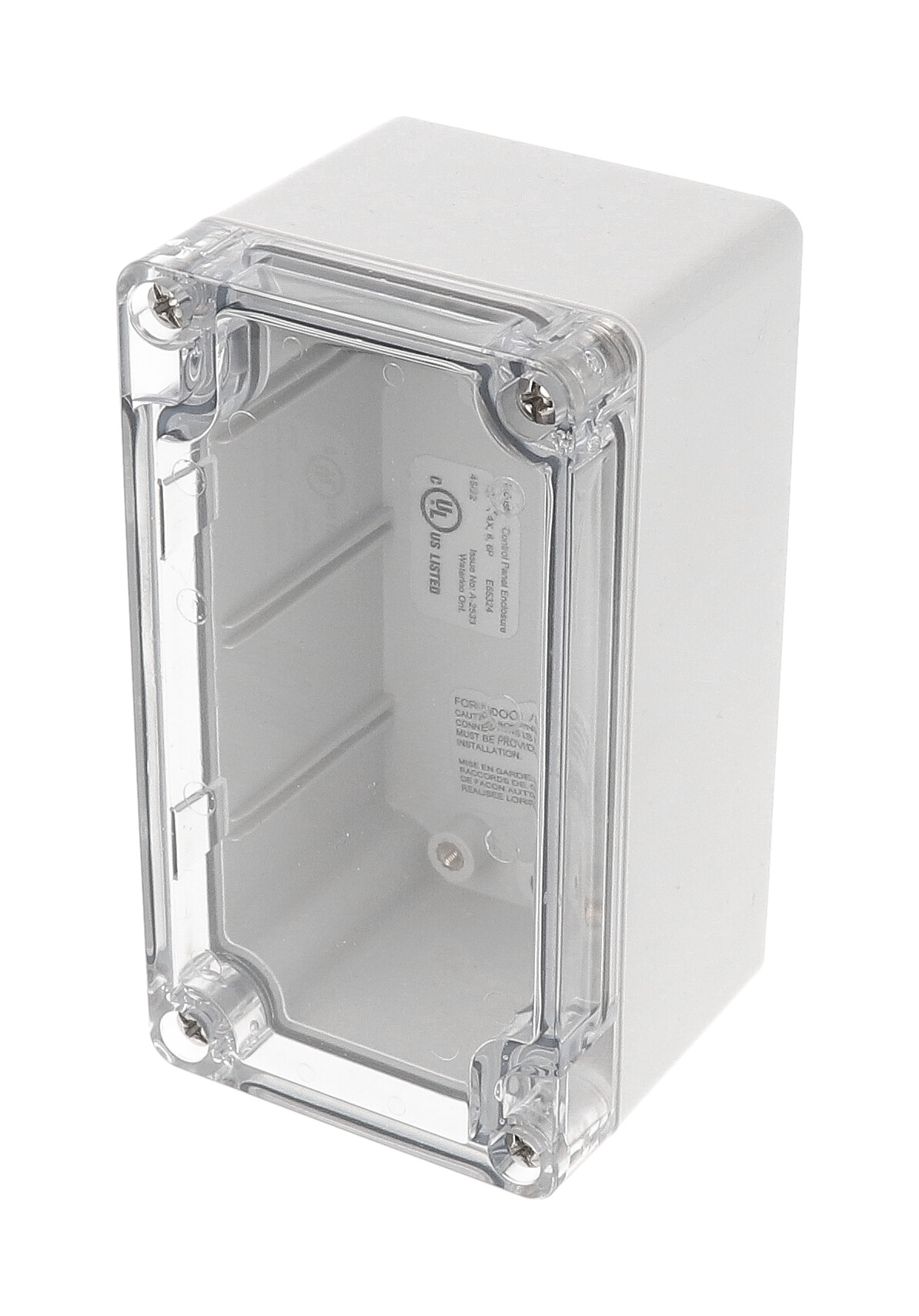

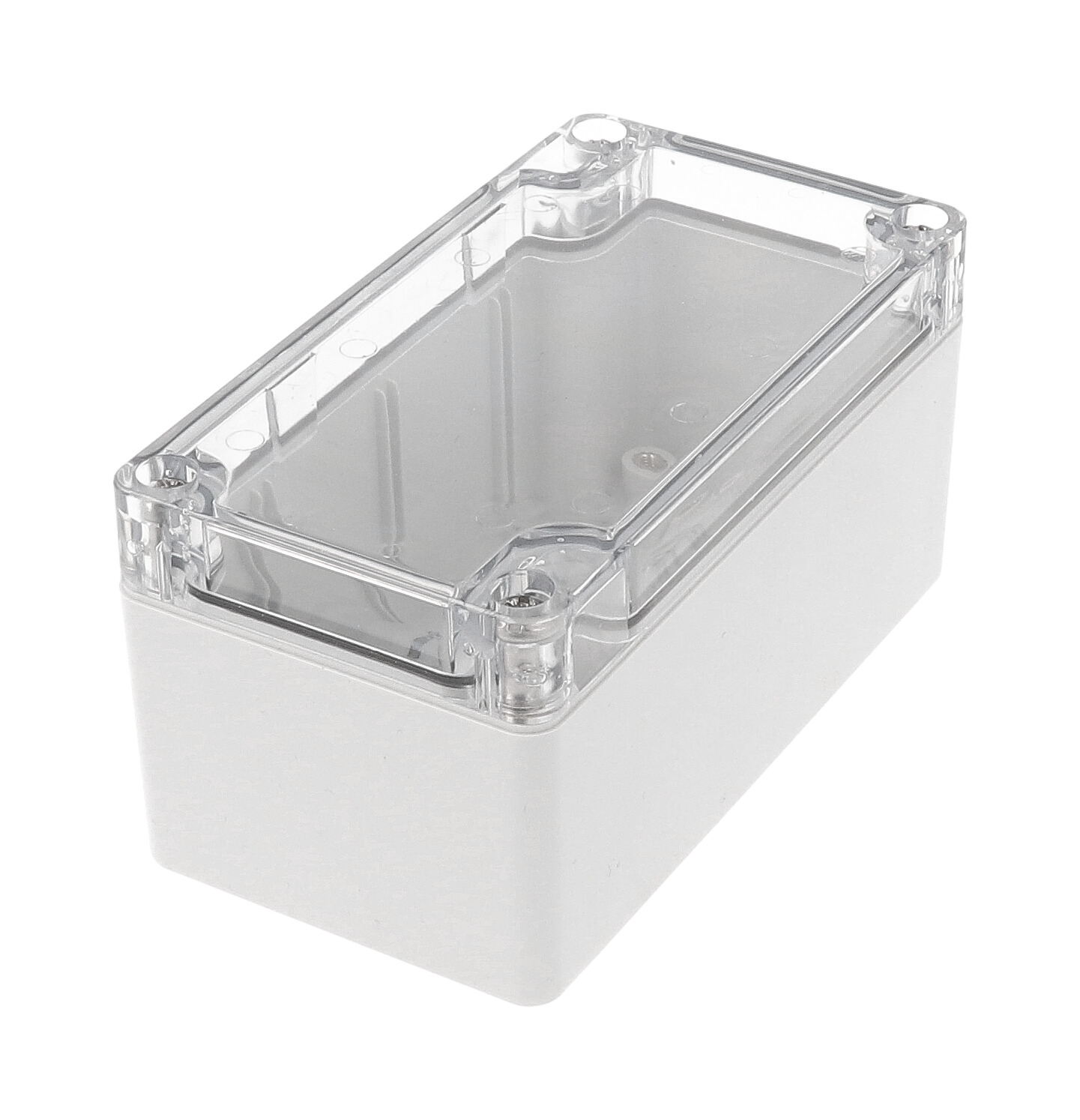

Hammond 1554D2GYCL 120x65x61mm Polycarbonate Enclosure, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid (UL94 V-0) for viewing internal displays and LEDs
- NEMA Type 4, 4X, 6, 6P, 12, 13 and IP66/IP67/IP68 tested
- cUL and UL 508A listed under file E65324
- UV stabilized for outdoor use; -40°C to +110°C; IK08 impact rating
- 120 x 65 x 61 mm outside, 54.50 mm inside height
- Four self-captivating M4 stainless lid screws, silicone gasket supplied loose
- M3 brass inserts, #6 self-tapping standoffs and 1.5 mm card guides
1554D2GYCL pairs a light gray RAL 7035 polycarbonate box with a clear polycarbonate lid, so status LEDs, displays or gauges inside stay visible without opening the enclosure. It measures 4.72 x 2.56 x 2.40 in (120 x 65 x 61 mm), the size D footprint of the 1554 series.
Like the other polycarbonate versions, it is UV stabilized for outdoor use, cUL and UL 508A listed under file E65324, and independently tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The clear lid carries a UL94 V-0 flame rating. Impact rating is IK08 per IEC 62262:2021 and the recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
- Inside: 112.91 mm long, 53.91 mm wide, 54.50 mm high
- Maximum PC board: 52.83 x 110.49 mm
- M3 brass inserts, #6 self-tapping standoffs, 1.5 mm card guides (no DIN rail tabs on size D)
- Two 4 mm wall-mounting holes outside the gasket channel; fits the 1554FT foot kit
The lid seals with a two-piece tongue and groove design and a one-piece high temperature silicone gasket that ships loose for installation. Four included self-captivating M4 stainless steel screws thread into corrosion resistant inserts; tighten to 43-57 oz f-in (30-40 cN-m). The 1554D2GYCL is REACH and RoHS compliant, ships shrink wrapped and weighs 0.35 lbs (0.16 kg).
Ideal For
- Enclosures with visible status LEDs or displays
- Outdoor monitoring and metering electronics
- Wet-location indicator housings
- UL 508A control sub-assemblies
Overview
| Type | Water-tight |
| Style | Screw cover, flat lid |
| Series | 1554 Series |
| Application | Mounting printed circuit boards |
| Part Number | 1554D2GYCL |
| Long Description | RAL7035 grey polycarb plastic watertight enclosure, clear lid |
| Short Description | 120X65X60MM P/C NEMA CLR LID |
| Enclosure Size Code | D |
Dimensions
| Width | 2.56 in (65 mm) |
| Length | 4.72 in (120 mm) |
| Inside Width | 53.91 mm [2.12 in] |
| Nominal Size | 120 x 65 x 60 mm |
| Total Height | 2.40 in (61 mm) |
| Inside Height | 54.50 mm [2.15 in] |
| Inside Length | 112.91 mm [4.45 in] |
| Size (L X W X H) | 4.7 in x 2.6 in x 2.4 in (119 mm x 66 mm x 61 mm) |
| Box Height (Drawing) | 60.50 mm [2.38 in] |
| Max. P.C. Board Width | 110.49 mm |
| Max. P.C. Board Length | 52.83 mm |
Accessories
| Foot Kit | 1554FT (installs using the wall mounting holes) |
| CAD Models | Solid models available in .stp or .x_t |
| Replacement Gasket | 1554CGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100) |
| Inner Panel (Steel, Order Separately) | 1554CPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4 mm) plated, pkg 100) |
Identifiers
| UPC | 623980304182 |
| UNSPSC | 39121301 |
Packaging & Shipping

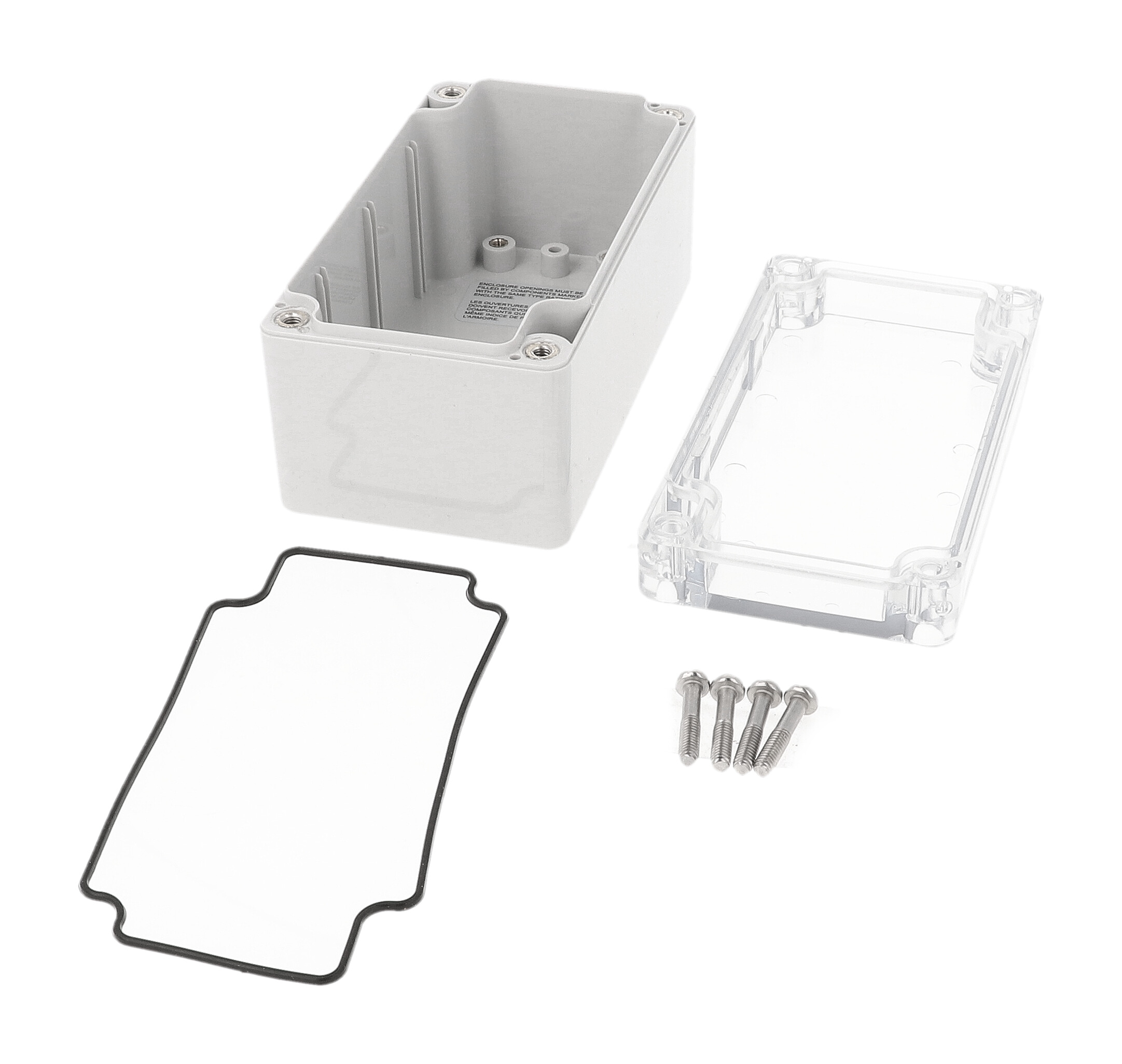

| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Lid | Clear polycarbonate lid |
| Color | Clear |
| Gasket | One-piece replaceable high temperature UL listed silicone, preformed, black; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid, two-piece tongue and groove construction |
| Material | Polycarbonate |
| Lid Screws | 4 included M4 stainless steel machine screws, self-captivating |
| Material Grade | UV stabilized polycarbonate for outdoor use |
| Mounting Holes | 2X 4.00 mm [.16 in] diameter; wall-mounting holes located outside the gasket channel |
| PC Card Guides | Vertical, molded in, for 1.5 mm thick PC boards |
| Enclosure Color | Light gray (RAL 7035) |
| Lid Screw Inserts | M4 corrosion resistant inserts inside lid; lid holes are threaded with the first installation of lid screws |
| DIN Rail Mounting Tabs | Not included on size D (sizes C and D have no internal DIN rail tabs) |
| Recommended Cover Screw Torque | 43-57 oz f-in (30-40 cN-m) |
| Internal PC Board / Panel Mounting | Threaded M3 integral brass inserts inside box; standoffs accept #6 self-tapping screws |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Flame Rating Note | Solid gray polycarbonate is UL94-5VA; clear and smoked lids are UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed (polycarbonate version) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1554D2GYCL and 1554D2GY?▾
Both are size D polycarbonate enclosures of the same dimensions; the 1554D2GYCL has a clear polycarbonate lid (UL94 V-0), while the 1554D2GY has a solid gray lid (UL94-5VA).
Is the clear-lid version still NEMA rated?▾
Yes. The part data lists NEMA 4, 4X, 6, 6P, 12 & 13 and IP68 for the 1554D2GYCL.
What are the inside dimensions?▾
Inside length 112.91 mm [4.45 in], inside width 53.91 mm [2.12 in] and inside height 54.50 mm [2.15 in].
What screws hold the lid?▾
Four included M4 stainless steel machine screws, self-captivating, threaded into corrosion resistant inserts. Replacements are SC576-50 (M4-0.7 x 20 mm, pkg 50).
Which gasket does it use?▾
The replacement silicone gasket is 1554CGASKET (black, pkg 2). The original gasket is supplied loose inside the enclosure.
