Hammond 1550WNBK 250 mm Square Black Diecast Enclosure, IP66 Gasket
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Square 250 x 250 x 97 mm (9.85 x 9.85 x 3.82 in) listed size
- Textured satin black powder coat with black screws included

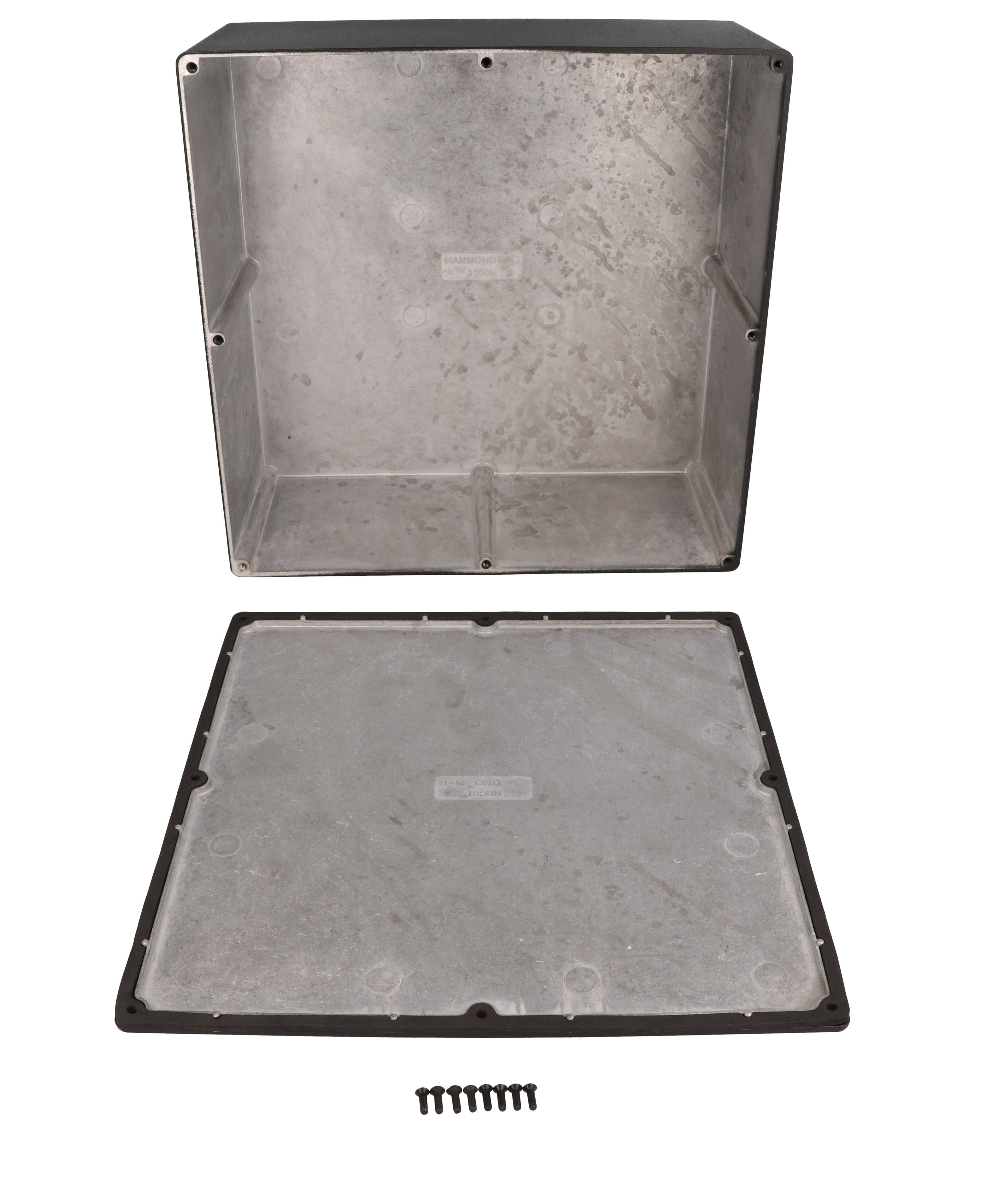

- IP66 EVA foam gasket supplied loose inside
- Inside box 240.30 x 240.30 mm [9.46 x 9.46 in]
- Finish designed to hold up after machining
- Rib-free walls and 2° lower draft angle
- IP67 silicone upgrade: 1550NSGASKET

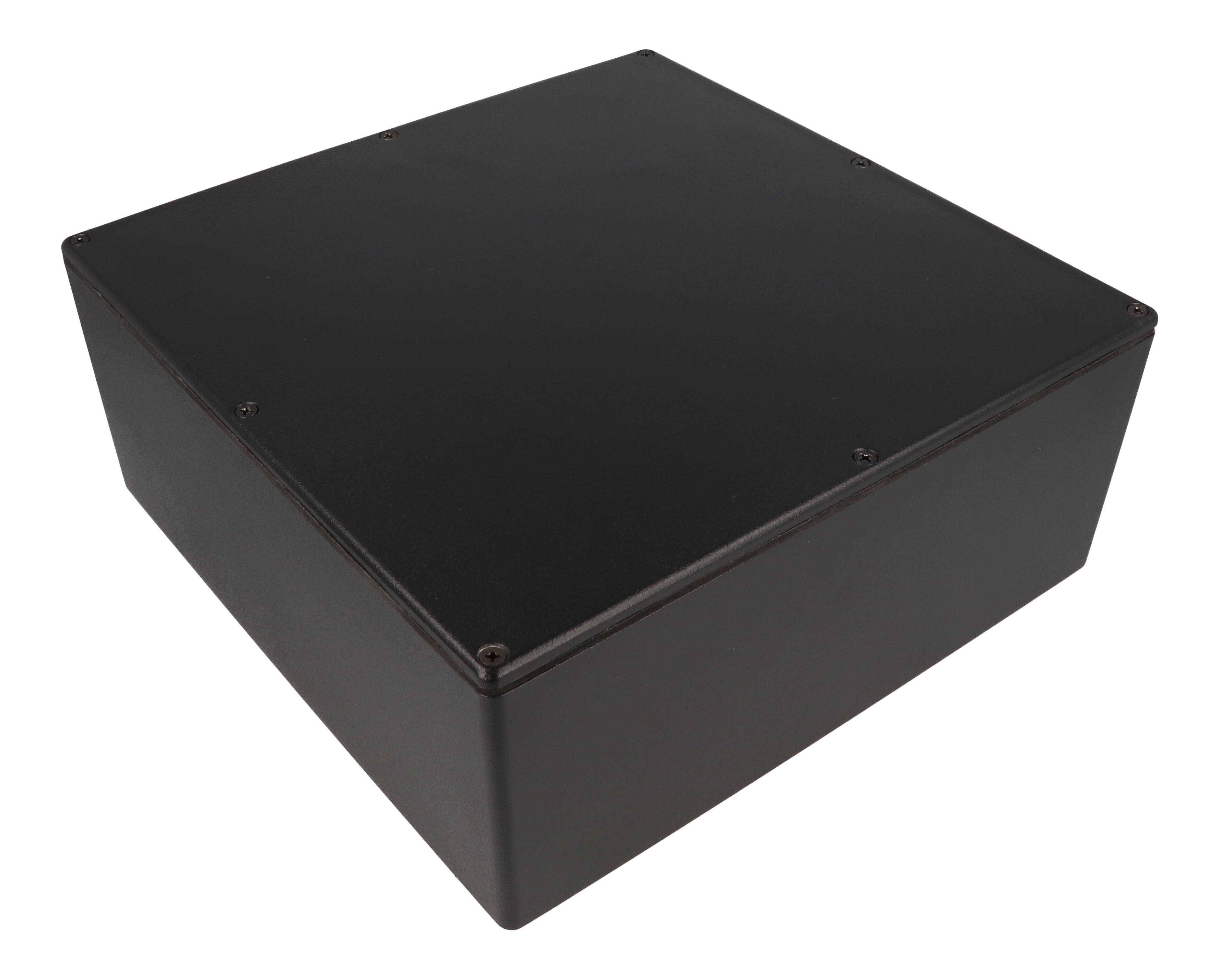

The 1550WNBK is the largest square format in this part of the 1550 Series: a 250 mm x 250 mm diecast aluminum enclosure in textured satin black powder coat, supplied with an IP66 gasket. It is intended for integrators and OEM teams building bigger electronic assemblies that need a rugged black metal housing with dust and water protection.
The satin black polyester powder paint is specified as tough and lasting even after machining, and black screws are included to keep the finished assembly uniform. Box and lid are die-cast aluminum alloy joined by a lap joint that resists dust and splashing water, with M3.5 x 0.6 x 12 mm stainless steel Philips head screws into factory tapped holes.
The listed size is 9.85 in x 9.85 in x 3.82 in (250 mm x 250 mm x 97 mm). The series table gives 9.84 x 9.84 x 3.98 in (250 x 250 x 101 mm) with the 4 mm (0.16 in) lid included. Per the drawing, inside box length and width are both 240.30 mm [9.46 in]. The part ships at 3.42 lbs (1.55 kg).
No internal ribs means connectors and fittings can be placed without additional milling, and a 2° lower side-wall draft angle helps with PC board mounting. The supplied EVA foam gasket, shipped loose inside and rated up to 65°C (149°F), delivers IP66 when correctly installed with lid screws torqued at 55 cN.m.
The 1550WNBK is RoHS and REACH compliant and shrink wrapped. Related parts: 1550NEGASKET (IP66 replacement pair), 1550NSGASKET (IP67 silicone pair), 1550MS100BK screws and 1550MS50TBK tamper-resistant screws.
Ideal For
- Large black electronic instrument housings
- Water-tight control electronics enclosures
- Enclosures machined for multiple connectors
- Equipment where a finished black appearance matters
Overview
| Type | Die-cast box, water-tight |
| Gasket | Includes IP66 gasket (EVA foam, shipped loose inside enclosure) |
| Series | 1550 Series Diecast Aluminum Enclosures |
| Description | black diecast aluminum enclosure |
| Part Number | 1550WNBK |
| Short Description | DIECAST BOX 1550 BLACK |
Services
| Solid Models | .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from factory on quote |
Dimensions
| Lid Allowance | Add 0.16 in (4 mm) to enclosure depth for lid |
| Inside Box Width | 240.30 mm [9.46 in] |
| Size (L X W X H) | 9.85 in x 9.85 in x 3.82 in (250 mm x 250 mm x 97 mm) |
| Inside Box Length | 240.30 mm [9.46 in] |
| Series Table Note | Dimensions include lid. Lid height is 4 mm (0.16 in) |
| Nominal Size - Width (Series Table) | 9.84 in (250 mm) |
| Nominal Size - Height (Series Table) | 3.98 in (101 mm) |
| Nominal Size - Length (Series Table) | 9.84 in (250 mm) |
Identifiers
| UPC | 623980403809 |
| UNSPSC | 39121301 |
| Drawing Reference | 1550N |
Related Parts
| Replacement Screws (Pack Of 100) | 1550MS100BK |
| Driver Bit For Tamper-Proof Screws | SCDRIVET15-2 |
| Replacement IP66 Gasket Kit (Pair) | 1550NEGASKET |
| Same Size, Gasket Included, Unpainted | 1550WN |
| Same Size Without Gasket (Unpainted / Black) | 1550N / 1550NBK |
| Tamper-Resistant Torx-with-Pin Screws (Pack Of 50) | 1550MS50TBK |
| IP67 Upgrade Gasket Kit (Pair, Silicone, -40°C To +150°C) | 1550NSGASKET |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 3.42 lbs (1.55 kg) |
Construction & Finish
| Color | Black |
| Joint | Lap joint construction (protection against dust and splashing water) |
| Finish | Textured satin black polyester powder coat; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Screws | M3.5 x 0.6 x 12 mm stainless steel Philips head machine screws into factory tapped holes |
| Internal Walls | No internal ribs |
| Side Wall Draft Angle | Low (2° less) for easy PC board mounting |
| Lid Screw Holes (Drawing) | 4X M3.5-0.6 |
Environmental & Protection
| IP Rating | IP66 |
| IP66 Condition | With properly installed gasket and lid screws torqued at 55 cN.m |
| Protection (Series) | Designed to meet IP54 without a gasket or IP66 with a gasket; IP67 upgraded gaskets available |
| IP66 Gasket Material / Rating | EVA foam, rated up to 65°C (149°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How large is the 1550WNBK?▾
It measures 9.85 in x 9.85 in x 3.82 in (250 mm x 250 mm x 97 mm) as listed; the series table nominal is 9.84 x 9.84 x 3.98 in (250 x 250 x 101 mm) including the lid.
What is the finish?▾
Textured black: tough satin black polyester powder paint, with black screws included.
What IP rating applies?▾
IP66 with the included EVA foam gasket properly installed and lid screws torqued at 55 cN.m.
Which gasket upgrades it to IP67?▾
1550NSGASKET, a pair of pre-formed silicone gaskets with adhesive backing, rated -40°C to +150°C (-40°F to 302°F).
What is the part number without a gasket?▾
The black version without a gasket is 1550NBK.
