Hammond 1457L1202 120x104x32mm Flanged IP65 Aluminum Enclosure, Clear

The 1457L1202 is a short, wide watertight enclosure - 120 mm long, 104 mm wide and 32 mm high - supplied with flanged end panels for fixing to a wall, panel or equipment chassis. It is intended for installers and OEM engineers who need to fix a broad, low-profile PC board assembly in place inside a housing designed to meet IP65.

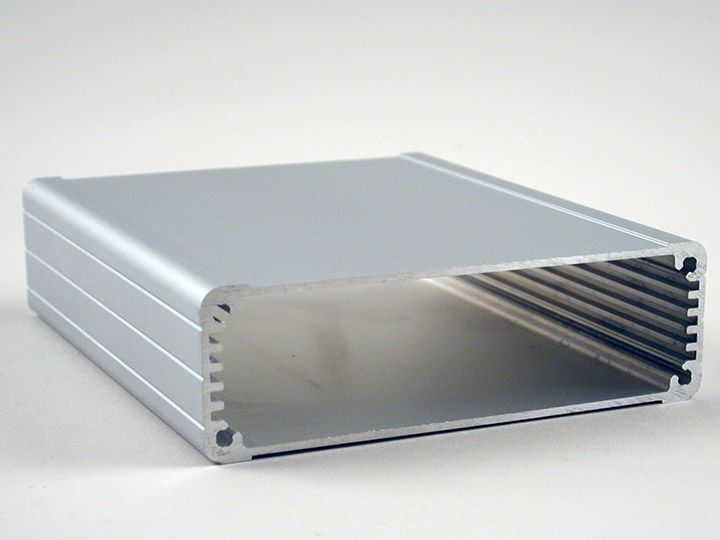

The extrusion has a clear anodized finish and is paired with black powder painted end panels. The body is a single piece of 6063 extruded aluminum with a minimum thickness of 0.06" (1.5 mm), while the end panels are ADC-12 Diecast Aluminum - rugged yet easy to machine for cable entries, connectors or controls. A 0.75 mm (.030") deep recess on the body is provided for labels or a membrane keypad. If you need a black body instead, order 1457L1202BK.

Nominal size is 4.73 in x 4.09 in x 1.26 in (120 mm x 104 mm x 32 mm). The drawing shows a 32.00 mm [1.260 in] extrusion height, end panels 106.89 mm [4.208 in] wide by 34.90 mm [1.374 in] high and an inside face-to-face dimension of 120.00 mm [4.724 in]. With the integrated mounting flanges the overall length grows to 151.56 mm [5.967 in], and the flanges are 50.00 mm [1.969 in] wide. The board slides horizontally into slots extruded into the body; the drawing notes the enclosure fits a 120mm (4.724") X 100mm (3.937") PCB, while the part page lists a maximum board of 119 mm x 99 mm.

Each assembly includes the box, two end panels, two closed-cell polyethylene foam end plate gaskets, #6 Taptight stainless steel screws with rubber O-rings and self-adhesive rubber feet. The thread-forming screws are black zinc plated for corrosion protection to ASTM B633-13, with a recommended torque of 5 lbf/in; replacement screws come in packs of 100 as 1457MS100. The part is REACH and RoHS compliant, and ships shrink wrapped at 0.25 lbs (0.11 kg).
