Hammond 1455K1202 120x78x43mm Clear Aluminum Enclosure, Plastic Ends

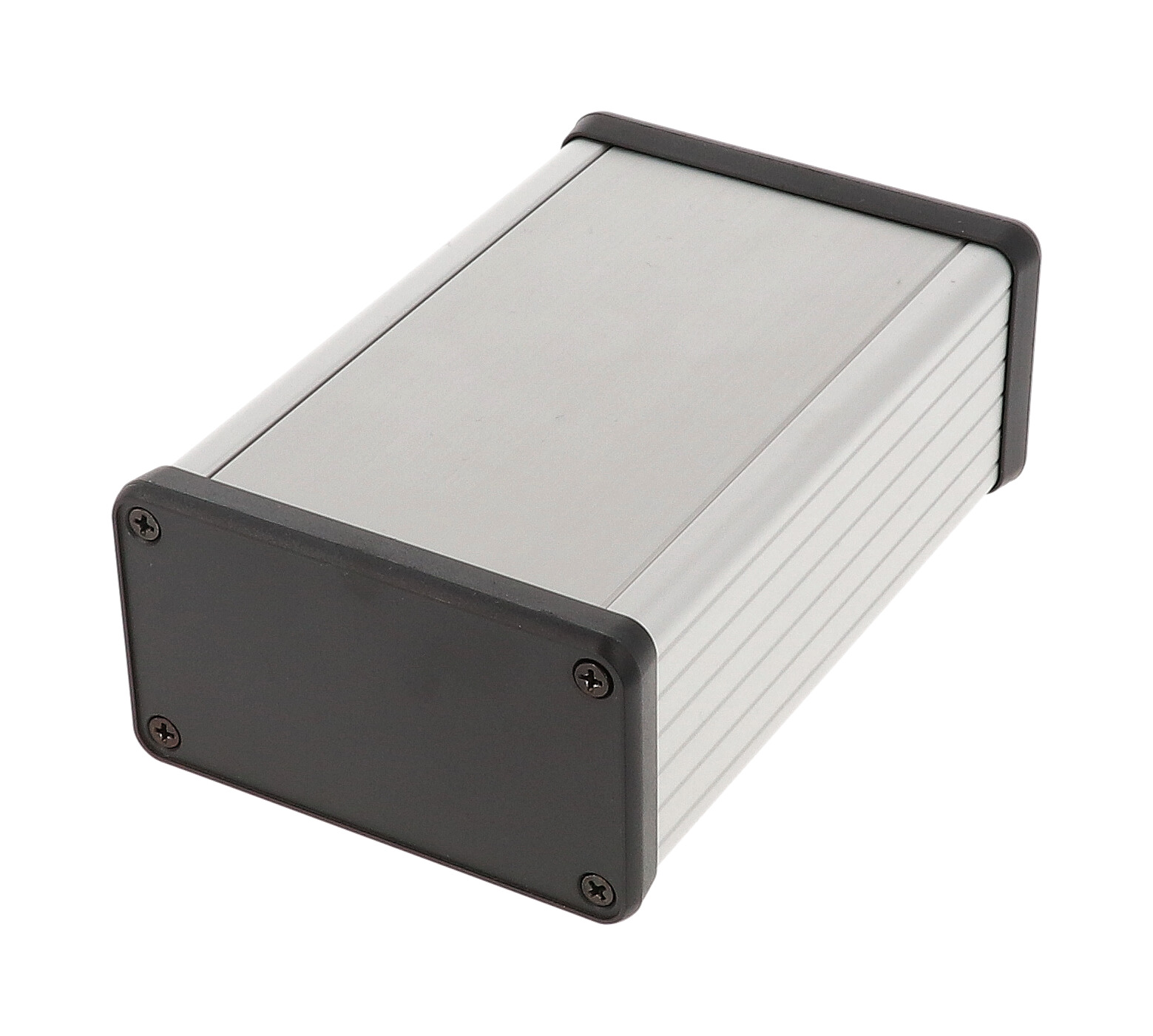

The 1455K1202 is a 120 x 78 x 43 mm extruded aluminum enclosure in clear anodize, supplied with plastic end panels. It is a PC board enclosure for designers who need a compact aluminum housing with closed black plastic ends rather than metal end plates.

The body is extruded aluminum with a minimum thickness of 0.06 in (1.5 mm), finished in clear anodized aluminum. It measures 4.72 in x 3.07 in x 1.69 in (120 mm x 78 mm x 43 mm), with the drawing showing a 120.00 ±0.50 mm length, 78.00 mm extrusion width and 43.02 mm height. Printed circuit boards up to 119 mm long and 74 mm wide mount horizontally by sliding into internal slots extruded into the body, and the enclosure includes a removable sliding plate.

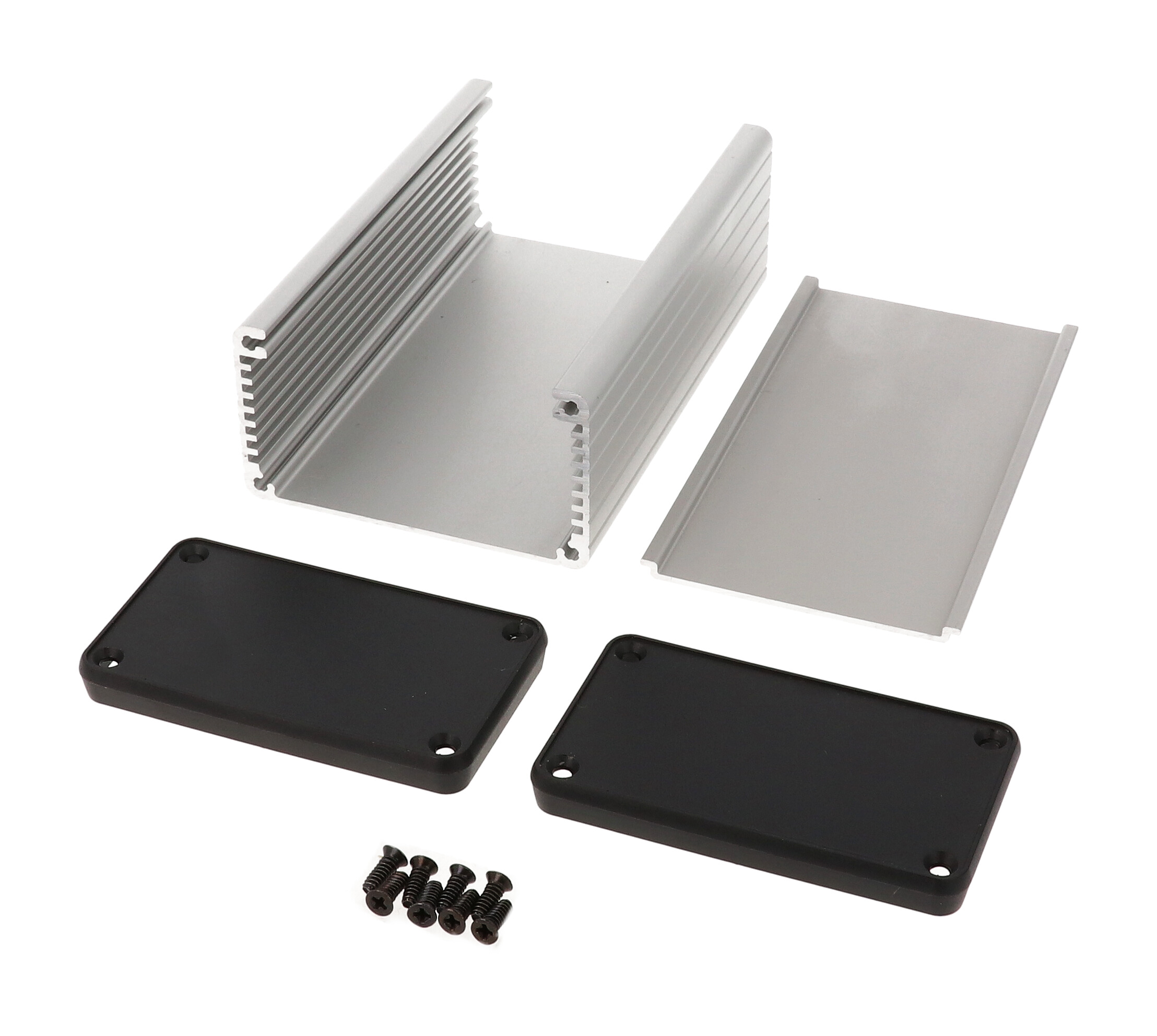

Each enclosure includes two closed black plastic end panels, four adhesive rubber feet and #6 x 3/8 in thread rolling steel end panel screws with a #4 flat head phillips drive in a natural finish. Tighten end panel screws to the recommended 5 lbf-in. Replacement feet are 1421T2CL (pack of 24) and replacement screws are 1455MS100 (quantity 100).

The 1455K1202 is IP54 rated and RoHS and REACH compliant, and ships in shrink wrap at 0.4 lbs (0.18 kg). The same body with aluminum end panels is 1455K1201. Enclosures can be factory modified by milling, drilling or printing, and STEP or IGES solid models are available.
