Hammond 1455C1202BK Black 120x54x23mm Extruded Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 120 x 54 x 23 mm (4.72 x 2.13 x 0.91 in) extruded aluminum body, black anodized
- Internal slots accept a PC board up to 119 mm long and 50 mm wide, mounted horizontally
- IP54 rated enclosure with two closed black ABS plastic end panels
- Body extruded from 6063 aluminum, minimum wall thickness 0.06 in (1.5 mm)
- Includes #6 Taptight end panel screws (black) and four self-adhesive rubber feet
- Can be factory modified (milling, drilling, printing); STEP or IGES solid models available
- RoHS and REACH compliant

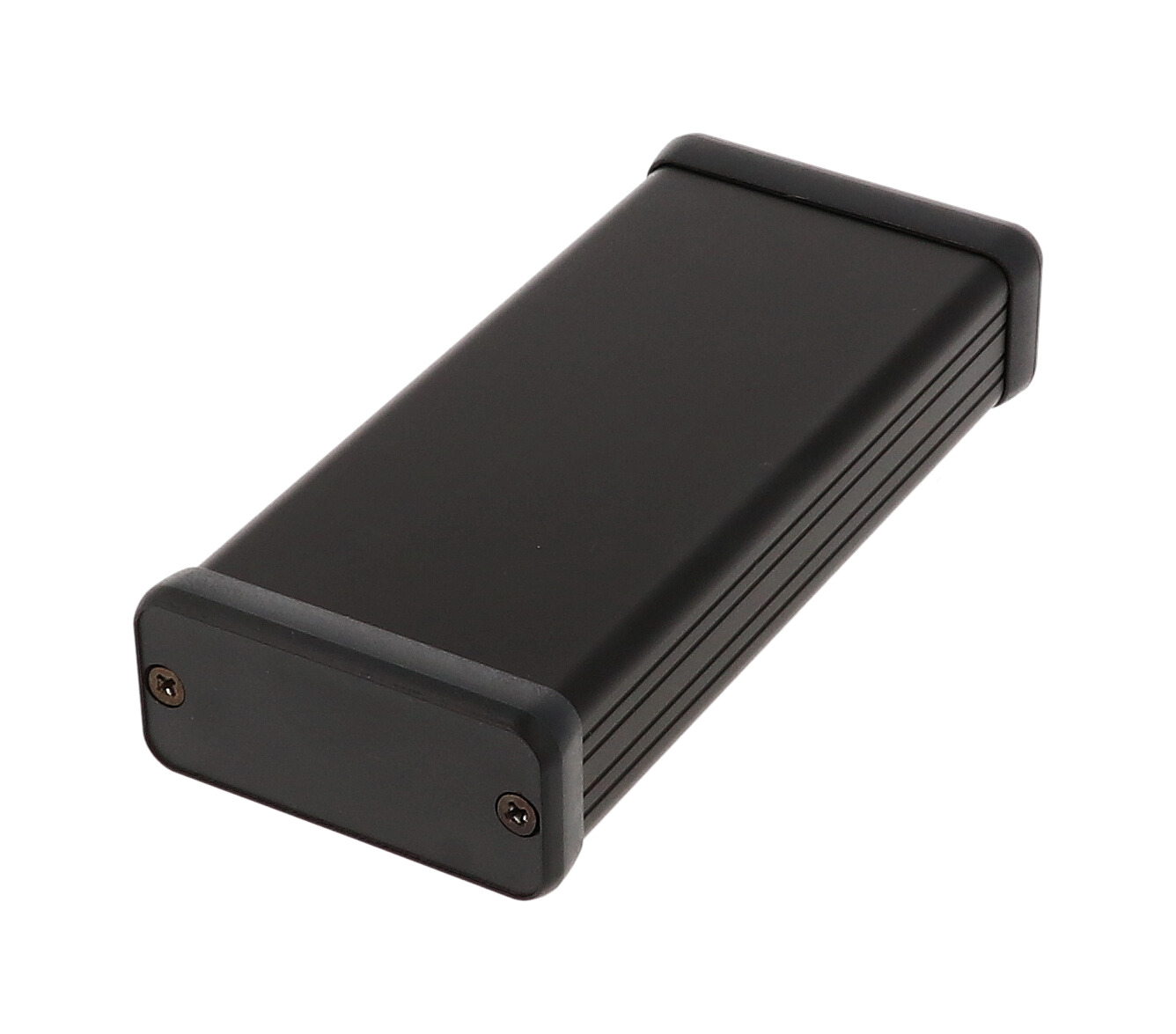

The 1455C1202BK is a black anodized extruded aluminum PC board enclosure from the 1455 Series, measuring 120 x 54 x 23 mm (4.72 x 2.13 x 0.91 in). It closes with black plastic end panels and is built for OEM engineers and electronics designers who need a compact, rugged housing for a circuit board or for equipment interfacing.
The body is extruded from 6063 aluminum with a minimum wall thickness of 0.06 in (1.5 mm), and the bezels are made from ABS. The extrusion is designed for a 50 mm wide PC board: boards mount horizontally by sliding into slots extruded into the enclosure body, accepting a board up to 119 mm long and 50 mm wide. This is a low-profile size in the 1455 range without a sliding belly plate.

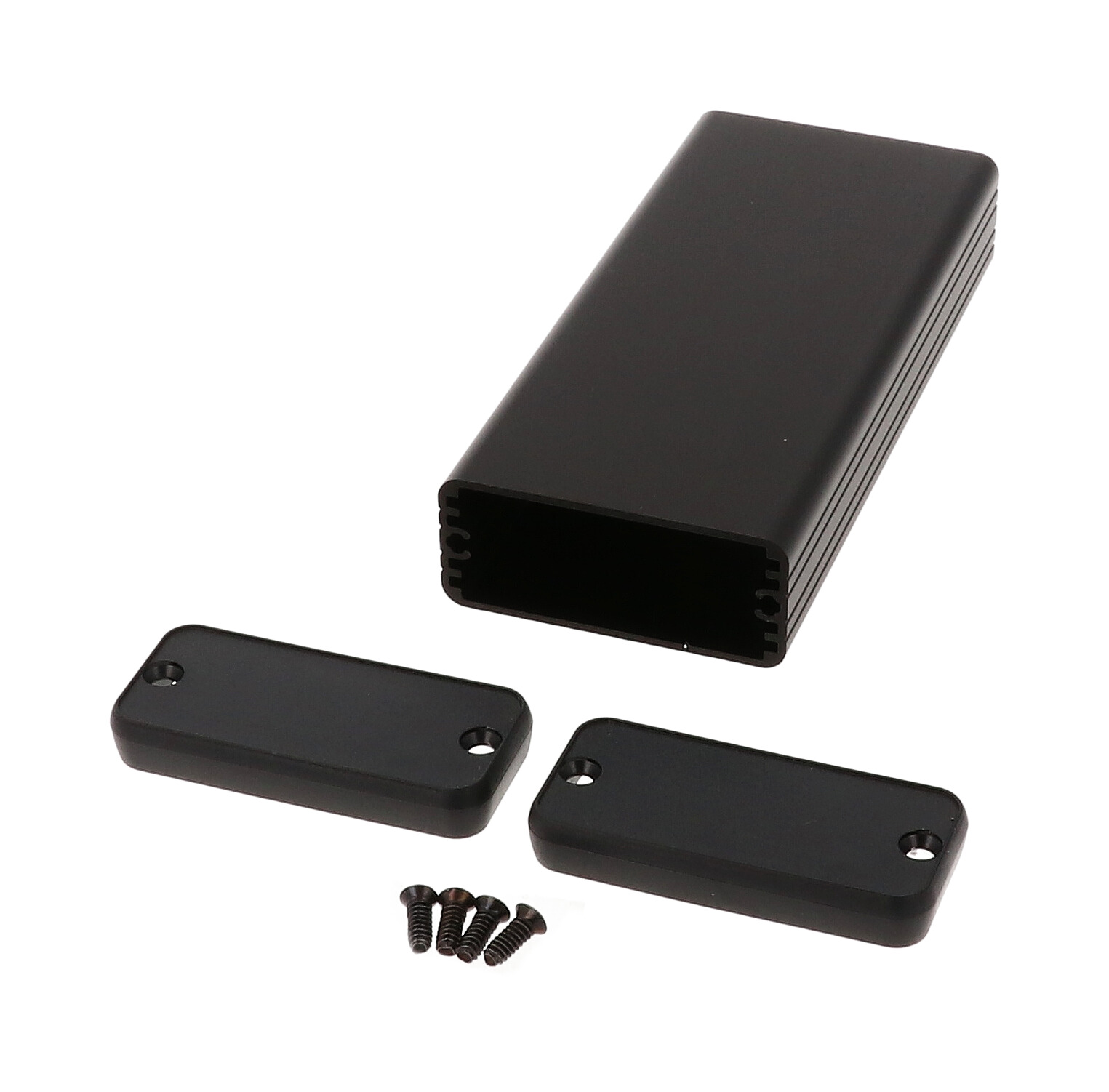

The purchased assembly includes the extruded box, two closed black plastic end panels, #6 Taptight thread-rolling steel end panel screws with a #4 flat head Phillips drive (black finish on this black version), and four self-adhesive rubber feet. Hammond recommends a screw torque of 5 lbf-in. Replacement screws are available as 1455MS100BK (quantity 100), and replacement feet as 1421T2CL (pack of 24).
The 1455C1202BK carries an IP54 rating and is RoHS and REACH compliant. Shipping weight is 0.22 lbs (0.10 kg), shipped in shrink wrap. The enclosure can be factory modified with milling, drilling or printing, and solid models are available in STEP or IGES. The matching sibling is 1455C1202 (clear anodized).
Ideal For
- Housing a PC board up to 119 x 50 mm
- Equipment interfacing enclosures
- Low-profile electronics projects needing an IP54 housing
- OEM electronic assemblies
Included
| Rubber Feet | Four adhesive rubber feet (replacement: 1421T2CL, pack of 24) |
| Included Items | Box, plastic bezels (two closed end panels, black), #6 Taptight screws and self-adhesive rubber feet |
| End Panel Screws | #6 x 3/8" thread rolling, steel, #4 flat head Phillips drive (black) |
| Replacement Screws | 1455MS100BK (quantity 100) |
Overview
| Type | PC Board Enclosure |
| Series | 1455 Series Extruded Aluminum Enclosures |
| Description | black extruded aluminum enclosure w/ plastic end panels |
| Part Number | 1455C1202BK |
| Sliding Plate | No (Enclosures Without Sliding Plate) |
| End Panel Type | Plastic end panels (closed bezels) |
| Short Description | 120 X 54 X 23MM EXTRUDED ENCL |
PC Board
| Board Mounting | Horizontal, slides into internal slots extruded into the body; extrusion designed for 50 mm wide PC board |
| Max. P.C. Board Width | 50 mm |
| Max. P.C. Board Length | 119 mm |
Dimensions
| Bezel Depth | 9.00 mm [0.354 in] |
| Internal Width | 51.00 ± 0.51 mm [2.008 ± 0.020 in] |
| Extrusion Width | 54.00 mm [2.126 in] |
| Internal Height | 20.00 ± 0.38 mm [0.787 ± 0.015 in] |
| Extrusion Height | 23.00 mm [0.906 in] |
| Extrusion Length | 120.00 ± 0.50 mm [4.724 ± 0.020 in] |
| Size (L X W X H) | 4.72 in x 2.13 in x 0.91 in (120 mm x 54 mm x 23 mm) |
| Closed Bezel Outer Size | 57.13 mm x 26.13 mm [2.249 in x 1.029 in] |
Identifiers
| UPC | 623980238272 |
| UNSPSC | 39121301 |
| Metal End Panel Equivalent | 1455C1201BK |
Installation
| Recommended Screw Torque | 5 lbf-in |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material | Aluminum (Extruded) |
| Body Alloy | Extruded Aluminum 6063 |
| Anodize Color | Black |
| Customization | Can be factory modified (milling, drilling, printing etc.); solid models available in STEP or IGES |
| Bezel Material | ABS |
| Minimum Wall Thickness | 0.06" (1.5 mm) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PC board fits the 1455C1202BK?▾
The extrusion is designed for a 50 mm wide PC board; the maximum board size is 119 mm long by 50 mm wide, mounted horizontally in the internal slots.
What are the outside dimensions of the 1455C1202BK?▾
4.72 in x 2.13 in x 0.91 in (120 mm x 54 mm x 23 mm).
What comes in the box?▾
The box (extruded body), two closed black plastic end panels, #6 Taptight steel end panel screws (black) and four self-adhesive rubber feet.
What is the IP rating?▾
IP54.
Does it have a sliding plate?▾
No. The 1455C1202 size is listed among the 1455 enclosures without a sliding plate.
Can the enclosure be modified?▾
Yes. It can be factory modified (milling, drilling, printing etc.), and solid models are available in STEP or IGES.
