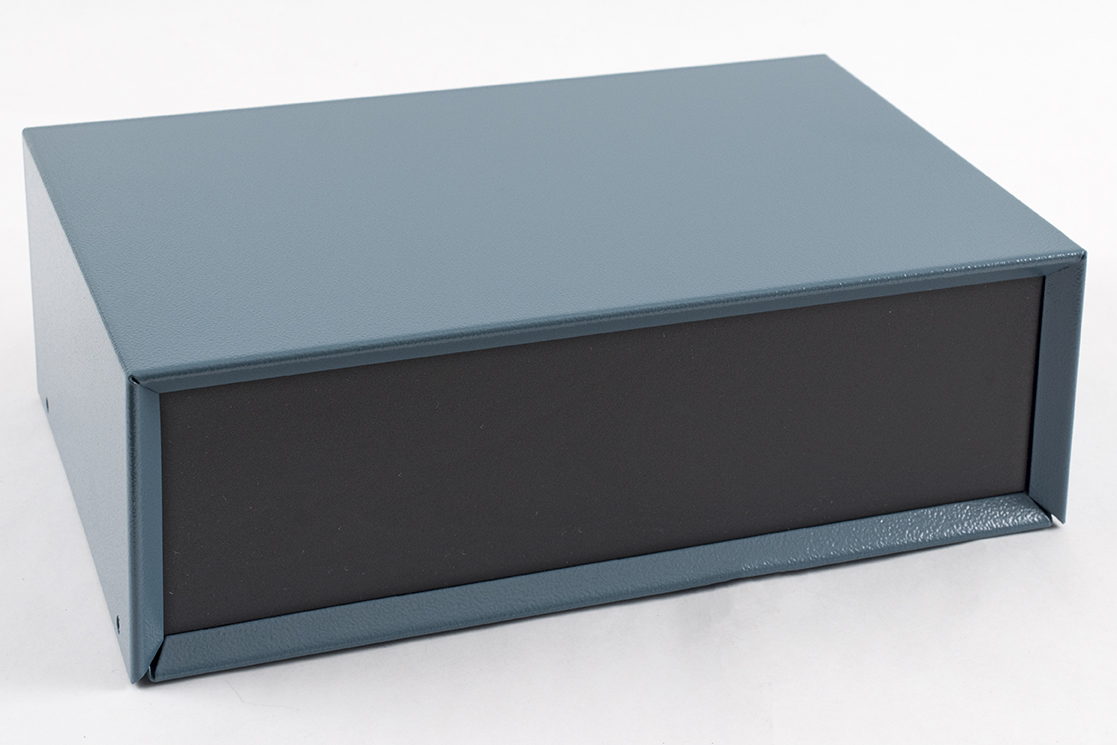

Hammond 1426V-B 12x8x4 in Blue Vented Instrument Case
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm) footprint
- 20 gauge steel top and bottom, satin blue powder coat
- 0.064 in thick aluminum front and rear panels, easy to machine
- Satin black front panel; rear panel matches case colour
- Vented rear panel and vented bottom
- Includes 4 x 6-32 x 1/4 self-tapping screws and 4 self-adhesive rubber feet
- Factory modification available; STEP or IGES solid models
- RoHS and REACH compliant
The 1426V-B is the satin blue version of the 12 x 8 x 4 in (305 x 203 x 102 mm) 1426 metal instrument enclosure, for builders who want a coloured case for bench electronics, test gear or lab instruments rather than the beige finish of the 1426V. It is aimed at electronics designers, OEM engineers and hobbyists building desktop equipment.
The top and bottom are 20 gauge steel for strength, powder coated satin blue. The front and rear panels are 0.064 in thick aluminum that is easy to machine for switches, connectors and displays. The front panel is satin black and the rear panel matches the satin blue case colour. The rear panel and the bottom of the enclosure are vented.
The case is 12 in wide, 8 in deep and 4 in high, and the listed shipping weight is 3.94 lbs (1.79 kg). The material is listed as steel with aluminum end panels, and the 1426V-B is supplied in shrink wrap packaging.
Each case includes four 6-32 x 1/4 self-tapping Philips nickel plated screws and four self-adhesive rubber feet. Replacement screws are part 1421J6 (package of 6) and replacement rubber feet are 1421T9. The same size is offered in beige (off white) as 1426V. The enclosure can be factory modified (milling, drilling, printing), solid models are available in STEP or IGES, and it is RoHS and REACH compliant.
Ideal For
- Colour-coded lab and bench instruments
- Test fixtures with a machined front panel
- Electronics enclosures for 4 in tall builds
- Custom desktop control units
Overview
| Type | Instrument Enclosure |
| Series | 1426 Series Metal Instrument Enclosures |
| Description | enclosure - blue w/ vented bottom; black front panel |
| Part Number | 1426V-B |
| Short Description | BLUE INSTRUMENT CASE 12X8X4 |
Dimensions
| Depth | 8.00 in (203 mm) |
| Width | 12.00 in (305 mm) |
| Height | 4.00 in (102 mm) |
| Size (L X W X H) | 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm) |
Identifiers
| UPC | 623980491608 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 3.94 lbs (1.79 kg) |
Construction & Finish
| Color | Blue |
| Material | Steel w/ Aluminum End Panels |
| CAD Models | Solid models available in STEP or IGES |
| Ventilation | Rear panel and bottom of enclosure vented |
| Top And Bottom | 20 gauge steel, powder coat finished |
| Color Alternative | 1426V (Off White case/rear panel, same size) |
| Hardware Included | 4 x 6-32 x 1/4 self tapping Philips nickel plated screws; 4 x self-adhesive rubber feet |
| Rear Panel Finish | Matches case color |
| Front Panel Finish | Satin black |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 Philips head screws) |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Replacement Rubber Feet | 1421T9 |
| Case/Rear Panel Color (Drawing) | Satin Blue |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1426V-B?▾
The 1426V-B is 12 in x 8 in x 4 in (305 mm x 203 mm x 102 mm): 12.00 in (305 mm) wide, 8.00 in (203 mm) deep and 4.00 in (102 mm) high.
What colour is the 1426V-B?▾
The case and rear panel are blue (Satin Blue on the drawing) and the front panel is satin black. The same size in beige (off white) is 1426V.
What are the panels made of?▾
The front and rear panels are 0.064 in thick aluminum, easy to machine; the top and bottom are 20 gauge steel.
Is the enclosure ventilated?▾
Yes. The rear panel and the bottom of the enclosure are vented.
What hardware comes with it?▾
Four 6-32 x 1/4 self-tapping Philips nickel plated screws and four self-adhesive rubber feet. Replacement screws are 1421J6 (package of 6) and replacement feet are 1421T9.
Can it be customised?▾
The enclosure can be factory modified with milling, drilling and printing, and solid models are available in STEP or IGES.
