Hammond 1426S-B 12x6x4 Inch Satin Blue Vented Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 x 6 x 4 in (W x D x H; 305 x 152 x 102 mm) metal instrument enclosure
- 20 gauge steel top and bottom in satin gulf blue powder coat
- Easy-to-machine 0.064 in aluminum front and rear panels
- Satin black front panel; rear panel matches the satin blue case
- Vented rear panel and vented bottom
- Four 6-32 x 1/4 in self-tapping nickel plated screws and four self-adhesive rubber feet included
- Replacement screws 1421J6; replacement rubber feet 1421T9
- RoHS and REACH compliant; STEP/IGES models available

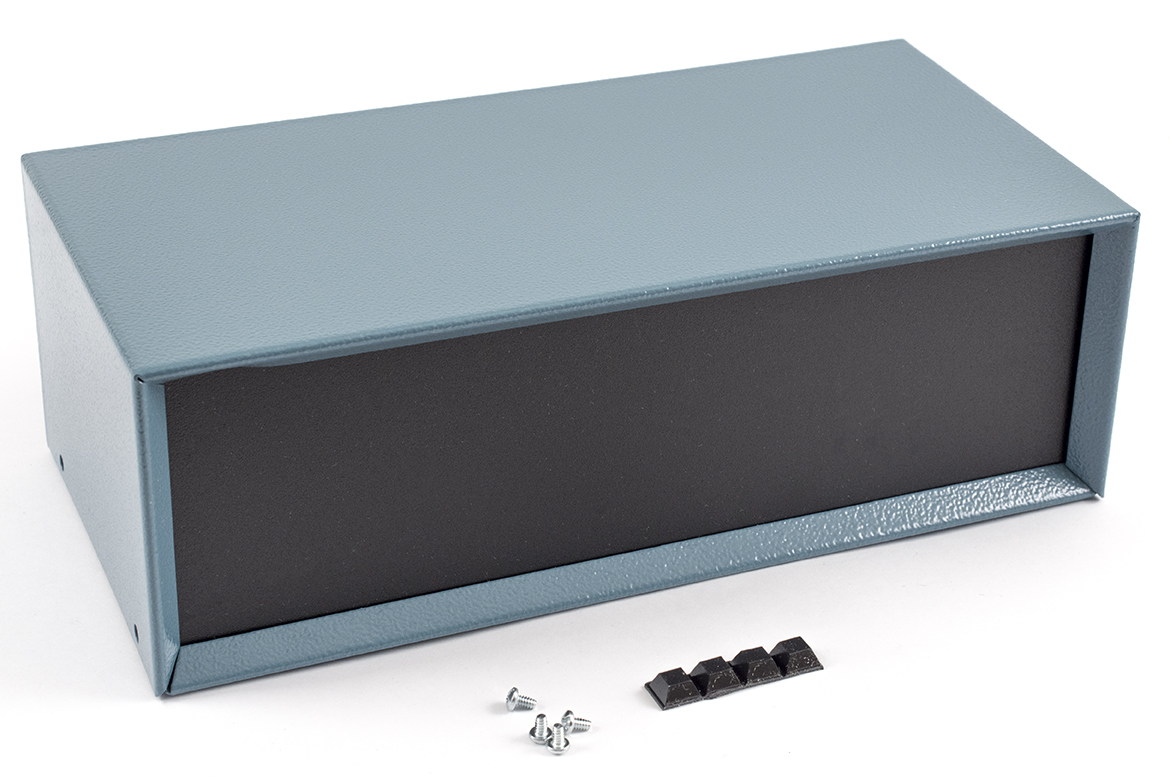

The 1426S-B is a 12 in wide x 6 in deep x 4 in high (305 x 152 x 102 mm) metal instrument enclosure in satin blue with a satin black front panel. Like the beige 1426S, it pairs a long 12 in front panel with a shallow 6 in depth, suited to instruments with many front controls but modest internal depth.
The top and bottom are 20 gauge steel for strength, finished in satin gulf blue powder coat. The front and rear panels are easy-to-machine 0.064 in thick aluminum: the front panel is satin black and the rear panel matches the satin blue case color. The rear panel and the bottom of the enclosure are vented.
Each 1426S-B includes four 6-32 x 1/4 in self-tapping Phillips nickel plated screws and four self-adhesive rubber feet. Replacement screws are available as 1421J6 (pack of six 6-32 Philips head screws) and replacement rubber feet as 1421T9.
Listed dimensions are width 12.00 in (305 mm), depth 6.00 in (152 mm) and height 4.00 in (102 mm). The enclosure ships shrink wrapped at 3.77 lbs (1.71 kg), is RoHS and REACH compliant, and can be factory modified (milling, drilling, printing) on quotation, with STEP or IGES solid models available. The same size is also offered as 1426S (beige / off white).
Ideal For
- Instruments with long rows of front-panel controls
- Shallow benchtop controllers
- Test and lab equipment housings
- Electronics prototype enclosures
Overview
| Type | Instrument Enclosure |
| Series | 1426 Series Metal Instrument Enclosures |
| Part Number | 1426S-B |
| Manufacturer Description | BLUE INSTRUMENT CASE 12X6X4 |
Dimensions
| Depth | 6.00 in (152 mm) |
| Width | 12.00 in (305 mm) |
| Height | 4.00 in (102 mm) |
| Size (L X W X H) | 12 in x 6 in x 4 in (305 mm x 152 mm x 102 mm) |
Identifiers
| UPC | 623980491400 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 3.77 lbs (1.71 kg) |
Construction & Finish
| Material | Steel w/ Aluminum End Panels |
| CAD Models | STEP or IGES solid models available |
| Case Color | Blue (Satin Blue; series copy: satin gulf blue) |
| Rear Panel | Matches case color (Satin Blue) |
| Case Finish | Satin gulf blue powder coat |
| Front Panel | Satin black |
| Ventilation | Vented rear panel and vented bottom |
| Included Feet | 4 - self adhesive rubber feet |
| Top And Bottom | 20 gauge steel |
| Included Screws | 4 - 6-32 x 1/4 self tapping, Phillips, nickel plated |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 Philips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
| Front And Rear Panels | 0.064 in thick aluminum, easy to machine |
| Alternate Color Version | 1426S (beige / off white) |
| Replacement Rubber Feet | 1421T9 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1426S-B?▾
Width 12.00 in (305 mm), depth 6.00 in (152 mm), height 4.00 in (102 mm).
What color is the 1426S-B?▾
The case and rear panel are satin blue; the front panel is satin black.
Is the enclosure vented?▾
Yes. The rear panel and the bottom of the enclosure are vented.
What hardware is included?▾
Four 6-32 x 1/4 in self-tapping nickel plated screws and four self-adhesive rubber feet. Replacements are 1421J6 (screws) and 1421T9 (rubber feet).
Can I machine the front and rear panels?▾
Yes. They are 0.064 in thick aluminum described as easy to machine, and the factory also offers milling, drilling and printing on quotation.
Is this size available in another color?▾
Yes. The same size is offered as 1426S (beige / off white).
