Hammond 1426O 10x7x4 Inch Beige Vented Metal Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10 x 7 x 4 in (W x D x H; 254 x 178 x 102 mm) metal instrument enclosure
- 20 gauge steel top and bottom in beige powder coat
- Easy-to-machine 0.064 in aluminum front and rear panels
- Satin black front panel; rear panel matches the beige (off white) case
- Vented rear panel and vented bottom
- Four 6-32 x 1/4 in self-tapping nickel plated screws and four self-adhesive rubber feet included
- Replacement screws 1421J6; replacement rubber feet 1421T3
- RoHS and REACH compliant; STEP/IGES models available

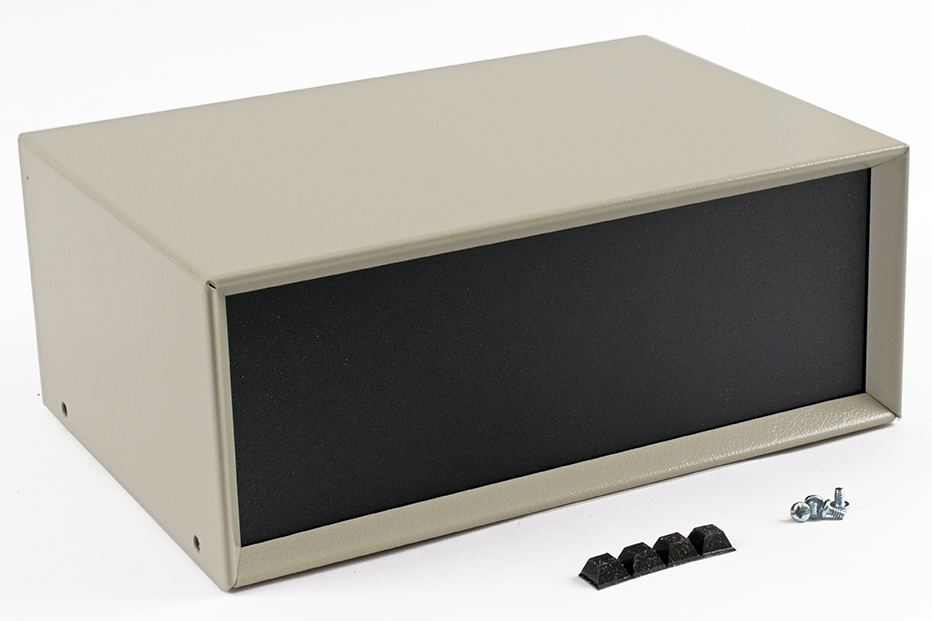

The 1426O is a 10 in wide x 7 in deep x 4 in high (254 x 178 x 102 mm) metal instrument enclosure with a beige (off white) steel shell and a satin black front panel. Its wide face suits instruments with several controls or displays side by side, while the 4 in height keeps a low benchtop profile.
The top and bottom are 20 gauge steel for strength, finished in beige powder coat. The front and rear panels are easy-to-machine 0.064 in thick aluminum: the front panel is satin black and the rear panel matches the beige (off white) case color. The rear panel and the bottom of the enclosure are vented.
Each 1426O includes four 6-32 x 1/4 in self-tapping Phillips nickel plated screws and four self-adhesive rubber feet. Replacement screws are available as 1421J6 (pack of six 6-32 Philips head screws) and replacement rubber feet as 1421T3.
Listed dimensions are width 10.00 in (254 mm), depth 7.00 in (178 mm) and height 4.00 in (102 mm). The enclosure ships shrink wrapped at 3.08 lbs (1.40 kg), is RoHS and REACH compliant, and can be factory modified (milling, drilling, printing) on quotation, with STEP or IGES solid models available. The same size is also offered as 1426O-B (satin blue).
Ideal For
- Wide front-panel benchtop instruments
- Multi-control test equipment
- Controllers with displays or meters
- Lab electronics housings
Overview
| Type | Instrument Enclosure |
| Series | 1426 Series Metal Instrument Enclosures |
| Part Number | 1426O |
| Manufacturer Description | BEIGE INSTRUMENT CASE 10X7X4 |
Dimensions
| Depth | 7.00 in (178 mm) |
| Width | 10.00 in (254 mm) |
| Height | 4.00 in (102 mm) |
| Size (L X W X H) | 10 in x 7 in x 4 in (254 mm x 178 mm x 102 mm) |
Identifiers
| UPC | 623980490908 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 3.08 lbs (1.40 kg) |
Construction & Finish
| Material | Steel w/ Aluminum End Panels |
| CAD Models | STEP or IGES solid models available |
| Case Color | Beige (Off White) |
| Rear Panel | Matches case color (Off White) |
| Case Finish | Beige powder coat |
| Front Panel | Satin black |
| Ventilation | Vented rear panel and vented bottom |
| Included Feet | 4 - self adhesive rubber feet |
| Top And Bottom | 20 gauge steel |
| Included Screws | 4 - 6-32 x 1/4 self tapping, Phillips, nickel plated |
| Replacement Screws | 1421J6 (Pkg. of 6, 6-32 Philips head screws) |
| Factory Modification | Milling, drilling, printing available from the factory on quotation |
| Front And Rear Panels | 0.064 in thick aluminum, easy to machine |
| Alternate Color Version | 1426O-B (satin blue) |
| Replacement Rubber Feet | 1421T3 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1426O?▾
Width 10.00 in (254 mm), depth 7.00 in (178 mm), height 4.00 in (102 mm).
What color is the 1426O?▾
The case and rear panel are beige (off white); the front panel is satin black.
Is the enclosure vented?▾
Yes. The rear panel and the bottom of the enclosure are vented.
What hardware is included?▾
Four 6-32 x 1/4 in self-tapping nickel plated screws and four self-adhesive rubber feet. Replacements are 1421J6 (screws) and 1421T3 (rubber feet).
Can I machine the front and rear panels?▾
Yes. They are 0.064 in thick aluminum described as easy to machine, and the factory also offers milling, drilling and printing on quotation.
Is this size available in another color?▾
Yes. The same size is offered as 1426O-B (satin blue).
