Voltage Trans 100VA 240
- Nominal Line Volta 240
- Ratio Pri./Sec. 240:120
- Thermal Rating 100
- VA 0-20
$75.68In stock
Buy now

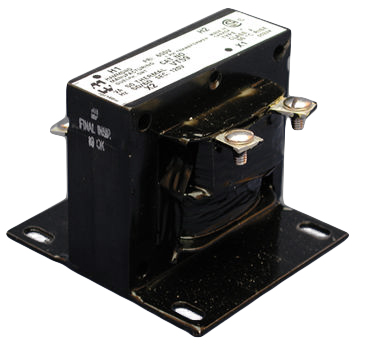

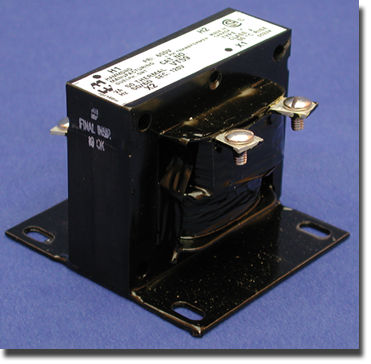

Potential Transformer Instrument · EX-HX-VT Series
Brand: Hammond Manufacturing · 7 part numbers
- ■Used (with 150 Volt full scale A.C. voltmeters) to measure the voltage of 240, 480 or 600 VAC systems.
- ■Primary insulated for 4.0 KV rms test, suitable for L.V. switchgear and motor control use.
- ■50/60 Hz. operation.
- ■Open construction - "Type H".
- ■CSA certified (209651).
- ■The nominal line voltages of 240 and 480 volts may be exceeded by 25% for 60 Hz. operation.
from $56.22
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your EX-HX-VT Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Voltage Transformer 100VA 480
- Nominal Line Volta 480
- Ratio Pri./Sec. 480:120
- Thermal Rating 100
- VA 0-20
$75.68In stock
Buy nowVoltage Transformer 100VA
- Nominal Line Volta 600
- Ratio Pri./Sec. 600:120
- Thermal Rating 100
- VA 0-20
$89.17In stock
Buy nowTransformer
- Nominal Line Volta 240
- Ratio Pri./Sec. 240:120
- Thermal Rating 50
- VA 0-8
$56.22In stock
Buy nowTransformer
- Nominal Line Volta 347
- Ratio Pri./Sec. 347:120
- Thermal Rating 50
- VA 0-8
$56.22In stock
Buy nowTransformer
- Nominal Line Volta 480
- Ratio Pri./Sec. 480:120
- Thermal Rating 50
- VA 0-8
$56.22Backorder
Buy nowTransformer
- Nominal Line Volta 600
- Ratio Pri./Sec. 600:120
- Thermal Rating 50
- VA 0-8
$56.22In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Nominal Line · Voltage | Ratio · Pri. / Sec. | Accuracy · % | VA | Thermal · Rating | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Mounting Centers · D | Mounting Centers · E | Mounting Slot · G | Mounting Slot · H | Ship Wt. · Lb. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VT55A | 240 | 240:120 | 1.2 | 0-8 | 50 | 3.00 | 3.25 | 2.56 | 2.50 | 2.50 | 0.22 | 0.44 | 3 | $56.22In stock | Buy now |
| HX54A | 240 | 240:120 | 1.2 | 0-20 | 100 | 3.75 | 4.00 | 3.13 | 3.13 | 3.13 | 0.22 | 0.44 | 6.6 | $75.68In stock | Buy now |
| VT56A | 347 | 347:120 | 1.2 | 0-8 | 50 | 3.00 | 3.25 | 2.56 | 2.50 | 2.50 | 0.22 | 0.44 | 3 | $56.22In stock | Buy now |
| VT57A | 480 | 480:120 | 1.2 | 0-8 | 50 | 3.00 | 3.25 | 2.56 | 2.50 | 2.50 | 0.22 | 0.44 | 3 | $56.22Backorder | Buy now |
| HX74A | 480 | 480:120 | 1.2 | 0-20 | 100 | 3.75 | 4.00 | 3.13 | 3.13 | 3.13 | 0.22 | 0.44 | 6.6 | $75.68In stock | Buy now |
| VT59A | 600 | 600:120 | 1.2 | 0-8 | 50 | 3.00 | 3.25 | 2.56 | 2.50 | 2.50 | 0.22 | 0.44 | 3 | $56.22In stock | Buy now |
| HX94A | 600 | 600:120 | 1.2 | 0-20 | 100 | 3.75 | 4.00 | 3.13 | 3.13 | 3.13 | 0.22 | 0.44 | 6.6 | $89.17In stock | Buy now |
Features
- ■Used (with 150 Volt full scale A.C. voltmeters) to measure the voltage of 240, 480 or 600 VAC systems.
- ■Primary insulated for 4.0 KV rms test, suitable for L.V. switchgear and motor control use.
- ■50/60 Hz. operation.
- ■Open construction - "Type H".
- ■CSA certified (209651).
- ■The nominal line voltages of 240 and 480 volts may be exceeded by 25% for 60 Hz. operation.
- ■Insulation system 55 degree C rise, Class 105.
