1421 Printed Circuit Board Standoffs · 1421PCB Series

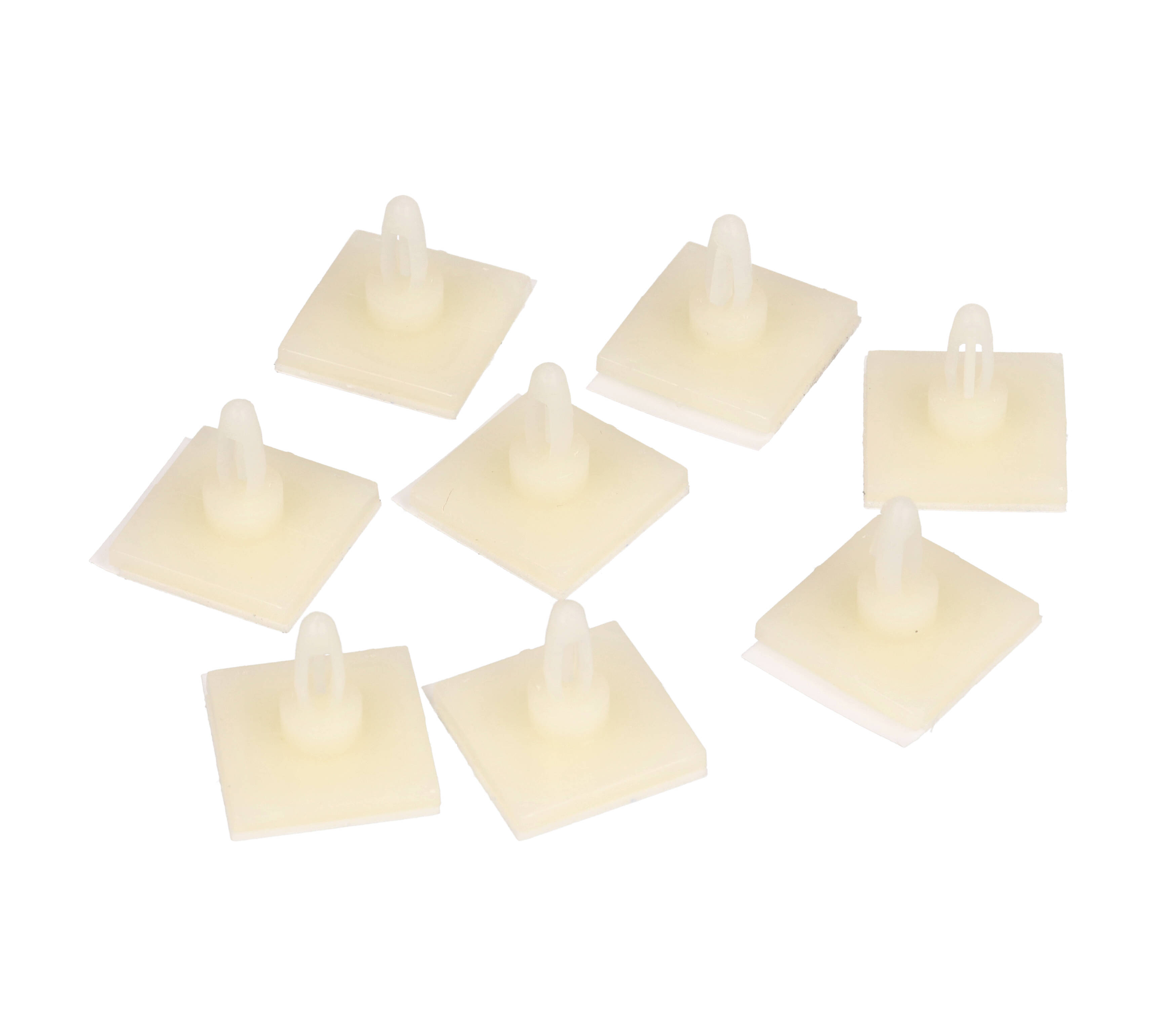

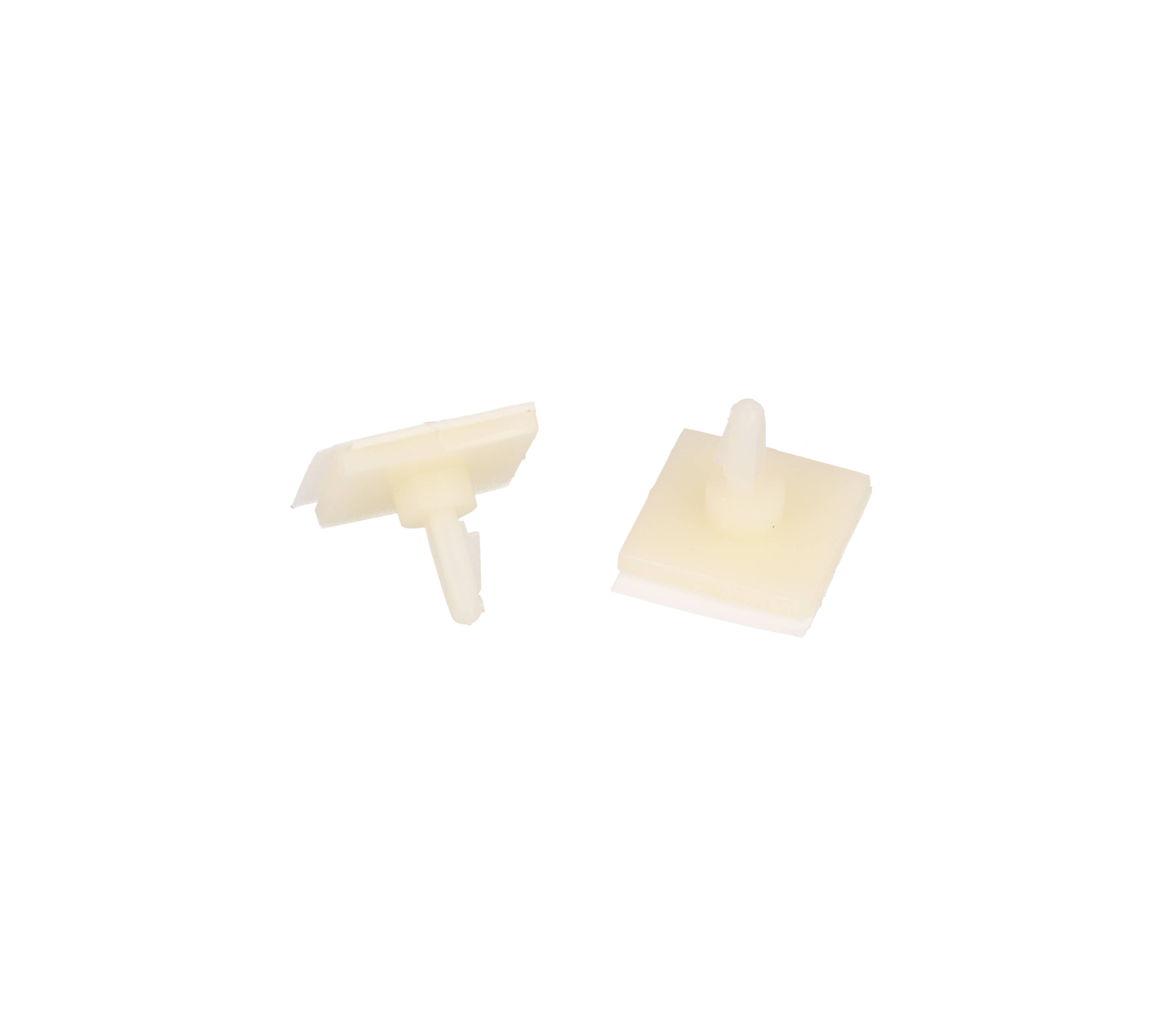

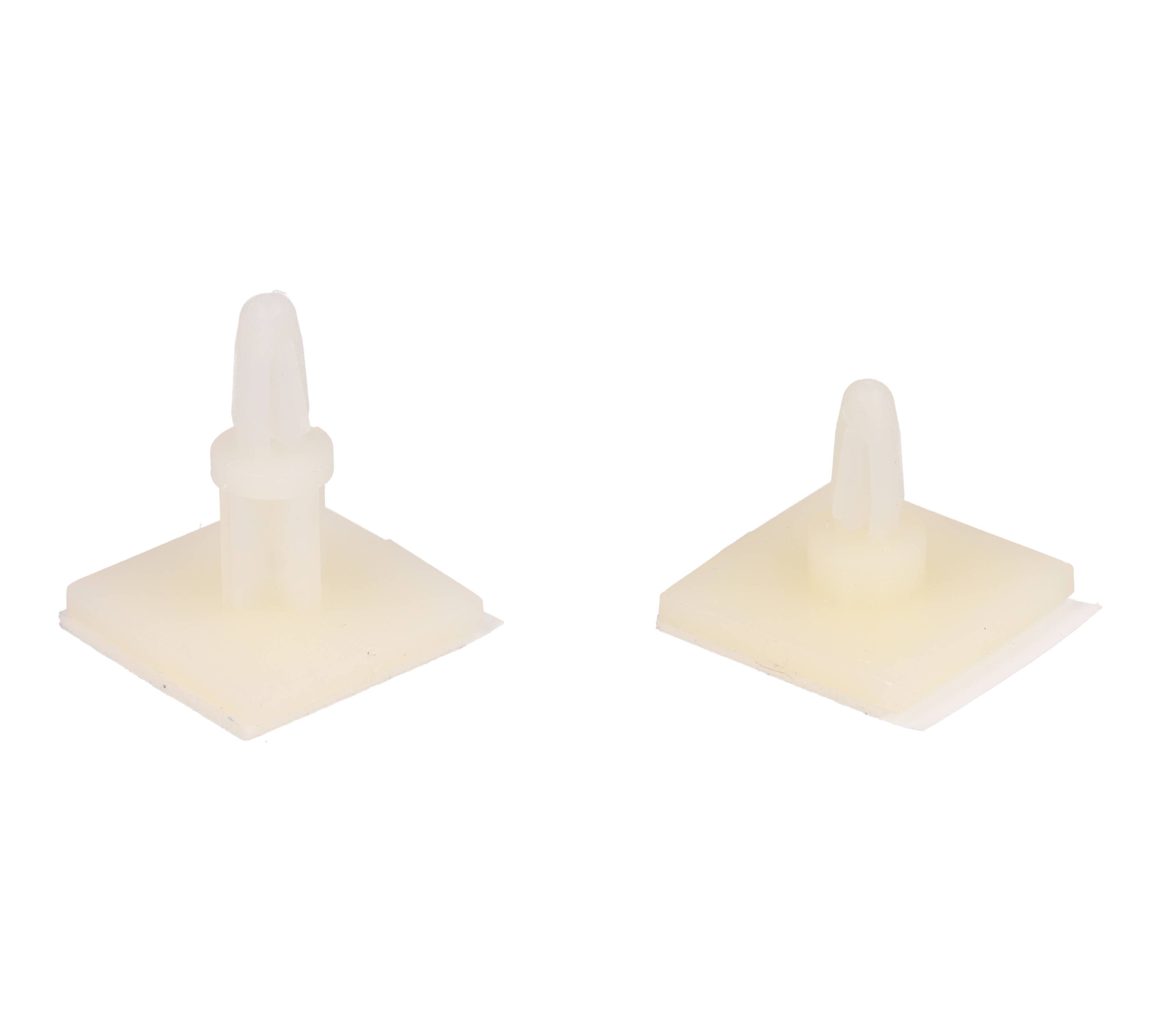

1/4" Standoffs

• ■0.65” (17mm) overall height
• ■0.71” (18mm) square mounting pad with self adhesive
• ■P.C. board bottom would rest 0.25” (6mm) above the enclosure floor
• ■Suggested material thickness 0.0625” (1.6mm) max.
• ■Suggested hole diameter 0.156” (4mm)
• ■Tough white nylon

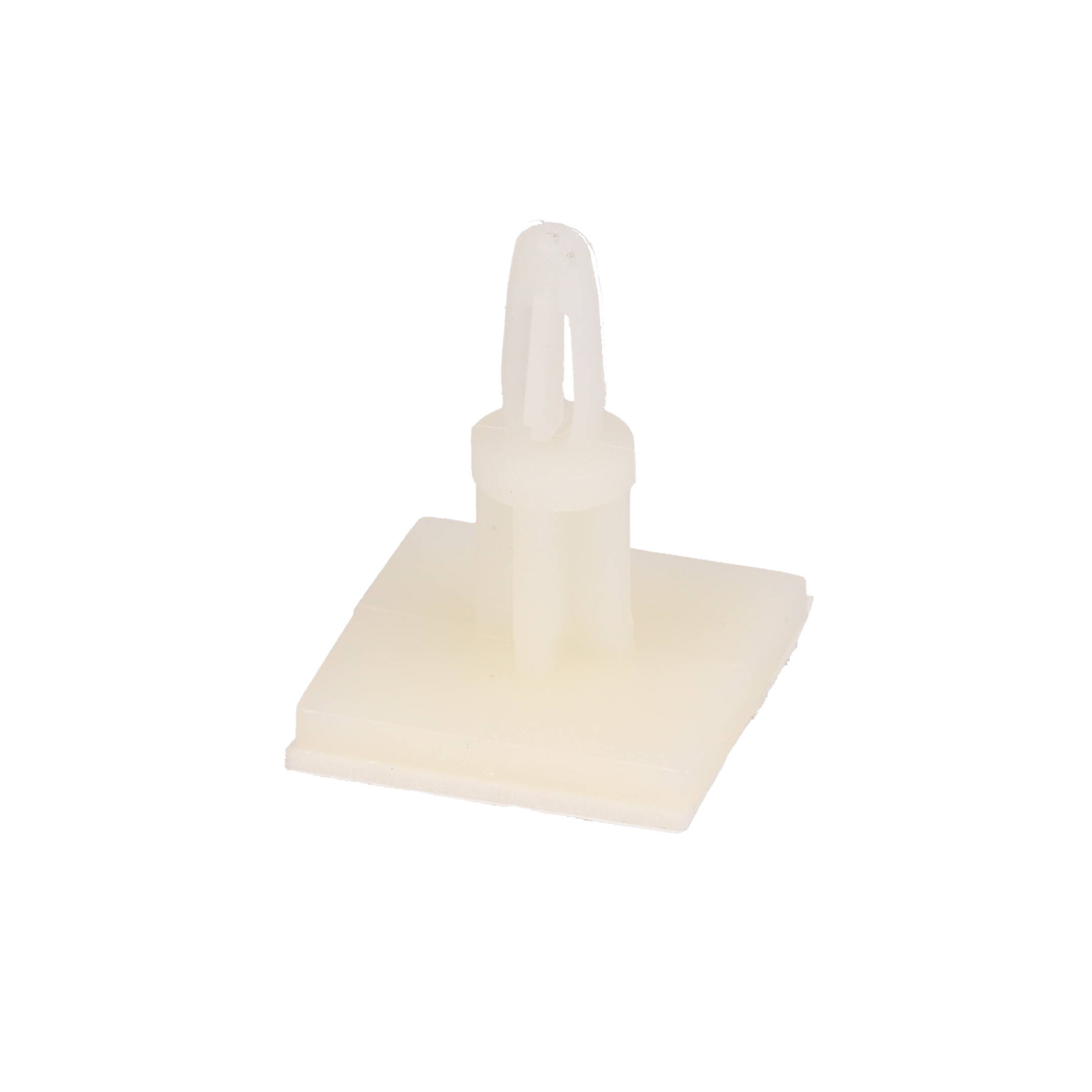

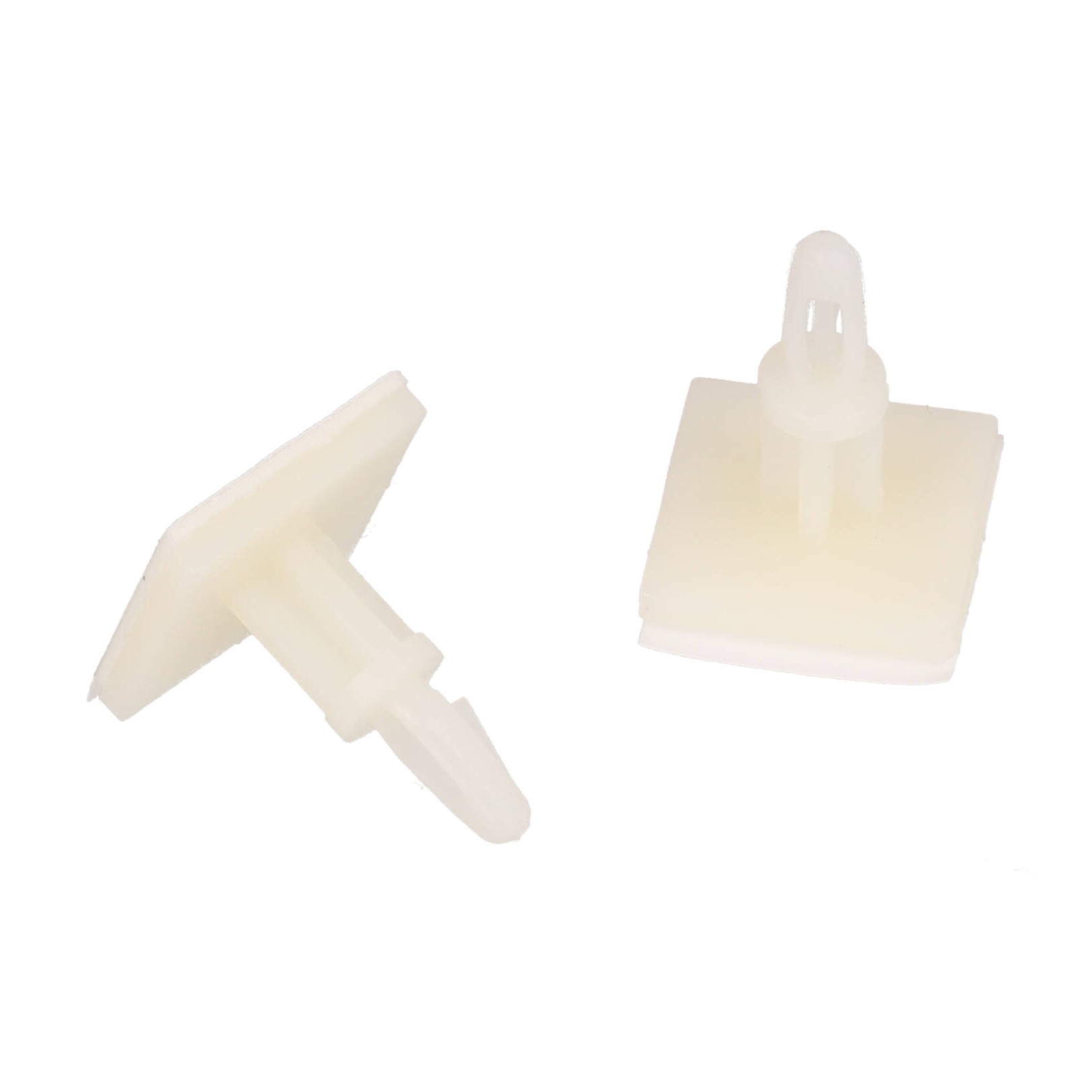

1/2" Standoffs

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■0.9” (23mm) overall height
• ■0.71” (18mm) square mounting pad with self adhesive
• ■P.C. board bottom would rest 0.5” (12.7mm) above the enclosure floor
• ■Suggested material thickness 0.0625” (1.6mm) max.
• ■Suggested hole diameter 0.156” (4mm)
• ■Tough white nylon
