Hammond 1421PCB2-8 1/2 in Self-Adhesive PCB Standoffs, 8 Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

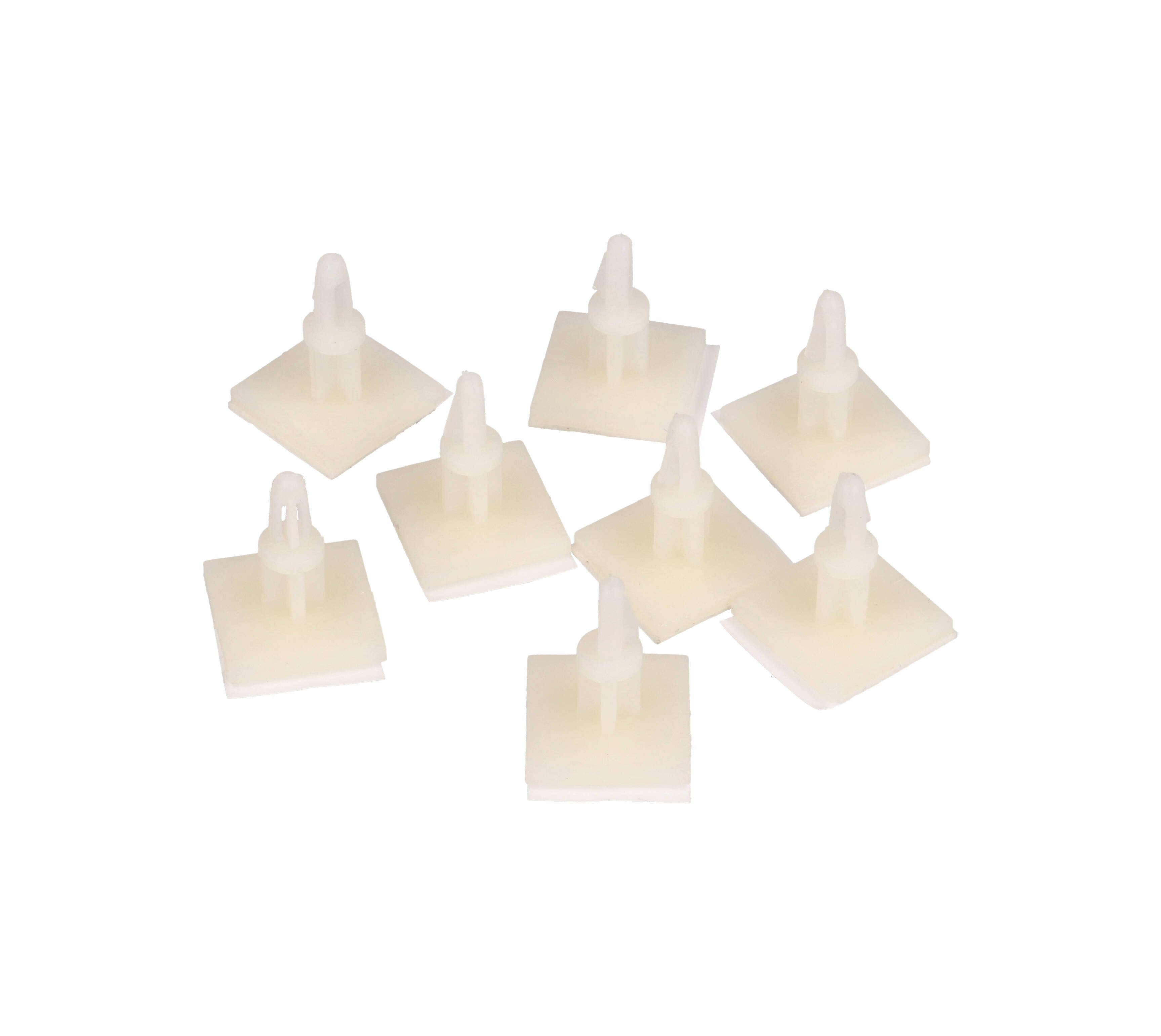

- Pack of 8 self-adhesive PCB standoffs
- Board bottom rests 0.5" (12.7mm) above the enclosure floor
- 0.9" (23mm) overall height
- 0.71" (18mm) square self-adhesive mounting pad
- Suggested material thickness 0.0625" (1.6mm) max., hole diameter 0.156" (4mm)
- Tough white nylon
- RoHS and REACH compliant

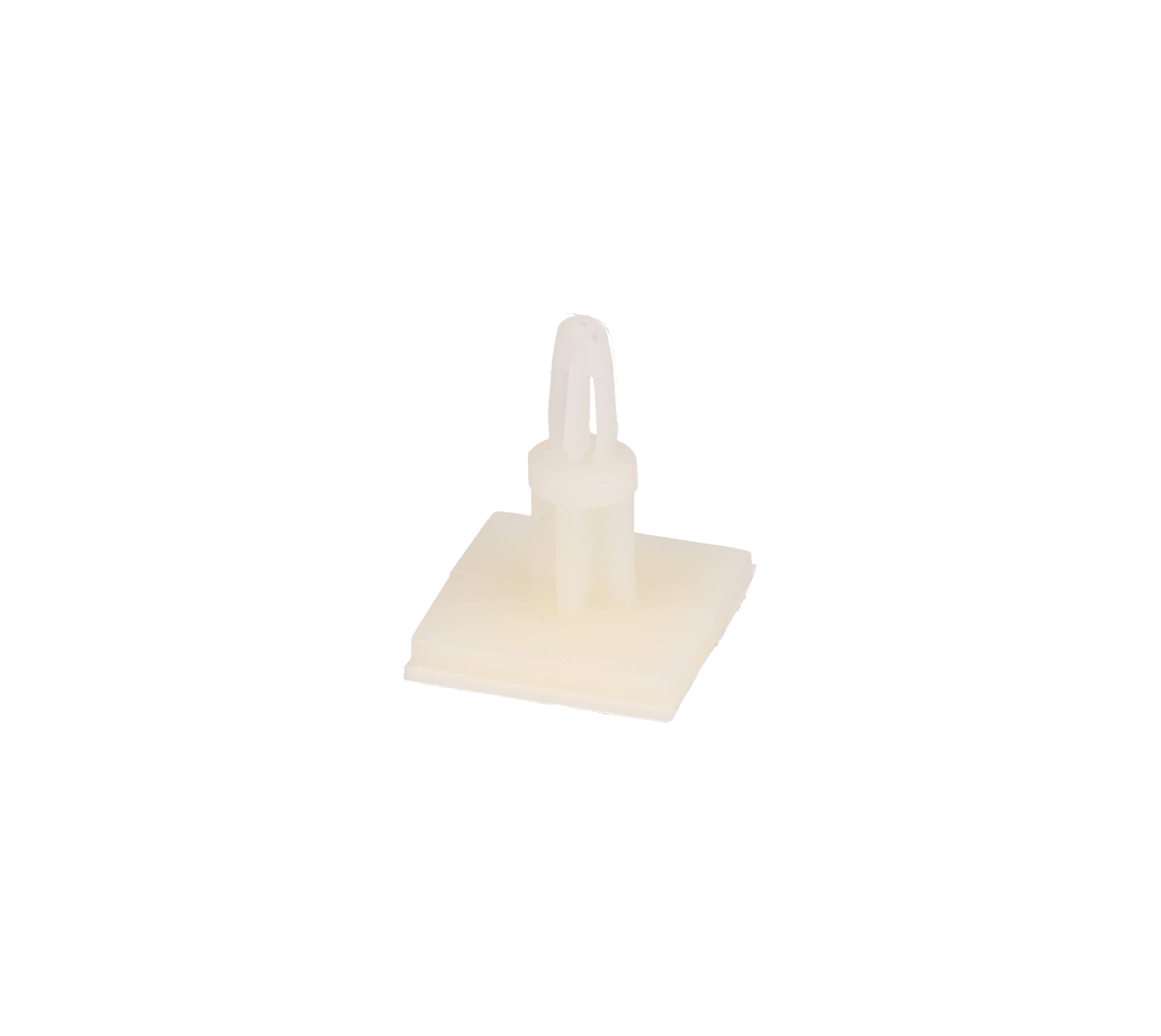

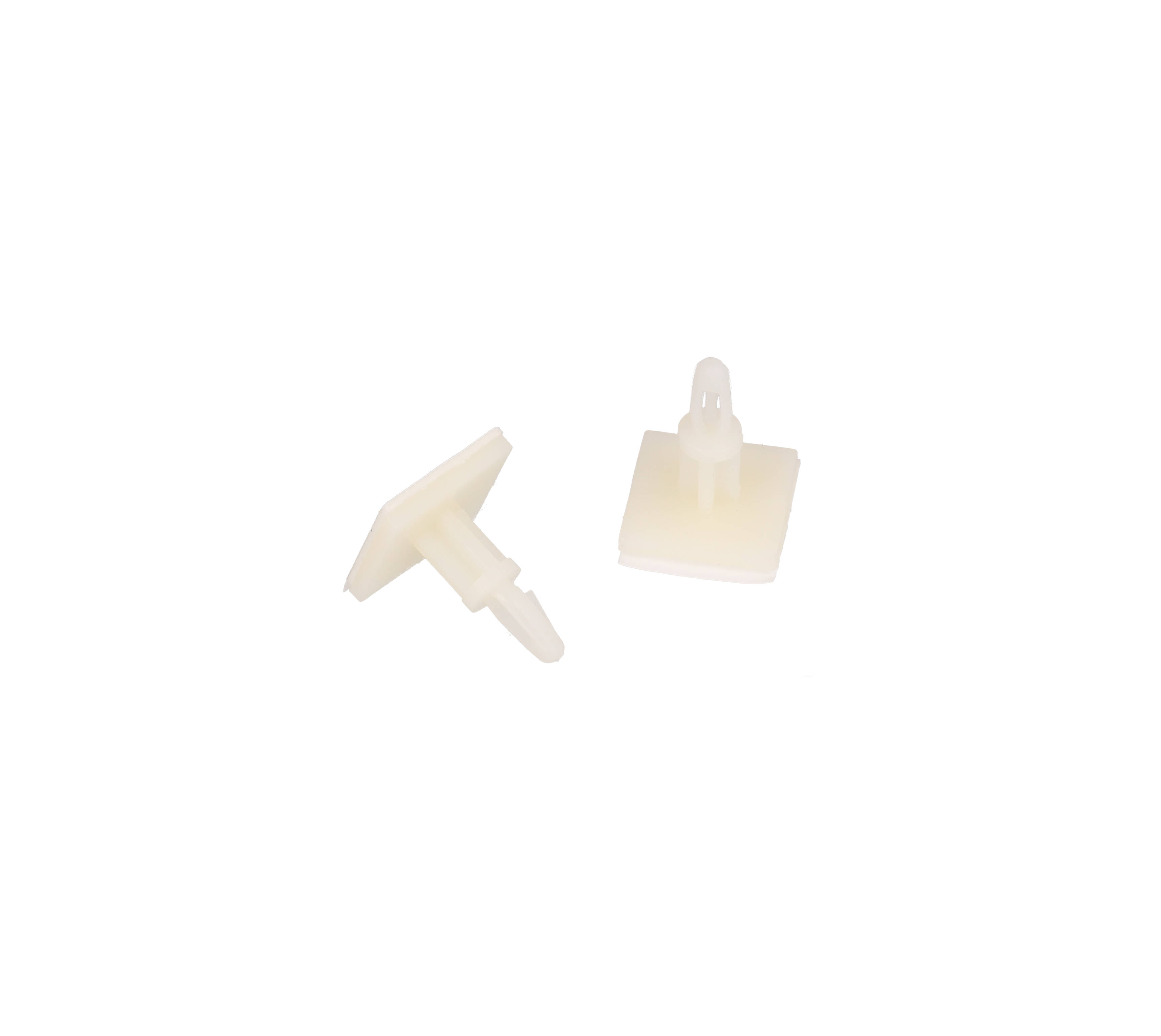

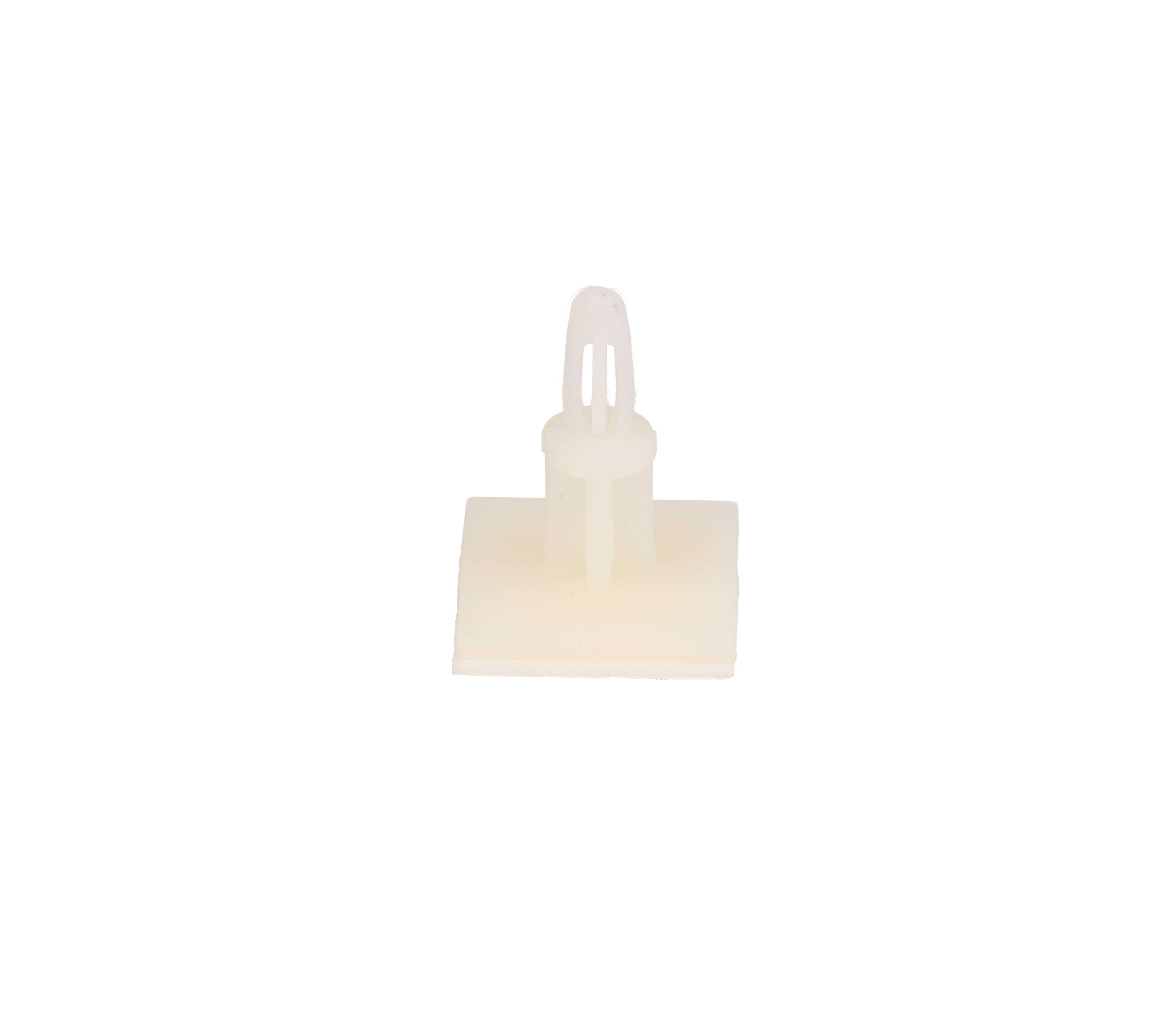

The 1421PCB2-8 is an 8-pack of 1/2" printed circuit board standoffs from the 1421PCB Series, for electronics designers and builders who need more clearance beneath a PC board than the 1/4" version offers. Each standoff uses a square mounting pad with self adhesive to attach to the enclosure floor.
The standoff height is 0.50 in (13 mm), with the bottom of the P.C. board resting 0.5" (12.7mm) above the enclosure floor. The overall height is 0.9" (23mm), and the square mounting pad is 0.71" (18mm). The standoffs are made from tough white nylon.
For the board being mounted, the manufacturer suggests:
- Material thickness of 0.0625" (1.6mm) max.
- Hole diameter of 0.156" (4mm)

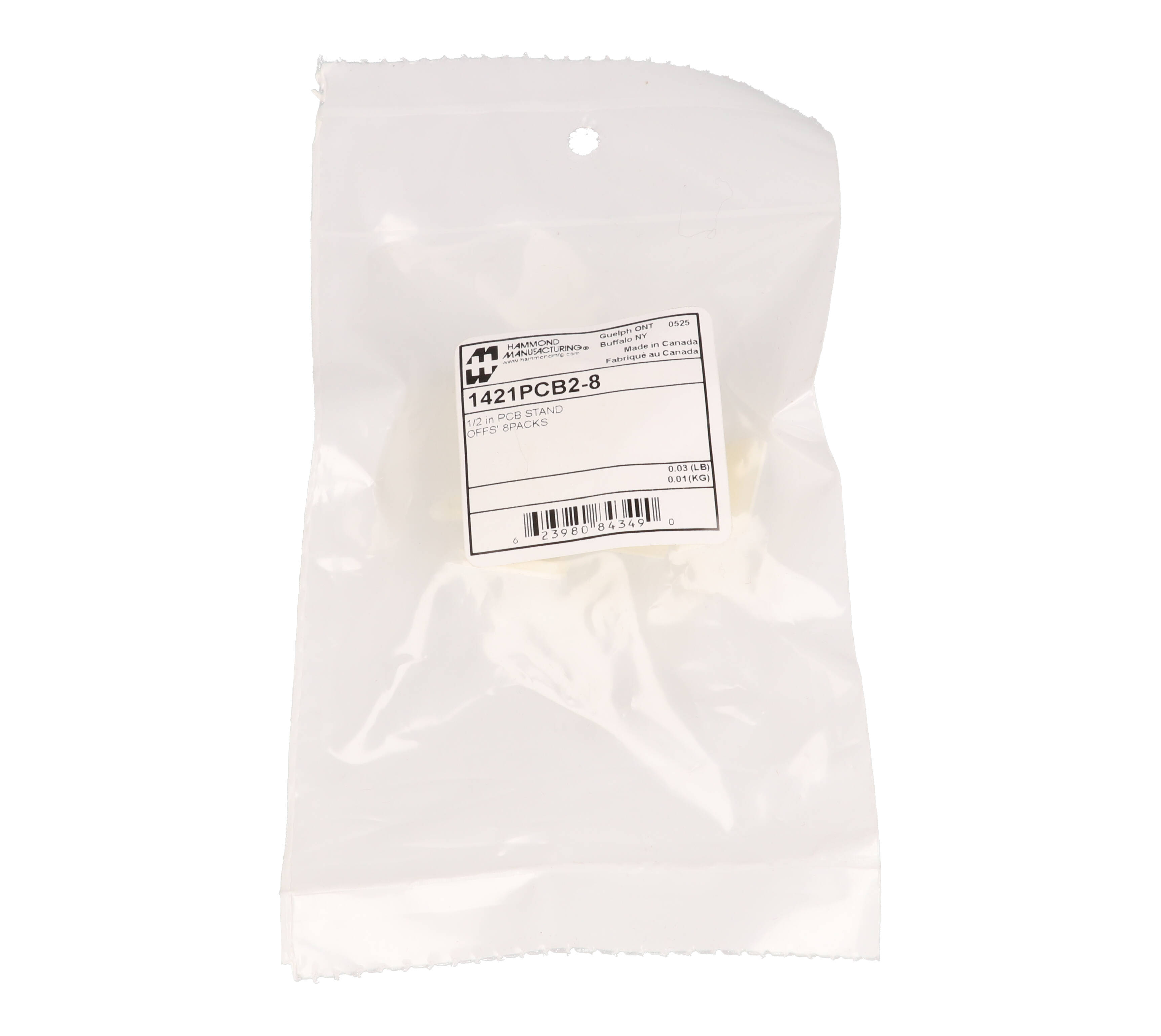

The 1421PCB2-8 is RoHS compliant and REACH compliant, and the 8-pack has a shipping weight of 0.03 lbs (0.01 kg).
Compared with the 1/4" standoffs (1421PCB1-8 and 1421PCB1-100), which hold the board 0.25" (6mm) up with a 0.65" (17mm) overall height, the 1421PCB2-8 doubles the clearance under the board, while keeping the same 0.71" (18mm) self-adhesive pad and the same hole and thickness guidelines. For larger builds, the same 1/2" standoff is available in a 100-pack as 1421PCB2-100.
Ideal For
- Mounting PC boards with 0.5 in clearance in small enclosures
- Prototype circuit board mounting
- OEM electronics board mounting
Mounting
| Mounting Method | Self-adhesive square mounting pad |
| Suggested Hole Diameter | 0.156" (4mm) |
| Suggested Material Thickness | 0.0625" (1.6mm) max. |
Overview
| Series | 1421PCB Series |
| Product Type | Printed Circuit Board Standoff |
| Short Description | 1/2" PCB S-OFF SLF STK 8 PCS |
| 100-Pack Equivalent | 1421PCB2-100 |
Dimensions
| Mounting Pad | 0.71" (18mm) square |
| Overall Height | 0.9" (23mm) |
| Standoff Height | 0.50 in (13 mm) |
| Board Height Above Enclosure Floor | 0.5" (12.7mm) |
Identifiers
| UPC | 623980843490 |
| UNSPSC | 39121301 |
| Part Number | 1421PCB2-8 |
Packaging & Shipping
| Shipping Weight | 0.03 lbs (0.01 kg) |
Construction & Finish
| Material | Tough white nylon |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How high does the 1421PCB2-8 raise the board?▾
The bottom of the P.C. board rests 0.5" (12.7mm) above the enclosure floor; overall height is 0.9" (23mm).
How many standoffs are included?▾
8. A 100-piece pack is available as 1421PCB2-100.
How does it attach to the enclosure?▾
Through a 0.71" (18mm) square mounting pad with self adhesive.
What board thickness is suggested?▾
0.0625" (1.6mm) max., with a suggested hole diameter of 0.156" (4mm).
What is the difference from the 1421PCB1-8?▾
The 1421PCB1-8 is the 1/4" standoff, holding the board 0.25" (6mm) up with a 0.65" (17mm) overall height.
