Cable Ladder Rack Vertical Elbow 90 Degree · CLEV Series
Brand: Hammond Manufacturing · 4 part numbers
90-degree vertical elbow designed to create smooth elevation changes in ladder rack cable routing systems.
- ■10-gauge steel construction supports durable overhead cable routing and vertical system transitions.
- ■Designed to create a smooth 90-degree vertical transition in ladder rack systems for elevation changes.
- ■Supports minimum cable bend radius with a gradual vertical bend, helping protect fiber and high-performance cabling.
- ■Available in 6 in, 12 in, 18 in, and 24 in widths to match ladder rack systems.
- ■Maintains system load rating when used with compatible splice kits.
- ■Maximum rung spacing of 5.29 in supports cable organization and airflow through vertical transitions. Rung is centered.
from $105.79
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CLEV Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Description | Ladder Width | Height | Width | Price | Order |
|---|---|---|---|---|---|---|

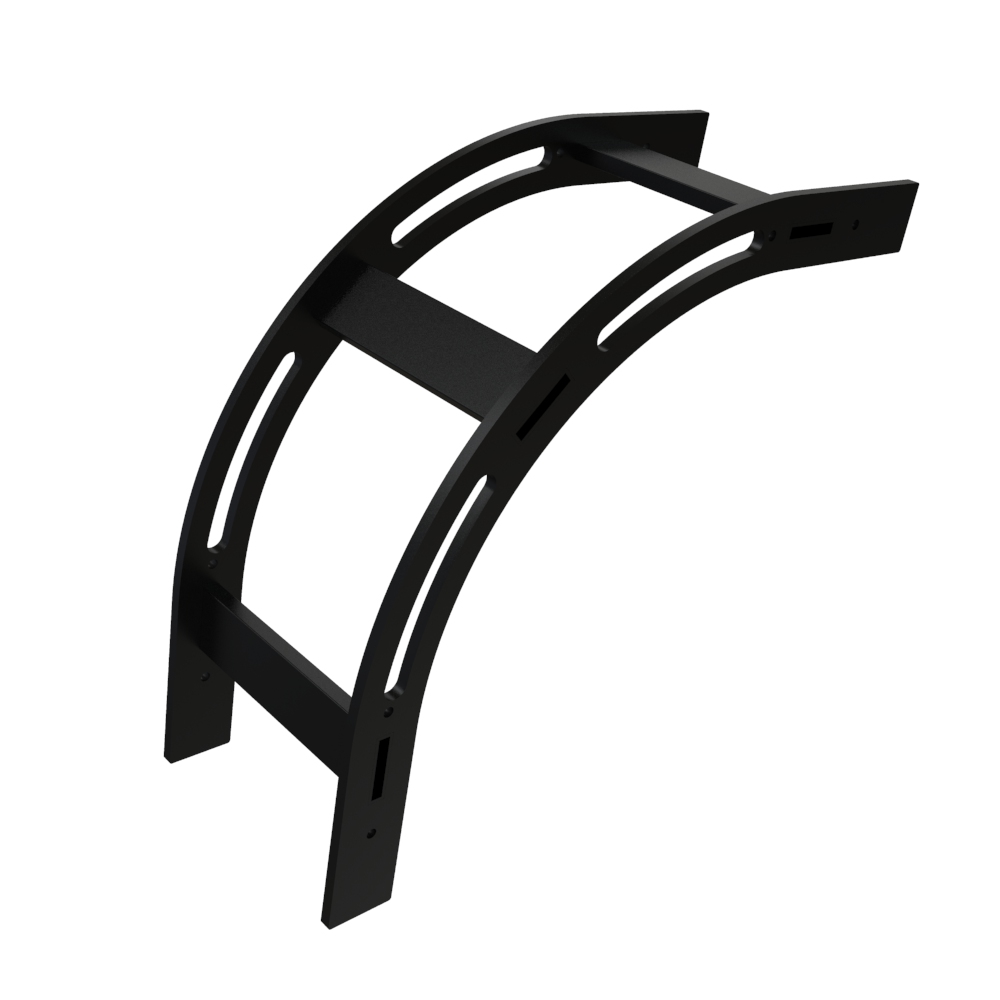

| CLEV6BK | 90 Degree Corner Vertical Elbow | 6.00 | 13.50 | 13.50 | $105.79Backorder | Buy now |

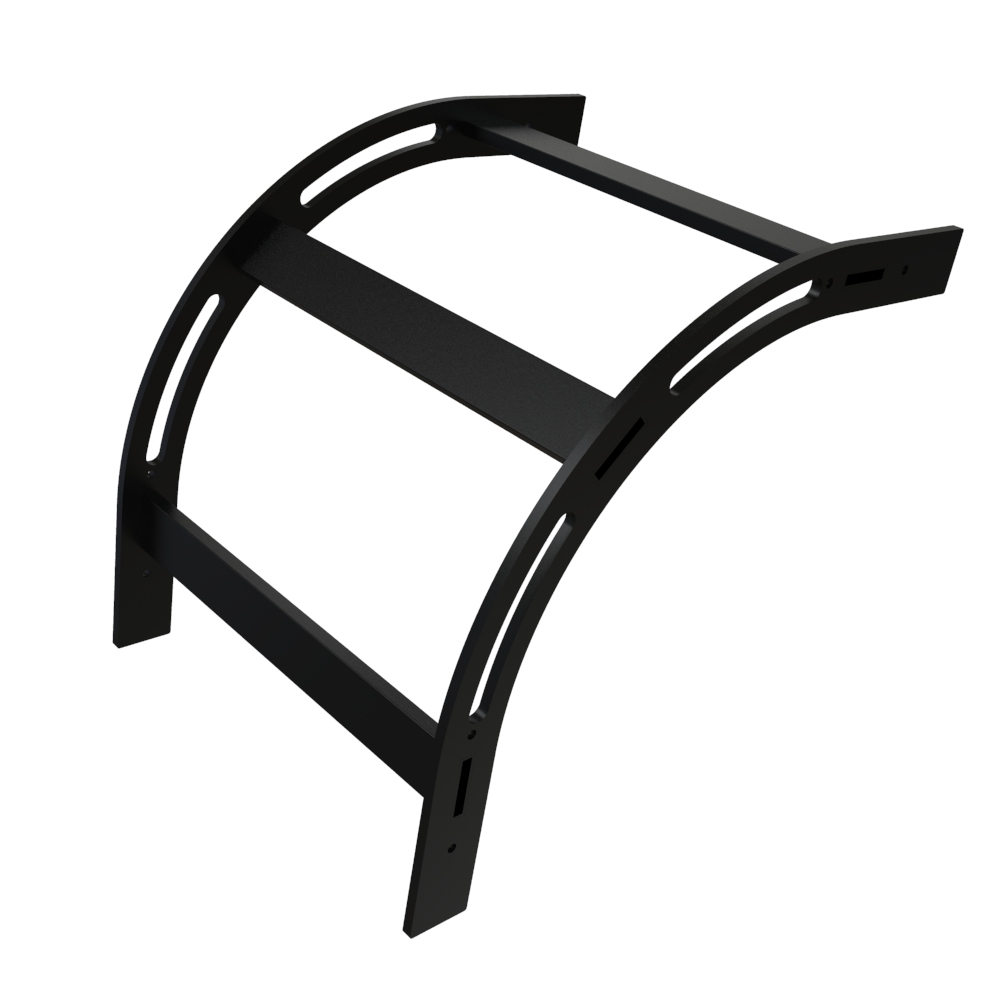

| CLEV12BK | 90 Degree Corner Vertical Elbow | 12.00 | 13.50 | 13.50 | $107.09In stock | Buy now |

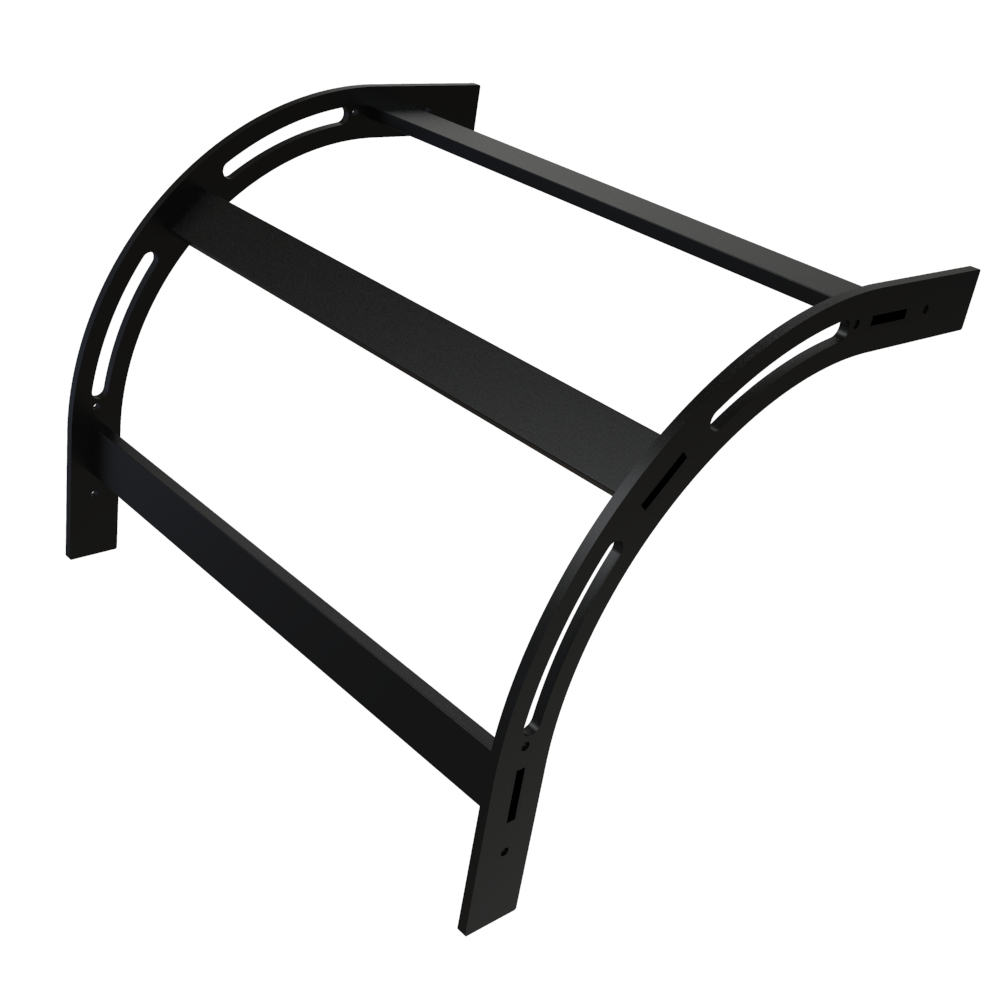

| CLEV18BK | 90 Degree Corner Vertical Elbow | 18.00 | 13.50 | 13.50 | $135.64In stock | Buy now |

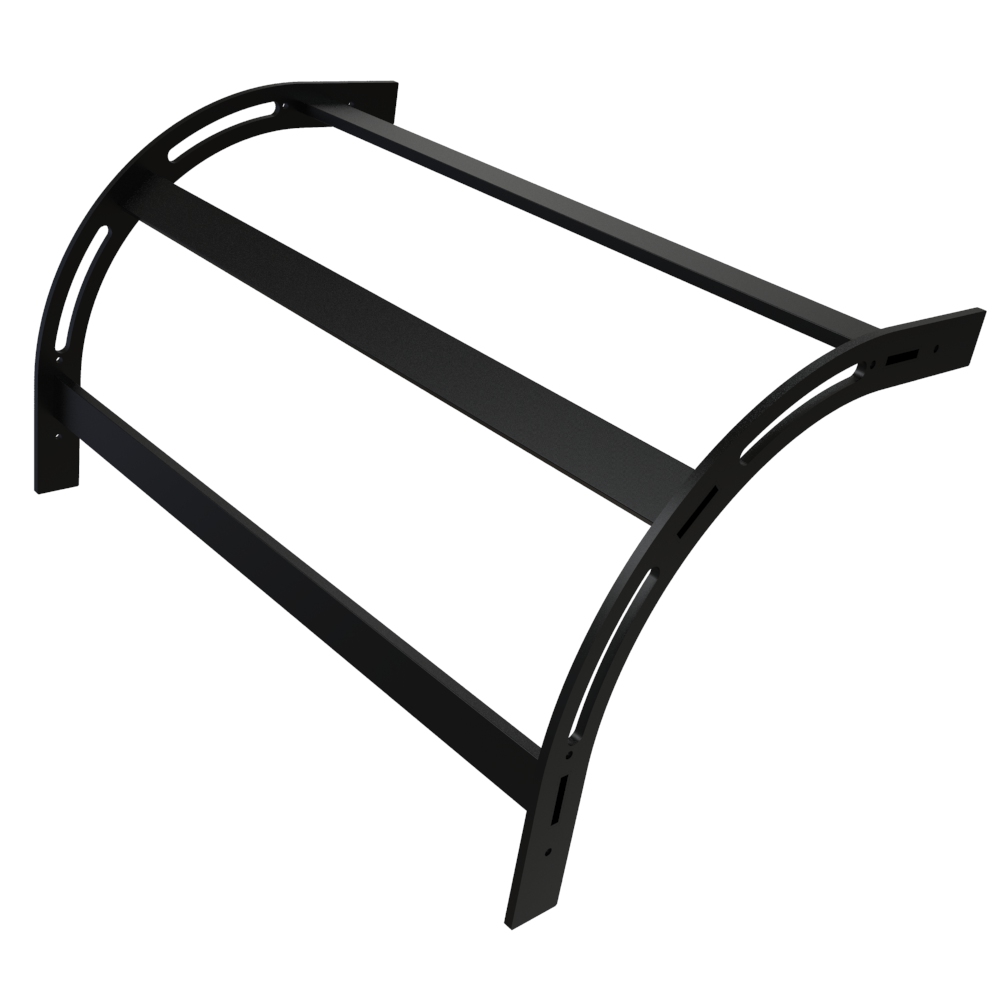

| CLEV24BK | 90 Degree Corner Vertical Elbow | 24.00 | 13.50 | 13.50 | $142.78In stock | Buy now |
Key Features and Benefits
The CLEV Series ladder rack vertical elbows provide a controlled method for transitioning cable pathways between elevations in overhead routing systems. Designed to maintain proper bend radius, they help protect fiber and high-performance cables while ensuring smooth vertical routing.
Constructed from steel and designed for system compatibility, the CLEV Series integrates seamlessly with ladder rack systems to create continuous, scalable cable routing infrastructure.
- ■10-gauge steel construction supports durable overhead cable routing and vertical system transitions.
- ■Designed to create a smooth 90-degree vertical transition in ladder rack systems for elevation changes.
- ■Supports minimum cable bend radius with a gradual vertical bend, helping protect fiber and high-performance cabling.
- ■Available in 6 in, 12 in, 18 in, and 24 in widths to match ladder rack systems.
- ■Maintains system load rating when used with compatible splice kits.
- ■Maximum rung spacing of 5.29 in supports cable organization and airflow through vertical transitions. Rung is centered.
- ■Rung is centered.
- ■Bonding holes allow proper grounding and system continuity.
- ■Mounting hardware sold separately for flexible system configuration.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
Documents
Additional information
Where the CLEV Series Works Best
- ■Data centers and server rooms
- ■Telecom and network installations
- ■Structured cabling environments
- ■Overhead cable routing systems
- ■Installations requiring vertical direction changes
- ■Transitioning ladder rack pathways up or down
- ■Routing cables from overhead runs to different elevations
- ■Maintaining proper bend radius in vertical transitions
- ■Protecting fiber and high-performance cables from sharp bends
- ■Supporting structured cable routing systems
