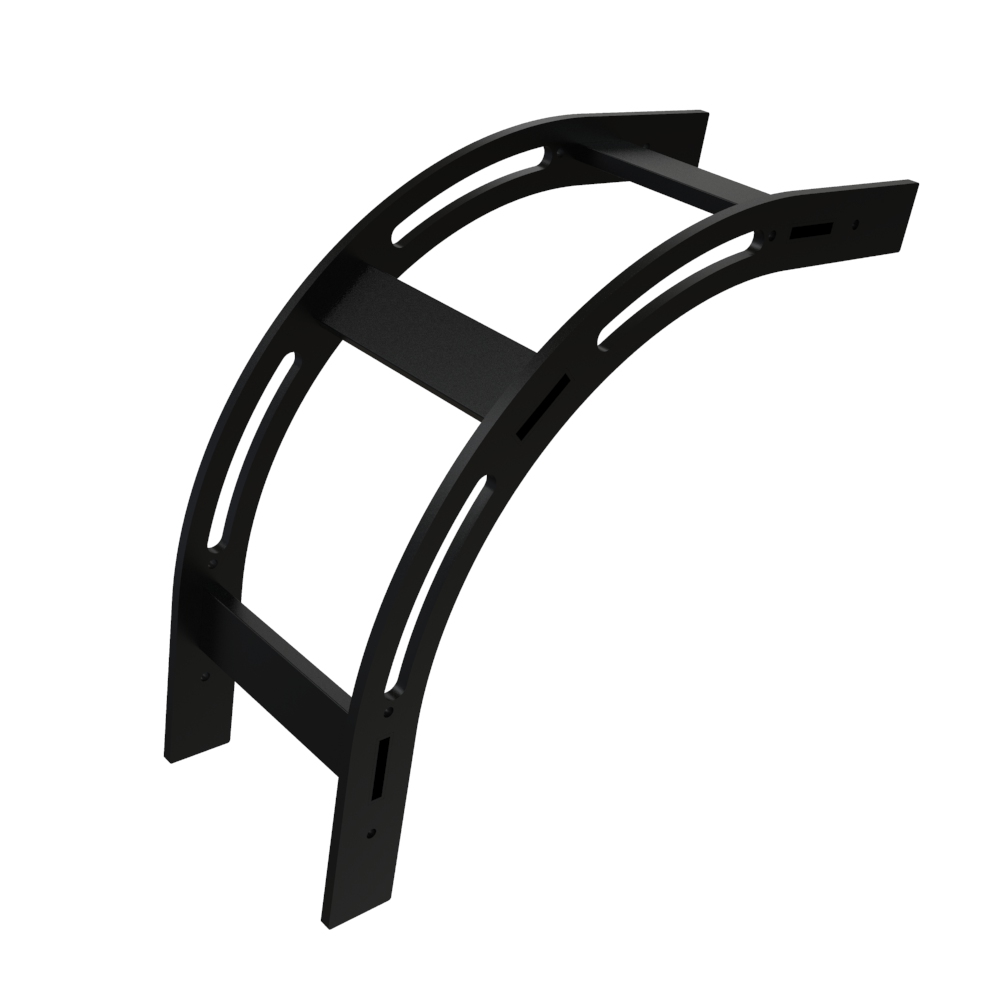

Hammond CLEV6BK 6 in Wide 90 Degree Vertical Ladder Rack Elbow
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 90 degree vertical elbow creates a smooth elevation change in ladder rack cable pathways
- Sized for 6.00 in (152 mm) ladder width; 13.50 in (343 mm) high x 13.50 in (343 mm) wide overall
- 10-gauge mild steel construction for durable overhead cable routing
- Gradual vertical bend supports minimum cable bend radius to protect fiber and high-performance cable
- Maximum rung spacing 5.29 in (134 mm), rung centered, for cable organization and airflow
- Maintains system load rating when used with compatible splice kits
- Bonding holes for proper grounding and system continuity
- TAA-compliant, made in Canada; black powder coat (GREENGUARD, TSCA, RoHS compliant)
The CLEV6BK is a 90 degree corner vertical elbow for 6 in wide cable ladder rack, used to carry an overhead cable pathway smoothly up or down to a different elevation. It is intended for IT and telecom integrators, structured cabling contractors and facilities teams building continuous overhead runway in data centers, server rooms and network closets.
Construction is 10-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, supporting both environmental and durability requirements. Bonding holes are provided so the elbow can be grounded and kept electrically continuous with the rest of the ladder rack system. The part is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance declared.
This elbow suits a 6.00 in (152 mm) ladder width and measures 13.50 in (343 mm) high by 13.50 in (343 mm) wide overall, giving a gradual vertical bend that supports minimum cable bend radius and helps protect fiber and other high-performance cabling from sharp transitions. Maximum rung spacing is 5.29 in (134 mm), with the rung centered, which aids cable organization and airflow through the transition.
CLEV6BK maintains the system load rating when installed with compatible splice kits, so the elbow does not become the weak point in a run. No mounting hardware is included; fasteners and splice kits are selected separately to match the installation. Related accessories in the ladder rack system include wall mount brackets and butt splice kits for joining ladder sections.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling and overhead cable routing systems
- Transitioning ladder rack pathways up or down between elevations
- Maintaining bend radius for fiber and high-performance cable
Overview
| Series | CLEV Series - Cable Ladder Rack Vertical Elbow 90 Degree |
| Description | 90 Degree Corner Vertical Elbow |
| Part Number | CLEV6BK |
| Short Description | 6W VERTICAL ELBOW |
Dimensions
| Ladder Width | 6.00 in (152 mm) |
| Hole Diameter | 0.22 in (6 mm) |
| Overall Width | 13.50 in (343 mm) |
| Overall Height | 13.50 in (343 mm) |
| Maximum Rung Spacing | 5.29 in (134 mm), rung centered |
Identifiers
| ECCN | EAR99 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980015163 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC (With Check Digit) | 623980015163 |
| UPC (Without Check Digit) | 62398001516 |
Rack Mounting
| Grounding | Bonding holes for grounding and system continuity |
| Load Rating | Maintains system load rating when used with compatible splice kits |
| Mounting Hardware | Not included; sold separately |
Construction & Finish
| Gauge | 10-gauge steel |
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack width does CLEV6BK fit?▾
CLEV6BK is made for a 6.00 in (152 mm) ladder width. The CLEV Series is also available in 12 in, 18 in and 24 in widths (CLEV12BK, CLEV18BK, CLEV24BK).
What are the overall dimensions of this elbow?▾
The elbow measures 13.50 in (343 mm) high by 13.50 in (343 mm) wide overall, with a 6.00 in (152 mm) ladder width.
Is mounting hardware included?▾
No. The drawing notes state no mounting hardware is included; hardware is sold separately for flexible system configuration.
Does the elbow reduce the load capacity of the run?▾
No. The CLEV Series maintains the system load rating when used with compatible splice kits.
Can the elbow be bonded to ground?▾
Yes. Bonding holes are provided to allow proper grounding and system continuity across the ladder rack pathway.
Is CLEV6BK suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin CA), which supports government procurement requirements. It is also RoHS, REACH and USMCA compliant.
