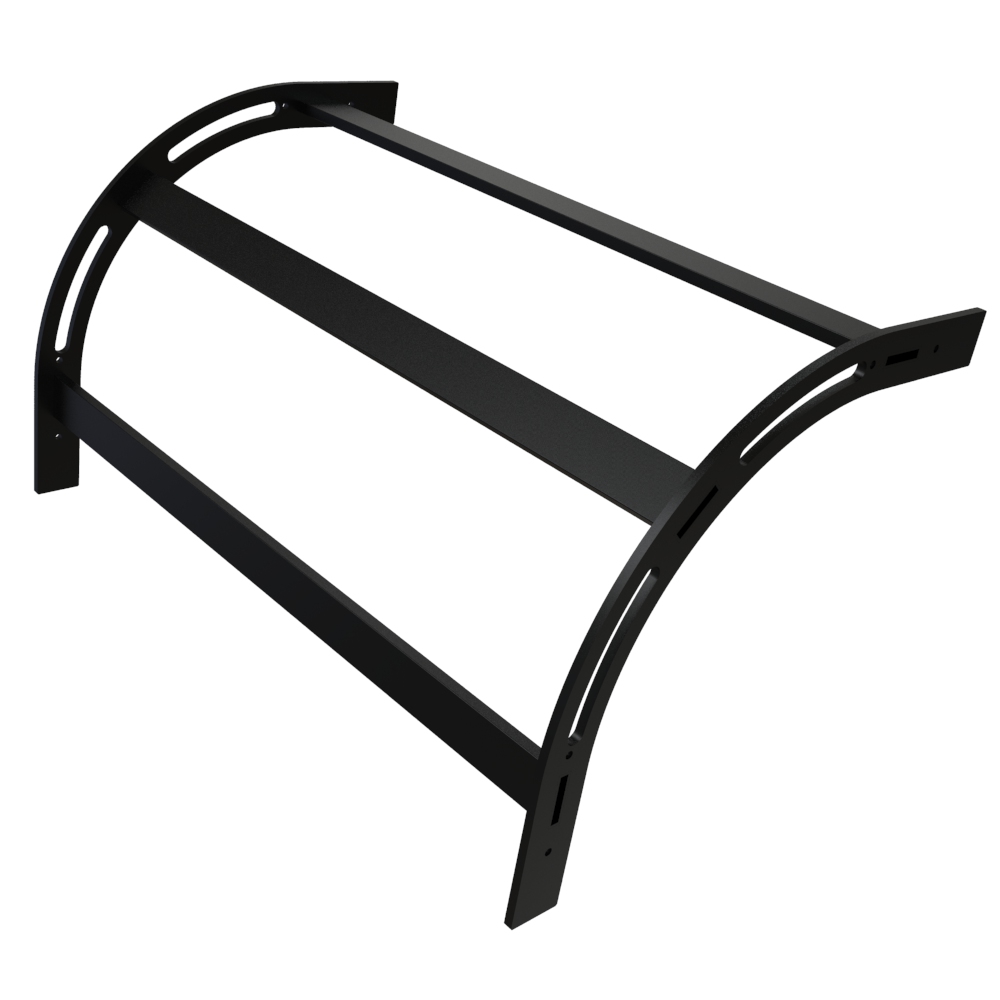

Hammond CLEV24BK 24 in Wide 90 Degree Vertical Ladder Rack Elbow
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Sized for 24.00 in (610 mm) wide ladder rack; creates a smooth 90 degree vertical elevation change
- 13.50 in (343 mm) height and 13.50 in (343 mm) width elbow geometry
- 10-gauge mild steel construction for durable overhead cable routing
- Gradual vertical bend supports minimum cable bend radius, protecting fiber and high-performance cable
- Maximum rung spacing 5.29 in (134 mm), rung is centered, for cable organization and airflow
- Maintains system load rating when used with compatible splice kits
- Bonding holes allow proper grounding and system continuity
- TAA-compliant, made in North America; black powder coat (GREENGUARD, TSCA, RoHS compliant)
The CLEV24BK is a 90 degree corner vertical elbow sized for 24.00 in (610 mm) wide ladder rack, used to carry an overhead cable pathway smoothly up or down to a different elevation. It is intended for IT and telecom integrators, structured cabling contractors and facilities teams building continuous cable runway in data centers, server rooms and network spaces.
Construction is 10-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant, so the elbow matches the durability and appearance of the ladder rack it joins. The part is TAA-compliant and manufactured in North America, which supports government and public-sector procurement requirements, and it is also USMCA, RoHS and REACH compliant.
CLEV24BK measures 13.50 in (343 mm) in height and 13.50 in (343 mm) in width across the elbow, giving a gradual vertical bend that supports minimum cable bend radius and helps protect fiber and other high-performance cabling from sharp transitions. Maximum rung spacing is 5.29 in (134 mm) and the rung is centered, keeping cable supported and allowing airflow through the transition.
- Ladder width: 24.00 in (610 mm)
- Elbow height and width: 13.50 in (343 mm)
- Maximum rung spacing: 5.29 in (134 mm), rung centered
Bonding holes are provided for grounding and system continuity, and the elbow maintains the system load rating when used with compatible splice kits. No mounting hardware is included with CLEV24BK, so splice kits and mounting hardware are ordered separately to suit the configuration. Related accessories in the ladder rack family include wall mount brackets and butt splice kit ladder section connectors.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling and overhead cable routing systems
- Transitioning ladder rack pathways up or down between elevations
- Maintaining proper bend radius in vertical cable transitions
Overview
| Series | CLEV Series - Cable Ladder Rack Vertical Elbow 90 Degree |
| Description | 90 Degree Corner Vertical Elbow |
| Part Number | CLEV24BK |
| Short Description | 24W VERTICAL ELBOW |
Dimensions
| Width | 13.50 in (343 mm) |
| Height | 13.50 in (343 mm) |
| Ladder Width | 24.00 in (610 mm) |
| Hole Diameter | 0.22 in (6 mm) |
| Maximum Rung Spacing | 5.29 in (134 mm), rung is centered |
Identifiers
| UPC | 623980015194 |
| ECCN | EAR99 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980015194 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398001519 |
Rack Mounting
| Grounding | Bonding holes for grounding and system continuity |
| Load Rating | Maintains system load rating when used with compatible splice kits |
| Mounting Hardware | No mounting hardware included; sold separately |
Construction & Finish
| Gauge | 10-gauge steel |
| Colour | Painted Black |
| Finish | Black powder coat (GREENGUARD, TSCA, RoHS compliant) |
| Material | Mild Steel |
Compliance & Certifications
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack width does CLEV24BK fit?▾
CLEV24BK is made for 24.00 in (610 mm) ladder width. The CLEV Series is also available in 6 in, 12 in and 18 in widths to match other ladder rack systems.
Does CLEV24BK include mounting hardware?▾
No. The drawing notes state no mounting hardware is included; mounting hardware is sold separately for flexible system configuration.
How is the elbow attached to the ladder rack sections?▾
It is used with compatible splice kits, and it maintains the system load rating when used with them. A butt splice kit ladder section connector is listed as a related accessory.
Will it protect fiber cable during the elevation change?▾
Yes. The elbow provides a gradual 90 degree vertical bend that supports minimum cable bend radius, helping protect fiber and other high-performance cabling from sharp bends.
Is CLEV24BK suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin CA), which supports government procurement requirements. It is also RoHS, REACH and USMCA compliant with ECCN EAR99.
Can the elbow be bonded to the grounding system?▾
Yes. Bonding holes are provided to allow proper grounding and electrical continuity across the ladder rack system.
