Cont-Locking Casters (2)
- Locking Casters Yes
$163.55In stock
Buy now

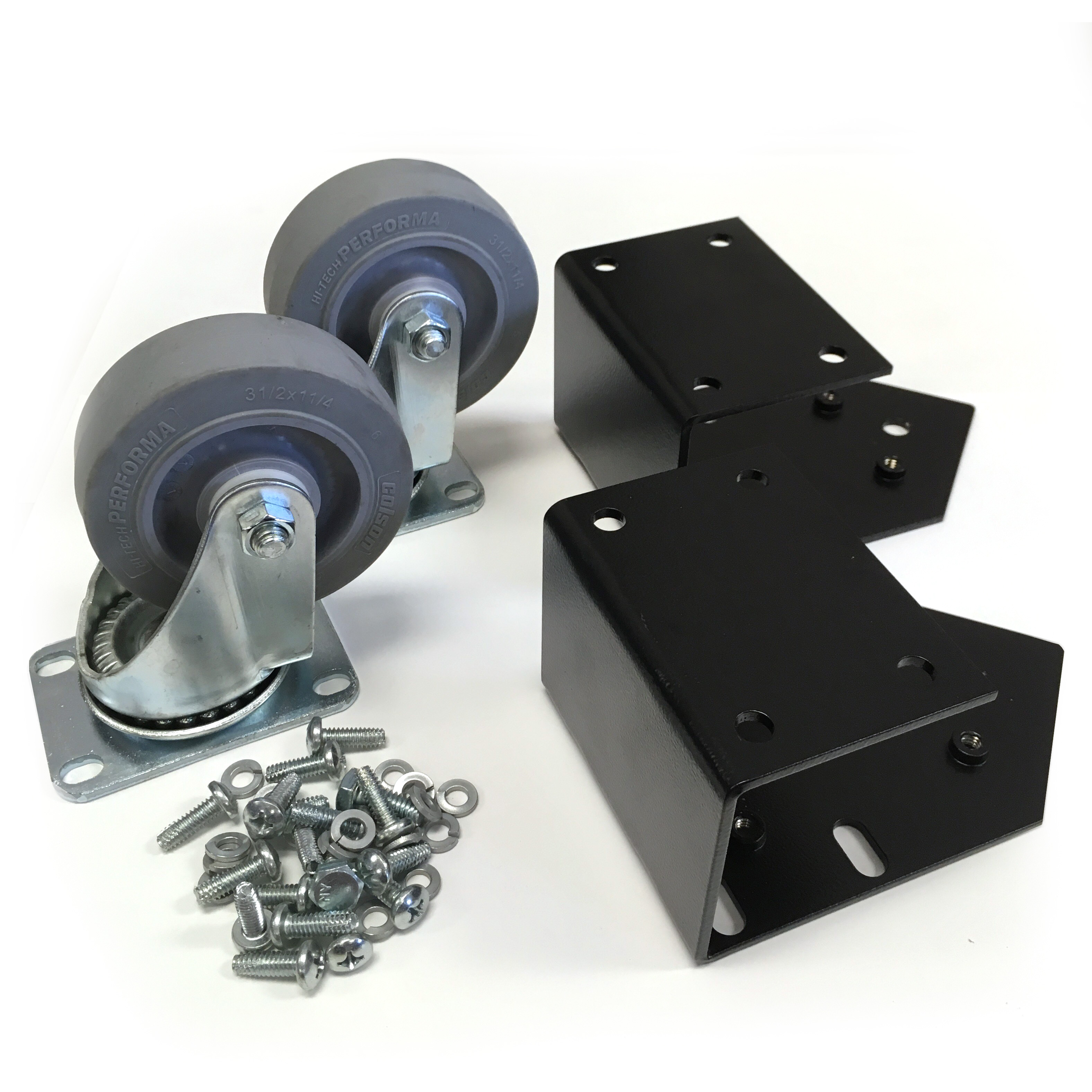

C2 Low-Profile Cabinet Caster Set · CCST Series
Brand: Hammond Manufacturing · 4 part numbers
500 lbs (227 kg) Weight Capacity
- ■Features zinc plated ball bearing pivot, composite wheels.
- ■Wheels are grey.
- ■Includes mounting hardware
- ■Includes heavy duty brackets for outside mounting to cabinet frame.
- ■Note: Casters will not work when frames are ganged together.
- ■Caster weight capacity of 1,000 lbs (453 kg) when four (4) casters installed.
from $149.92
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CCST Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Low-Profile (New Design)
Units shown: inch . Switch units to: mm
| Part No. | Wheel · Diameter | Overall Height · Added · to Cabinet | Hole Mounting Pattern · Width | Hole Mounting Pattern · Depth | Quantity · Included · In Set | Locking · Casters | Physical · Wheel · Weight | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| CCSTL | 3.50 | 4.71 | 1.75 | 3.00 | 2 | Yes | 8.0 lb (3.6 kg) | $163.55In stock | Buy now |
| CCSTN | 3.50 | 4.71 | 1.75 | 3.00 | 2 | No | 6.2 lb (2.8 kg) | $149.92In stock | Buy now |
Wide-Profile (Old Design)
Units shown: inch . Switch units to: mm
| Part No. | Wheel Diameter | Overall Height Added to Cabinet | Hole Mounting Pattern · Width | Hole Mounting Pattern · Depth | Quantity Included In Set | Locking Casters | Physical Wheel Weight | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 2CCSTL | 3.50 | 4.97 | 1.75 | 3.00 | 2 | Yes | 6.2 lb (2.8 kg) | $187.80In stock | Buy now |
| 2CCSTN | 3.50 | 4.97 | 1.75 | 3.00 | 2 | No | 8.0 lb (3.6 kg) | $150.84In stock | Buy now |
Features
- ■Features zinc plated ball bearing pivot, composite wheels.
- ■Wheels are grey.
- ■Includes mounting hardware
- ■Includes heavy duty brackets for outside mounting to cabinet frame.
- ■Note: Casters will not work when frames are ganged together.
- ■Caster weight capacity of 1,000 lbs (453 kg) when four (4) casters installed.
- ■TAA compliant for GSA Schedule purchases.
- ■RoHS and REACH Compliant.
- ■Manufactured in North America.
