Hammond CCSTL 500 lb Locking Cabinet Caster Pair, 3.5 in Wheels
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Set of two locking swivel casters, each rated 250 lb; 500 lbs (227 kg) per set and 1,000 lbs (453 kg) with four installed
- 3.50 in (89 mm) grey composite wheels on zinc plated ball bearing swivel pivots
- Adds 4.71 in (120 mm) to overall cabinet height (4.72 in / 120 mm installed height on drawing)
- Heavy duty painted black textured C2 bracket for outside mounting to the cabinet frame
- Hole mounting pattern 1.75 in (44 mm) wide x 3.00 in (76 mm) deep; mounting hardware included
- Compatible with Hammond C2 and C3 cabinet frames
- TAA compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; low-profile current design
The CCSTL is a low-profile locking cabinet caster set, sold in pairs, for making Hammond C2 and C3 server and network cabinets mobile. It suits IT and AV integrators, facilities teams and OEM engineers who need to roll a loaded enclosure into position and then lock it in place. Each caster is rated for 250 lb, giving 500 lbs (227 kg) per two-caster set and up to 1,000 lbs (453 kg) when four casters are installed.

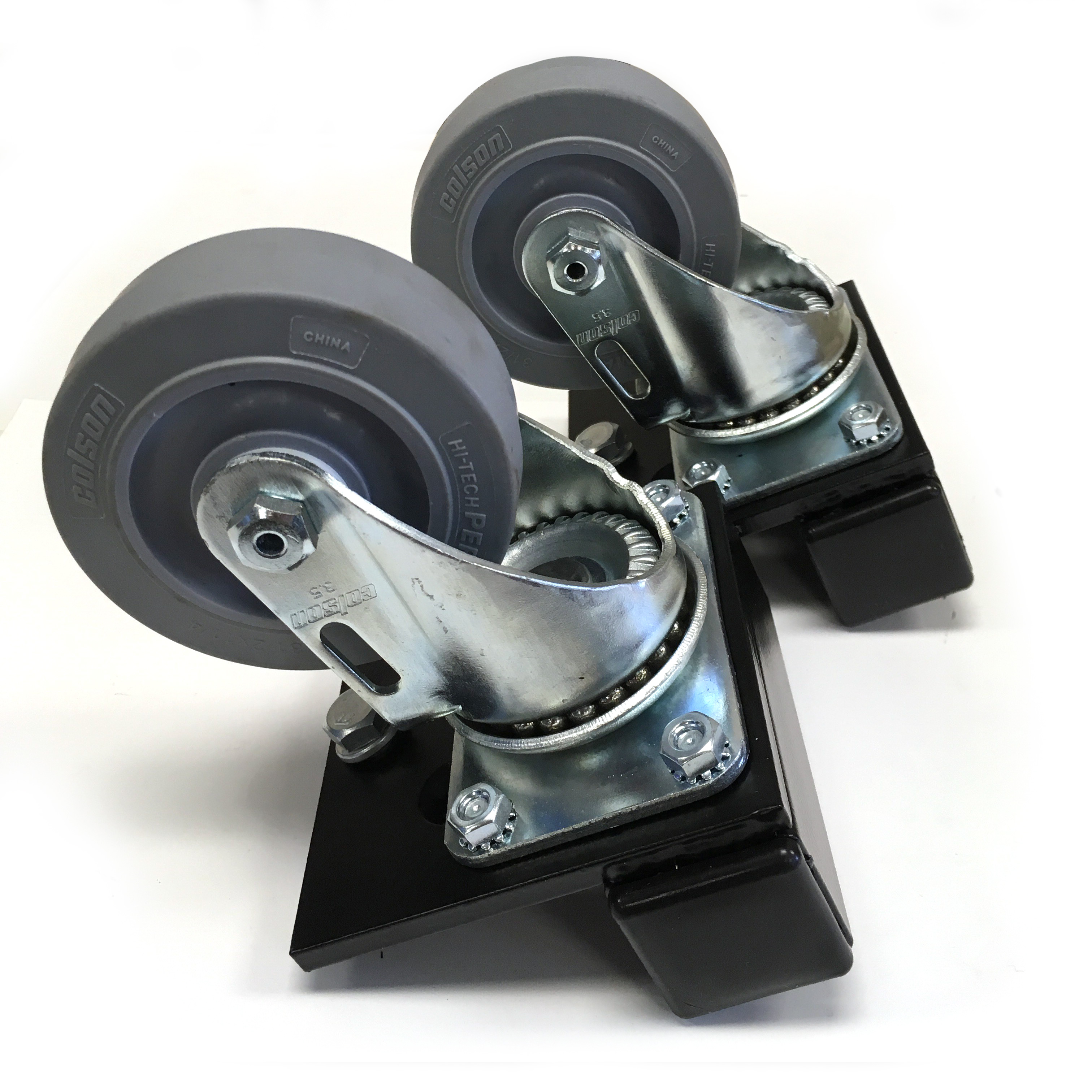

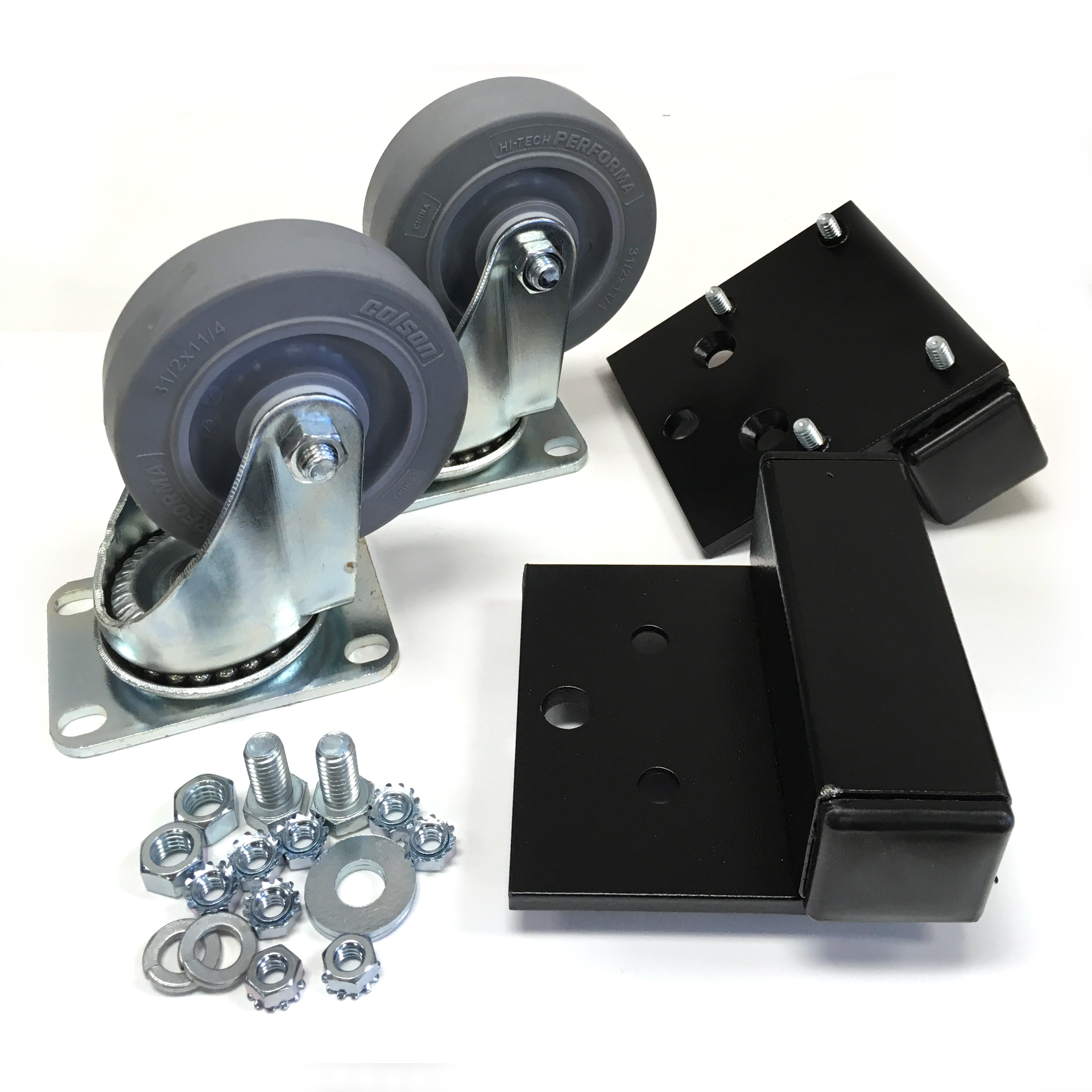

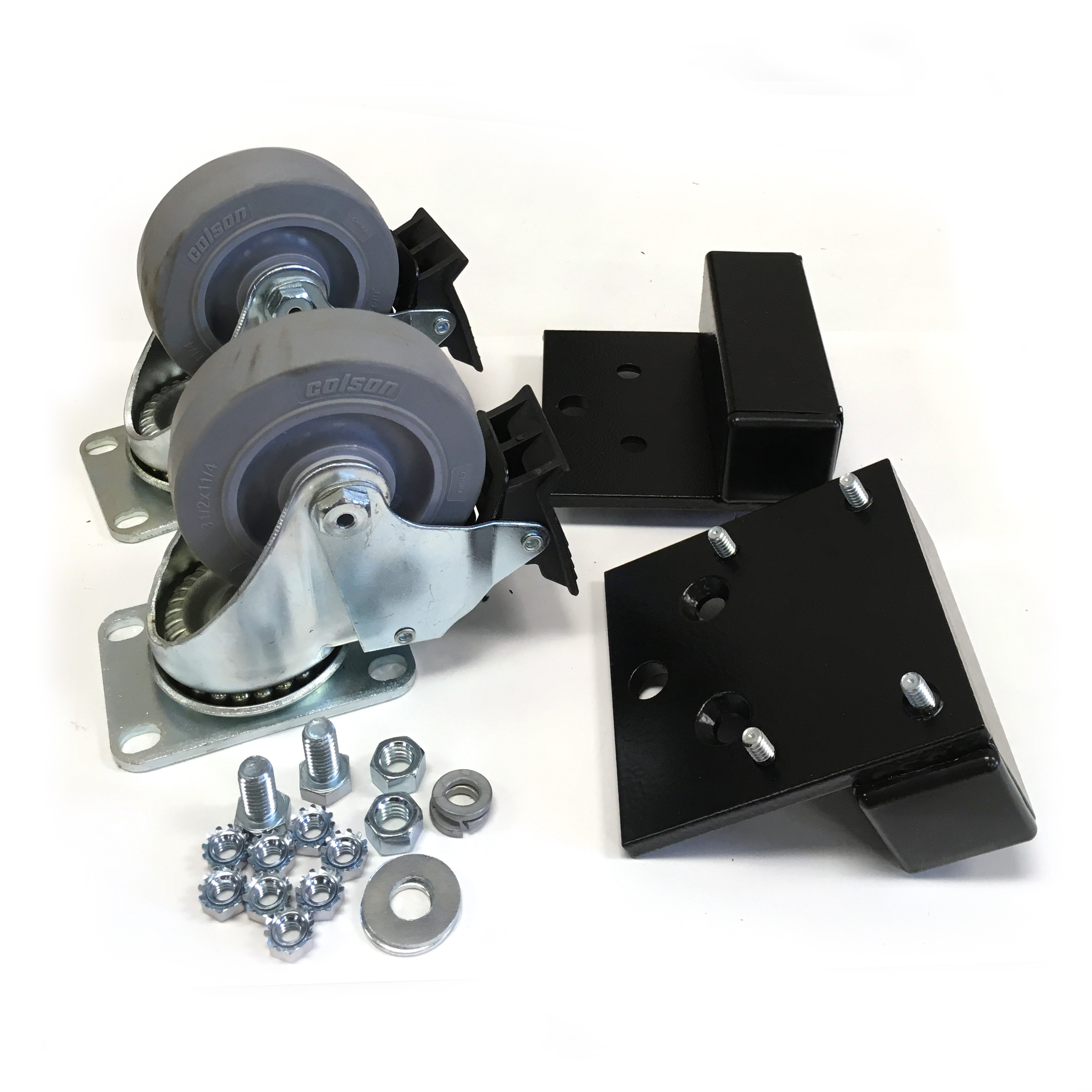

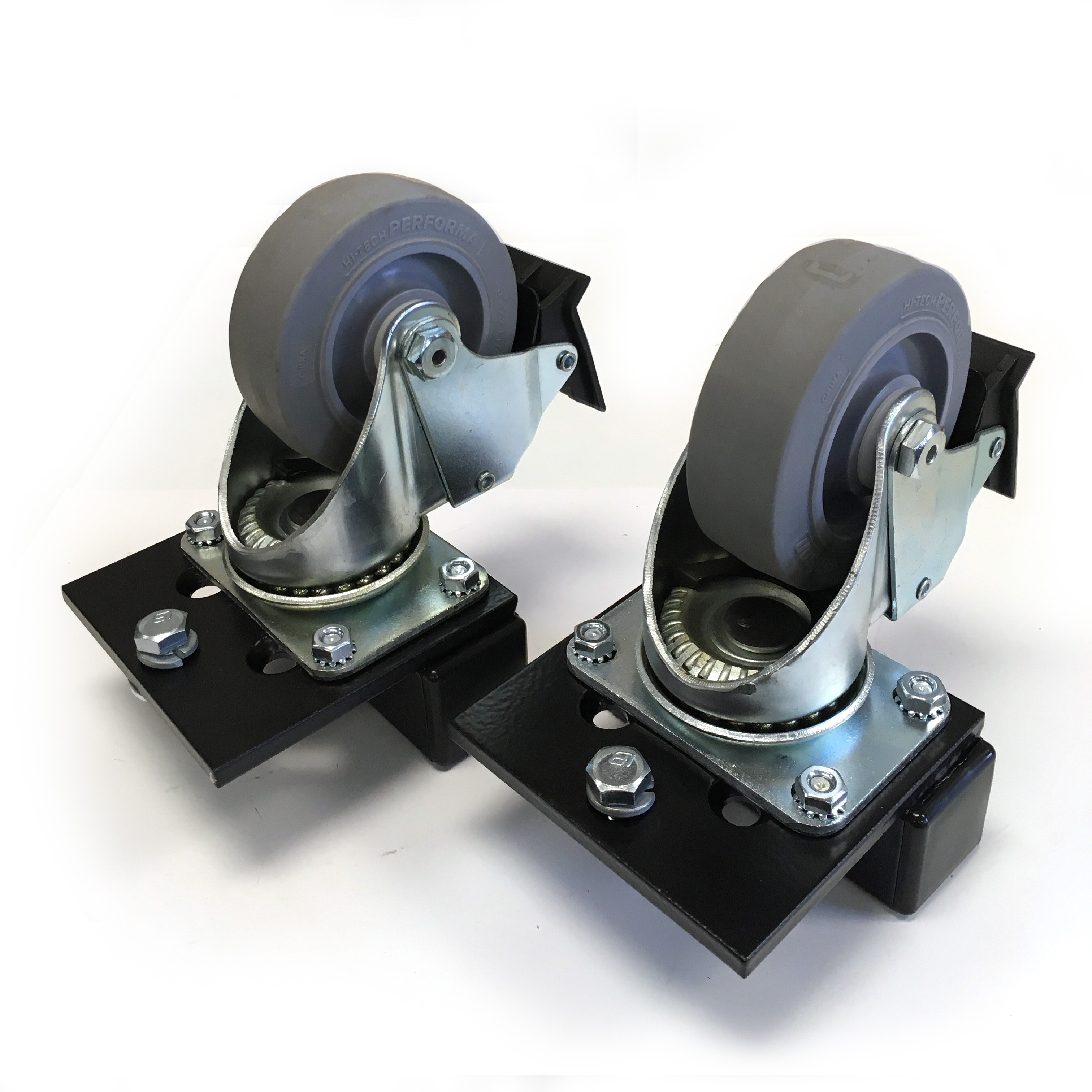

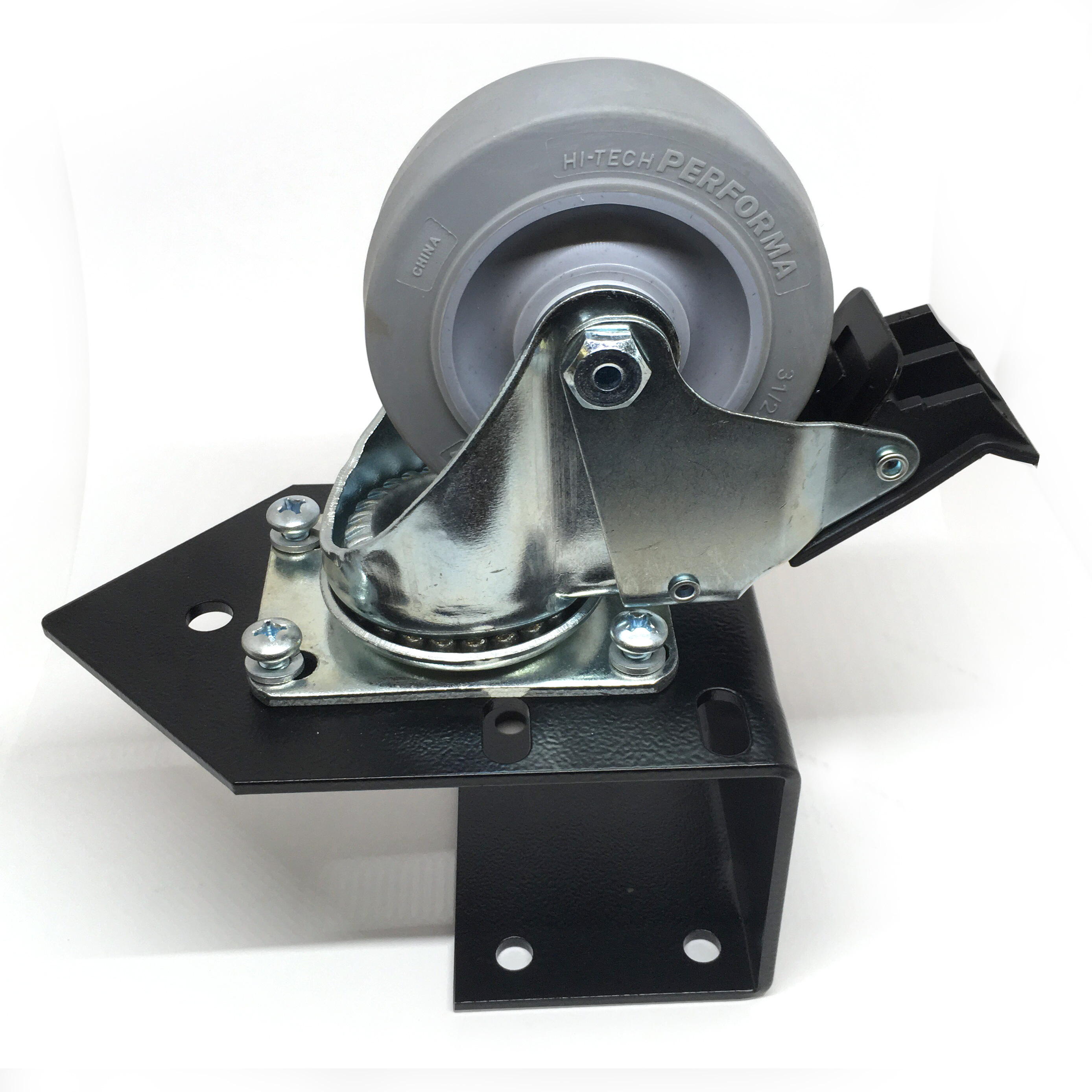

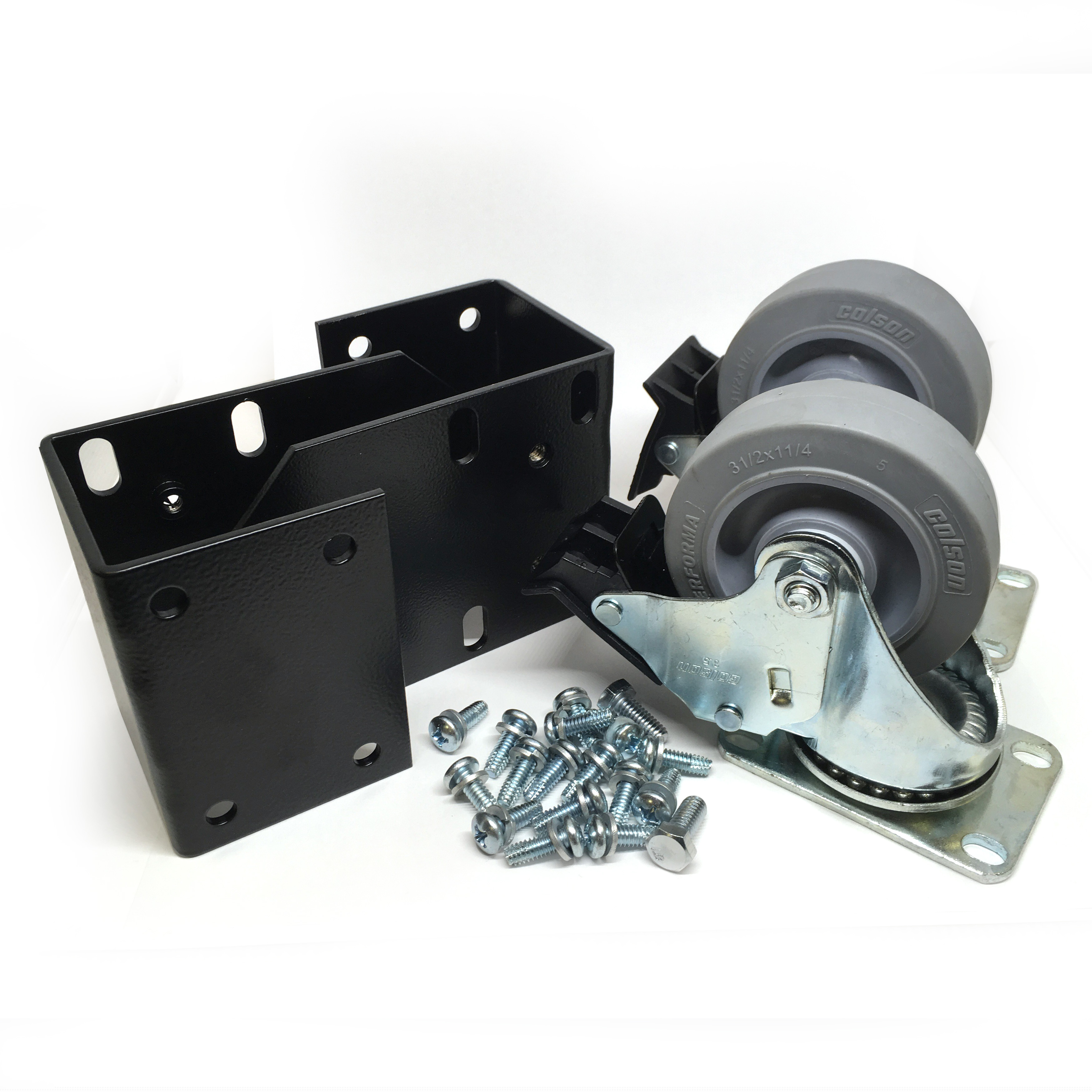

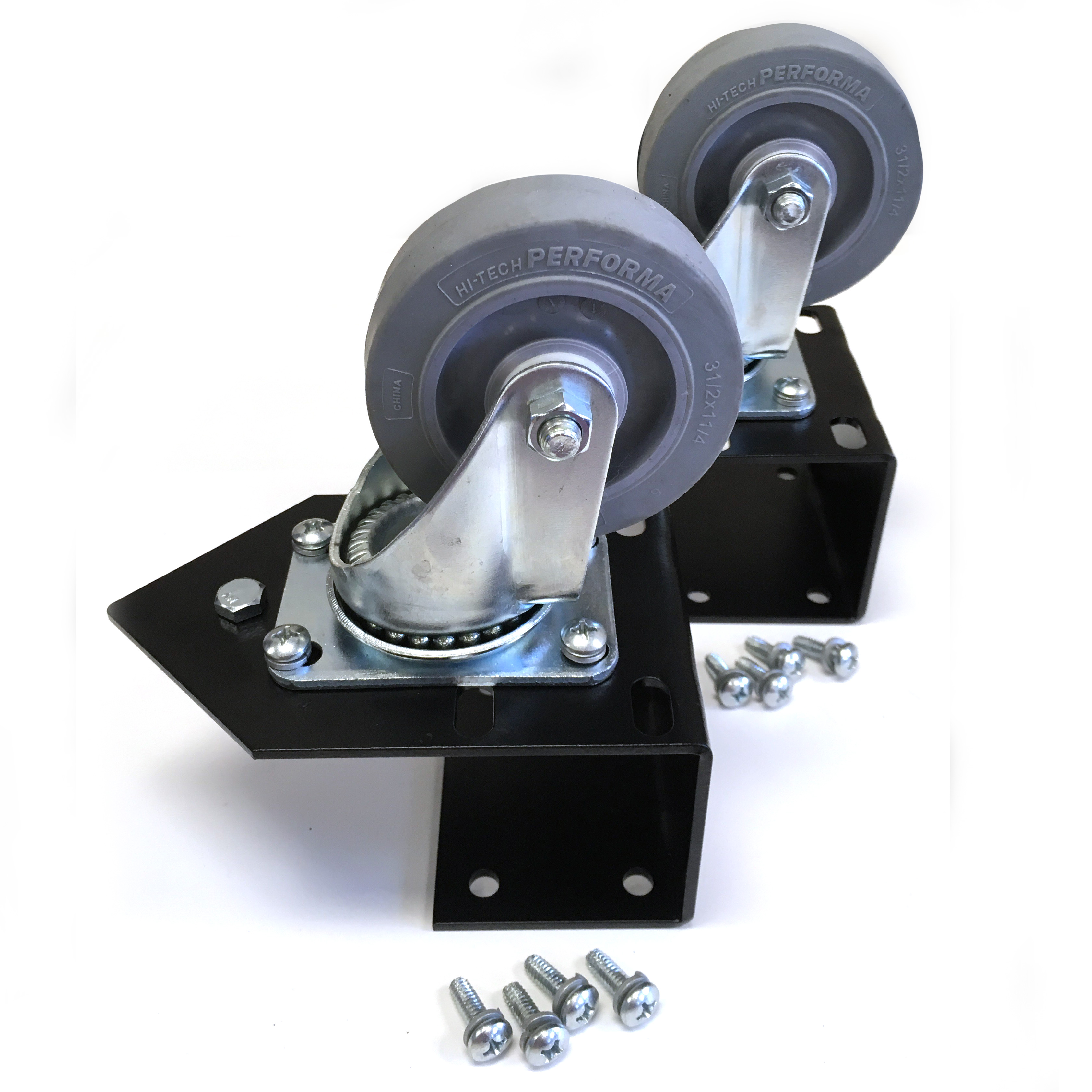

Each caster in the CCSTL set uses a zinc plated ball bearing swivel pivot with a grey composite wheel measuring 3.50 in (89 mm) in diameter, and is supplied with a painted black textured C2 caster bracket. The heavy duty bracket mounts to the outside of the cabinet frame using a 1.75 in (44 mm) wide by 3.00 in (76 mm) deep hole pattern, and the required hardware is included: one C2 caster bracket, one locking swivel caster and four 1/4-20 x 5/8 in round head zinc plated screws per caster.
Installed, the assembly adds 4.71 in (120 mm) to the overall height of the cabinet and needs a swivel radius of R 4.75 in (121 mm) for clearance. Note that casters will not work when frames are ganged together, so plan for free-standing cabinets. This low-profile design is the current (new design) version of the CCST series.

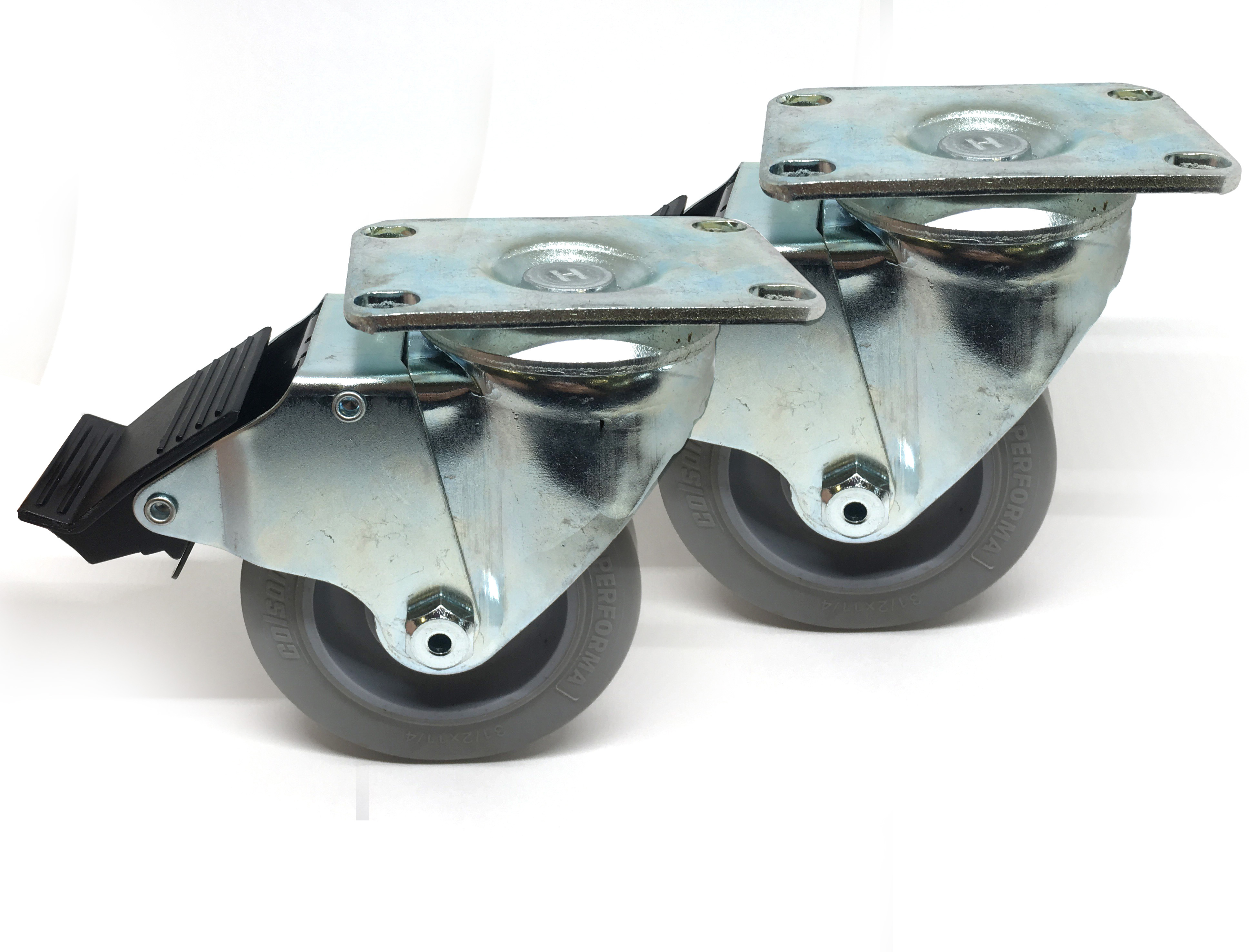

- Locking casters: yes, both units in the set lock
- Quantity included in set: 2
- Physical wheel weight: 8.0 lb (3.6 kg)
CCSTL is manufactured in North America, is TAA compliant for GSA Schedule purchases, USMCA compliant, and RoHS and REACH compliant.
Ideal For
- Adding mobility to C2 and C3 server and network cabinets
- Rolling loaded free-standing enclosures into position, then locking in place
- Data centre and IT room cabinet moves and reconfiguration
- AV and broadcast rack cabinets that need to be repositioned
- TAA compliant GSA Schedule cabinet accessory purchases
Mounting
| Limitation | Casters will not work when frames are ganged together |
| Mounting Method | Heavy duty brackets for outside mounting to cabinet frame |

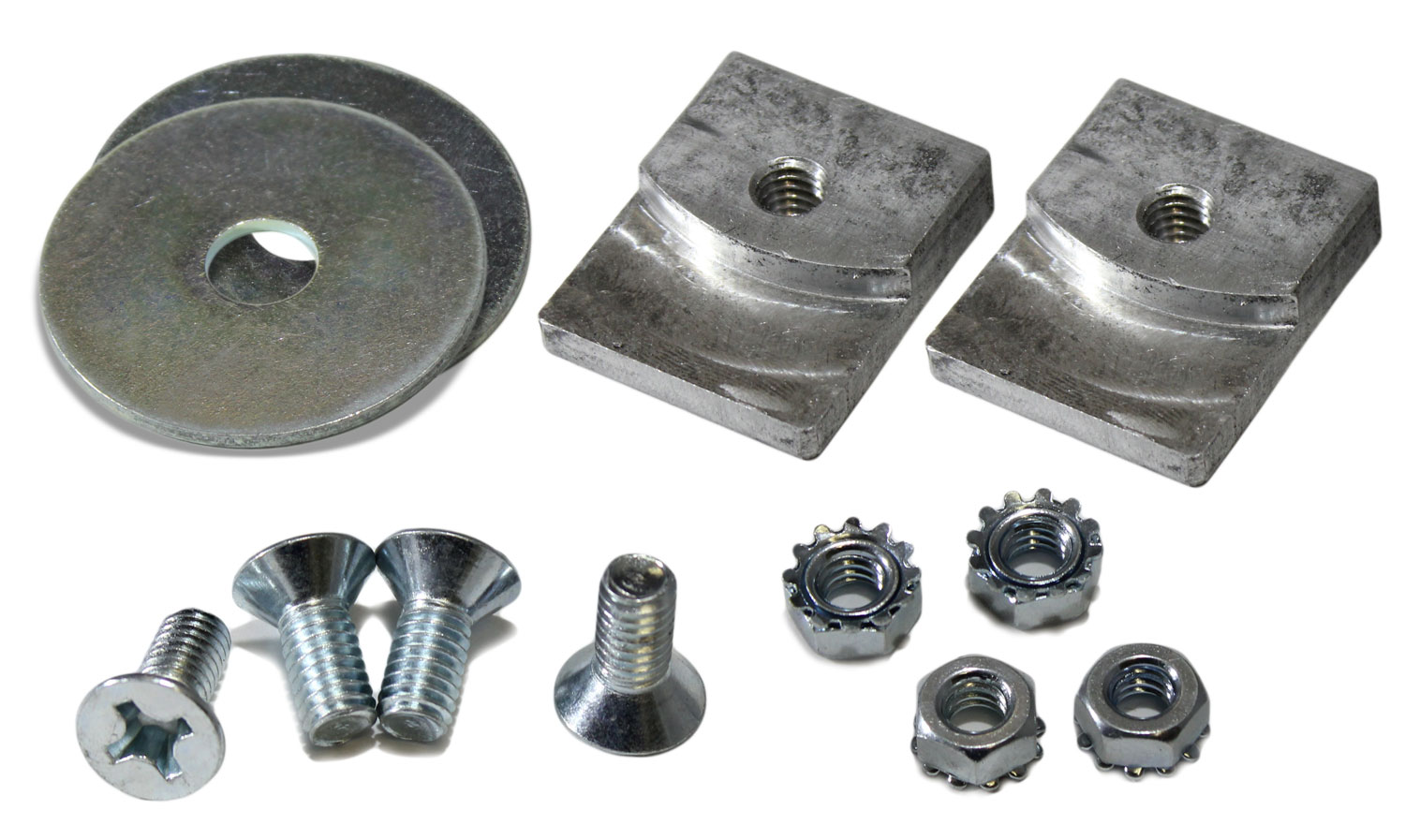

| Mounting Hardware | Included - 4 x screw 1/4-20 x 5/8 round head zinc plated per caster |
| Hole Mounting Pattern Depth | 3.00 in (76 mm) |
| Hole Mounting Pattern Width | 1.75 in (44 mm) |
Overview
| Series | CCST Series - C2 Low-Profile Cabinet Caster Set |
| Part Number | CCSTL |
| Design Version | Low-Profile (New Design) |
| Locking Casters | Yes |
| Weight Capacity | 250 lb per caster; 500 lbs (227 kg) per set; 1,000 lbs (453 kg) with four (4) casters installed |
| Long Description | Locking Castors (set of 2) |
| Short Description | CONT-LOCKING CASTERS (2) |
| Quantity Included In Set | 2 |
Dimensions
| Swivel Radius | R 4.75 in (121 mm) |
| Wheel Diameter | 3.50 in (89 mm) |
| Installed Height (Drawing) | 4.72 in (120 mm) |
| Overall Height Added To Cabinet | 4.71 in (120 mm) |
Identifiers
| UPC | 623980443225 |
| ECCN | EAR99 |
| UNSPSC | 31162701 |
| GTIN-14 | 00623980443225 |
| Category | Rack Accessories - Casters |
| Tariff Code | 8302.20.0000 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398044322 |
Packaging & Shipping
| Shipping Weight | 8 lbs (3.63 kg) |
| Physical Wheel Weight | 8.0 lb (3.6 kg) |
Construction & Finish
| Swivel Pivot | Zinc plated ball bearing |
| Wheel Colour | Grey |
| Bracket Finish | Painted black textured |
| Wheel Material | Composite |
| Country Of Manufacture | Manufactured in North America |
| Included Components (Per Caster) | 1 x C2 caster bracket, 1 x locking swivel caster with 3.5 in wheel, 4 x screw 1/4-20 x 5/8 round head zinc plated |
Compliance & Certifications
| Standards | taa-compliant |
| TAA Compliant | Yes - TAA compliant for GSA Schedule purchases |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many casters come with CCSTL?▾
CCSTL is sold in pairs - the set includes 2 locking swivel casters with their brackets and mounting hardware.
How much weight can these casters support?▾
Each caster is rated for 250 lb, giving 500 lbs (227 kg) per set of two. A set of four casters is rated for up to 1,000 lbs (453 kg).
Do the CCSTL casters lock?▾

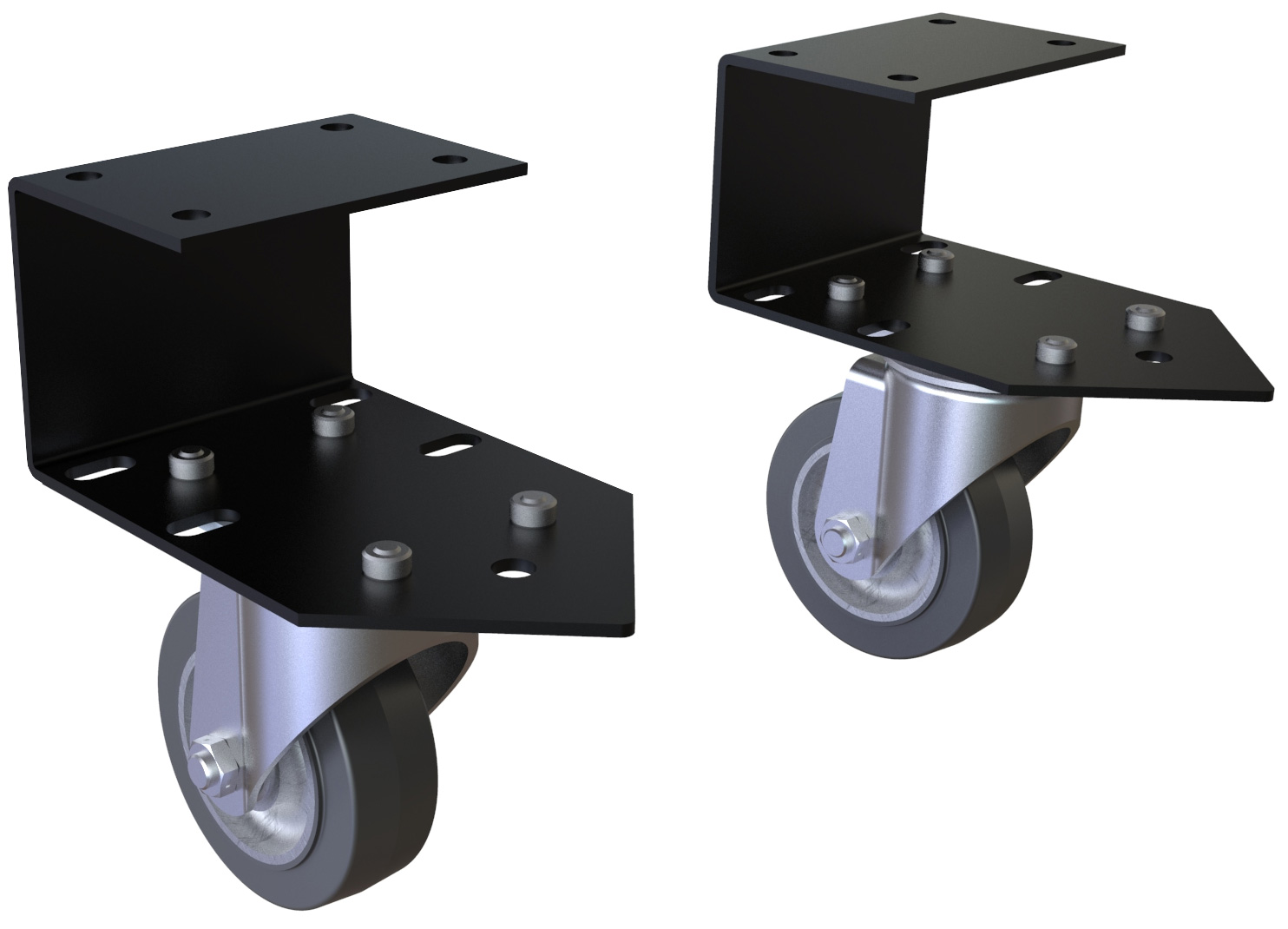

Yes. CCSTL uses locking swivel casters. If you do not need the locking feature, the non-locking equivalent in the series is CCSTN.
How much height do these casters add to the cabinet?▾
They add 4.71 in (120 mm) to the overall cabinet height; the drawing shows an installed height of 4.72 in (120 mm). Allow a swivel radius of R 4.75 in (121 mm).
Which cabinets are CCSTL casters compatible with?▾
The CCST series is listed as compatible with Hammond C2 and C3 cabinets. The bracket mounts to the outside of the cabinet frame using a 1.75 in (44 mm) x 3.00 in (76 mm) hole pattern.
Can I use these when cabinets are ganged together?▾
No. The manufacturer notes that the casters will not work when frames are ganged together.
Is CCSTL suitable for government purchases?▾
It is TAA compliant for GSA Schedule purchases, and is RoHS, REACH and USMCA compliant, with country of origin CA.
