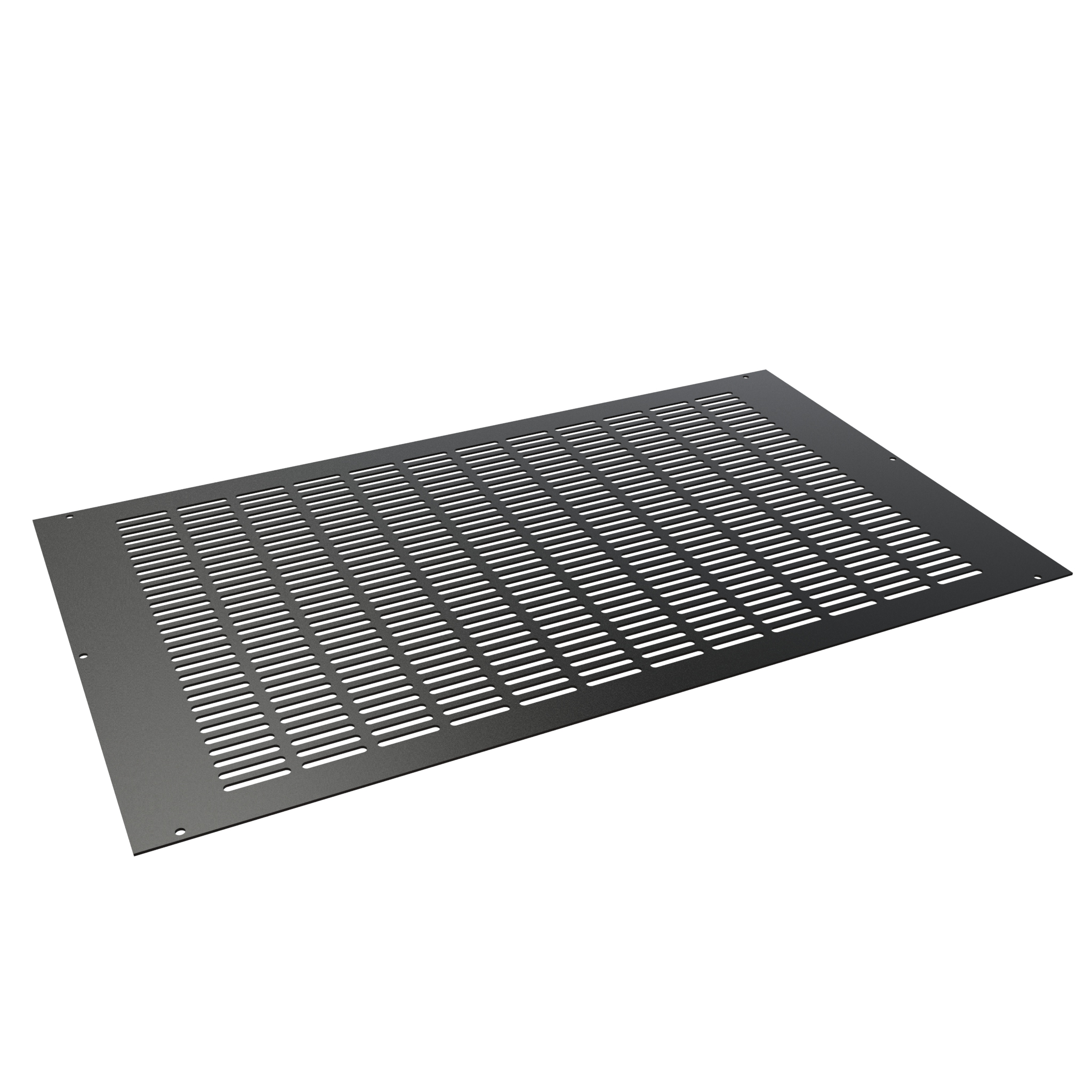

Rack Cabinet Vented Top Panel Steel Passive Airflow · C2TV Series

Key Features and Benefits

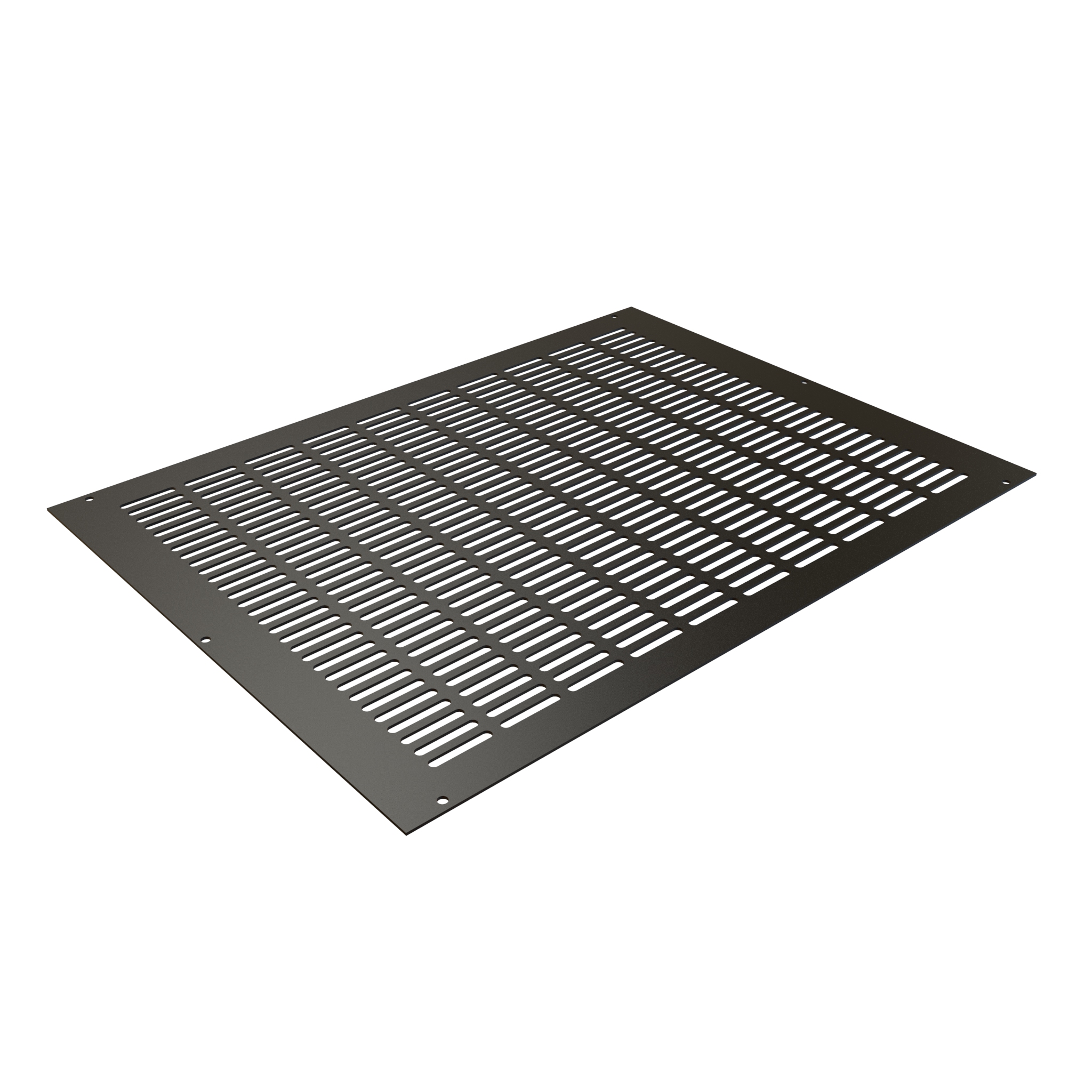

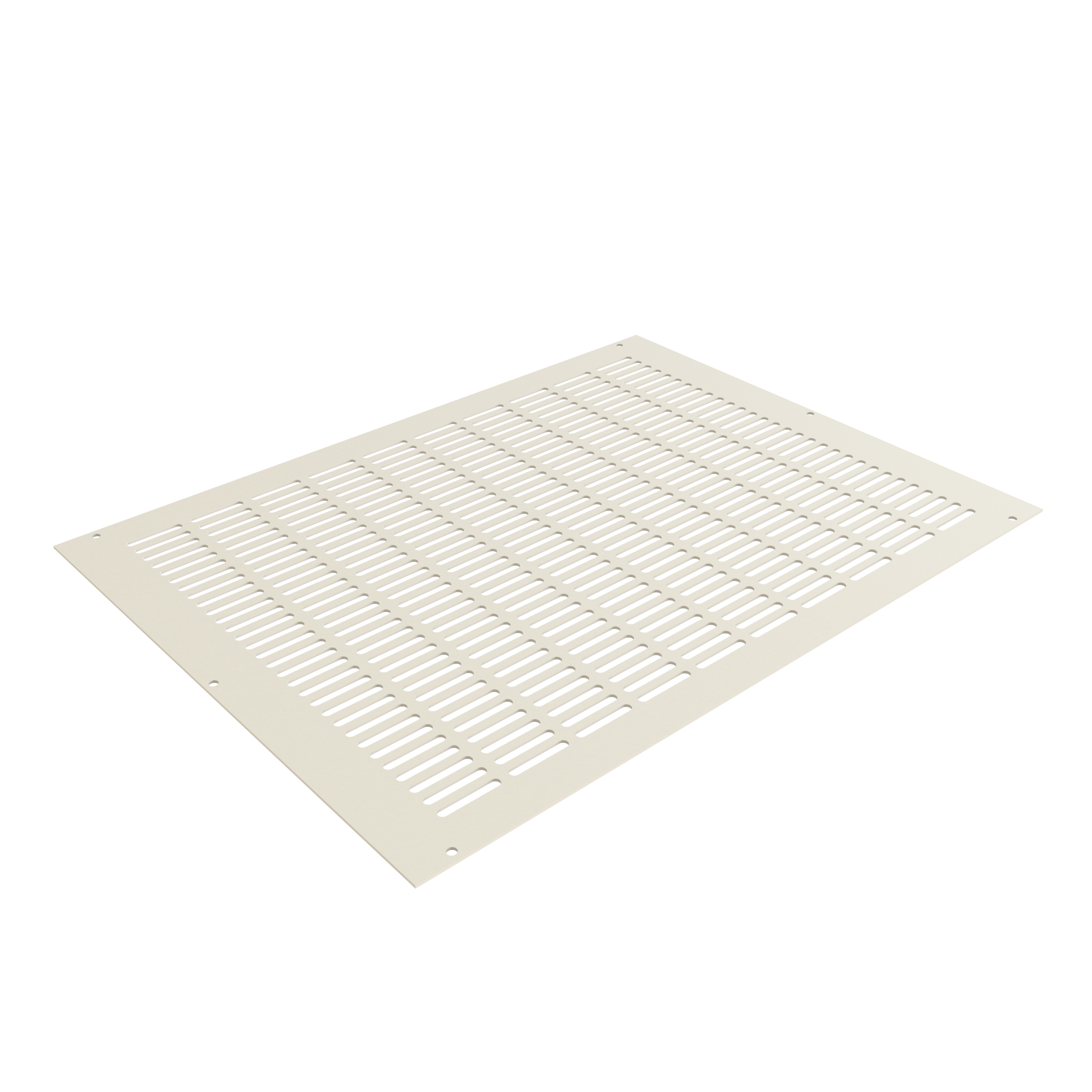

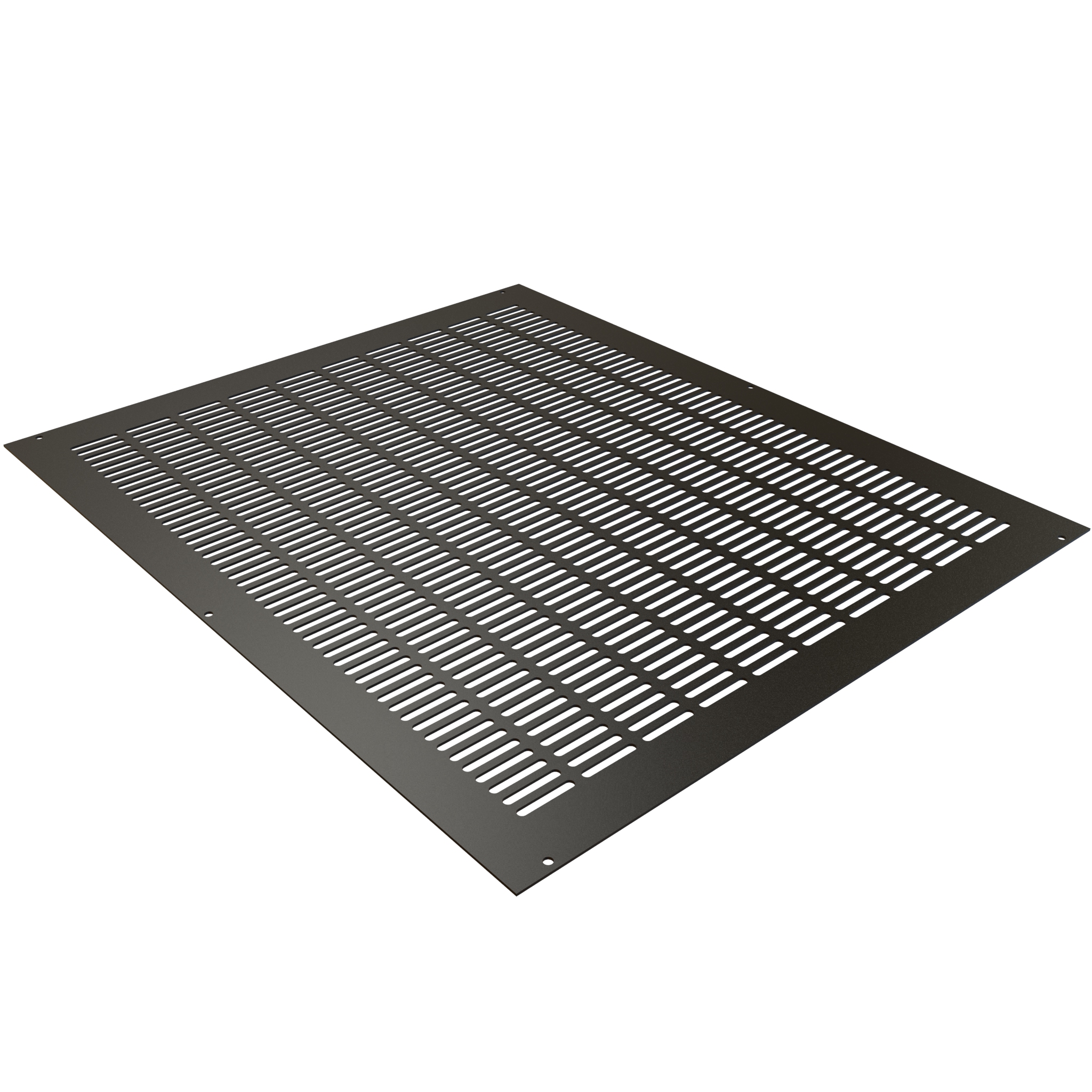

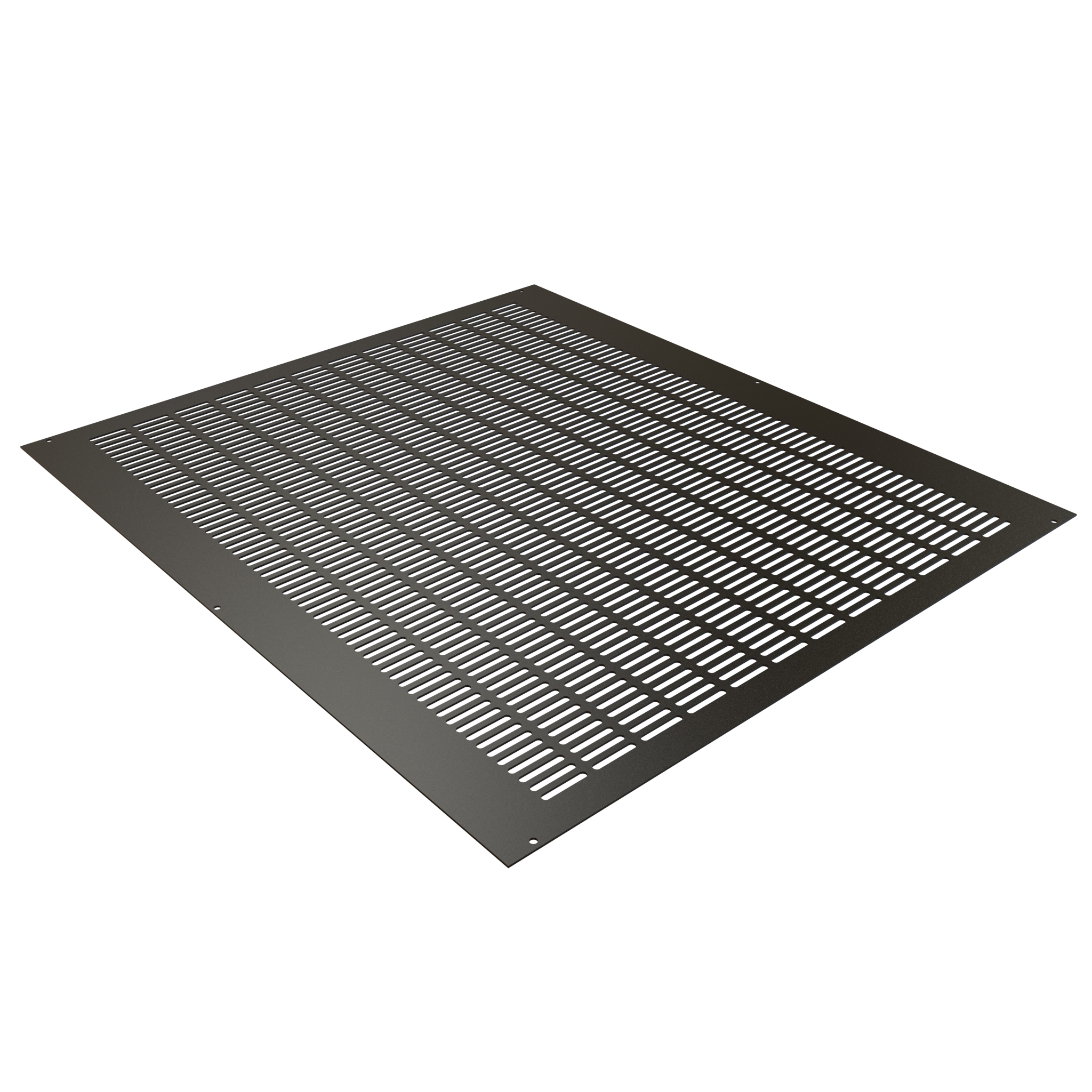

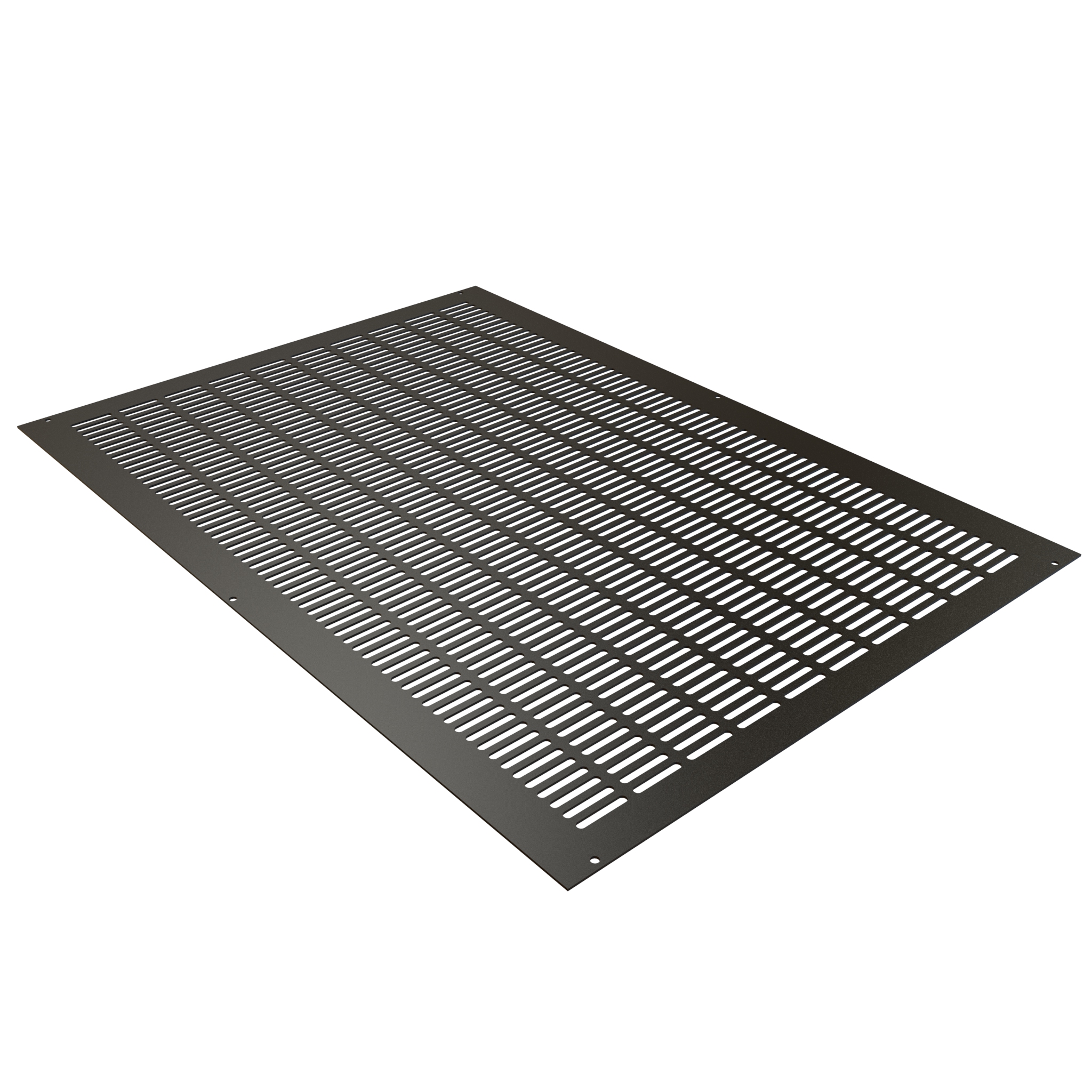

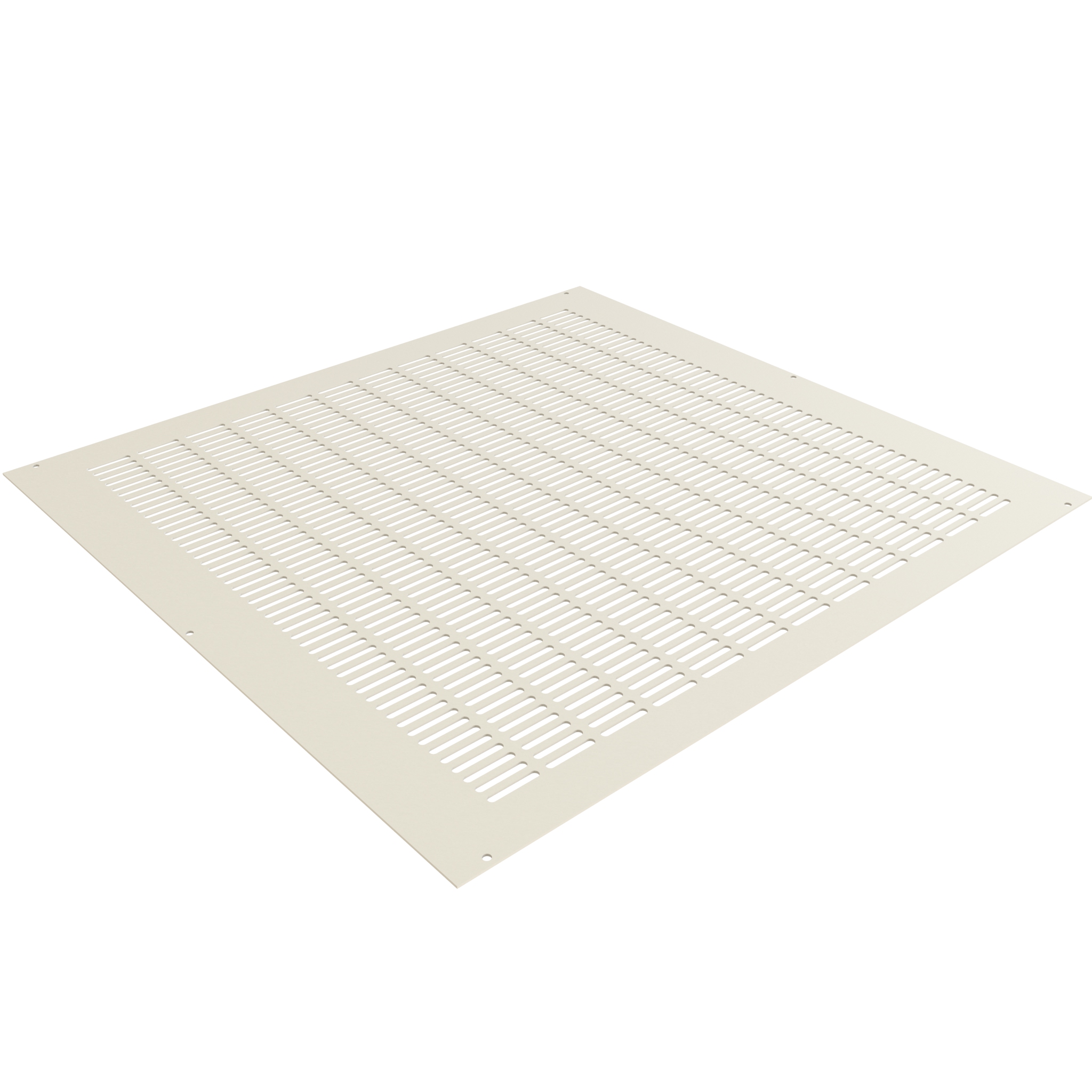

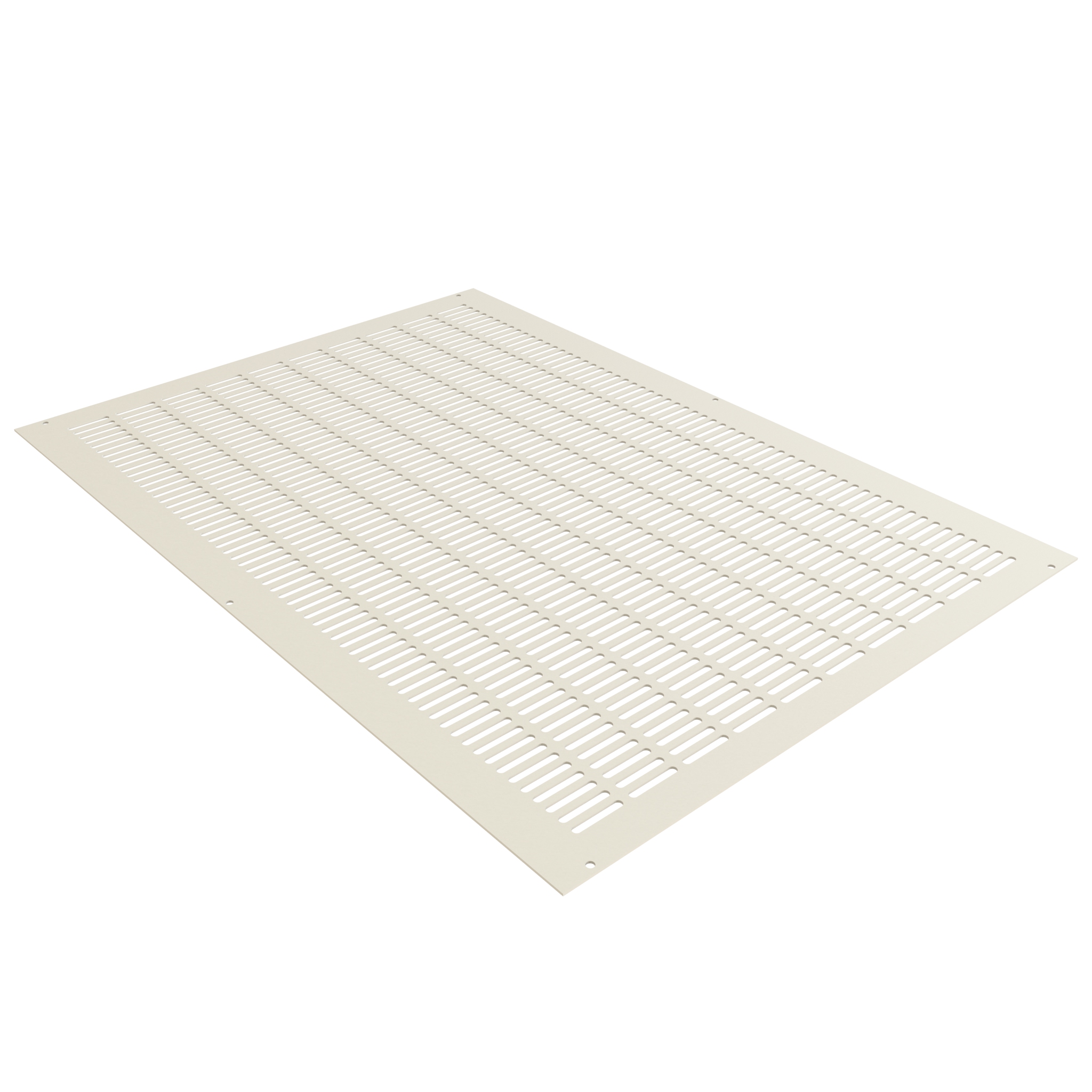

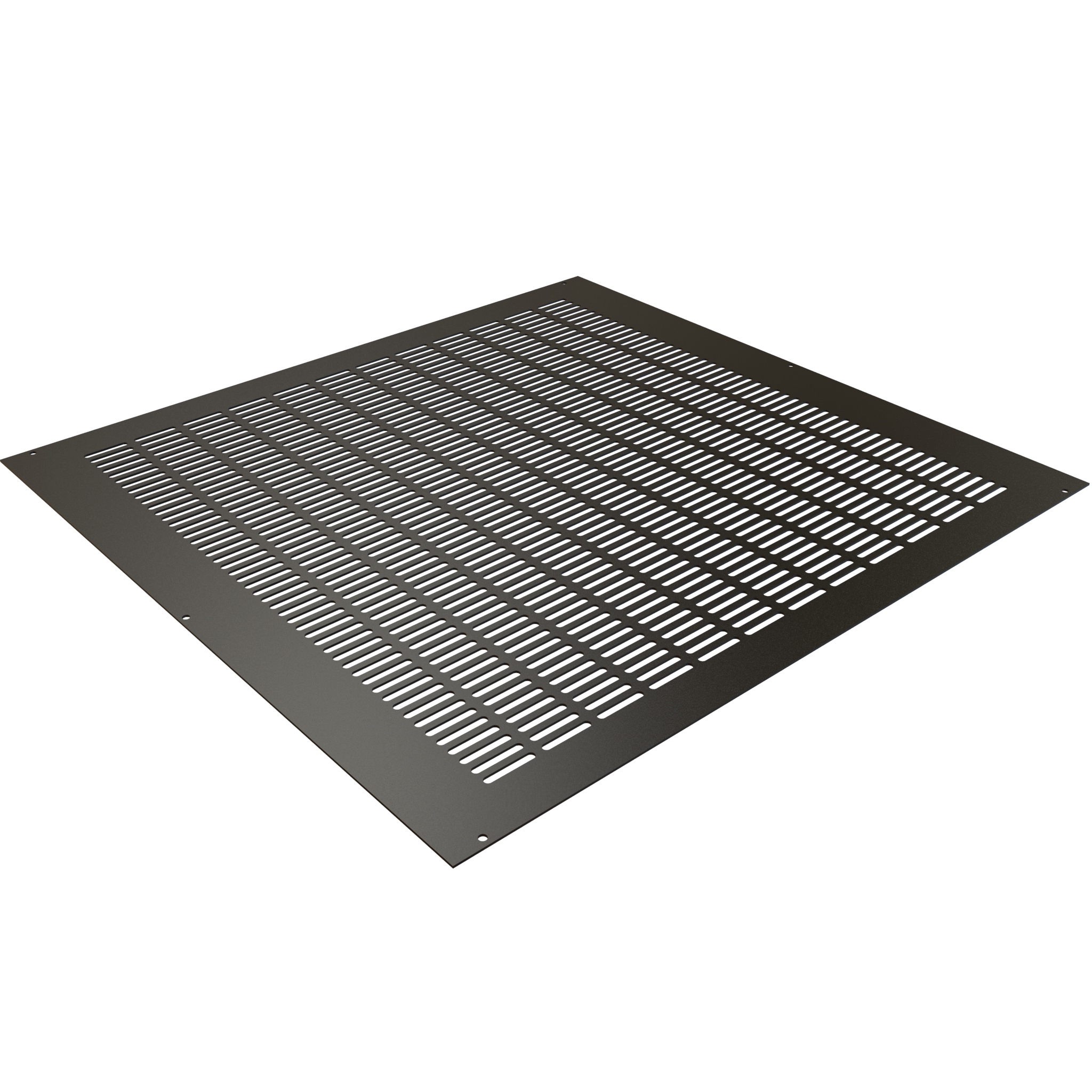

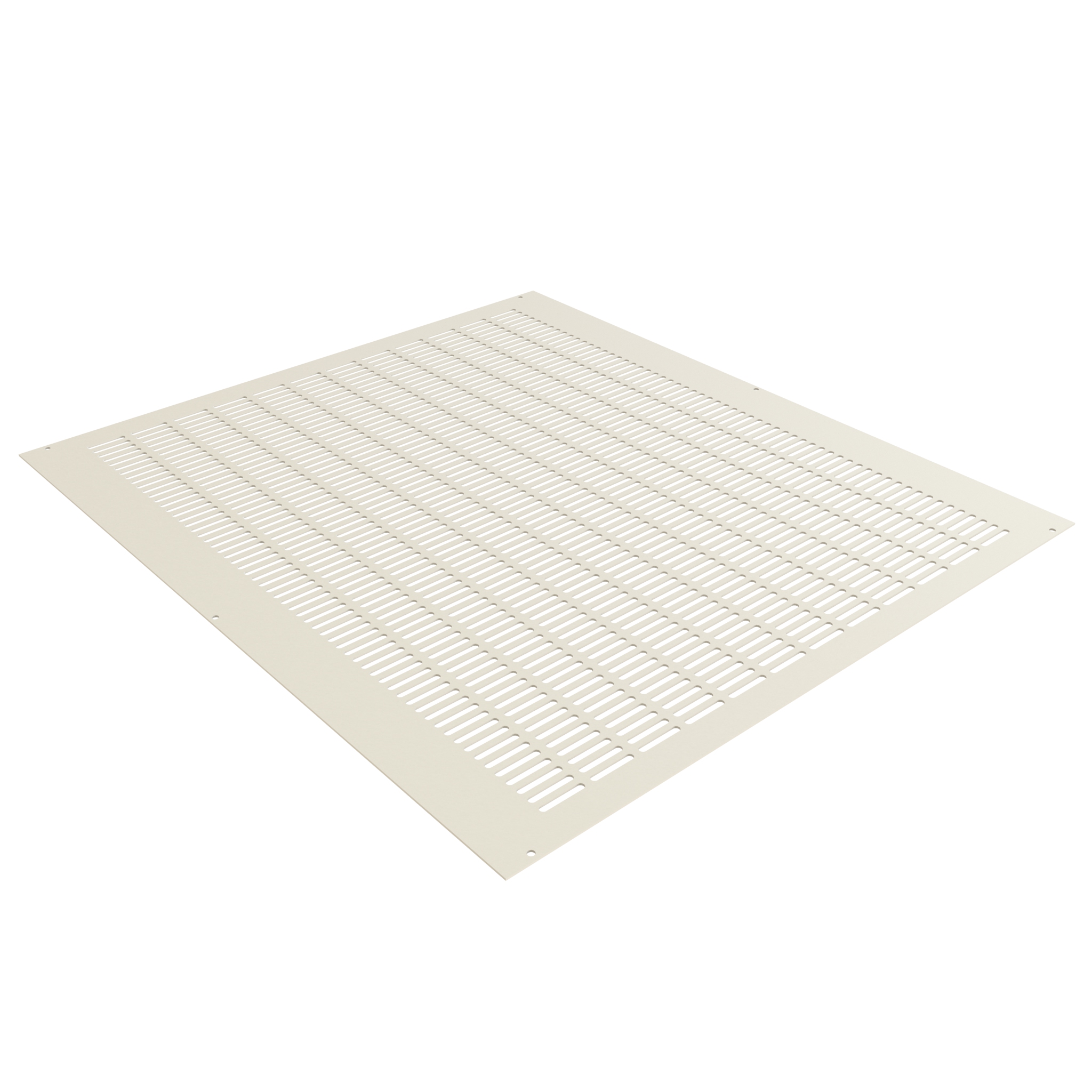

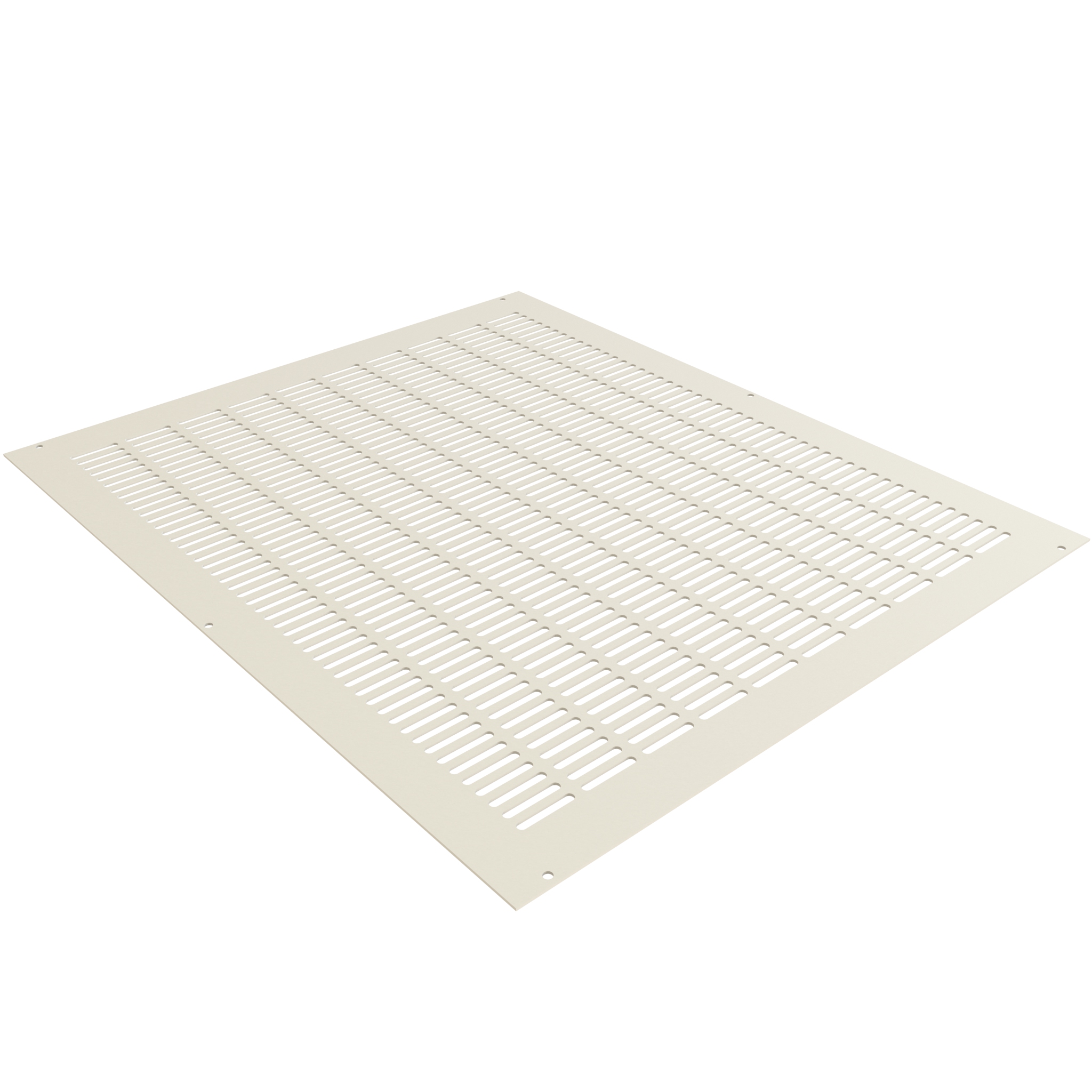

The C2TV Series vented rack cabinet top panels are designed to improve airflow and thermal performance through passive ventilation. By allowing heat to escape naturally from the top of the cabinet, these panels support efficient cooling without the need for active fan systems.

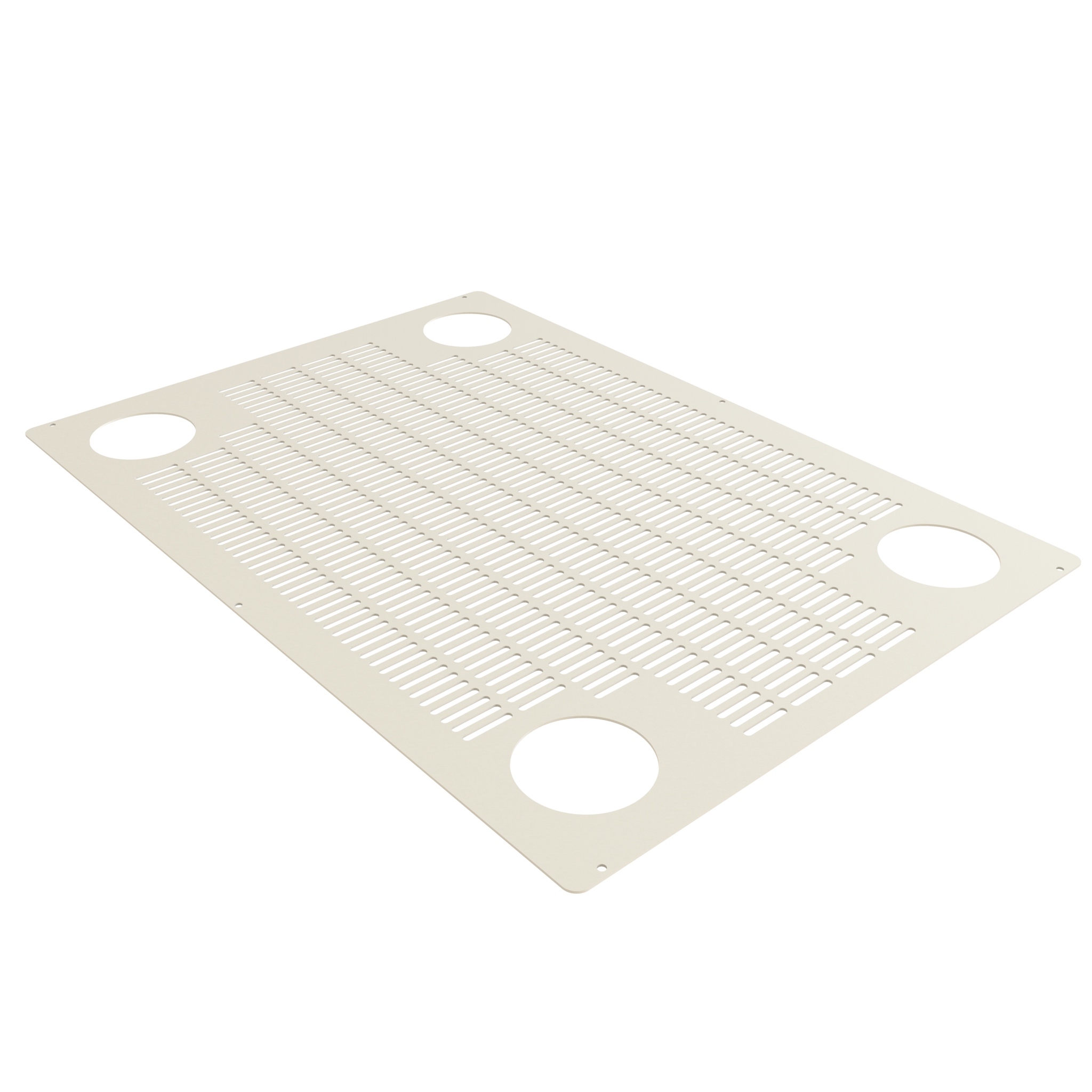

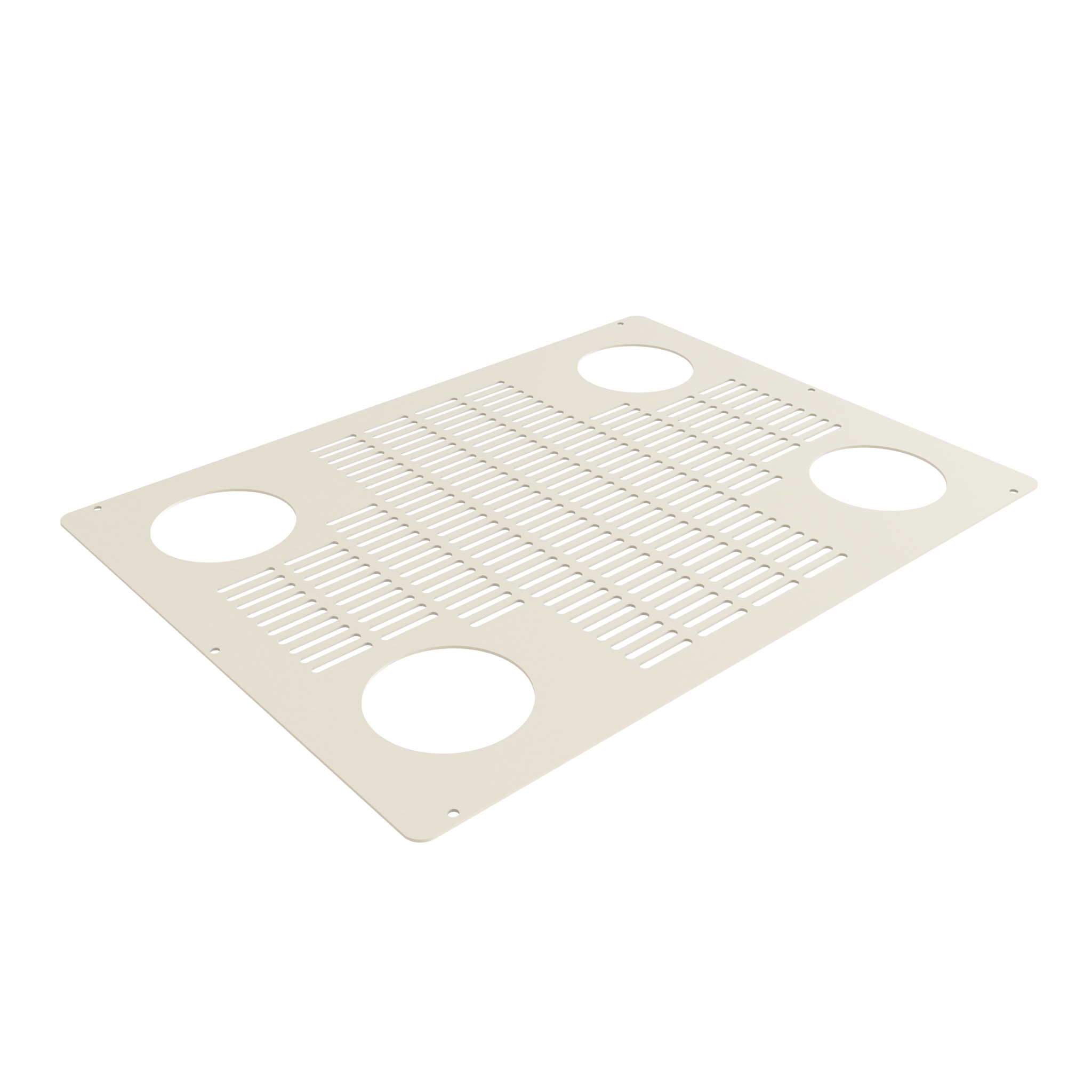

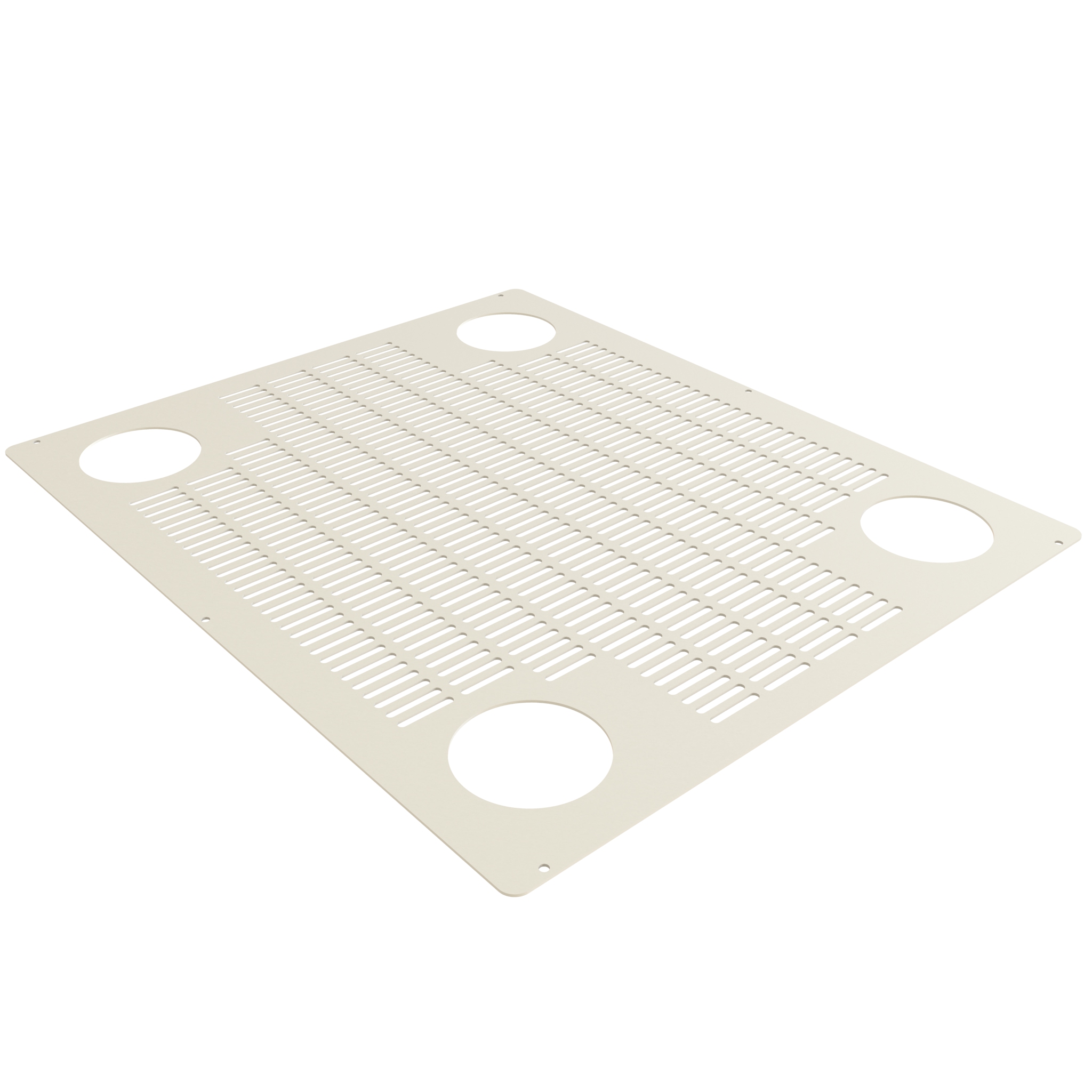

Optional cable entry versions with corner grommets provide additional flexibility, allowing cables to be routed into the cabinet while maintaining airflow and organization. This makes the C2TV Series an ideal solution for installations that require a balance of airflow, cable management, and enclosure protection.

• ■14-gauge steel construction provides durable enclosure protection and long-term reliability.
• ■Vented design enables passive airflow to improve heat dissipation within rack cabinets.

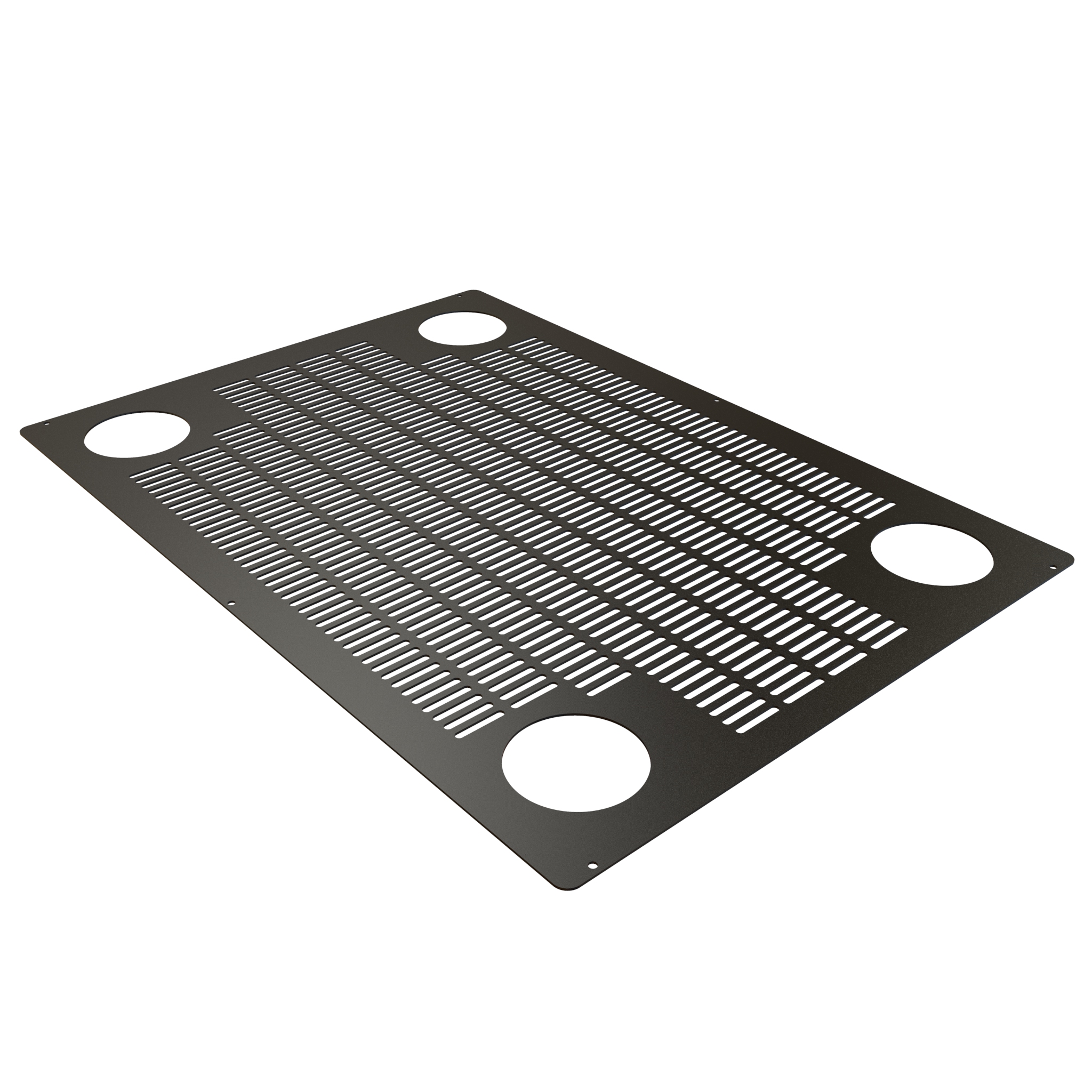

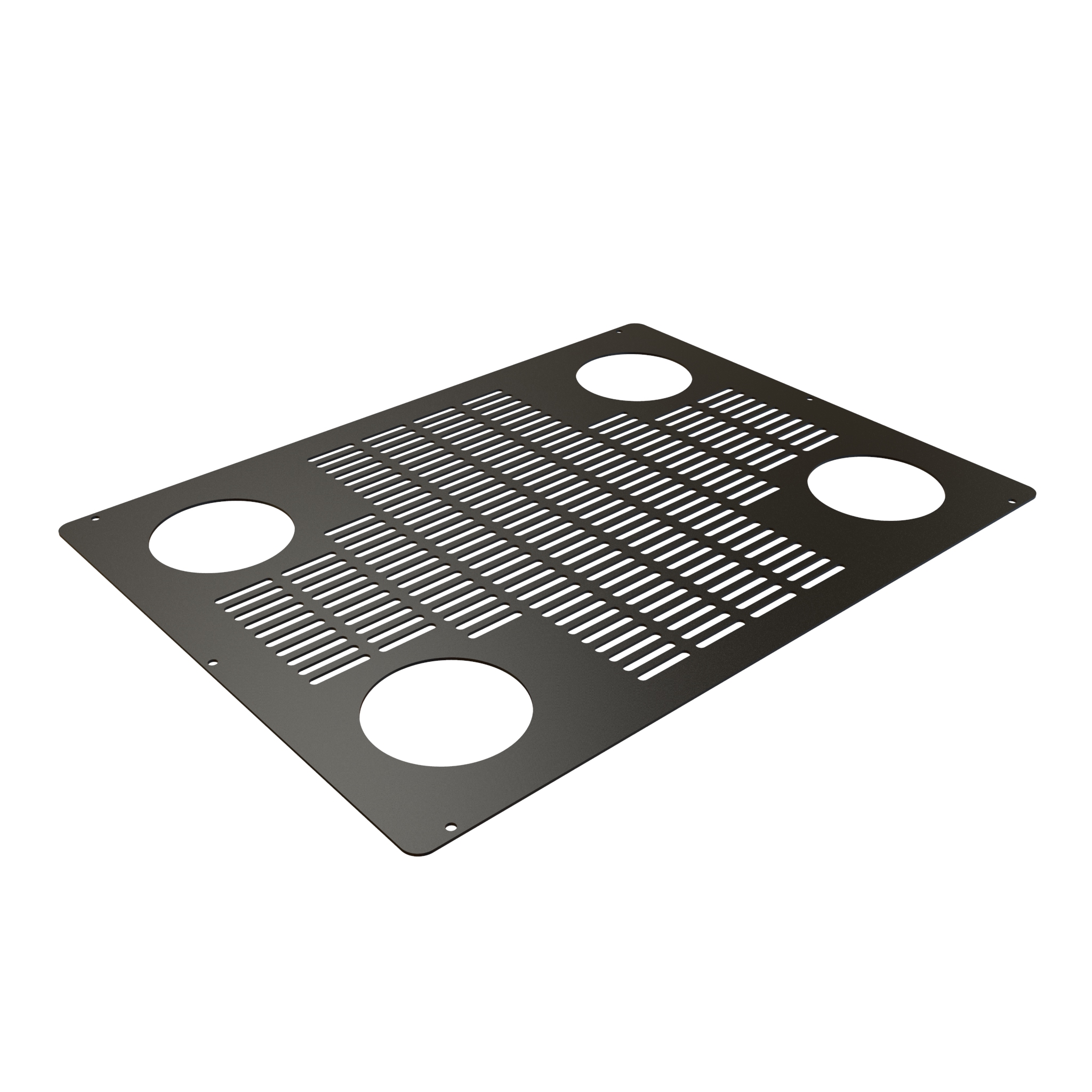

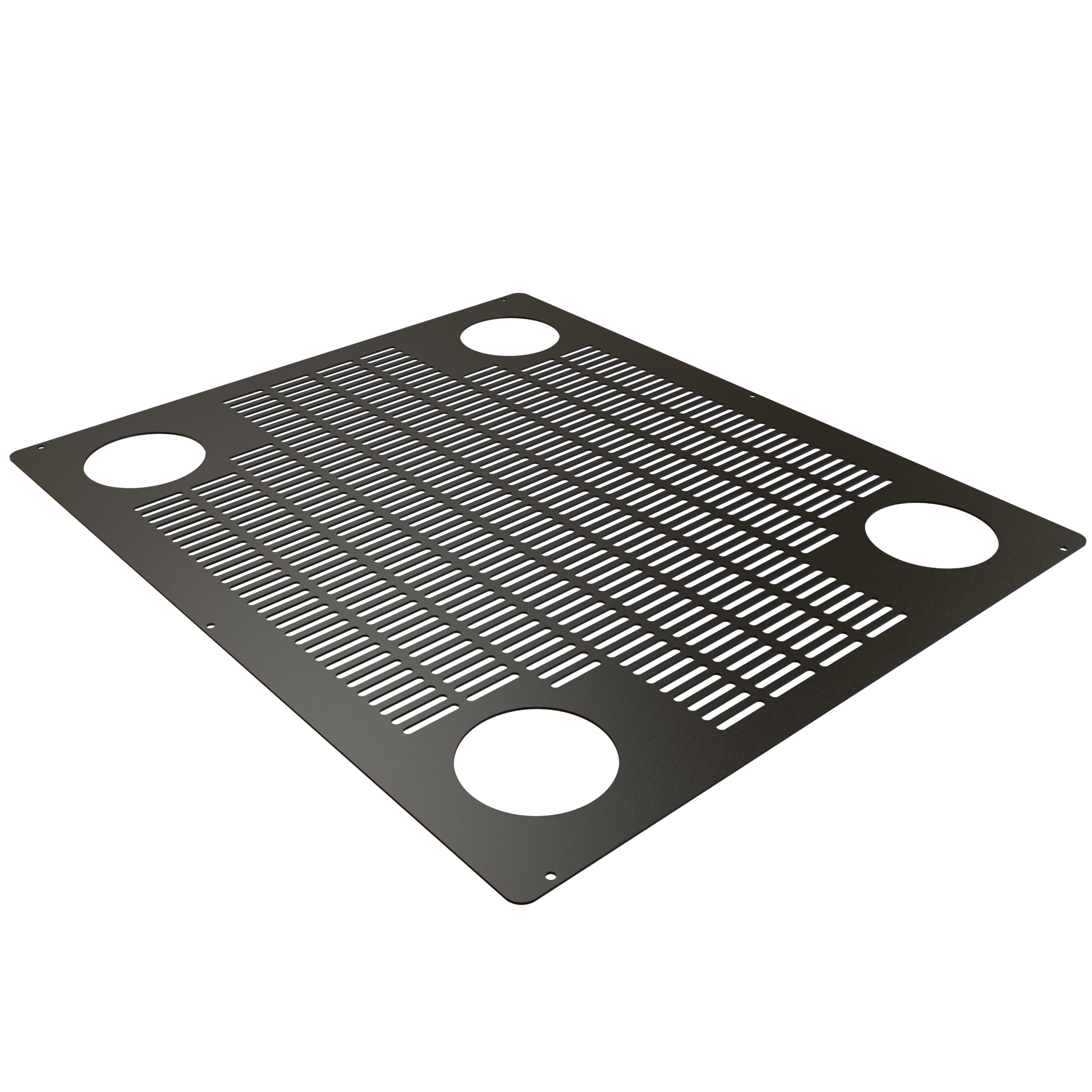

• ■Select models, such as C2T19_VCEBK1, include cable entry openings in all four (4) corners for flexible cable routing.
• ■Supports airflow management strategies without requiring active cooling.
• ■Ideal for balancing airflow while maintaining enclosure protection.
• ■Includes CLPKIT832-6 cabinet mounting hardware for quick installation.
• ■Designed for use with C2 , C2RR , C4 , C4RR_A , C4RR_S , C4RR_D , H1 , RCK or CLC cabinet series. H1 requires H1TC Series for mounting.
• ■H1 requires H1TC Series for mounting.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black or light gray powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

Where the C2TV Series Works Best

• ■Data centers and IT rooms.
• ■Network and telecom installations.
• ■AV and broadcast environments.
• ■Structured cabling deployments.
• ■Installations requiring passive airflow management.

Best Applications for the C2TV Series

• ■Improving passive airflow and heat dissipation in rack cabinets.
• ■Supporting thermal management without active cooling systems.
• ■Routing cables through top panel grommets while maintaining airflow.
• ■Replacing solid panels to enhance ventilation.

When Another Product May Be a Better Choice

• ■When you need a fully sealed cabinet top for controlled airflow environments, consider our C2TS Series.
• ■When you need cable entry from overhead pathways with airflow restriction, consider our C2T_B F Series.
• ■When you need active cooling with integrated fan capability, consider our C2TF Series.
