AV 30DB Fan Kit With Cord
$71.39In stock
Buy now

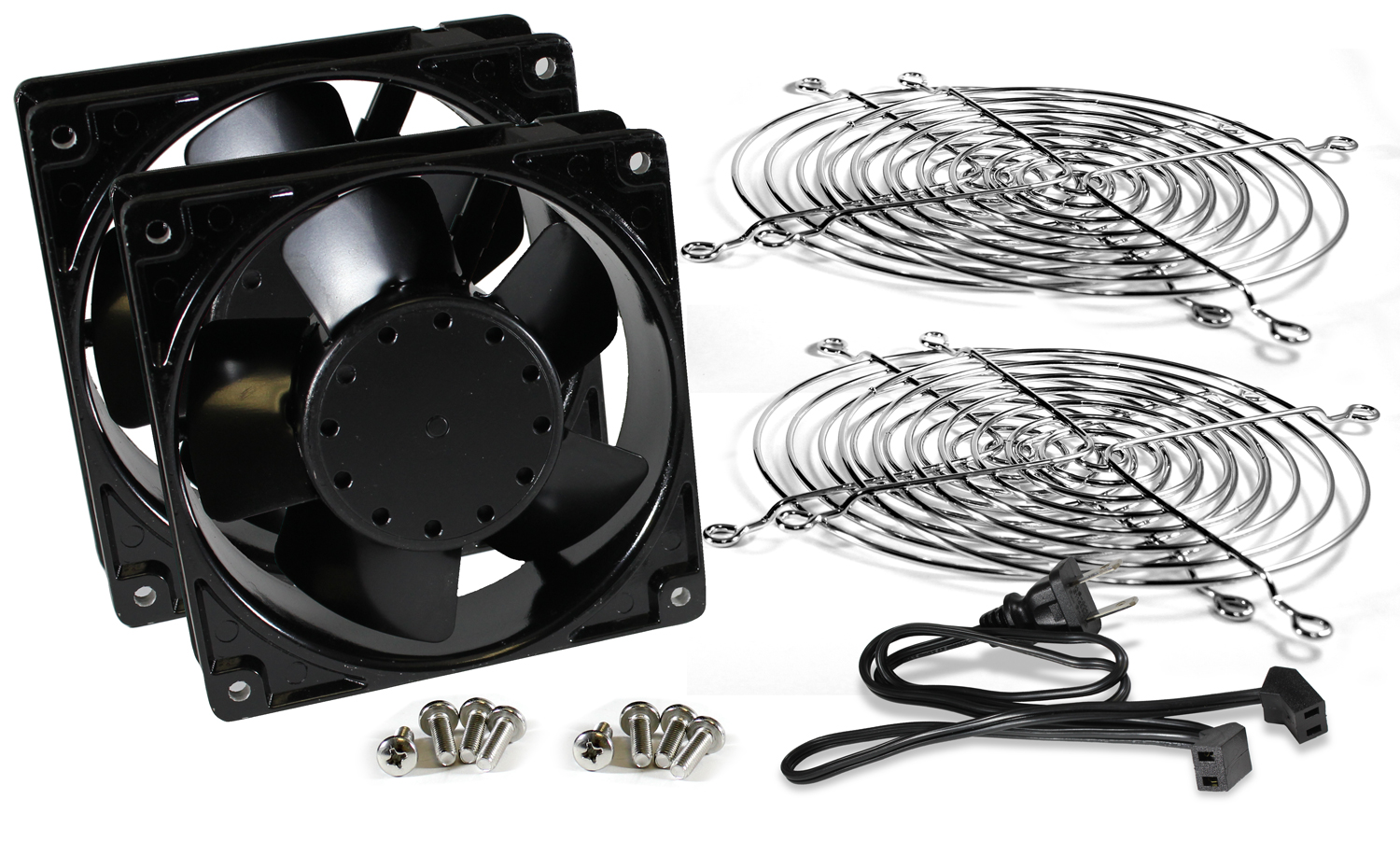

Low-Decibel Heavy Duty Cooling Fan Kits · AVFK Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Extend the life of your rack-mount equipment by adding active cooling to your installation.
- ■Available in kits that include one (1), two (2) or four (4) fans.
- ■Low-decibel for audio/visual and office environments.
- ■If your fans will be mounted more than 12" apart when using the kits with two (2) fans, refer to the DNFC Fan Cord series listed in our accessories below for a longer single connection wire.
- ■Fan components are recognized to UL 507 and CSA certified.
- ■Operating temperatures -20°C to +60°C. Relative humidity range 5% to 95% in a non-condensing space.
from $9.09
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your AVFK Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Fan(s) · Included | Fan · Width | Total · CFM | Noise · (dB) | Plug · Type | Maximum Fan · Distance | Cord Length | Fan Guards · Included | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| AVFK1AC120 | 1 | 4.72 | 58 | 30 | NEMA 1-15P | n/a | 72.00 | 2 | $71.39In stock | Buy now |
| AVFK2AC120 | 2 | 4.72 | 116 | 30 | NEMA 1-15P | 12.00 | 72.00 | 4 | $123.31In stock | Buy now |
| AVFK4AC120 | 4 | 4.72 | 232 | 30 | NEMA 1-15P | 12.00 | 72.00 | 8 | $201.19In stock | Buy now |
Features
- ■Extend the life of your rack-mount equipment by adding active cooling to your installation.
- ■Available in kits that include one (1), two (2) or four (4) fans.
- ■Low-decibel for audio/visual and office environments.
- ■If your fans will be mounted more than 12" apart when using the kits with two (2) fans, refer to the DNFC Fan Cord series listed in our accessories below for a longer single connection wire.
- ■Fan components are recognized to UL 507 and CSA certified.
- ■Operating temperatures -20°C to +60°C. Relative humidity range 5% to 95% in a non-condensing space.
- ■Decibel (db) rating is measured at 12” to 24” from the source.
- ■TAA-compliant for GSA Schedule purchases.
- ■RoHS and REACH compliant.
- ■Assembled in North America.
