Hallicrafters SR-2000 T-301 Plate Transformer

Hammond Manufacturing · MPN: PWDP13022

Out of Stock

Hallicrafters SR-2000 plate transformer, T-301
Plate and screen voltages in one unit
S1 1080 VRMS at 0.91 amps CCS
S2 450 VRMS at 0.070 amps CCS

Quoted per order

Swan 117-XC Power Transformer, 117 VAC Primary

Hammond Manufacturing · MPN: PWDP13023

Out of Stock

Replacement Swan 117-XC power transformer for the Swan 350 AC power supply
117 VAC 60 Hz single-phase AC primary
S1 tapped 0-9.6-14.4-19.2 VAC @ 6A CCS winding (marked DC PRI)
High-voltage secondaries: 427 VAC @ 300 mA and 230 VAC @ 300 mA CCS

Quoted per order

Johnson Viking 500 T-301 LV Power Transformer

Hammond Manufacturing · MPN: PWDP13025

Out of Stock

Johnson Viking 500 T-301 LV power transformer, original P/N 22.1266
115 VAC 60 Hz single-phase primary (drawing: 120 V 60 Hz)
High-voltage windings: 960 VCT @ 200 mA and 560 VCT @ 100 mA CCS
Filament windings: 6.4 VCT @ 9A, 5.0 VCT @ 3A and 2.5 VCT @ 10A CCS

Quoted per order

Heath SB-220 C-Core Plate Transformer, 1.3A CCS

Hammond Manufacturing · MPN: PWDP13026

Out of Stock

Extra heavy-duty 7 mil C-core plate transformer for Heath SB-220 / SB-221 / HL-2200
Secondary 860/1171 VAC @ 1.3A CCS
117/234 VAC 60 Hz primary with HI-LO taps selected by jumpers
No-load output 1183 V HI / 887 V LOW, ±2%

Quoted per order

Swan 230-XC Power Transformer, 117/234 VAC 50/60 Hz

Hammond Manufacturing · MPN: PWDP13027

Out of Stock

Swan 230-XC power transformer for the Swan 350 AC power supply
Dual 117/234 VAC primary, 50/60 Hz single phase
S1 tapped 0-9.6-14.4-19.2 VAC @ 6A CCS (marked DC PRI)
S2 427 VAC @ 300 mA and S3 230 VAC @ 300 mA CCS

Quoted per order

Gonset G-50 Power Transformer, 770 VCT @ 250 mA

Hammond Manufacturing · MPN: PWDP13028

Out of Stock

Power transformer for the Gonset G-50 6 meter Communicator
115 VAC 60 Hz single-phase primary
770 VCT @ 250 mA CCS high-voltage secondary
Filament windings 5.0 VAC @ 3A and 6.3 VAC @ 9A CCS

Quoted per order

ARRL-002-2 Plate Transformer, 46 lb

Hammond Manufacturing · MPN: PWDP13029

Out of Stock

ARRL-002-2 plate transformer
Part of the PWDAHL series of magnetics for amateur radio products
Shipping weight 46 lbs (20.87 kg)
REACH and RoHS compliant

Quoted per order

Heathkit SB-1000 Heavy-Duty Power Transformer

Hammond Manufacturing · MPN: PWDP13032

Out of Stock

Heavy-duty (HD) power transformer for the Heathkit SB-1000
Part of the PWDAHL series of magnetics for amateur radio products
REACH and RoHS compliant
UPC 623980240145, UNSPSC 39121301

Quoted per order

Henry 1KD-5 Power Transformer, 2250 VAC @ 200 mA

Hammond Manufacturing · MPN: PWDP13033

Out of Stock

Direct replacement Henry 1KD-5 power transformer T1, P/N ECA-1111
115/230 VAC 50/60 Hz single-phase primary
2250 VAC @ 200 mA CCS high-voltage secondary
5.0 VCT @ 15A CCS filament secondary

Quoted per order

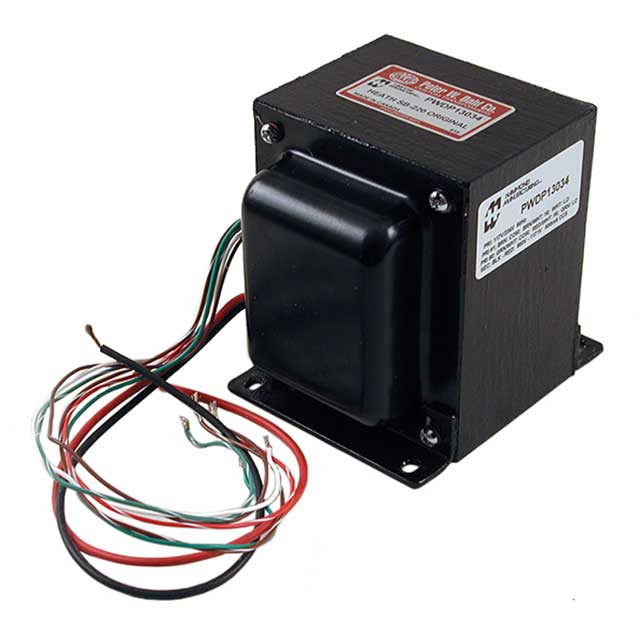

Heath SB-220 Factory-Original Power Transformer

Hammond Manufacturing · MPN: PWDP13034

Out of Stock

Power transformer replacement for Heath SB-220 / SB-221 / HL-220 (HL-2200)
860/1171 VAC @ 0.7A CCS secondary
117/234 VAC 60 Hz primary with HI-LO taps
EI core, Style 2

Quoted per order

3300/2300V 2A CCS KL Plate Transformer

Hammond Manufacturing · MPN: PWDP13035

Out of Stock

KL plate transformer rated 3300/2300V @ 2A CCS
Dual 3300 V / 2300 V high-voltage rating
Shipping weight 86 lbs (39.01 kg)
REACH and RoHS compliant

Quoted per order

Ten-Tec 425 Titan C-Core Main Power Transformer

Hammond Manufacturing · MPN: PWDP13039

Out of Stock

Replacement main power transformer T1 for the Ten-Tec 425 Titan
2225 VAC @ 0.5A CCS secondary
120/240 VAC 50/60 Hz single-phase primary
A-0480 C-core, Style 10

Quoted per order

Triad P-217AL Plate Transformer, 2880 VCT

Hammond Manufacturing · MPN: PWDP13040

Out of Stock

Plate transformer replacing the Triad P-217AL
2880 VCT secondary @ 0.25A DC (FWCT)
115/230 VAC 50/60 Hz single-phase primary
EI-175 X 2.5" core, 29GAM6 laminations, Style 5

Quoted per order

Collins 30S-1 Bias Transformer, 125 VCT

Hammond Manufacturing · MPN: PWDP13042

Out of Stock

Collins 30S-1 bias transformer, Collins P/N 662-0353-00
115 VAC 50/60 Hz single-phase primary
125 VCT @ 0.1A CCS bias secondary
12.6 VAC @ 0.8A CCS secondary

Quoted per order

Collins KWS-1 Screen Transformer, 980 VCT

Hammond Manufacturing · MPN: PWDP13043

Out of Stock

Collins KWS-1 screen transformer T504, Collins P/N 662-0157-00
980 VCT @ 0.050A CCS secondary
120 VAC 60 Hz primary
Replacement is not potted (see manufacturer drawing)

Quoted per order

Ten-Tec 422 Centurion C-Core HV Plate Transformer

Hammond Manufacturing · MPN: PWDP13045

Out of Stock

HV plate transformer for Ten-Tec 422 and 422B Centurion linear amplifiers
2225 VAC @ 0.5A CCS secondary
115/230 VAC primary; drawing shows dual 115 V windings, 50/60 Hz
B-393 C-core, Style 10

Quoted per order

Johnson Viking 500 T-302 Plate Transformer

Hammond Manufacturing · MPN: PWDP13046

Out of Stock

Direct replacement T-302 plate transformer for the Johnson Viking 500
Also listed as direct replacement for the Johnson Thunderbolt plate
4800 VCT @ 500 mA CCS secondary
115/230 VAC 60 Hz single-phase primary

Quoted per order

Alpha 76A-2 Heavy-Duty 3CX800A7 Power Transformer

Hammond Manufacturing · MPN: PWDP13047

Out of Stock

Alpha 76A-2 power transformer, special heavy-duty 3CX800A7 version
S1 tapped 0-1200-1950 VAC @ 0.5A CCS
S2 40 VCT @ 0.5A, S3 25 VAC @ 1A, S4 13.5 VAC @ 3.0A CCS
120/240 VAC 60 Hz single-phase primary

Quoted per order

Dentron 160-10L Exact Replacement Power Transformer

Hammond Manufacturing · MPN: PWDP13048

Out of Stock

Exact replacement power transformer for the Dentron 160-10L amplifier
S1 985 VAC @ 1.0A ICAS or 0.65A CCS
S2 9.5 VAC @ 1.0A CCS and S3 6.3 VCT @ 16A CCS
115/230 VAC 60 Hz single-phase primary

Quoted per order

Alpha 91b/99 TPX-X168 C-Core Power Transformer

Hammond Manufacturing · MPN: PWDP13049

Out of Stock

Alpha Power P/N TPX-X168 power transformer for Alpha 91b and 99
S1 0-2050 VAC @ 1.5A CCS high-voltage winding
Low-voltage windings: 105 VAC, 310 VAC, 28 VCT and 13.3 VAC
Dual 0-100-120 VAC primary, 50/60 Hz

Quoted per order

Johnson Desk KW Hipersil Plate Transformer

Hammond Manufacturing · MPN: PWDP13051

Out of Stock

Johnson Desk KW plate (HR) Hipersil replacement transformer
Tapped 2900-2325-0-2325-2900 VAC secondary @ 600 mA CCS
115/230 VAC 60 Hz single-phase primary
A-0480 C-core, Style 10

Quoted per order

Globe King 500A Modulator Power Transformer

Hammond Manufacturing · MPN: PWDP13052

Out of Stock

Globe King 500A modulator power transformer
Supplies 1000 VDC for 811As and 400 VDC for 6L6G (per listing)
Tapped 1160-350-0-350-1160 VAC secondary @ 450 mA ICAS
117 VAC 60 Hz single-phase primary

Quoted per order

Collins 75A-4 Power Transformer with Bias Tap

Hammond Manufacturing · MPN: PWDP13053

Out of Stock

Collins 75A-4 power transformer with bias tap, Collins P/N 662-0145-00
S1 350-160-0-350 VAC @ 150 mA CCS
Filament windings 5.0 VAC @ 2.0A and 6.3 VAC @ 6.0A CCS
117 VAC 60 Hz single-phase primary

Quoted per order

Drake L4B/L7 Supply Transformer, 1170 VAC

Hammond Manufacturing · MPN: PWDP13054

Out of Stock

Supply transformer for Drake L4B-7-SP and L7 power supplies
1170/878 VAC @ 0.81A CCS secondary
120/240 VAC 60 Hz primary with HI-LO taps, 7-terminal
Requires power supply and RF amp modifications

Quoted per order
