Hammond PWDP13046 Johnson Viking 500 T-302 Plate Transformer
Call for Price
Ships from and sold by A5 IT
Call for pricing
This part is quoted to order. Call for current pricing, lead time and volume breaks on the Hammond Manufacturing PWDP13046.
224-955-1644Key Features
- Direct replacement T-302 plate transformer for the Johnson Viking 500
- Also listed as direct replacement for the Johnson Thunderbolt plate
- 4800 VCT @ 500 mA CCS secondary
- 115/230 VAC 60 Hz single-phase primary
- EI core, Style 5
- Approx. 33 lbs; REACH and RoHS compliant
PWDP13046 is a direct replacement plate transformer for the Johnson Viking 500, listed as the T-302, and the same unit is listed as a direct replacement plate transformer for the Johnson Thunderbolt (same as T-302, Johnson 500 plate). It is part of the Peter W Dahl Transformers series and serves owners and technicians restoring either of these Johnson units.
The primary is rated 115/230 VAC at 60 Hz, single phase, and the secondary delivers 4800 VCT at 500 mA CCS.
The transformer is built on an EI core and is listed as Style 5 on the series transformer style sheet. Approximate weight is 33 lbs, with a shipping weight of 33 lbs (14.97 kg), so plan handling and chassis support accordingly.
The primary is specified for 60 Hz only, so buyers outside North America should confirm their mains frequency before selecting PWDP13046. It is REACH and RoHS compliant and carries UPC 623980240268 and UNSPSC 39121301.
Peter W. Dahl designs are usually built to order one at a time, and many are decades old, so confirm availability by phone or e-mail before ordering.
Ideal For
- Johnson Viking 500 T-302 plate transformer replacement
- Johnson Thunderbolt restoration
- Johnson 500 plate supply replacement
Overview
| Series | PWDAHL Series (Peter W Dahl Transformers) |
| Description | JOHNSON VIKING 500 PLATE DIRECT REPLACEMENT - PLATE TRANS (T-302) |
| Part Number | PWDP13046 |
| Product Type | Plate Transformer |
| Also Listed As | JOHNSON THUNDERBOLT PLATE DIRECT REPLACEMENT - PLATE TRANS (SAME AS T-302 - JOHNSON 500 PLATE) |
| Short Description | PETER DAHL PLATE TRANS |
| Original Designation | T-302 |
Dimensions
| Approx. Weight (Series Table) | 33 lbs |
Electrical
| Primary | 115/230 VAC 60 HZ 1 PH |
| Secondary | 4800 VCT @ 500 MA CCS |
Identifiers
| UPC | 623980240268 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 33 lbs (14.97 kg) |
Construction & Finish
| Core | EI / EI CORE |
| Style (Per Series Style Sheet) | 5 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which Johnson equipment does PWDP13046 fit?▾
It is listed as a direct replacement plate transformer (T-302) for the Johnson Viking 500 and for the Johnson Thunderbolt.
What is the secondary rating?▾
4800 VCT @ 500 mA CCS.
Can I use it on 50 Hz mains outside North America?▾
The primary is listed as 115/230 VAC 60 Hz single phase only; the series advises that parts not marked 50/60 Hz are intended for 60 Hz use.
How heavy is it?▾
Approximately 33 lbs; shipping weight is 33 lbs (14.97 kg).
Is this transformer kept in stock?▾
Transformers in the Peter W. Dahl listing are usually built to order one at a time, and many of the designs are decades old. Confirming availability of PWDP13046 by phone or e-mail before ordering is recommended.
Related Products

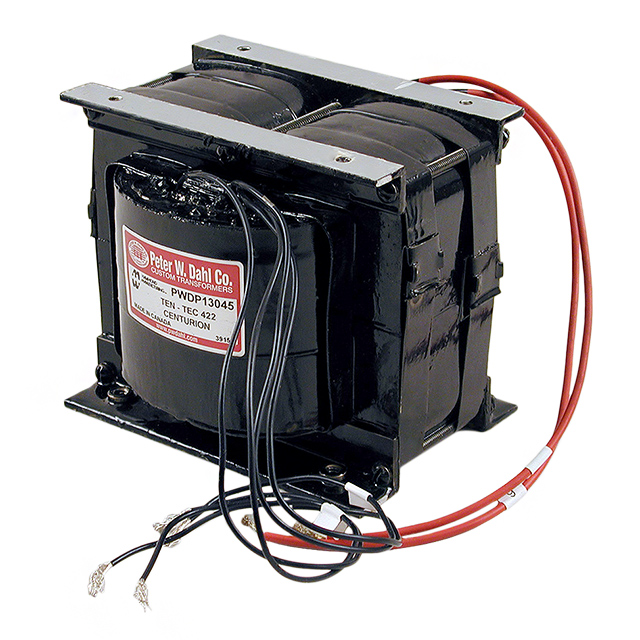

PWDP13045 — Ten-Tec 422 Standard Plate
