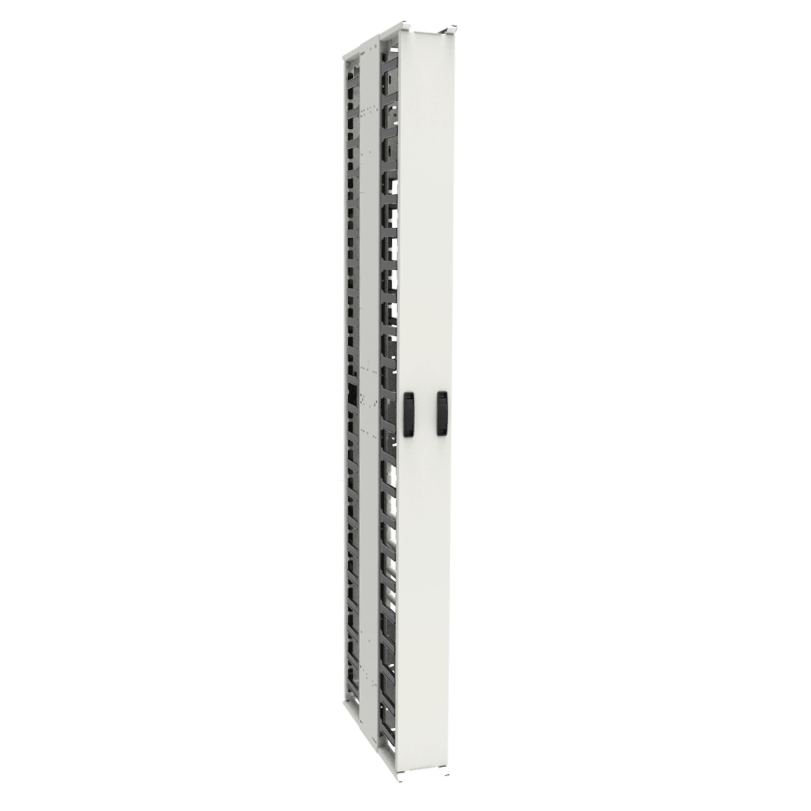

Hammond VFMMD6WH 6 in Wide 44U Double-Sided Cable Manager

VFMMD6WH is a double-sided vertical cable manager built for high-capacity cable routing on both the front and rear of open frame racks. It suits data centers, network and telecom rooms, cross-connect and patching environments, and multi-rack deployments where a centralized cable spine is needed between racks. This version is finished in textured white.

The manager uses a 16-gauge steel frame with a high-density finger duct design. Metal fingers are spaced at 2U intervals and are fitted with clip-on plastic finger guards (shipped loose) that help maintain bend radius for fiber, Cat6/6A and coax cable, reducing strain on heavy-gauge bundles. Full-height removable covers provide containment and a clean finished appearance; VFMMD6WH ships with dual hinged doors and mounting hardware. The black powder coat option in this series is GREENGUARD, TSCA and RoHS compliant, and all VFM managers are TAA compliant and manufactured in North America.

This 6 in wide model measures 81.00 in (2,057 mm) high by 6.00 in (152 mm) wide by 24.50 in (622 mm) deep, with 77.00 in (1,956 mm) of mounting height equal to 44 rack units. The extended 24.5 in depth increases usable cable space compared with standard-depth vertical managers, supporting larger bundles and high-density patching, while the double-sided channels add front and rear routing without a second manager.

Managers in this series are designed to mount to racks rather than sit on the floor; a plinth base option (VFMB2BK, VFMB3BK) supports end-of-row installations. The design is scalable for ganging multiple racks and managers, and it accepts accessory inner panels, cable spools, dividers and tie-down points. Rack Basics alternative part RB-VFM45-6-2 is listed for this size.
