Hammond SDC9UVD 9U Vented Locking Door for SDC Cabinets
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 9U vented locking door sized exclusively for the Hammond SDC cabinet series
- 63% vented pattern for passive airflow to rack-mounted equipment
- Constructed in 16-gauge mild steel for durability
- Textured RAL9005 black powder paint coat, compliant with Greenguard indoor air quality guidelines
- Includes door hinge, keyed/offset cam lock (1427BK) and mounting hardware
- Nominal 17 in x 24.59 in x 0.5 in (432 x 625 x 13 mm); 6 lbs (2.72 kg) shipping weight
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America

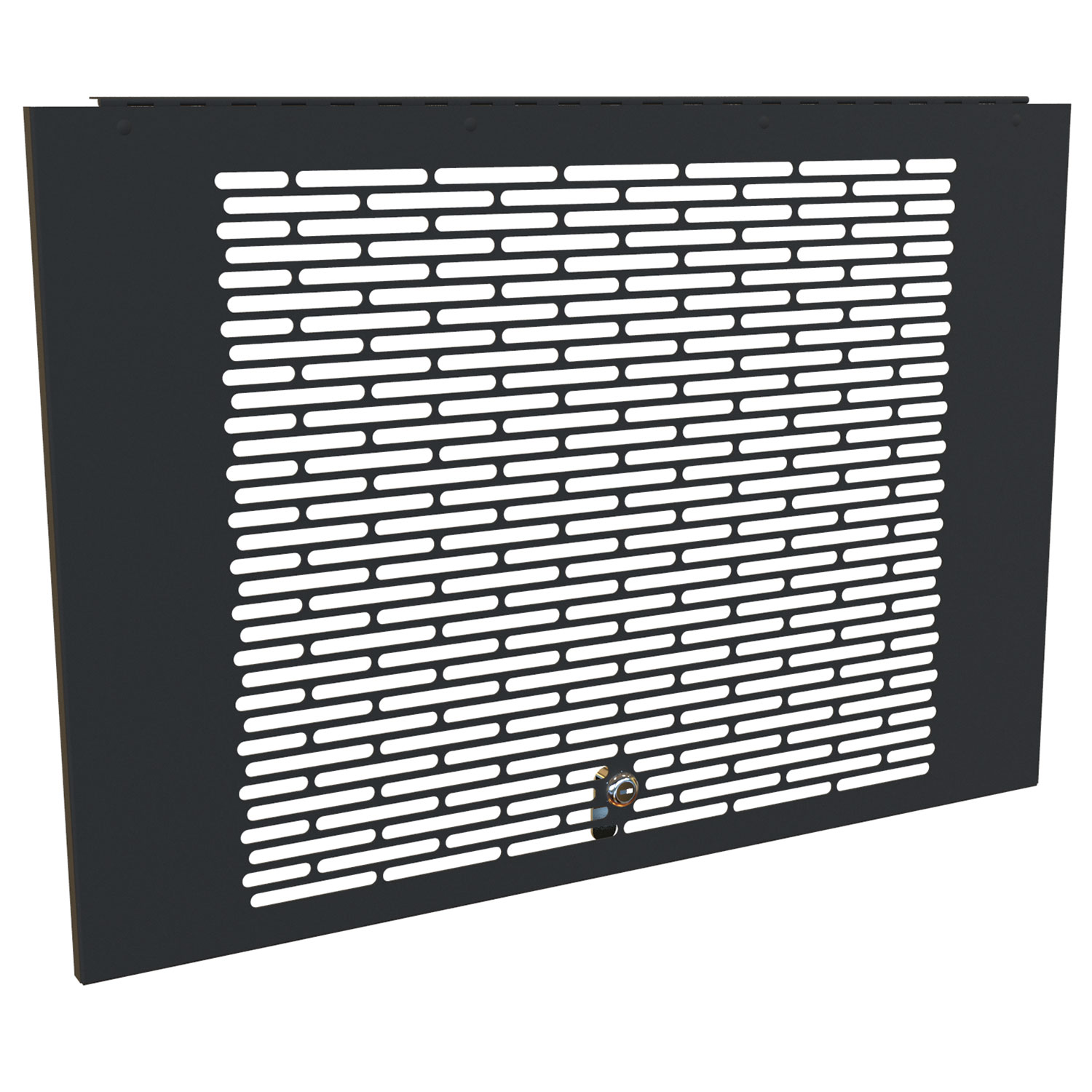

The SDC9UVD is a 9U vented locking door made exclusively for the Hammond SDC wall mount cabinet series. It is intended for IT and AV integrators, electricians, OEM engineers and facilities teams who need airflow through the cabinet face while keeping equipment secured behind a keyed door.
The door panel is constructed in 16-gauge mild steel and finished in a textured RAL9005 black powder paint coat that complies with Greenguard guidelines for indoor air quality. The vent pattern provides 63% open area for passive convection cooling of switches, patch panels and other rack-mounted hardware.
Nominal size is 17 in x 24.59 in x 0.5 in (432 mm x 625 mm x 13 mm) and shipping weight is 6 lbs (2.72 kg). The drawing shows an overall panel height of 17.81 in (452 mm) and width of 24.59 in (625 mm), with 0.31 in x 2.81 in mounting slots.
Each SDC9UVD ships as a complete door assembly:
- SDC vented door panel (qty 1)
- Door hinge (qty 1)
- Keyed/offset cam lock, zinc plated, 1427BK (qty 1)
- Mounting hardware included
Installation into an SDC series cabinet is done with the included hardware, and the quarter-turn lock and hinges mount directly to the cabinet. The SDC9UVD is manufactured in North America (country of origin CA), is USMCA compliant, RoHS and REACH compliant, and TAA-compliant for GSA Schedule purchases. Sibling options in the same 9U size include the solid door SDC9UD, cable entry/fan door SDC9USD and conduit/fan cover panel SDC9UCFP.
Ideal For
- Ventilated front door for 9U SDC wall mount cabinets
- Securing network switches and patch panels behind a keyed door
- IT and AV equipment enclosures needing passive convection cooling
- GSA Schedule and TAA-compliant government procurement projects
- Replacement or upgrade door for existing SDC series cabinets
Overview
| Series | SDCD Series (SDC Doors) |
| Door Type | Vented locking door |
| Description | 9U SDC Vented Door |
| Part Number | SDC9UVD |
| Compatibility | Exclusively for use with the SDC Cabinet Series |
| Vent Open Area | 63% vented |
| Cabinet Rack Units | 9U |
Dimensions
| Shipping Weight | 6 lbs (2.72 kg) |
| Mounting Slot Size | 0.31 in dia. x 2.81 in slot |
| Nominal Size (H X W X D) | 17 in x 24.59 in x 0.5 in (432 mm x 625 mm x 13 mm) |
| Overall Panel Width (Drawing) | 24.59 in (625 mm) |
| Overall Panel Height (Drawing) | 17.81 in (452 mm) |
Identifiers
| UPC | 623980955575 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980955575 |
| UPC W/o Check Digit | 62398095557 |
Installation
| Locking | Quarter-turn lock and hinges mount to the cabinet |
| Assembly | Installs into SDC Series cabinets using the included hardware |
Included Components
| Door Hinge | 1 |
| Mounting Hardware | Included |
| SDC Vented Door Panel | 1 |
| Keyed/Offset Cam Lock, Zinc Plated (1427BK) | 1 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Finish | Textured RAL9005 black powder paint coat |
| Marking | Painted black text |
| Material | Mild steel, 16-gauge |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| ECCN | EAR99 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What cabinets does the SDC9UVD fit?▾
It is made exclusively for use with the Hammond SDC Cabinet Series, in the 9U rack unit size.
Does the SDC9UVD come with a lock and hinge?▾
Yes. Each door includes a door hinge, a keyed/offset cam lock (zinc plated, 1427BK) and mounting hardware. The quarter-turn lock and hinges mount on the cabinet.
How much airflow does the vent pattern provide?▾
The vented door option in this series is 63% vented, allowing air to pass through the cabinet face.
What are the dimensions and weight?▾
Nominal size is 17 in x 24.59 in x 0.5 in (432 mm x 625 mm x 13 mm) and shipping weight is 6 lbs (2.72 kg). The drawing shows an overall panel size of 17.81 in (452 mm) high by 24.59 in (625 mm) wide.
Is the SDC9UVD TAA compliant?▾
Yes, it is TAA-compliant for GSA Schedule purchases, and it is also RoHS, REACH and USMCA compliant with a country of origin of CA.
What other 9U door options are available in this series?▾

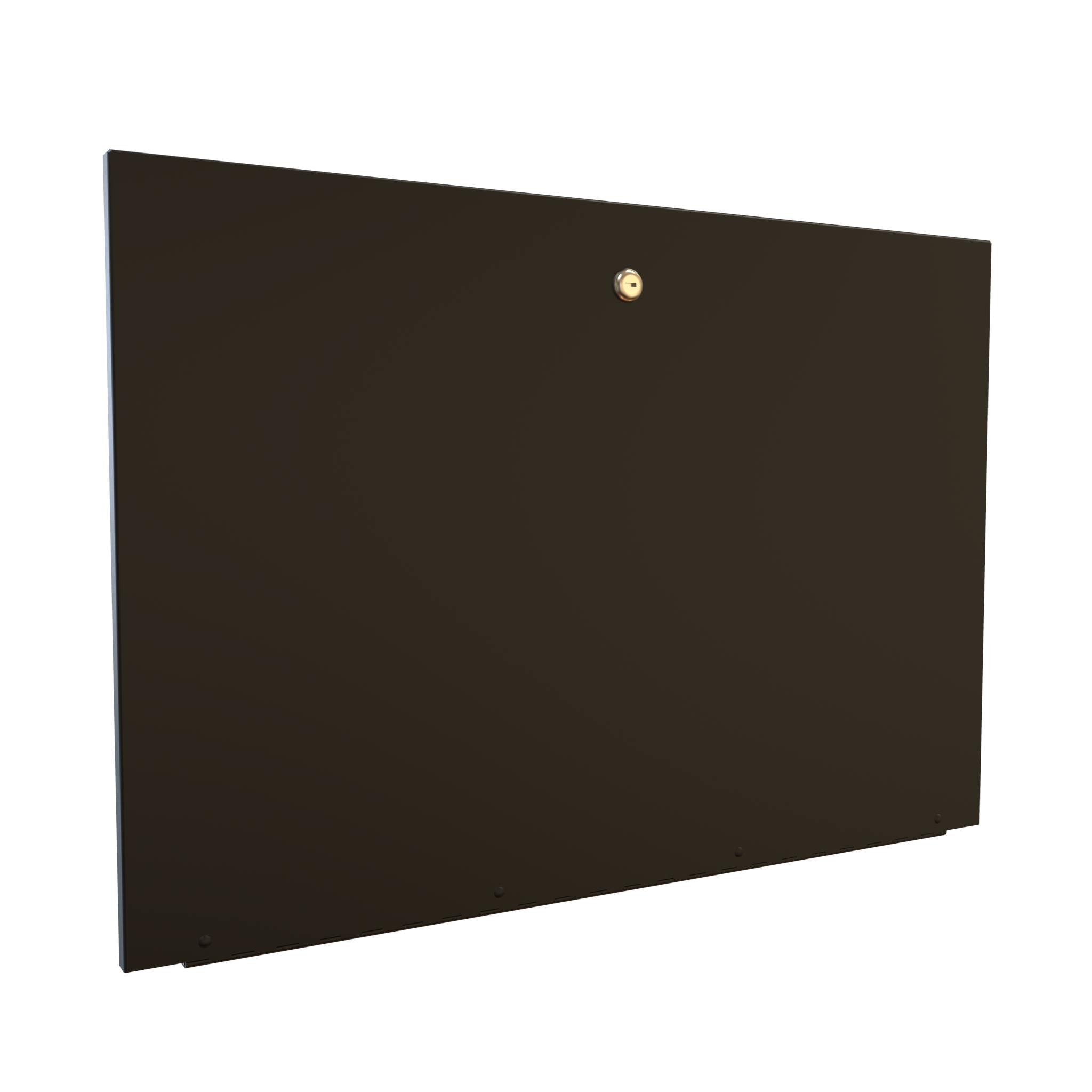

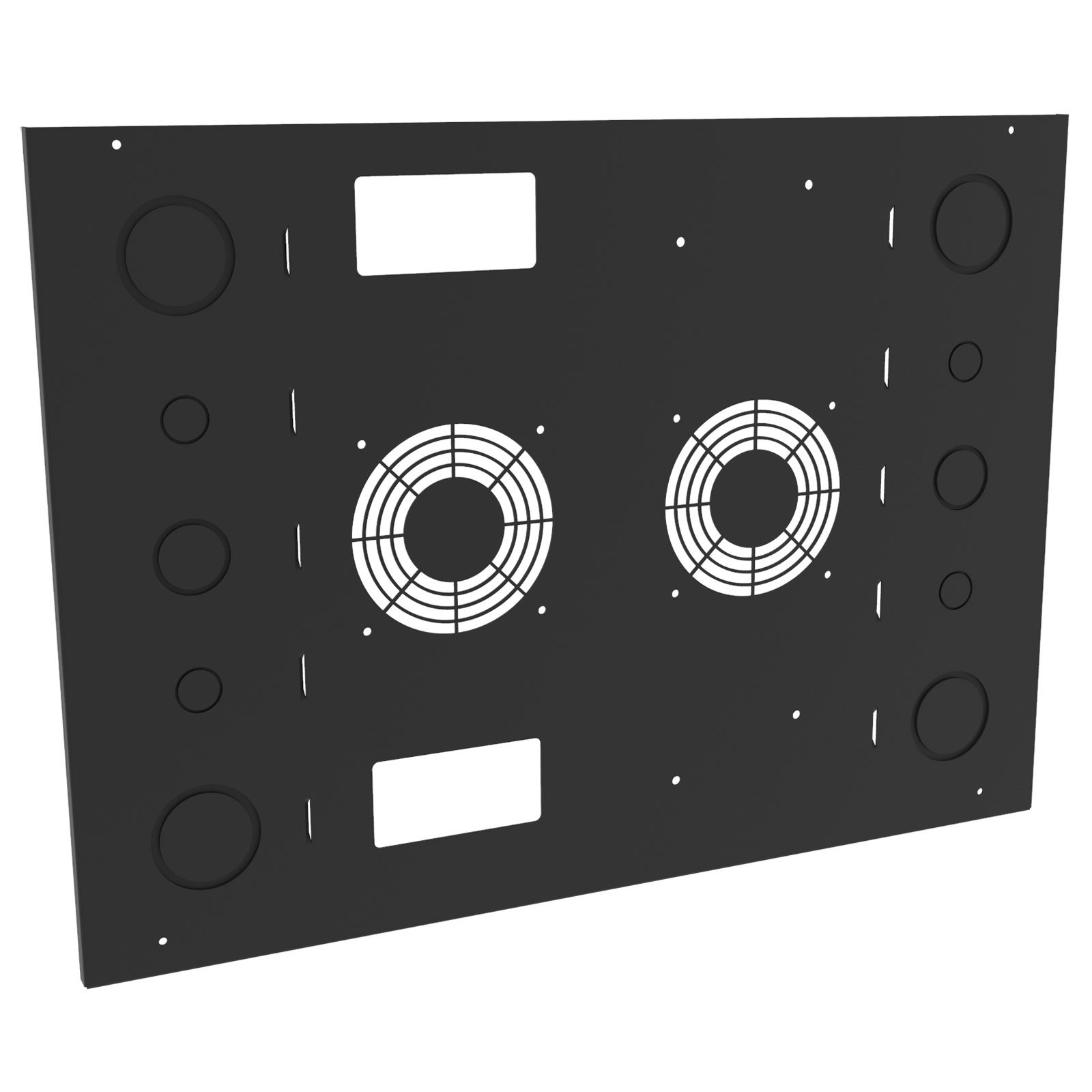

The 9U size is also offered as a solid locking door (SDC9UD), a cable entry/fan locking door (SDC9USD) and a conduit/fan cover panel (SDC9UCFP).
Related Products

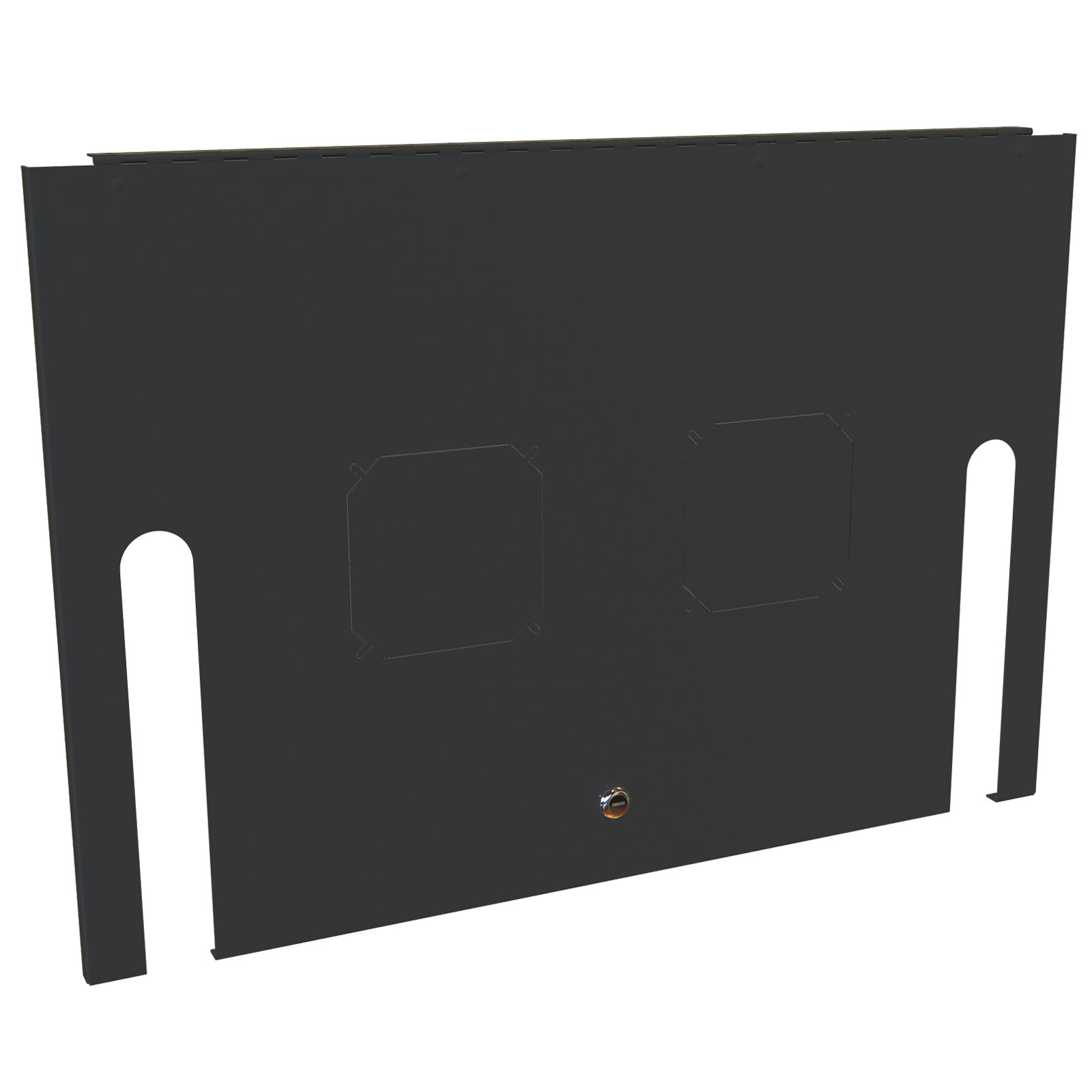

Save 35%SDC9USD — 9U Sdc Cable Entry/Fan Door
Hammond Manufacturing · SDC9USD
Save 35%SDC9UD — 9U Solid Door For Sdc
Hammond Manufacturing · SDC9UD

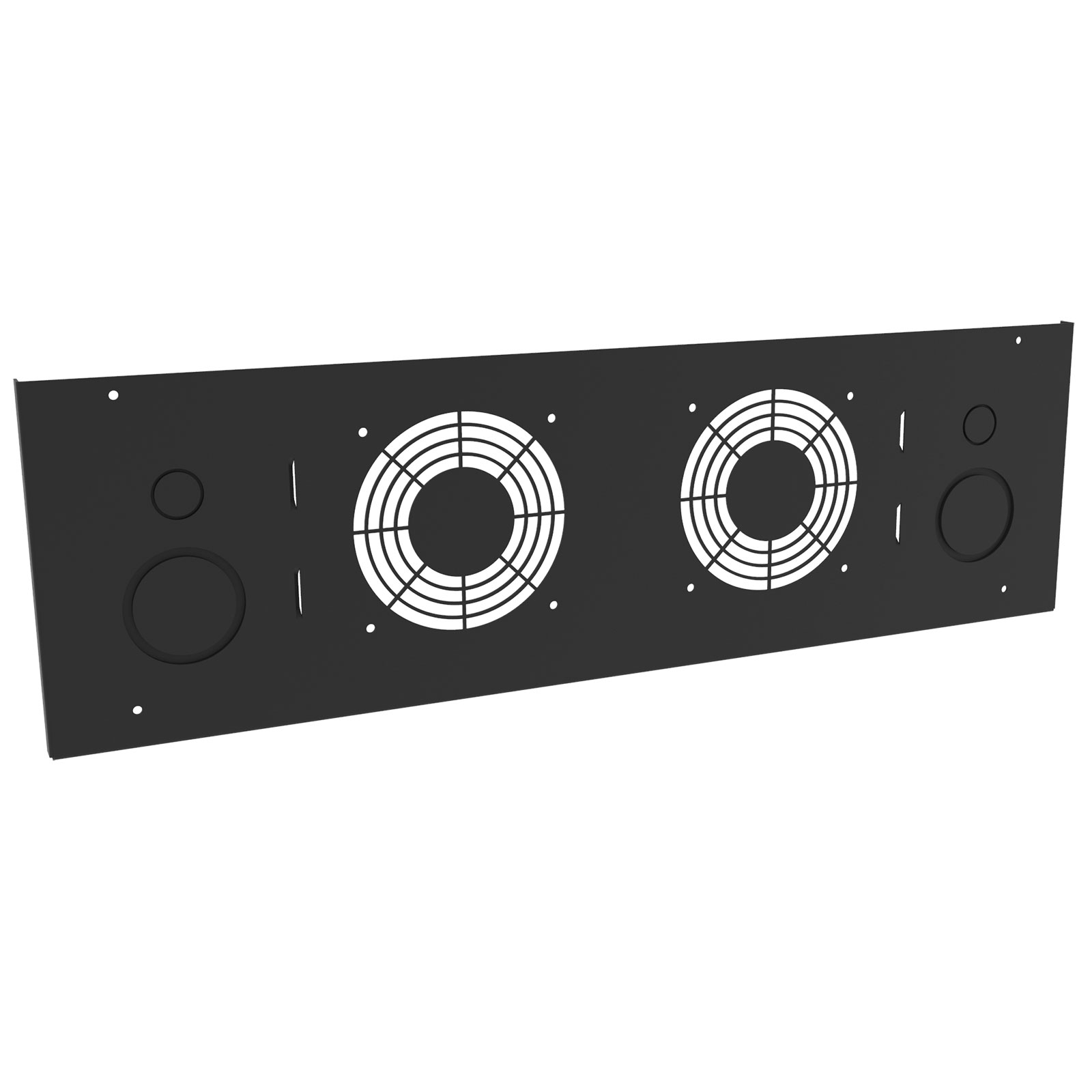

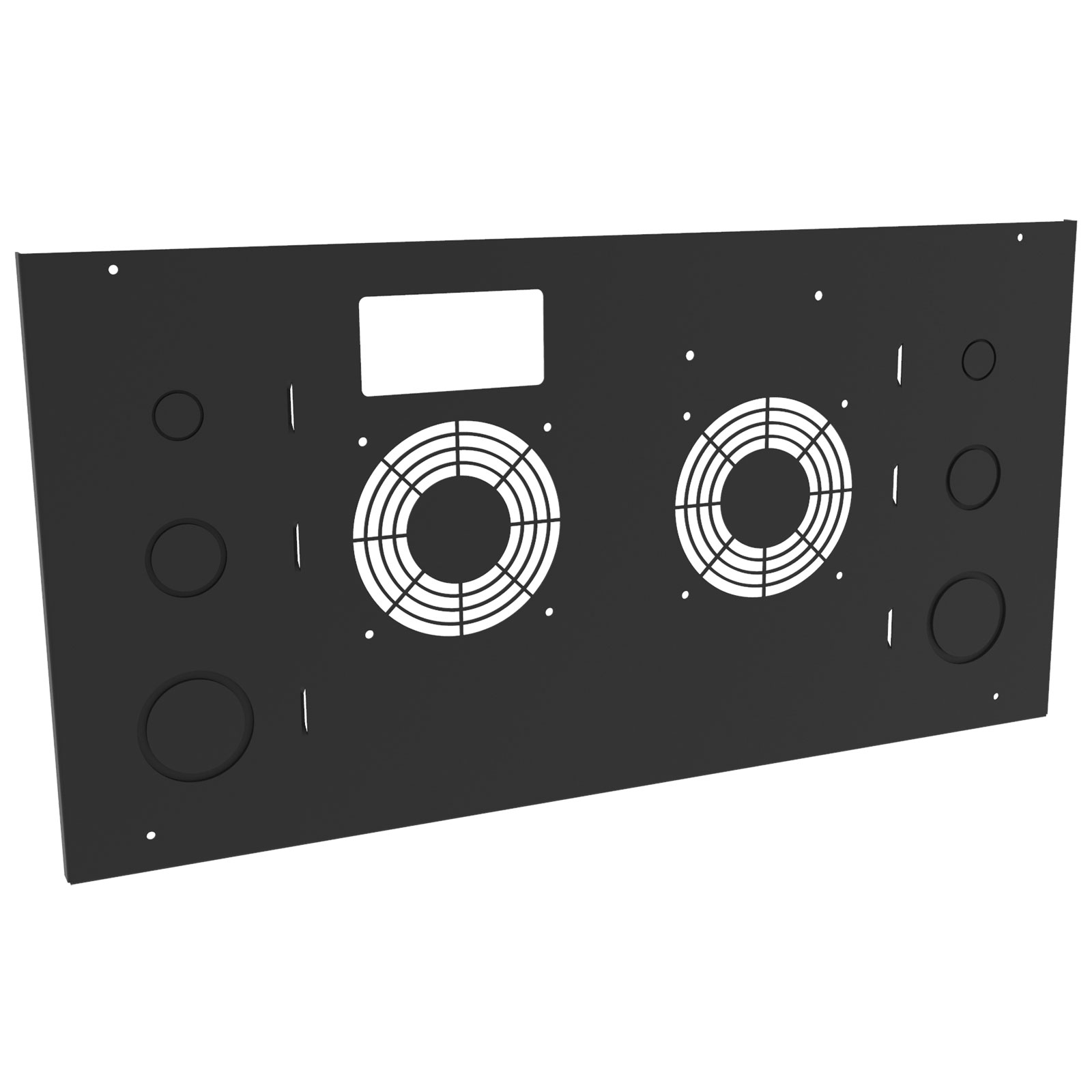

Save 35%SDC9UCFP — 9U Sdc Conduit/Fan Panel
Hammond Manufacturing · SDC9UCFP

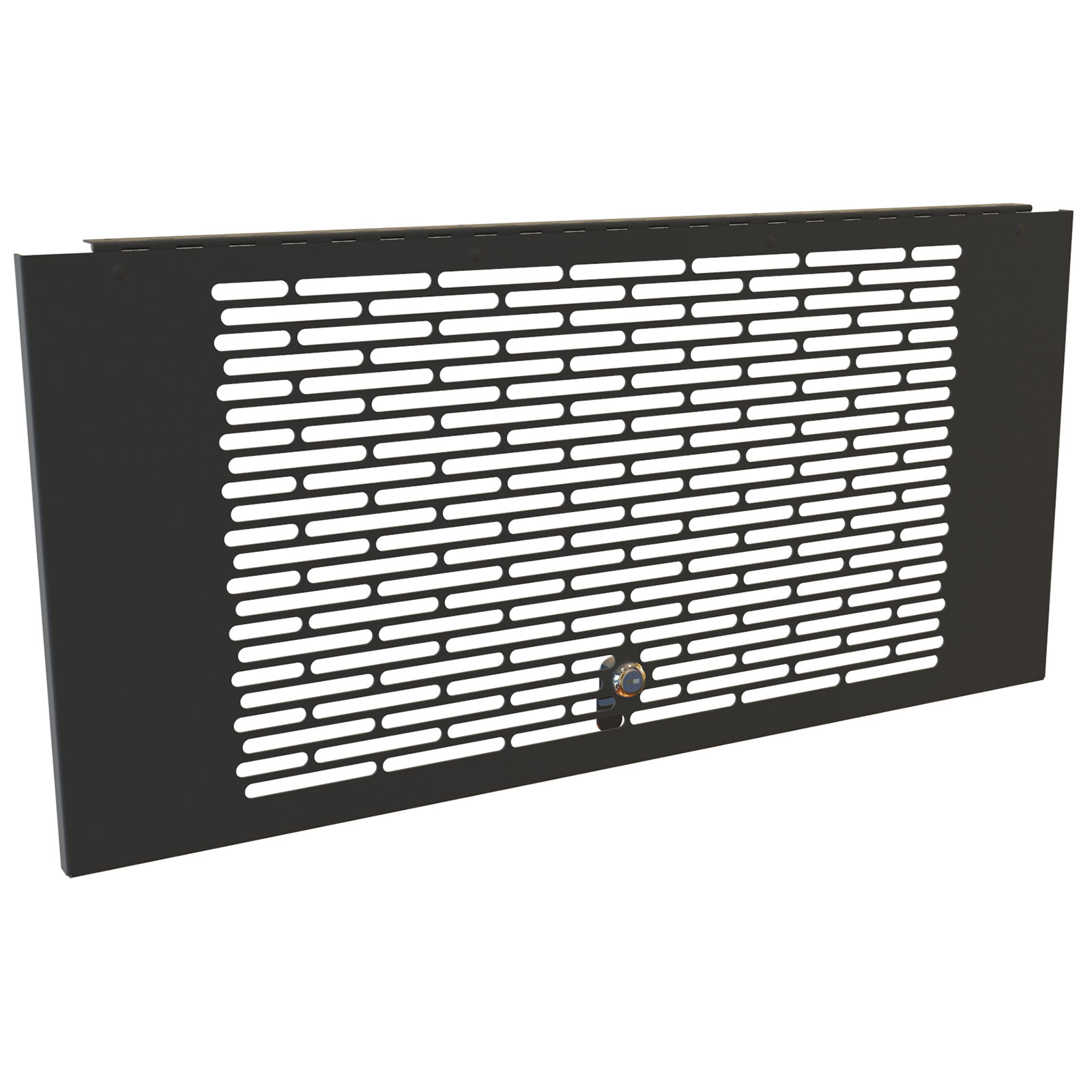

Save 35%SDC6UVD — 6U Sdc Vented Door
Hammond Manufacturing · SDC6UVD

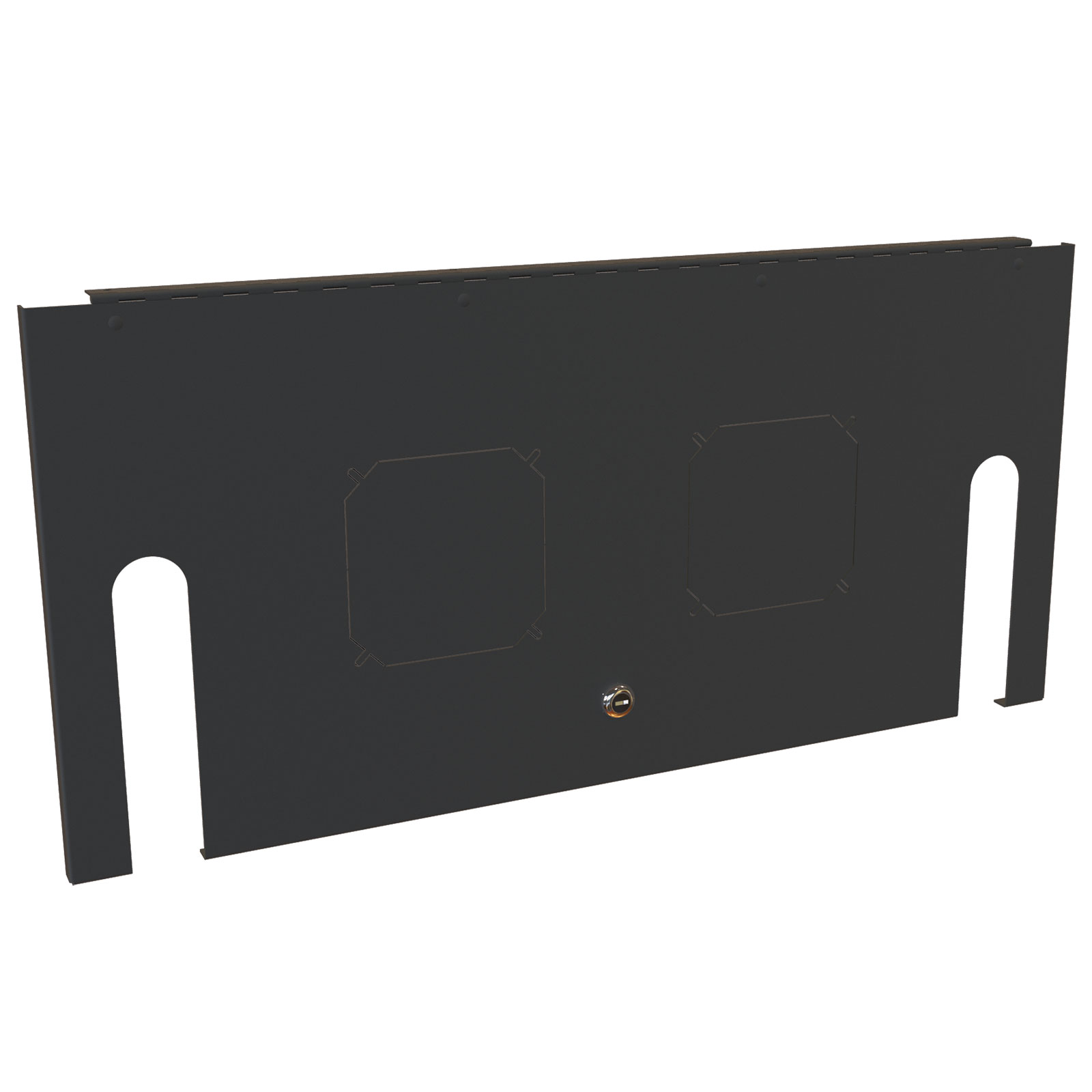

Save 35%SDC6USD — 6U Sdc Cable Entry/Fan Door
