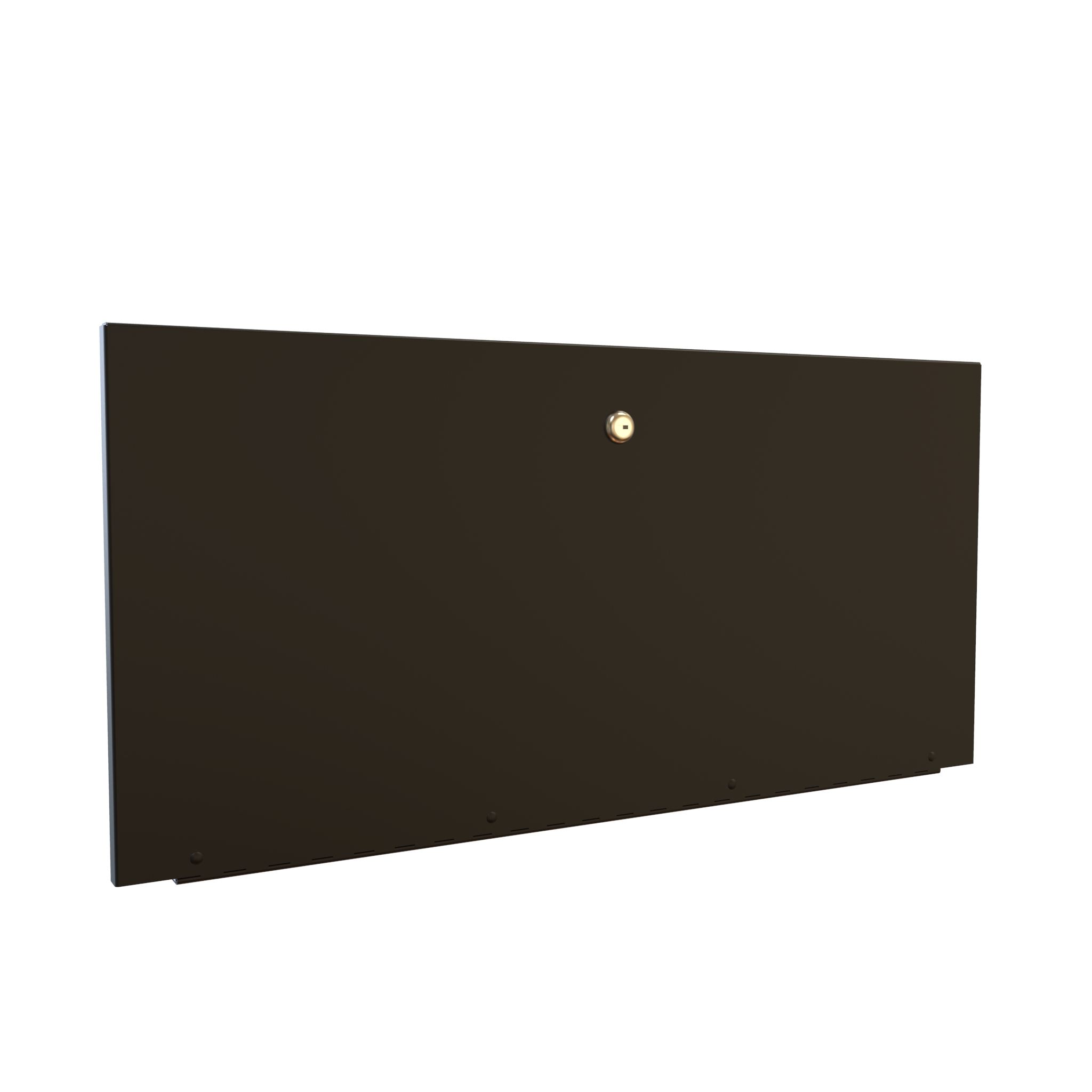

Hammond SDC6UD 6U Solid Locking Door for SDC Cabinets

The SDC6UD is a 6U solid locking door made exclusively for use with the Hammond SDC cabinet series. It is intended for IT, AV and facilities teams who need to close off a 6U wall-mount SDC cabinet with a blank, non-vented front that conceals and secures the equipment inside. Because it is a factory door for the SDC platform, mounting points line up without field modification.

Construction is 16-gauge steel (mild steel) finished in a textured RAL9005 black powder paint coat. The finish complies with the Greenguard guidelines for indoor air quality, making it suitable for occupied spaces such as classrooms, offices and patient or public areas. The door assembly ships as three items: the SDC solid door panel, the SDC lock box door hinge, and a keyed quarter-turn offset cam lock (1427BK), so the door can be both hinged to the cabinet and locked closed.

Overall size is 10.5 in x 24.59 in x 0.5 in (267 mm x 625 mm x 13 mm), and shipping weight is 6.45 lbs (2.93 kg). The part drawing shows an overall width of 24.59 in (625 mm) and a 11.92 in (303 mm) dimension for the door profile. Mounting hardware is included, and the door installs into the SDC series using that supplied hardware together with the hinges.

For procurement, SDC6UD is manufactured in North America with Canada (CA) as the country of origin, is USMCA compliant, TAA-compliant for GSA Schedule purchases, and RoHS and REACH compliant. Tariff code is 9403.10.0040 and the ECCN is EAR99. Siblings in the same 6U size include the vented door (SDC6UVD), cable entry/fan door (SDC6USD) and conduit/fan cover panel (SDC6UCFP).
