Hammond SCDRIVET10-2 T10 Torx Security Driver Bit, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two T10 Torx security bits per pack
- Specified for Torx with Pin tamper-resistant 1590 screw packs
- Works with 1590MS50T, 1590MS50TBK, 1590WMS50T and 1590WMS50TBK
- Steel construction
- RoHS and REACH compliant
The SCDRIVET10-2 is a pack of two T10 Torx security screwdriver bits for the 1590 series diecast aluminum enclosures. It is the bit listed alongside the Torx with Pin tamper-resistant screw packs, so installers and OEM builders who upgrade an enclosure to tamper-proof hardware can fit and remove those screws.
The 1590 series offers a tamper-proof hardware upgrade (Torx with pin) as an alternative to the standard Phillips head machine screws. In the series hardware table the SCDRIVET10-2 is specified for the Torx with Pin tamper-resistant screw packs 1590MS50T (natural), 1590MS50TBK (black), 1590WMS50T (water-tight) and 1590WMS50TBK (water-tight black).
According to that table, the SCDRIVET10-2 is the screwdriver bit for these 1590 enclosure sizes: 1590LLB, 1590LB, 1590H, 1590Y, 1590A, 1590G, 1590G2, 1590S, 1590B, 1590B2, 1590BS, 1590B3, 1590BB, 1590BB2, 1590BBS, 1590Q, 1590U, 1590V, 1590C, 1590T, 1590N1, 1590KK, 1590K, 1590J, 1590XX, 1590X, 1590P1, 1590DD, 1590D, 1590E, 1590F, 1590R1, 1590BX2 and 1590BX.
The bits are made of steel. Package size is 1 in x 0.5 in x 0.25 in (25 mm x 13 mm x 6 mm), shipping weight 0.01 lbs (0.00 kg), and they are supplied in a bag. The SCDRIVET10-2 is RoHS and REACH compliant. The 1590CE, 1590DE and 1590EE sizes use the T15 bit SCDRIVET15-2 instead.
Ideal For
- Installing tamper-resistant screws on 1590 enclosures
- Servicing Torx-with-pin secured diecast boxes
- Tamper-proof hardware upgrades on 1590 enclosures
Overview
| Type | Driver Bit |
| Drive | T10 Torx security |
| Quantity | 2 pcs |
| Part Number | SCDRIVET10-2 |
| Long Description | T10 TORX SECURITY BIT- 2 PCS- FOR 1590 SERIES |
| Short Description | T10 TORX SECURITY BIT- 2 PCS |
Dimensions
| Size L X W X H | 1 in x 0.5 in x 0.25 in (25 mm x 13 mm x 6 mm) |
Identifiers
| UPC | 623980745701 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Sizes | 1590LLB, 1590LB, 1590H, 1590Y, 1590A, 1590G, 1590G2, 1590S, 1590B, 1590B2, 1590BS, 1590B3, 1590BB, 1590BB2, 1590BBS, 1590Q, 1590U, 1590V, 1590C, 1590T, 1590N1, 1590KK, 1590K, 1590J, 1590XX, 1590X, 1590P1, 1590DD, 1590D, 1590E, 1590F, 1590R1, 1590BX2, 1590BX |
| Tamper-Resistant Screw Packs | 1590MS50T, 1590MS50TBK, 1590WMS50T, 1590WMS50TBK (Torx with Pin, 50-packs) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws is the SCDRIVET10-2 for?▾
The Torx with Pin tamper-resistant screw packs for 1590 enclosures: 1590MS50T, 1590MS50TBK, 1590WMS50T and 1590WMS50TBK.
How many bits are included?▾
Two pieces.
Does it fit the 1590CE, 1590DE or 1590EE?▾
No. Those sizes are listed with the T15 bit, SCDRIVET15-2.
Does it work with the 1590X and 1590Y enclosures?▾
Yes, both 1590X and 1590Y (and 1590XX) are listed with the SCDRIVET10-2 in the series hardware table.
Related Products
Save 52%1590YGASKET — silicone gasket for 1590Y enclosures, 2-pack
Hammond Manufacturing · 1590YGASKET

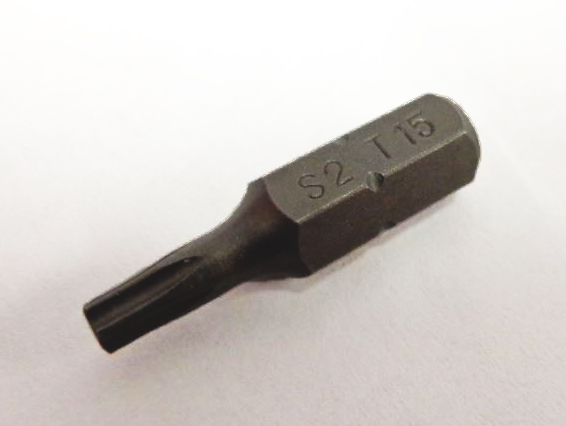

Save 52%SCDRIVET15-2 — T15 TORX SECURITY BIT- 2 PCS FOR - 1590 SERIES
