Hammond RP1635C 254 x 204 x 130 mm Deep ABS Box, Clear Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray ABS base with clear polycarbonate lid
- Deep 254 x 204 x 130 mm (10.00 x 8.03 x 5.12 in) size
- Inside 241.70 x 192.20 x 123.50 mm
- IP65; UL94 HB per drawing description
- PC board up to 235 x 186 mm
- Stainless M3.5 lid screws, corrosion resistant bushings
- Includes gasket, 4 PCB screws and 4 lid screws

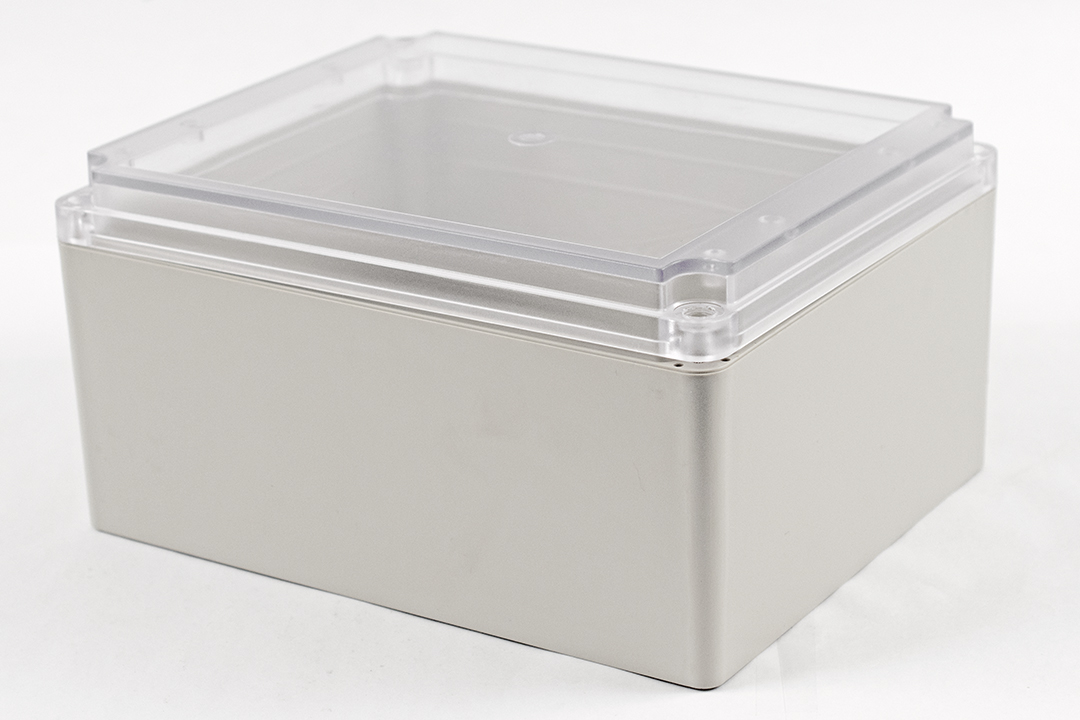

The RP1635C is a deep light gray ABS enclosure with a clear polycarbonate lid, 254 x 204 x 130 mm (10.00 x 8.03 x 5.12 in). No ABS opaque lid model is offered in this size, so the RP1635C is the ABS option for integrators and OEMs who need a large, deep, see-through housing.
Hammond's drawing describes it as General Purpose ABS Light Grey with Polycarbonate Clear Lid (UL94 HB). The part page lists a nominal size of 250 x 200 x 130 mm (9.84 x 7.87 x 5.12 in); the ordering table and drawing give 254 x 204 x 130 mm (10.00 x 8.03 x 5.12 in) overall. A two piece tongue & groove lid with an included rubber gasket, installed in the field, provides IP65 protection against oil, dust and water.
The inside measures 241.70 x 192.20 x 123.50 mm (9.52 x 7.57 x 4.86 in). P.C. boards up to 235 x 186 mm mount on posts for M3 self-tapping screws, and the lid provides a smooth recessed area for a membrane, label or silkscreen. Four self captivating M3.5 stainless steel machine screws thread into corrosion resistant bushings for repeat access.
Each RP1635C is bagged with box, lid, string gasket, four PCB screws and four lid screws. It is RoHS and REACH compliant. For this size, STC580 / STA580 inner panels, RP161GASKET, and MF0050 / MF0055 feet kits are listed; solid models are available in .stp or .x_t.
Ideal For
- Deep sealed housings with visible indicators
- Power and control electronics enclosures
- Printed circuit board housings
- DIN rail device assemblies
Overview
| Type | General purpose, water-tight |
| Series | RP Series Water-Tight ABS & Polycarbonate Enclosures (Clear Lid Options) |
| Lid Style | Clear lid |
| Description | enclosure - plastic |
| Part Number | RP1635C |
| Drawing Reference | RP163 |
| Short Description | ABS WATERTIGHT CLEAR LID |
| Drawing Description | General Purpose ABS Light Grey with Polycarbonate Clear Lid (UL94 HB) |
Dimensions
| Inside Width | 192.20 mm [7.57 in] |
| Inside Height | 123.50 mm [4.86 in] |
| Inside Length | 241.70 mm [9.52 in] |
| Lid Inlay Depth | 0.40 mm [0.02 in] |
| Max. P.C. Board Width | 186 mm |
| Depth (Ordering Table) | 5.12 in (130 mm) |
| Max. P.C. Board Length | 235 mm |
| Width (Ordering Table) | 8.03 in (204 mm) |
| Length (Ordering Table) | 10.00 in (254 mm) |
| Overall Width (Drawing) | 204.00 mm [8.03 in] |
| Nominal Size (L X W X H) | 9.84 in x 7.87 in x 5.12 in (250 mm x 200 mm x 130 mm) |
| Overall Height (Drawing) | 130.00 mm [5.12 in] |
| Overall Length (Drawing) | 254.00 mm [10.00 in] |
Identifiers
| UPC | 623980318110 |
| UNSPSC | 39121301 |
Included Items
| Purchased Assembly Includes | Box, lid, string gasket, 4 PCB screws, and 4 lid screws |
Modification & CAD
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Lid | Polycarbonate clear lid |
| Gasket | String gasket, EPDM grey (included; must be field installed) |
| Material | ABS Plastic |
| Lid Surface | Smooth recessed area for membrane, label or silkscreen |
| Lid Fastening | Self captivating M3.5 stainless steel machine screws threaded into corrosion resistant bushings |
| Lid Screw Size | M3.5-0.6 x 10mm |
| Lid Construction | Gasketed two piece "tongue & groove" lid |
| Color (Part Page) | Light Gray |
| PC Board Mounting | Mounting posts accept M3 self-tapping screws (M3 x 6mm PCB screws) |
| Recommended Torque | (43-50) Ozf.in / (30-35) cN.m |
| Ordering Table Column | Light Gray ABS Plastic (Clear Lid) |
| Internal Mounting Features | Internal DIN rail mounting tabs and PC board mounting posts (options vary with size; see drawing) |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see manufacturer Chemical Resistance Statement |
Accessories & Related Parts
| Extra Lid Screws | SC619-50 - M3.5-0.6 x 10mm (50 Pkg) |
| Extra PCB Screws | SC622-50 - M3 x 6mm self-tapping (50 Pkg) |
| Same-Size Variants | Light Gray ABS opaque lid: not available, Light Gray ABS clear lid: RP1635C, Off-White polycarbonate opaque lid: RP1630, Off-White polycarbonate clear lid: RP1630C |
| Replacement Gasket (2-pk) | RP161GASKET - String Gasket EPDM Grey (2 Pkg) |
| Optional Inner Panel (Plastic) | STC580 - General Purpose ABS Black Inner Panel 3mm Thick |
| Optional Inner Panel (Aluminum) | STA580 - Metal Inner Panel 1mm Thick |
| Compatible Mounting Feet Kits (Sets Of 4) | MF0050 (polycarbonate, open "U" slot), MF0055 (ABS, open "U" slot) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is there an opaque lid ABS version of this size?▾
The ordering table lists the light gray ABS opaque lid version as not available.
What are the inside dimensions of the RP1635C?▾
241.70 x 192.20 x 123.50 mm (9.52 x 7.57 x 4.86 in).
What flame rating does it have?▾
UL94 HB per the drawing description.
What screws does it use?▾
M3.5-0.6 x 10mm lid screws (extra pack SC619-50) and M3 x 6mm self-tapping PCB screws (extra pack SC622-50).
Can Hammond modify it?▾
Enclosures can be factory modified (milling, drilling, printing etc.).
