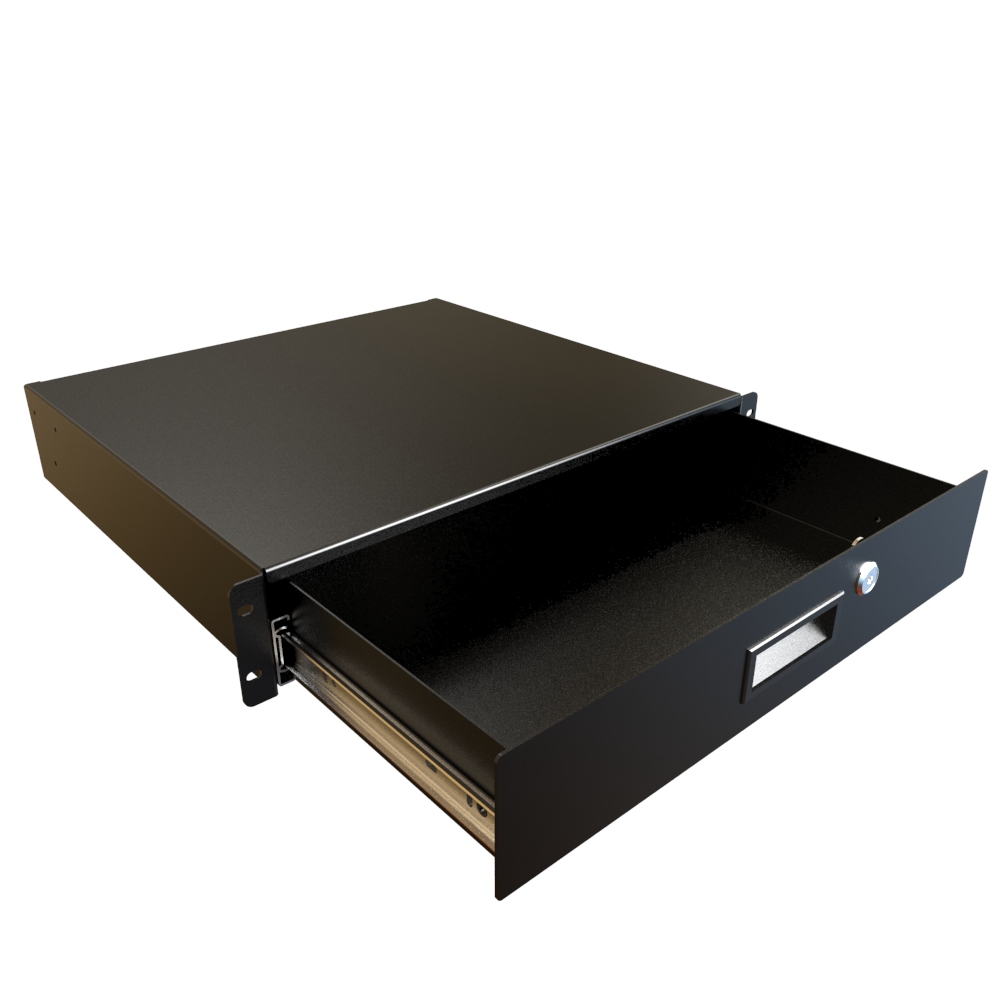

Hammond RDRW1900316BK1 2U Locking Rack Drawer, 16 in Deep, 129 lb

The RDRW1900316BK1 is a 2U locking rack storage drawer finished in textured RAL9005 black, built to put secure, organized storage inside a standard 19-inch EIA-310-E rack or cabinet. It suits IT, industrial, telecommunications and AV teams who need tools, documentation, spare parts, media or a laptop kept under lock and close at hand rather than scattered around the room.

The drawer is built from mild steel (the RDRW Series uses 14 and 16-gauge steel) with a heavy-duty sliding drawer body, a front locking pull handle with a keyed lock, a plastic handle, and two rear mounting brackets that can be fastened to the rear rack rails for added stability. The powder coat finish is GREENGUARD Gold Certified, TSCA and RoHS compliant, and the drawer is manufactured in North America in an ISO 9001 certified facility.

Overall dimensions are 3.50 in (89 mm) high by 17.36 in (441 mm) wide by 16.25 in (413 mm) deep, occupying 2U of rack height with a 19.00 in (483 mm) mounting flange width. Usable interior space measures 2.89 in (73 mm) high by 15.33 in (389 mm) deep, and the slides offer 16.00 in (406 mm) of travel. Load capacity for this depth is 129 lbs (58.5 kg); the series is rated up to 145 lb (66 kg) in 4-post installations and 60 lb (27 kg) in 2-post racks. Rear bracket mounting adjusts over a 16.10 in to 21.88 in (409 mm to 556 mm) range, and a cable pass-through is provided in the rear.

RDRW1900316BK1 ships with the drawer, two keys, 10-32 x 0.625 in screws, two rear drawer support brackets, 8-32 Keps nuts and assembly instructions. It is TAA compliant, USMCA compliant, RoHS and REACH compliant.
