Hammond RDA2U4 2U 4-Inch Rack Rail Depth Adapter Kit
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Offsets rack-mounted equipment up to 4 in (102 mm) forward or backward without modifying the rack or rails
- 2U mounting height: 3.50 in (89 mm) overall height, 4.00 in (102 mm) depth
- 16-gauge steel construction supports equipment up to 10 lb (4.5 kg)
- Compatible with all standard 19-inch EIA-310-E mounting rails on open frame racks and cabinets
- 0.375 in square cutouts convert round-hole or threaded rails to square-hole cage nut mounting
- Sold in pairs: 2 adaptor brackets, 4 10-32 x 0.625 in screws, 4 10-32 cage nuts, installation instructions
- Black smooth powder coat finish, GREENGUARD Gold Certified, TSCA and RoHS compliant
- TAA-compliant and USMCA compliant, made in North America in an ISO 9001 certified facility

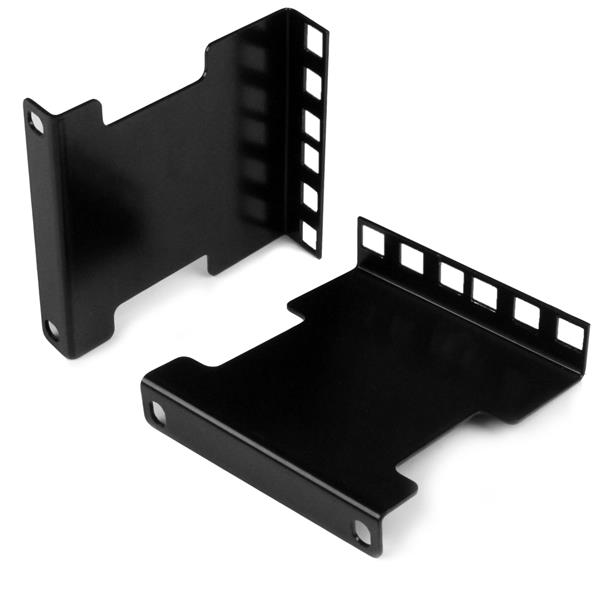

The RDA2U4 is a 2U rack rail depth adapter kit used to move rack-mounted equipment forward or backward by up to 4 inches (102 mm) without modifying the rack or replacing its mounting rails. It is intended for IT and network integrators, AV installers, control system builders and facilities teams who need extra clearance behind patch panels, switches and cable management accessories.
The adapters are formed from 16-gauge steel in mild steel material and finished in a black smooth powder coat. The powder coat finish is GREENGUARD Gold Certified, TSCA and RoHS compliant. The kit supports equipment weighing up to 10 lb (4.5 kg), making it suited to lightweight rack devices rather than deep or heavy loads.
Each RDA2U4 bracket measures 3.50 in (89 mm) high with a 4.00 in (102 mm) depth, and provides 3.50 in (89 mm) of mounting height for 2U of rack space. Square 0.375 in cutouts allow standard cage-nut mounting, so the kit also converts round-hole or threaded rails into square-hole mounting for mixed rack environments. Compatibility covers all standard 19-inch EIA-310-E mounting rails, including most open frame racks and cabinets.
RDA2U4 is sold in pairs and includes two adaptor brackets, four 10-32 x 0.625 in screws, four 10-32 cage nuts and installation instructions for quick deployment. Shipping weight is 1 lb (0.45 kg).
The part is manufactured in North America (country of origin CA) in an ISO 9001 certified facility, is TAA-compliant and USMCA compliant, and is RoHS and REACH compliant. Where deep or heavy equipment must be supported in a 2-post rack, the RDAB Series rack depth adapter brackets are the alternative to consider.
Ideal For
- Creating cable clearance behind patch panels and network switches
- Improving bend radius for copper and fiber cabling in data centers and server rooms
- Telecommunications and network closet retrofits and equipment upgrades
- Converting threaded or round-hole rails to square-hole mounting
- Audio/video equipment racks and industrial control system installations
Overview
| Series | RDA Series Rack Rail Depth Adapter Kit |
| Sold As | Sold in pairs |
| Description | 2U 4D Rail Depth Adapter |
| Part Number | RDA2U4 |
| Load Capacity | Up to 10 lb (4.5 kg) |
| Offset Distance | Up to 4 in (102 mm) forward or backward |
Dimensions
| Overall Depth | 4.00 in (102 mm) |
| Overall Height | 3.50 in (89 mm) |
| Mounting Height | 3.50 in (89 mm) |
| Front Face Height (Drawing) | 1.75 in (44 mm) |
Identifiers
| UPC | 623980771564 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980771564 |
| UPC W/o Check Digit | 62398077156 |
Rack Mounting
| Rack Units | 2U |
| Rail Conversion | Converts round-hole or threaded rails to square-hole mounting |
| Rail Compatibility | All standard 19-inch EIA-310-E mounting rails |
Included Items
| 10-32 Cage Nut | Qty 4 |
| Adaptor Bracket | Qty 2 |
| 10-32 X 0.625 In Screw | Qty 4 |
| Installation Instructions | Qty 1 |
Packaging & Shipping
| ECCN | EAR99 |
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 1 lb (0.45 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Painted black smooth powder coat |
| Material | Mild Steel |
| Finish Certifications | GREENGUARD Gold Certified, TSCA and RoHS compliant |
Compliance & Certifications
| Standards | TAA-compliant |
| Manufacturing | Manufactured in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much does the RDA2U4 offset equipment?▾
It repositions rack-mounted equipment up to 4 inches (102 mm) forward or backward. Each bracket has a 4.00 in (102 mm) depth.
What is included with RDA2U4?▾
The kit is sold in pairs and includes 2 adaptor brackets, 4 10-32 x 0.625 in screws, 4 10-32 cage nuts and 1 set of installation instructions.
How much weight can it support?▾
The 16-gauge steel construction supports equipment up to 10 lb (4.5 kg), so it suits patch panels, network switches and cable management accessories rather than heavy gear.
Will it fit my rack?▾
It is compatible with all standard 19-inch EIA-310-E mounting rails, making it suitable for most open frame racks and cabinets. RDA2U4 occupies 2U with a 3.50 in (89 mm) mounting height.
Can it be used on threaded or round-hole rails?▾
Yes. The RDA2U4 converts round-hole or threaded rails into square-hole mounting using the included 10-32 cage nuts, which helps in mixed rack environments.
What should I use for deep or heavy equipment in a 2-post rack?▾
For deep or heavy equipment in a 2-post rack, the RDAB Series Rack Depth Adapter Brackets are the recommended alternative.
