Hammond RDA1U4 1U Rack Rail Depth Adapter Kit, 4 Inch Offset
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Repositions 1U rack equipment up to 4 in (102 mm) forward or backward without modifying the rack or rails
- 16-gauge steel construction supports equipment up to 10 lb (4.5 kg)
- Fits all standard 19-inch EIA-310-E mounting rails in open frame racks and cabinets
- Converts round-hole or threaded rails to square-hole mounting for mixed rack environments
- Sold in pairs with 4 x 10-32 x 5/8 in screws, 4 x 10-32 cage nuts and installation instructions
- Black smooth powder coat finish: GREENGUARD Gold Certified, TSCA and RoHS compliant
- TAA compliant, made in North America in an ISO 9001 certified facility
- Improves cable bend radius and connector clearance behind patch panels and switches
The RDA1U4 is a 1U rack rail depth adapter kit that repositions rack-mounted equipment up to 4 inches (102 mm) forward or backward without modifying the rack or replacing its mounting rails. It is aimed at IT and network integrators, AV installers, electricians and facilities teams who need extra room behind patch panels, switches and cable management accessories.

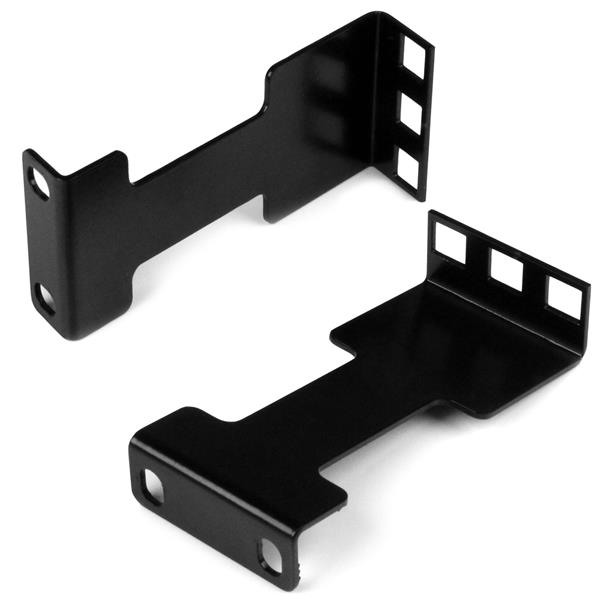

The kit is built from 16-gauge steel with a black powder coat finish that is GREENGUARD Gold Certified, TSCA and RoHS compliant. The brackets are sold in pairs (left and right) and support equipment up to 10 lb (4.5 kg). Each bracket measures 1.75 in (44 mm) high by 4.00 in (102 mm) deep, with a 1.75 in (44 mm) mounting height for a single rack unit of equipment.
RDA1U4 fits all standard 19-inch EIA-310-E mounting rails, so it suits most open frame racks and cabinets. It also converts round-hole and threaded rails into square-hole mounting, which makes it useful in mixed rack environments and retrofit or equipment upgrade projects. Each bracket includes 0.375 in square cutouts for cage nuts and obround 0.250 x 0.375 in mounting slots.
- 2 adaptor brackets
- 4 x 10-32 x 0.625 in screws
- 4 x 10-32 cage nuts
- 1 set of installation instructions
Manufactured in North America in an ISO 9001 certified facility, the RDA1U4 is TAA compliant, USMCA compliant, RoHS and REACH compliant, and ships at 1 lb (0.45 kg). For deep or heavy equipment in a 2-post rack, the RDAB Series Rack Depth Adapter Brackets are the alternative.
Ideal For
- Data centers and server rooms
- Telecommunications and network closets
- Audio/video equipment racks and industrial control systems
- Retrofit and equipment upgrade projects needing extra cable clearance
- Improving bend radius for copper and fiber cabling behind patch panels
Overview
| Series | RDA Series Rack Rail Depth Adapter Kit |
| Sold As | Sold in pairs |
| Description | 1U 4D Rail Depth Adapter |
| Part Number | RDA1U4 |
| Offset Range | Up to 4 in (102 mm) forward or backward |
| Load Capacity | Up to 10 lb (4.5 kg) |
Dimensions
| Bend Angle | 103° |
| Overall Depth | 4.00 in (102 mm) |
| Overall Height | 1.75 in (44 mm) |
| Bracket Flange Widths | .67 in (17 mm) and .83 in (21 mm) |
Identifiers
| UPC | 623980771557 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980771557 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398077155 |
Rack Mounting
| Rack Units | 1U |
| Mounting Slots | 2X obround 0.250 x 0.375 in |
| Square Cutouts | 0.375 in square cutout, typical as shown |
| Hole Conversion | Converts round-hole or threaded rails to square-hole mounting |
| Mounting Height | 1.75 in (44 mm) |
| Rail Compatibility | Standard 19-inch EIA-310-E mounting rails |
Included Items
| 10-32 Cage Nut | Qty 4 |
| Adaptor Bracket | Qty 2 |
| 10-32 X 0.625 In Screw | Qty 4 |
| Installation Instructions | Qty 1 |
Packaging & Shipping
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Finish | Painted black smooth (black powder coat) |
| Material | Mild steel, 16 gauge |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Certifications | GREENGUARD Gold Certified, TSCA and RoHS compliant |
| Manufacturing Facility | ISO 9001 certified facility in North America |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many brackets come with RDA1U4?▾
The RDA1U4 is sold in pairs. The kit includes 2 adaptor brackets, 4 x 10-32 x 0.625 in screws, 4 x 10-32 cage nuts and 1 set of installation instructions.
How far does it offset equipment?▾
It repositions rack-mounted equipment up to 4 inches (102 mm) forward or backward, matching the bracket's 4.00 in (102 mm) depth.
How much weight can it support?▾
The 16-gauge steel construction supports equipment up to 10 lb (4.5 kg), making it suited to patch panels, network switches and cable management accessories.
Will it fit my rack?▾
It is compatible with all standard 19-inch EIA-310-E mounting rails, which covers most open frame racks and cabinets. It also converts round-hole or threaded rails into square-hole mounting.
What size equipment does RDA1U4 accommodate?▾
It provides a 1U mounting height of 1.75 in (44 mm). A 2U version, RDA2U4, is also available in the RDA Series.
What should I use for heavy or deep equipment?▾
For deep or heavy equipment in a 2-post rack, the RDAB Series Rack Depth Adapter Brackets are the recommended alternative.
