Hammond RCK24U32BK 24U 32 in Deep Knock-Down Rack Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 24U + 1U rack cabinet with 42.00 in (1067 mm) usable mounting height and 19.00 in (483 mm) panel width
- 1,050 lb load capacity from a 16-gauge steel frame with 12-gauge mounting rails
- Knock-down design ships unassembled and is self-squaring for fast assembly
- Two pairs of adjustable-depth EIA-310 compliant tapped 10-32 rails, plus a 50-pack of SCREW1032-50 hardware
- 29.56 in (751 mm) equipment mounting depth in a 32.00 in (813 mm) deep cabinet
- Cable tie-off points, conduit knockouts and a fan cutout pattern for optional DNMF100AC115/DNMF100AC230 fans
- Mounting points for four-screw field-installable solid, vented or window doors (doors not included)
- TAA compliant, made in North America, with GREENGUARD, TSCA and RoHS compliant textured black powder coat

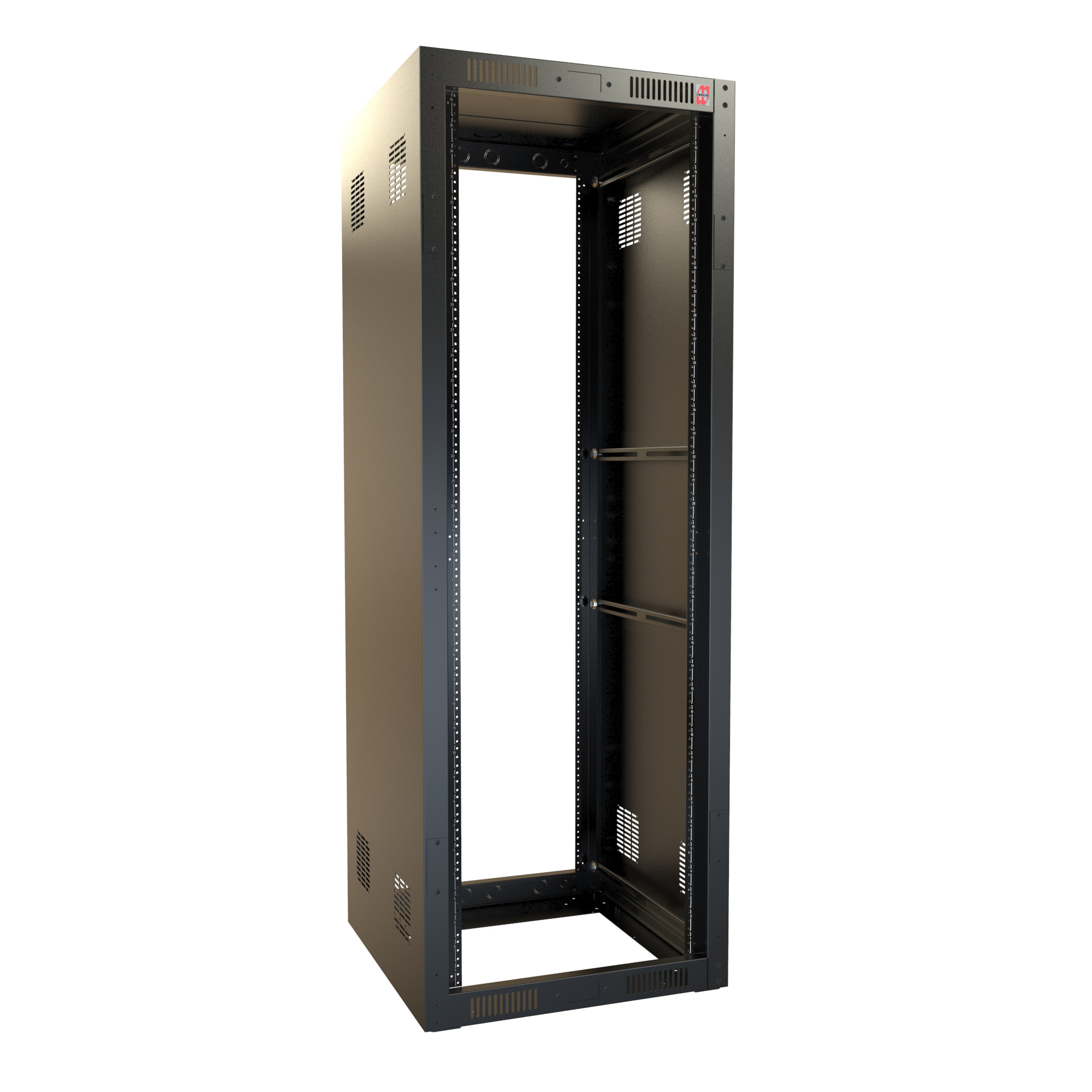

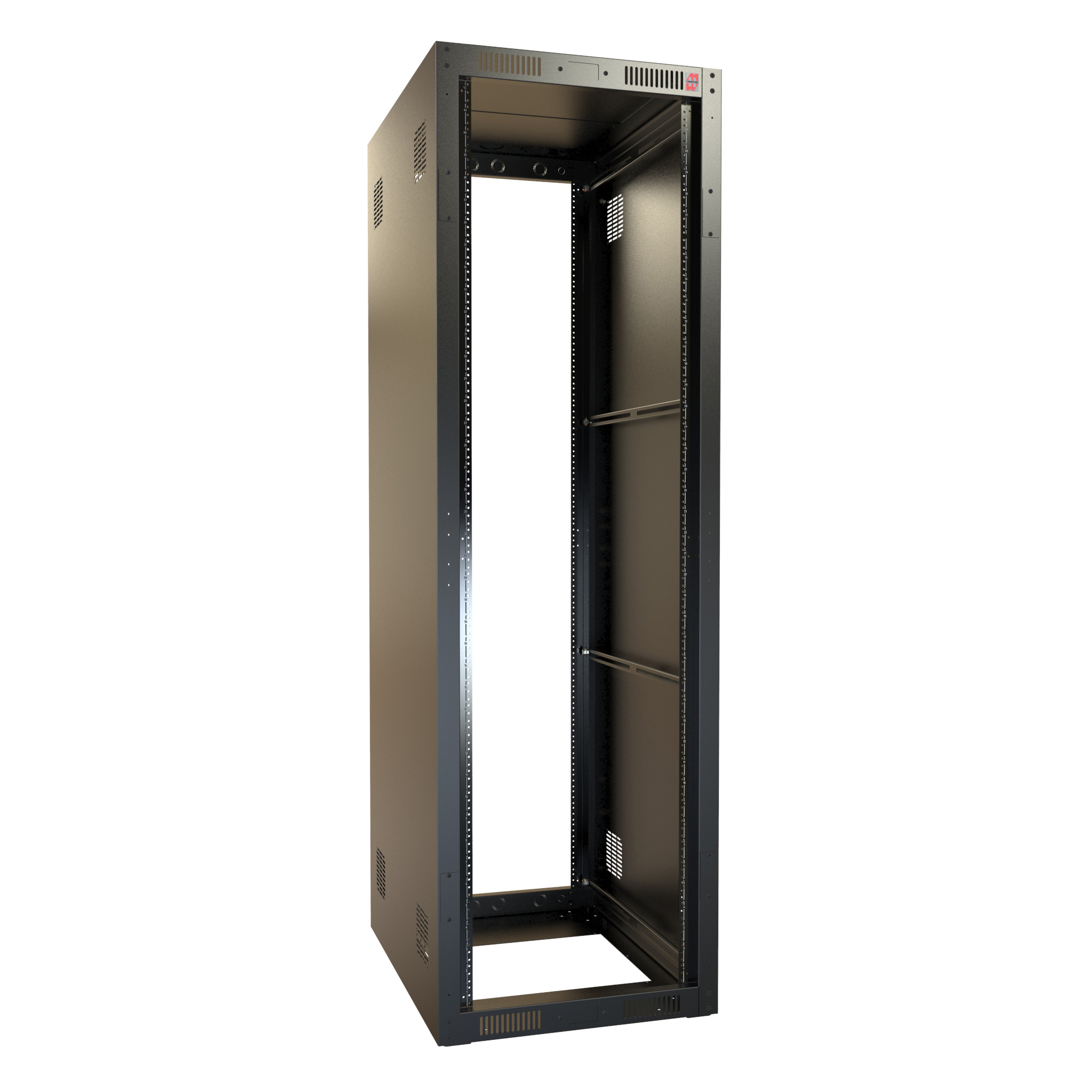

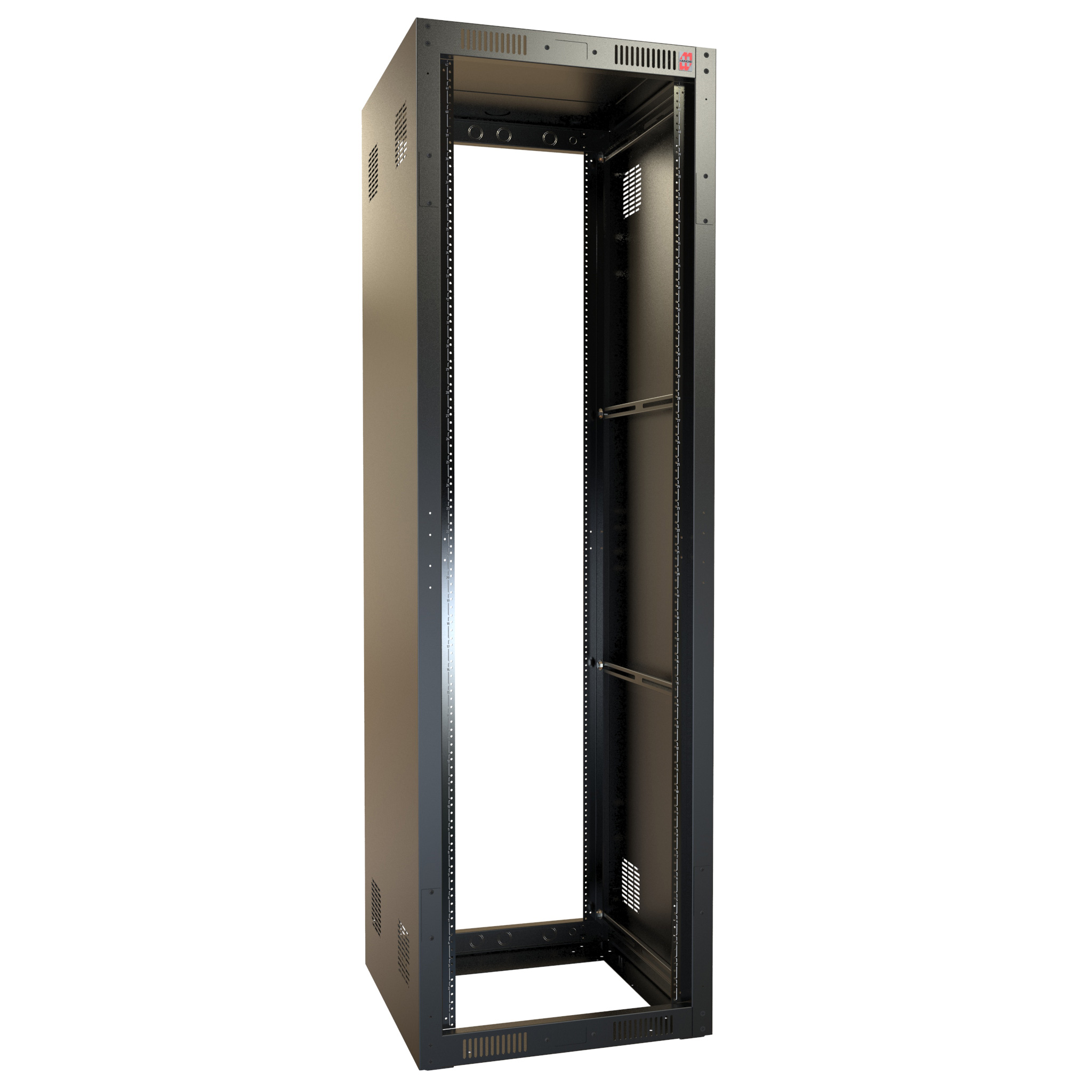

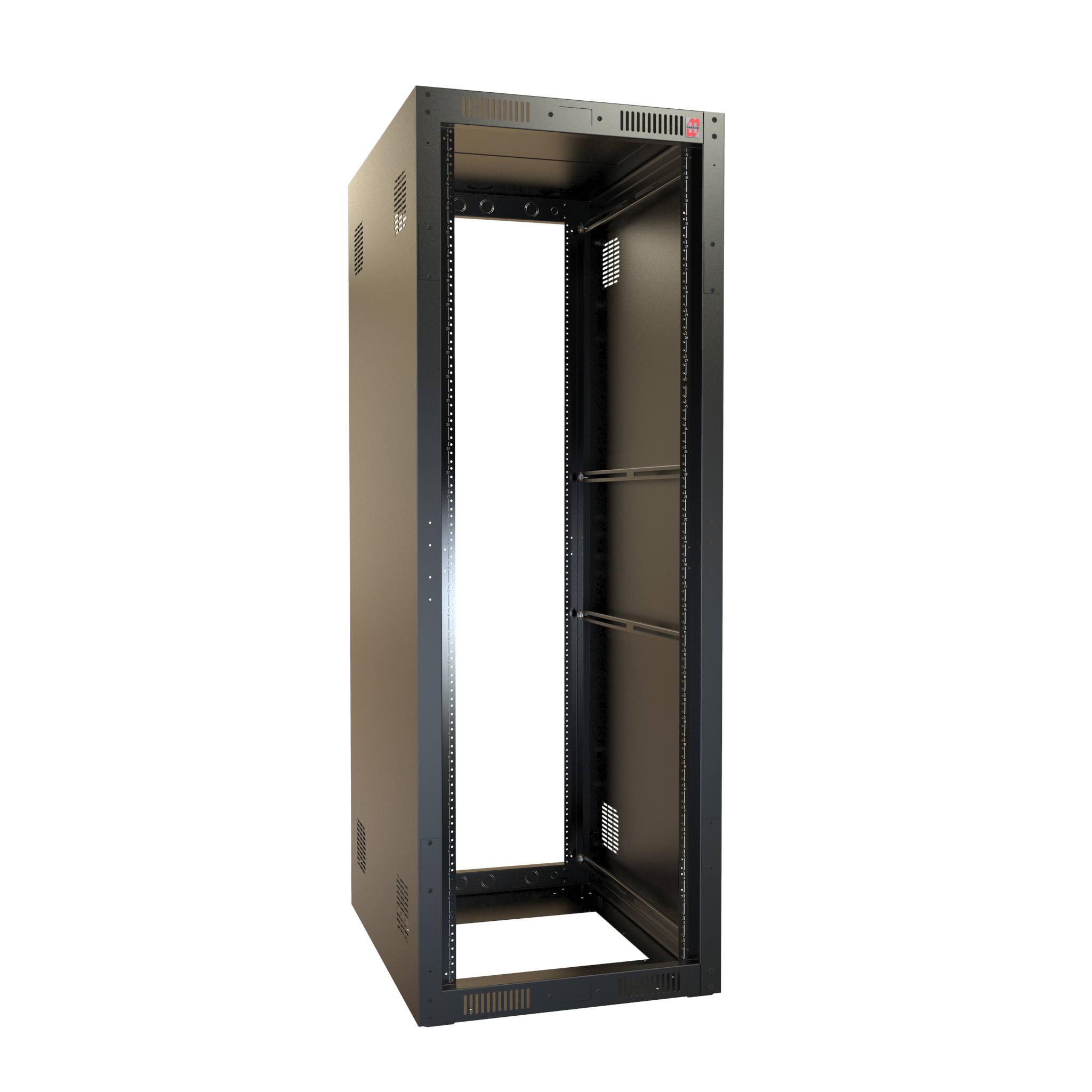

The RCK24U32BK is a 24U knock-down rack cabinet measuring 47 in x 24 in x 32 in (1,194 mm x 610 mm x 813 mm), built for AV and media installations, network and telecom equipment rooms, lab and development environments, and general equipment installations that need a modular, configurable enclosure. It ships unassembled, which supports easier transport, handling and installation in constrained spaces, and the self-squaring design allows fast assembly with improved structural alignment.
Construction is 16-gauge mild steel cabinet framing with 12-gauge mounting rails rated for a 1,050 lb load, finished in textured RAL9005 black powder coat that is GREENGUARD, TSCA and RoHS compliant. The cabinet includes two pairs of adjustable-depth, EIA-310 compliant 10-32 tapped mounting rails plus a 50-pack of SCREW1032-50 mounting hardware, giving 42.00 in (1067 mm) of usable mounting height across a 19.00 in (483 mm) panel width and 29.56 in (751 mm) of equipment mounting depth. The rack designation is 24U + 1U, where the extra 1U refers to usable accessory mounting at the top-rear of the cabinet.
Cable management and airflow are handled through numerous cable tie-off points and conduit knockouts, including 3.00/1.90 in, 2.50/1.90 in, 1.38/1.12 in and 0.68 in knockout provisions, plus a fan cutout pattern for optional DNMF100AC115 or DNMF100AC230 fans. A solid C2T1923S top panel is supplied; doors are not included, and field-installable solid, vented or window doors (RCKSD24UBK1, RCKVD24UBK1, RCKWD24UBK1) mount with four screws. Ganging capability is included for side-by-side expansion.
RCK24U32BK is manufactured in North America, TAA compliant, USMCA compliant, and REACH and RoHS compliant, with a shipping weight of 146 lbs (66.22 kg).
Ideal For
- AV and media installations
- Network and telecom equipment rooms
- Lab and development environments
- Homelab and Pro-AV equipment racking
- Deployments needing knock-down cabinets for easier transport and assembly
Overview
| Series | RCK Series — Rack Cabinet, Knock-Down Design (1,050 lb) |
| Assembly | Knock-down design, ships unassembled; self-squaring |
| Rack Type | Cabinet |
| Part Number | RCK24U32BK |
| Load Capacity | 1,050 lb |
| Short Description | 24U 24W 32D KNOCKDOWN CABINET |
Dimensions
| Overall Depth | 32.00 in (813 mm) |
| Overall Width | 24.00 in (610 mm) |
| Overall Height | 47.00 in (1194 mm) |
| Size H X W X D | 47 in x 24 in x 32 in (1,194 mm x 610 mm x 813 mm) |
| Equipment Mounting Depth | 29.56 in (751 mm) |
| Rear View Overall Height (Drawing) | 47.44 in (1205 mm) |
Identifiers
| UPC | 623980428864 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980428864 |
| UPC W/o Check Digit | 62398042886 |
Rack Mounting
| Rail Type | Tapped 10-32 |
| Rack Units | 24U + 1U (the +1U is usable accessory mounting at the top-rear of the cabinet) |
| Rail Gauge | 12-gauge |
| Rail Standard | EIA-310 compliant, adjustable depth |
| Rail Sets Included | Two (2) pairs of 10-32 threaded mounting rails |
| Stud Type (Drawing) | #10-32 x 1/2 in stud |
| Usable Mounting Depth | 29.56 in (751 mm) |
| Usable Mounting Width | 19.00 in (483 mm) |
| Usable Mounting Height | 42.00 in (1067 mm) |
| Mounting Hardware Included | 50-pack of 10-32 screws (SCREW1032-50) |
| 19 In Mounting Reference (Drawing) | 18.35 in (466 mm) |
| Panel Mounting Height Reference (Drawing) | 41.50 in (1054 mm) (24U); 42.06 in (1068 mm) |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 146 lbs (66.22 kg) |
| Country Of Origin | CA |
Construction & Finish
| Doors | Not included; mounting points provided for four-screw field-installable doors |
| Finish | Textured black powder coat |
| Ganging | Ganging capability included for side-by-side expansion |
| Material | Mild Steel |
| Frame Gauge | 16-gauge steel |
| Paint Color | RAL9005 Black |
| Included Components (Drawing Bill Of Materials) | RCK side panel (2), RCK top 32 in D (1), RCK bottom 32 in D (1), RCK 1U KO panel (2), receptacle cover plate (2), hinge cover plate (8), solid top C2T1923S (1), H1 panel rail 24U LH (2) |
Compatible Accessories
| Doors (24U) | RCKSD24UBK1 (solid), RCKVD24UBK1 (vented), RCKWD24UBK1 (window) |
| Optional Casters | 1425BLSOFT (light duty, 660 lbs), 1425BM (medium duty, 700 lbs), 1425BH (heavy duty, 1,050 lbs), 1425BHLOCK (heavy duty, 1,050 lbs, 4 brakes) |
| Optional Leveling Feet | CLFK (standard nylon base), CLFKNS (non-skid vinyl base) |
| Vertical Cable Tray (24U) | VCT42 |
| Optional Top/Bottom Panels | C2T1923SBK1 solid (included), C2T1923VBK1 vented, C2T1923VCEBK1 vented with cable entry, C2T1923VFBK1 fan grill, C2T1923FBK1 cutout, C2T1923F10BK1 / C2T1923F10CEBK1 pre-wired 10 in fan, C2T1923F4BK1 pre-wired 4x 4 in fans |
| Optional Mounting Rails (24U) | H1TRR24U24BK (threaded 10-32), H1SRR24U24BK (square hole) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Cable Management & Ventilation
| Fan Provision | Fan cutout pattern for optional fans DNMF100AC115 / DNMF100AC230 |
| Cable Management | Numerous cable tie-off points and conduit knockouts |
| Knockouts (Rear) | 4X double K.O. Ø1.38/1.12; 2X K.O. Ø0.68 |
| 1U Knockout Panel | 1U KO panel (top/bottom), quantity 2 |
| Top Panel Cut-Out | Bottom cut-out for C2 top panel |
| Knockouts (Top View) | 2X double K.O. Ø3.00/1.90; 1X double K.O. Ø2.50/1.90 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does RCK24U32BK come assembled?▾
No. It is a knock-down cabinet that ships unassembled. The design is self-squaring and is stated to take just minutes to assemble.
Are doors included with RCK24U32BK?▾
No. The drawing notes state the door is not included. The cabinet has mounting points for four-screw field-installable doors, and 24U door options are RCKSD24UBK1 (solid), RCKVD24UBK1 (vented) and RCKWD24UBK1 (window).
What mounting rails does it use, and how many are supplied?▾
It includes two pairs of adjustable-depth, EIA-310 compliant 10-32 threaded (tapped) mounting rails, along with a 50-pack of SCREW1032-50 mounting screws.
Why is it listed as 24U + 1U?▾
The +1U refers to the 1U usable accessory mounting location at the top-rear of the cabinet, in addition to the 24U of standard 19 in mounting space (42.00 in / 1067 mm usable height).
How much equipment depth is available?▾
The cabinet is 32.00 in (813 mm) deep overall with 29.56 in (751 mm) of usable equipment mounting depth.
Is this cabinet suitable for government procurement?▾
The data lists it as TAA compliant and manufactured in North America, with a country of origin of CA, plus USMCA, RoHS and REACH compliance.
