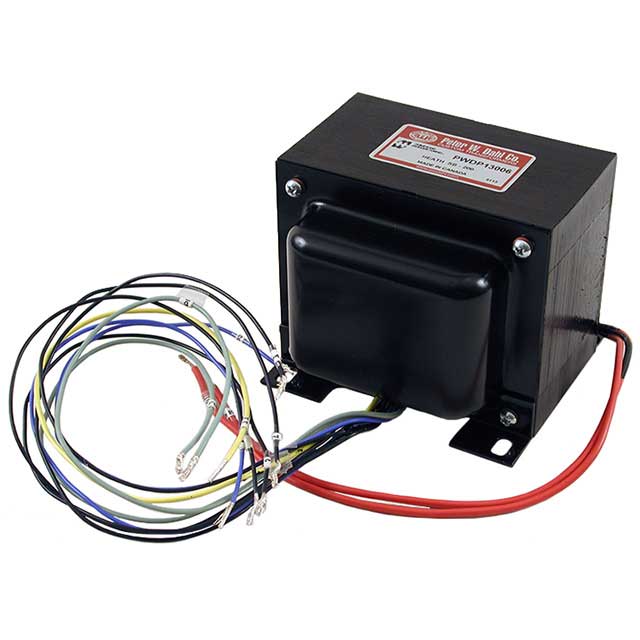

Hammond PWDP13006 Heath SB-200 Transformer, 50Hz Version
Call for Price
Ships from and sold by A5 IT
Call for pricing
This part is quoted to order. Call for current pricing, lead time and volume breaks on the Hammond Manufacturing PWDP13006.
224-955-1644Key Features
- Listed for the Heath SB-200, 50Hz version
- For stations on 50 Hz mains
- Shipping weight 6.44 lbs (2.92 kg)
- REACH compliant and RoHS compliant
- From the Peter W. Dahl files; usually built to order
The PWDP13006 is listed on the manufacturer's part page as the Heath SB-200 50Hz version. It belongs to the PWDAHL Series, the listing of transformers and chokes taken directly from the Peter W. Dahl files of magnetics for amateur radio products, and is aimed at SB-200 owners who run their amplifier on 50 Hz mains.
That distinction matters: the series warns buyers outside North America that most Dahl parts are only listed for 60 Hz usage, and that a part must say 50 Hz or 50/60 Hz if 50 Hz operation is needed. This part number is identified specifically as a 50Hz version.
The part page gives a shipping weight of 6.44 lbs (2.92 kg). PWDP13006 is marked REACH compliant and RoHS compliant, and is identified by UPC 623980298405 and UNSPSC 39121301. Winding voltages, current ratings and core details are not published on the part page for this part number, so confirm the electrical specification with the manufacturer before ordering.
Dahl-series units are usually built to order one at a time, and units already built are shown with Hammond part numbers. The series recommends confirming availability by phone or e-mail; stock units can usually be shipped next business day.
Ideal For
- Heath SB-200 on 50 Hz mains
- Linear amplifier restoration
- Amateur radio amplifier repair outside North America
Overview
| Series | Peter W Dahl Transformers (PWDAHL Series) |
| Part Number | PWDP13006 |
| Series Focus | Magnetics for Amateur Radio Products |
| Short Description | HEATH SB-200 50Hz VERS. |
| Equipment Application | Heath SB-200 |
Electrical
| Frequency | 50Hz version |
Identifiers
| UPC | 623980298405 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 6.44 lbs (2.92 kg) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is PWDP13006?▾
The part page lists it as the Heath SB-200 50Hz version.
Why choose a 50 Hz version?▾
The series cautions that most parts are only listed for 60 Hz; if you need 50 Hz, the part must say so, as this one does.
What does it weigh?▾
Shipping weight is 6.44 lbs (2.92 kg).
Are the winding ratings published?▾
Not on the part page for PWDP13006; confirm the electrical details with the manufacturer.
Is this transformer kept in stock?▾
The series notes that these transformers are usually built to order one at a time, and that stock units can usually be shipped next business day. Confirming availability by phone or e-mail is recommended.
