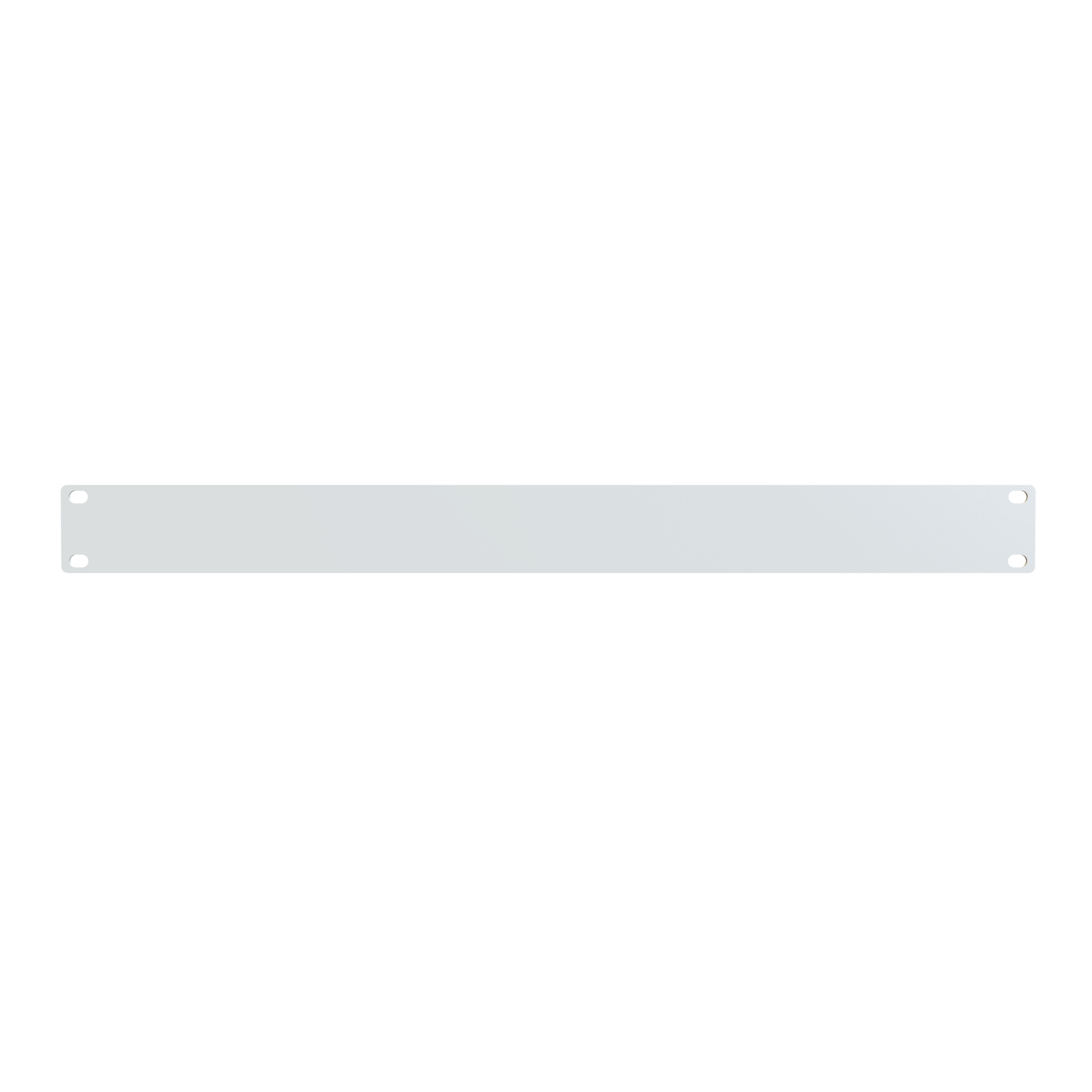

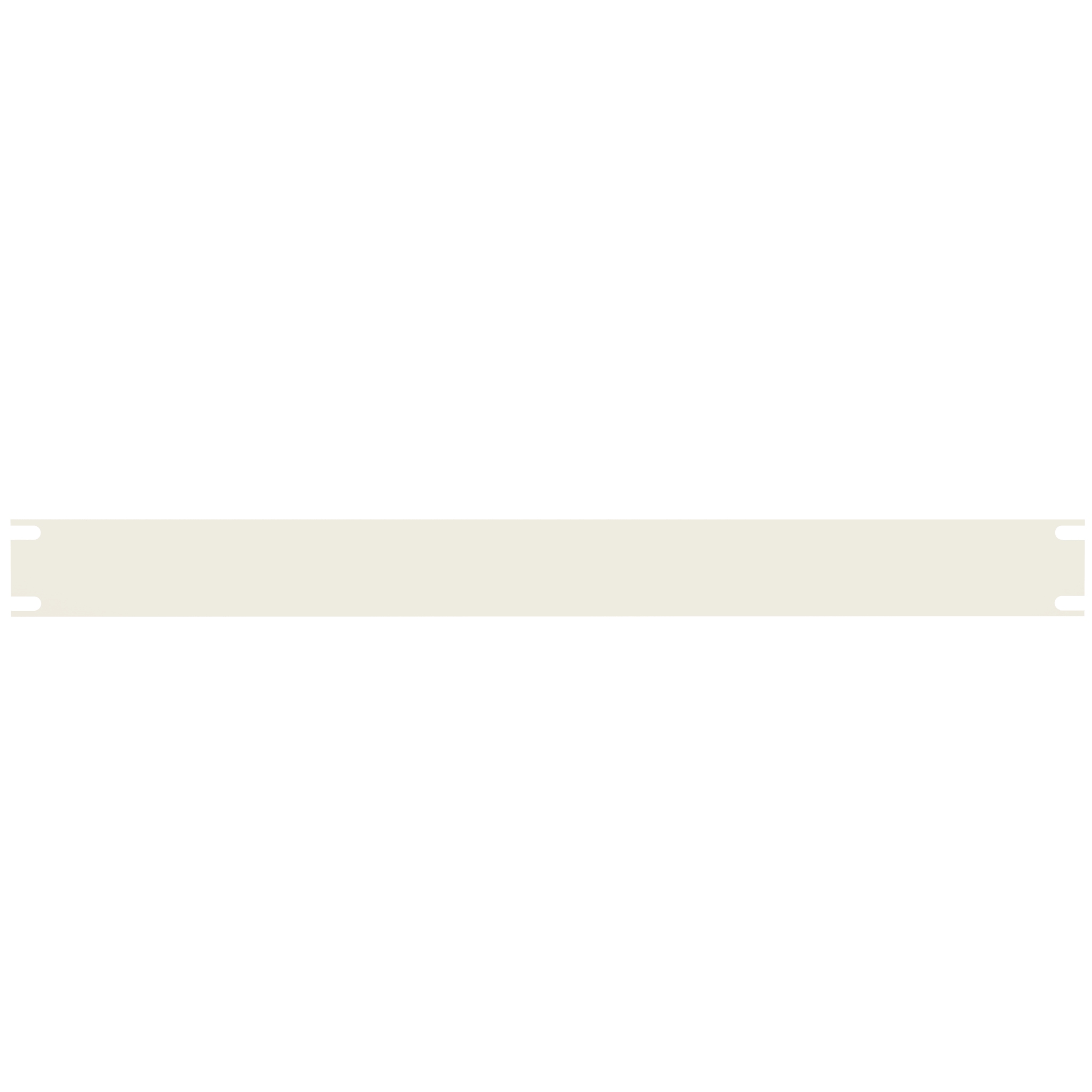

Hammond PBPS19001WH 1U Matte White Solid Steel Rack Blanking Panel

The PBPS19001WH is a 1U solid steel rack blanking panel finished in RAL9003 matte white, built to cover a single unused rack space in a standard 19 in EIA-compliant rack. It is intended for data center, telecom and network installers, facilities teams and OEM integrators who need to close open rack units so conditioned air is forced through equipment rather than recirculating around it.

Construction is 14-gauge mild steel (0.072 in) with a smooth powder coat finish for a clean, consistent appearance across the rack face. The solid, unvented panel design blocks airflow gaps and supports proper front-to-rear cooling, helping prevent hot and cold air from mixing in high-density and hot aisle / cold aisle environments.

This 1U size measures 1.75 in (44 mm) high and 19.00 in (483 mm) wide across the mounting flanges, with an 18.32 in (465 mm) front panel dimension and a shipping weight of 0.65 lbs (0.29 kg). Four 0.250 x 0.375 in mounting slots give 4 mounting points, allowing the panel to be secured to standard rack rails. Mounting hardware is not included.

• Rack units: 1U, panel height 1.75 in (44 mm)
• Colour: RAL9003 matte white (also offered in matte black, dark gray and light gray)
• Material: 14 ga. steel, mild steel, powder coat finish

PBPS19001WH is TAA-compliant and manufactured in North America within an ISO 9001 certified facility. It is RoHS and REACH compliant, and the powder coat finish is GREENGUARD, TSCA and RoHS compliant, supporting environmental and durability requirements in specification-driven projects.
