Hammond PBPA19010LG2 6U Light Gray Aluminum Rack Blanking Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 6U blanking panel with 10.50 in (267 mm) panel height for 19 in EIA-compliant rack rails
- 8-gauge (0.125 in) 5052-H32 aluminum construction for lightweight durability and corrosion resistance
- RAL7035 light gray smooth powder coat finish for a clean, professional rack appearance
- Eight 0.250 x 0.375 in mounting slots provide 8 mounting points for secure support
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Lighter and easier to handle than steel panels of comparable size
- TAA-compliant and USMCA compliant, made in Canada; RoHS and REACH compliant
- Series available in 1U-10U heights and five finishes to match any rack elevation

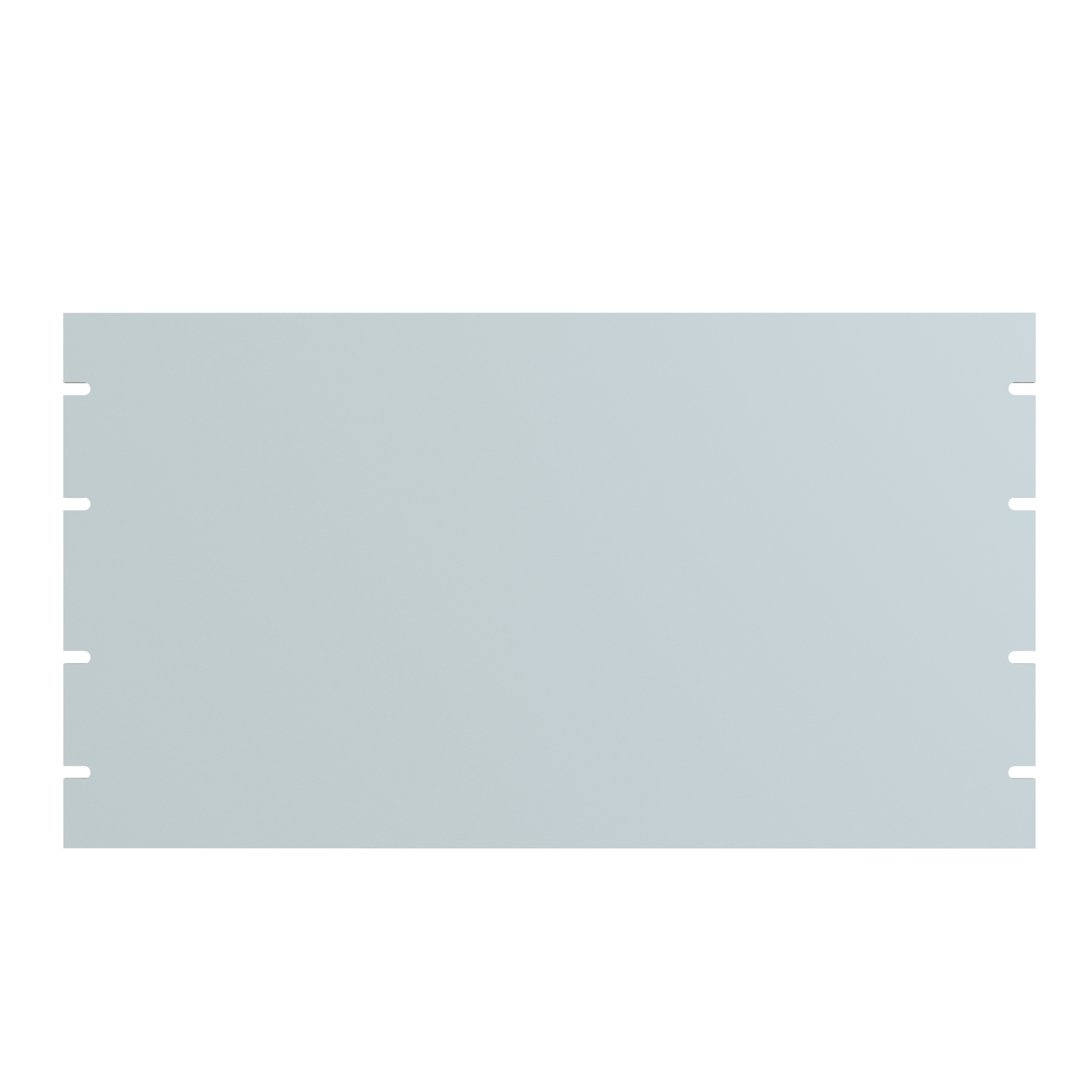

PBPA19010LG2 is a 6U flat aluminum rack panel finished in RAL7035 light gray, made to fill unused rack space in 19 in EIA-compliant racks and cabinets. It is a practical choice for IT and network teams, AV integrators and facilities staff who need to close off open rack openings so cooling air follows the intended path instead of recirculating between hot and cold sides.
The panel is formed from 8-gauge (0.125 in) 5052-H32 aluminum, giving it lightweight durability and corrosion resistance in rack environments. Compared with steel panels, the aluminum construction simplifies handling and installation, and the smooth powder coat finish gives a clean, professional look across the rack face.
This 6U size measures 10.50 in (267 mm) panel height with a 19.00 in (483 mm) overall width; the drawing shows the panel profile at 10.47 in (266 mm) high with 0.12 in (3 mm) radius corners. Mounting is through eight 0.250 x 0.375 in slots, giving 8 mounting points for a secure, evenly supported fit on standard rack rails. Mounting hardware is not included, so specify rack screws and washers to match your rail thread. Shipping weight is 2.46 lbs (1.12 kg).
PBPA19010LG2 is RoHS and REACH compliant, TAA-compliant and USMCA compliant, manufactured in Canada, which supports government and regulated procurement requirements. The PBPA Series is offered in matte black, dark gray, light gray, matte white and unfinished aluminum, and in rack heights from 1U through 10U, so a full rack elevation can be blanked with matching panels.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments needing airflow separation
- Wall mount and floor-standing racks
- Covering unused rack space to improve rack organization and appearance
Overview
| Series | PBPA Series - Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 6U Flat Aluminum Rack Panel |
| Part Number | PBPA19010LG2 |
| Nominal Size | 19 in rack width, 6U height |
| Product Type | Rack Panel / Rack Accessory |
Dimensions
| Panel Height | 10.50 in (267 mm) |
| Overall Width | 19.00 in (483 mm) |
| Material Thickness | 0.125 in (8-gauge) |
| Panel Height (Drawing) | 10.47 in (266 mm) |
Identifiers
| UPC | 623980700069 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980700069 |
| UPC W/o Check Digit | 62398070006 |
Rack Mounting
| Rack Units | 6U |
| Mounting Slots | 8X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 8 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 2.46 lbs (1.12 kg) |
Construction & Finish
| Finish | RAL7035 Light Gray |
| Material | Aluminum, 0.125 in 5052-H32 |
| Panel Style | Flat, smooth finish |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19010LG2 cover?▾
It covers 6U of rack space, with a panel height of 10.50 in (267 mm) and an overall width of 19.00 in (483 mm) for 19 in EIA-compliant rack rails.
Is mounting hardware included?▾
No. The drawing notes that mounting hardware is not included, so rack screws should be specified separately to match your rack rail threads. The panel has eight 0.250 x 0.375 in slots providing 8 mounting points.
What material and finish is used?▾
The panel is 8-gauge (0.125 in) 5052-H32 aluminum for lightweight durability and corrosion resistance, finished in RAL7035 light gray with a smooth appearance.
Is this panel suitable for government projects?▾
The PBPA Series is TAA-compliant and manufactured in North America; PBPA19010LG2 lists Canada as country of origin and is USMCA, RoHS and REACH compliant, which supports government procurement requirements.
What other colors and heights are available?▾
The same 6U panel is offered as PBPA19010BK (matte black RAL9005), PBPA19010GY2 (ANSI61 dark gray), PBPA19010WH (matte white RAL9003) and PBPA19010UNF (unfinished). The series spans 1U through 10U heights.
How does a blanking panel help cooling?▾
Installed in unused rack space, it prevents hot and cold air from mixing and stops air recirculation, supporting thermal management and improving cooling efficiency.
