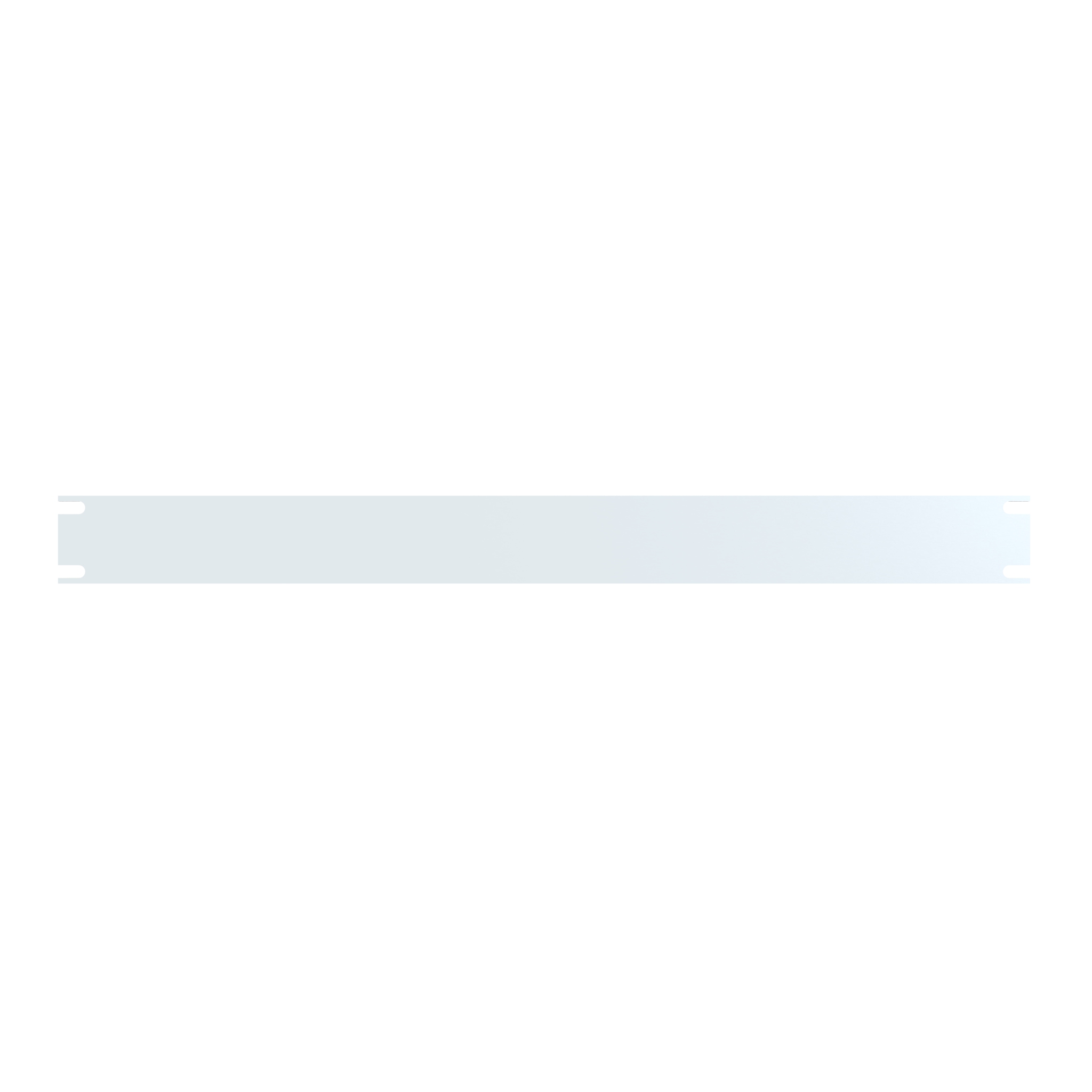

Hammond PBPA19001WH 1U Matte White Aluminum Blanking Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U blanking panel, 1.75 in (44 mm) panel height, for standard 19 in EIA-compliant rack rails
- 8-gauge (0.125 in) 5052-H32 aluminum construction for lightweight durability and corrosion resistance
- Matte white RAL9003 finish for a clean, professional rack appearance
- Four 0.250 x 0.375 in slots provide 4 mounting points; mounting hardware not included
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Light 0.4 lbs (0.18 kg) weight simplifies handling versus steel panels
- TAA-compliant and manufactured in North America (Country of Origin: CA)
- RoHS, REACH and USMCA compliant; ECCN EAR99
The PBPA19001WH is a 1U aluminum blanking panel finished in matte white (RAL9003), made to cover unused rack space in a standard 19 in EIA-compliant rack. It is intended for IT and network teams, AV and telecom integrators, and facilities staff who need to close off open rack openings so cool supply air is not lost and hot exhaust air is not recirculated back through the equipment.
Construction is 8-gauge (0.125 in) 5052-H32 aluminum, giving lightweight durability and corrosion resistance in rack environments. The lightweight aluminum design makes handling and installation simpler than steel panels, and the smooth matte white powder coat finish gives a clean, uniform look across a populated rack face. The panel weighs 0.4 lbs (0.18 kg).
Dimensionally, PBPA19001WH occupies a single rack unit with a panel height of 1.75 in (44 mm) and an overall width of 19.00 in (483 mm) across the mounting flanges. Four 0.250 x 0.375 in mounting slots provide four mounting points onto the rack rails. Mounting hardware is not included, so specify rack screws or cage nut hardware to match your rail type.
For procurement, this panel is TAA-compliant and manufactured in Canada (North America), and is listed as USMCA compliant, RoHS compliant and REACH compliant, with ECCN EAR99. Use single units to fill 1U gaps or stack several PBPA19001WH panels alongside taller PBPA panels to blank larger openings in data center, telecom and high-density rack installations.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Covering unused rack space to improve airflow and thermal management
Overview
| Series | PBPA Series – Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 1U ALUMINUM BLANKING PANEL |
| Part Number | PBPA19001WH |
| Product Type | Rack panel (rack accessory) |
Dimensions
| Panel Height | 1.75 in (44 mm) |
| Corner Radius | 0.12 in (3 mm) |
| Overall Width | 19.00 in (483 mm) |
| Material Thickness | 0.125 in (8-gauge) |
| Body Width (Front View) | 18.32 in (465 mm) |
| Body Height (Front View) | 1.72 in (44 mm) |
Identifiers
| UPC | 623980046761 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980046761 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398004676 |
Rack Mounting
| Rack Units | 1U |
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Shipping Weight | 0.4 lbs (0.18 kg) |
Construction & Finish
| Material | Aluminum, 5052-H32 |
| Finish / Color | RAL9003 Matte White |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19001WH cover?▾
It covers one rack unit (1U), with a panel height of 1.75 in (44 mm) and an overall width of 19.00 in (483 mm) for 19 in EIA-compliant rack rails.
Is mounting hardware included?▾
No. The drawing states mounting hardware is not included. The panel has four 0.250 x 0.375 in slots providing 4 mounting points, so supply rack screws or hardware suited to your rails.
What material and finish is used?▾
It is made from 8-gauge (0.125 in) 5052-H32 aluminum and finished in RAL9003 Matte White.
Why use a blanking panel in a rack?▾
Blanking panels are designed to install in unused rack space to improve cooling efficiency and prevent air recirculation, helping keep hot and cold air from mixing.
Is this part suitable for government procurement?▾
The part is listed as TAA-compliant and manufactured in North America, with Country of Origin CA, which supports government procurement requirements.
Are other sizes and colors available?▾
Yes. The PBPA Series offers heights from 1U to 10U and finishes including RAL9005 Matte Black, ANSI61 Dark Gray, RAL7035 Light Gray, RAL9003 Matte White and unfinished aluminum.
