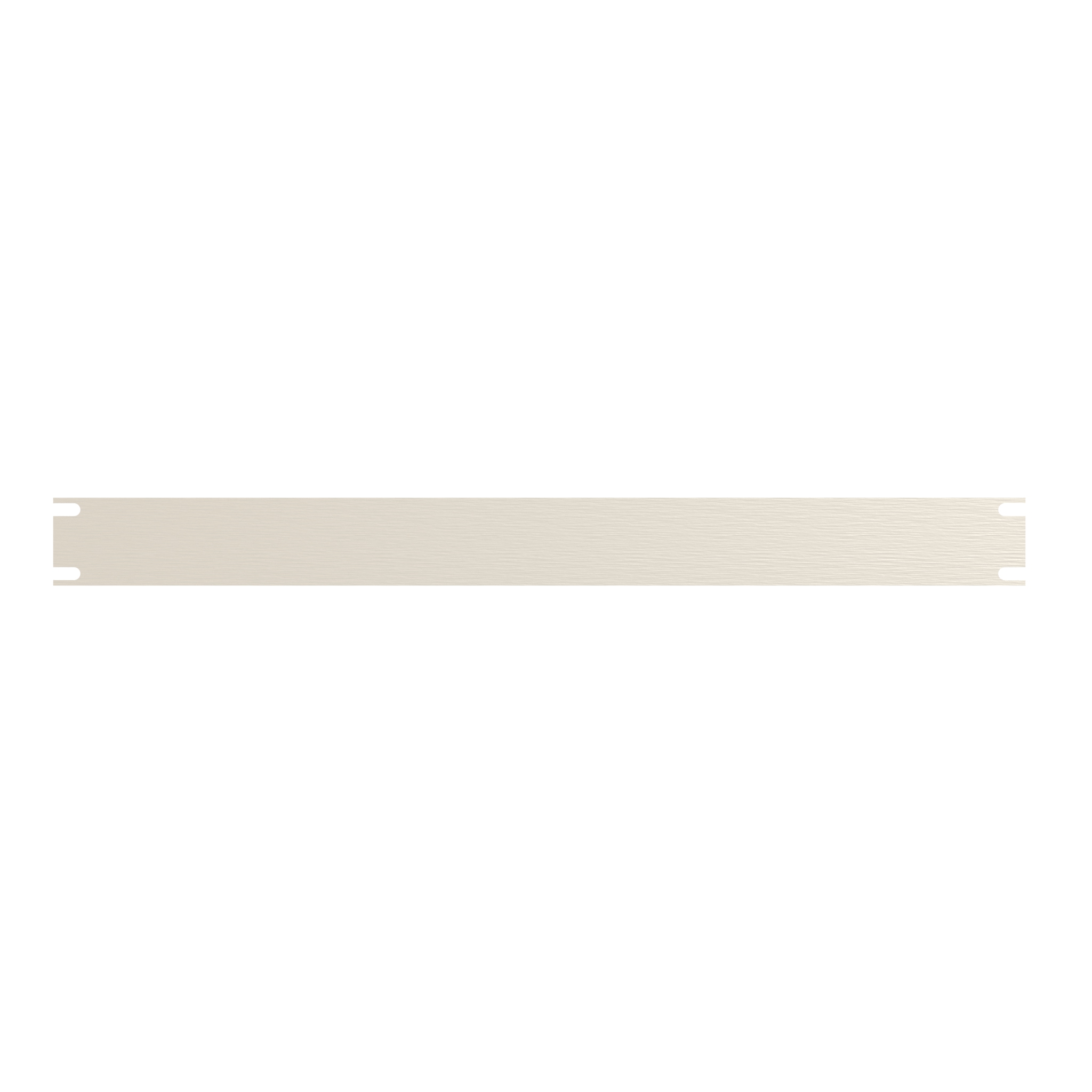

Hammond PBPA19001UNF 1U Unfinished Aluminum Rack Blanking Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U blanking panel with 1.75 in (44 mm) panel height for 19 in EIA-compliant rack rails
- Unfinished bare aluminum finish, ready for custom paint or branding
- 8-gauge (0.125 in) 5052-H32 aluminum for lightweight durability and corrosion resistance
- Four 0.250 x 0.375 in slots provide 4 mounting points on standard rack hole spacing
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Lightweight at 0.39 lbs (0.18 kg); easier to handle than steel panels
- TAA-compliant, made in Canada; RoHS, REACH and USMCA compliant
- Mounting hardware not included
The PBPA19001UNF is a 1U flat aluminum rack panel used to close off unused rack space in 19 in EIA-compliant racks and cabinets. It suits IT and AV integrators, telecom technicians, facilities teams and OEM engineers who need a lightweight blanking or filler panel to separate hot and cold air, tidy up a rack face, and support a thermal management strategy.
Construction is 8-gauge (0.125 in) 5052-H32 aluminum, which provides lightweight durability and corrosion resistance in rack environments and makes handling and installation simpler than comparable steel panels. This version ships unfinished, leaving the bare aluminum available for custom painting, anodizing or branding; the same panel height is offered in matte black (RAL9005), dark gray (ANSI61), light gray (RAL7035) and matte white (RAL9003) within the PBPA Series.
The panel occupies 1 rack unit with a panel height of 1.75 in (44 mm) and a width of 19.00 in (483 mm) across the mounting flanges, with an 18.32 in (465 mm) face dimension shown on the drawing. Four 0.250 x 0.375 in mounting slots give 4 mounting points that align with standard EIA rack rail hole patterns. Corners are radiused at 0.12 in (3 mm). Shipping weight is 0.39 lbs (0.18 kg). Mounting hardware is not included.
PBPA19001UNF is TAA-compliant and made in Canada, is RoHS and REACH compliant, and is USMCA compliant, which helps with government and regulated procurement requirements. The PBPA Series is part of Hammond's Legacy Portfolio, offered for over 50 years, and is available for private label.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Covering unused rack space to improve airflow and thermal management
Overview
| Series | PBPA Series - Aluminum Rack Blanking Lightweight Rack Panels |
| Description | 1U Flat Aluminum Rack Panel |
| Part Number | PBPA19001UNF |
| Finish Option | Unfinished |
Dimensions
| Panel Height | 1.75 in (44 mm) |
| Corner Radius | 4X R 0.12 in (3 mm) |
| Flange Offset | 0.23 in (6 mm) |
| Overall Width | 19.00 in (483 mm) |
| Panel Face Width | 18.32 in (465 mm) |
| Face Height (Drawing) | 1.72 in (44 mm) |
| Slot Centerline Dimension | 1.25 in (32 mm) |
Identifiers
| UPC | 623980596501 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980596501 |
| UPC W/o Check Digit | 62398059650 |
Rack Mounting
| Rack Units | 1U |
| Mounting Slots | 4X 0.250 x 0.375 slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 0.39 lbs (0.18 kg) |
| Country Of Origin | CA |
Construction & Finish
| Finish | Unfinished aluminum |
| Material | Aluminum |
| Material Detail | 8-gauge (0.125 in) 5052-H32 aluminum |
| Material Thickness | 0.125 in |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19001UNF cover?▾
It is a 1U panel with a panel height of 1.75 in (44 mm) and an overall width of 19.00 in (483 mm), so it covers one rack unit of unused space in a 19 in EIA-compliant rack.
Does this panel come painted?▾
No. PBPA19001UNF is the unfinished version, supplied as bare aluminum for custom applications. The same 1U panel is also offered in matte black (PBPA19001BK), dark gray (PBPA19001GY2), light gray (PBPA19001LG2) and matte white (PBPA19001WH).
Is mounting hardware included?▾
No. The drawing states that mounting hardware is not included. The panel has four 0.250 x 0.375 in slots providing 4 mounting points.
What is the panel made from?▾
It is made from 8-gauge (0.125 in) 5052-H32 aluminum, which provides lightweight durability and corrosion resistance for rack environments.
Is PBPA19001UNF suitable for government procurement?▾
It is listed as TAA-compliant and manufactured in North America (country of origin CA), which supports government procurement requirements. It is also RoHS, REACH and USMCA compliant with ECCN EAR99.
Why use a blanking panel instead of leaving the space open?▾
The panel is designed to install in unused rack space to improve cooling efficiency and prevent air recirculation, keeping hot and cold air from mixing while giving the rack a clean, organized appearance.
