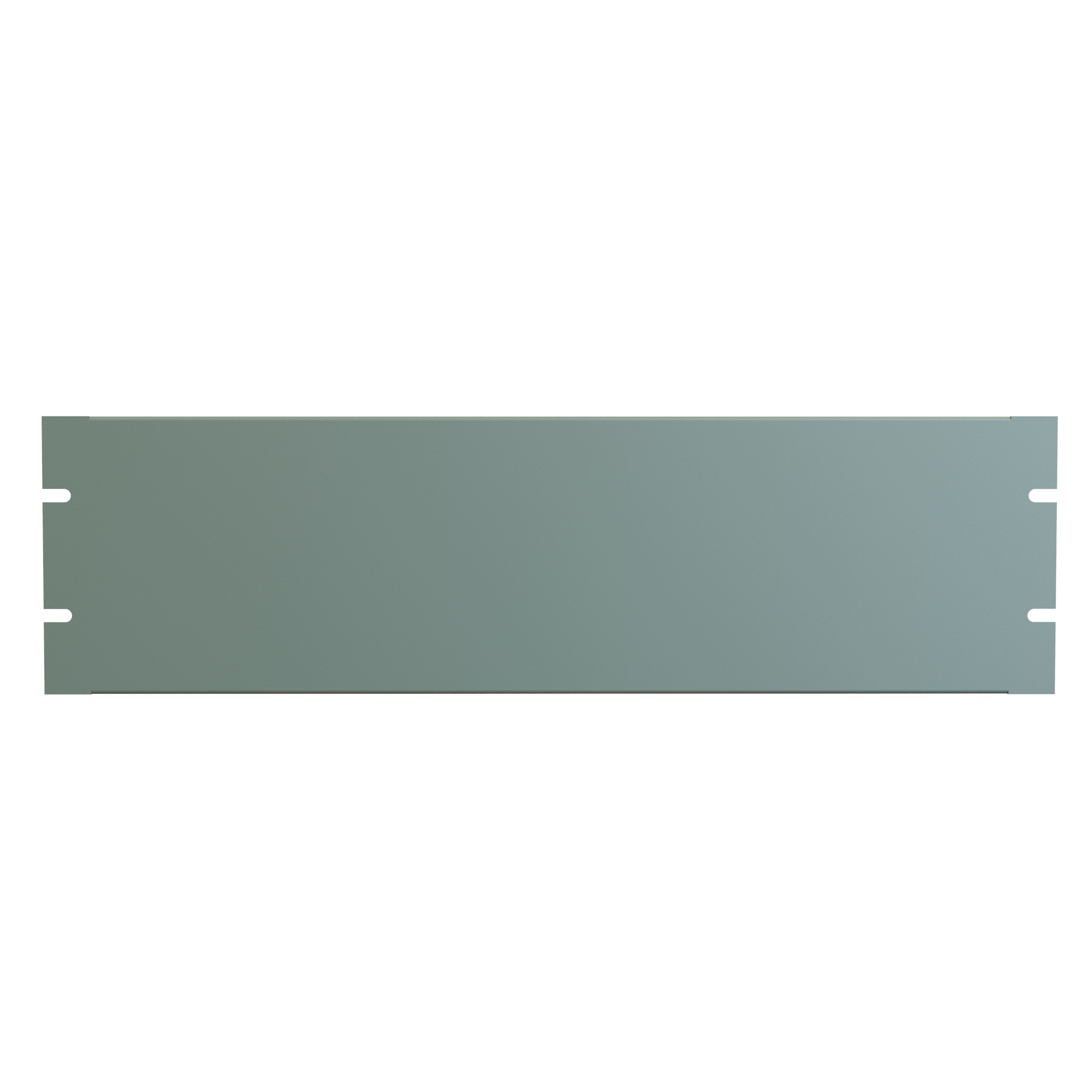

Hammond PBFS19005GY2 3U Formed Steel Rack Panel, Dark Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U formed steel rack panel, 5.25 in (133 mm) panel height, for standard 19 in EIA-compliant rack rails
- 16-gauge steel (0.057 in) mild steel construction for durable rack space coverage and airflow control
- Formed (flanged) design improves rigidity while reducing weight compared to flat steel panels
- ANSI61 dark gray powder coat finish; GREENGUARD, TSCA and RoHS compliant coating
- 4 mounting points with 0.250 x 0.375 in slots; mounting hardware not included
- Blocks unused rack space to improve cooling efficiency and prevent hot/cold air recirculation
- TAA compliant and manufactured in North America (Country of Origin: CA) for government procurement
- Light 2 lb (0.91 kg) shipping weight; also available in black, light gray and matt white
The PBFS19005GY2 is a 3U formed steel rack panel used to close off unused space in a standard 19 in EIA-compliant rack. It is intended for IT, telecom and AV installers, facilities teams and OEM integrators who need to block open rack space so hot and cold air are not allowed to mix and recirculate through the equipment zone.
Construction is 16-gauge mild steel (0.057 in) with formed, flanged edges. The flanges add rigidity while keeping the panel lighter than a flat steel plate of the same coverage. The finish is a smooth powder coat in ANSI61 dark gray, which is described as GREENGUARD, TSCA and RoHS compliant; the same panel height is also offered in matte black (RAL9005), light gray (RAL7035) and matt white (RAL9003) if you need to match an existing rack.
This part covers 3 rack units, a panel height of 5.25 in (133 mm), with an overall front height of 5.22 in (133 mm) and a width of 19.00 in (483 mm) across the mounting flanges; the panel face measures 18.32 in (465 mm) wide and the flange return depth is .50 in (13 mm). Mounting uses 4 points with 0.250 x 0.375 in slots, so the panel can be positioned on standard rack rail hole patterns. Shipping weight is 2 lbs (0.91 kg).
Mounting hardware is not included with PBFS19005GY2. The panel is made in Canada, is USMCA compliant, TAA compliant, RoHS and REACH compliant, and carries ECCN EAR99 for export documentation.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments needing thermal management
- Wall mount and floor-standing racks
- Covering unused rack space to improve airflow
Overview
| Color | ANSI61 Dark Gray |
| Series | PBFS Series — Formed Steel Rack Panels, 16-Gauge Flanged Rack Filler Panels |
| Description | 3U Formed Steel Rack Panel |
| Part Number | PBFS19005GY2 |
Dimensions
| Bend Radius | R .12 in (3 mm) |
| Overall Width | 19.00 in (483 mm) |
| Panel Face Width | 18.32 in (465 mm) |
| Flange Return Depth | .50 in (13 mm) |
| Overall Height (Front View) | 5.22 in (133 mm) |
Identifiers
| UPC | 623980587202 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980587202 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398058720 |
| Related Part Numbers (Same Height) | PBFS19005BK (Matte Black), PBFS19005LG2 (Light Gray), PBFS19005WH (Matt White) |
Rack Mounting
| Rack Units | 3U |
| Panel Height | 5.25 in (133 mm) |
| Mounting Hardware | Not included |
| Mounting Slot Size | 0.250 x 0.375 in slot (4X) |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Shipping Weight | 2 lbs (0.91 kg) |
Construction & Finish
| Finish | Smooth powder coat |
| Material | Mild Steel |
| Construction | Formed (flanged) panel design |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant powder coat |
| Gauge / Thickness | 16 ga. Steel (0.057 in) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA Compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBFS19005GY2 cover?▾
It covers 3 rack units, with a panel height of 5.25 in (133 mm) and an overall width of 19.00 in (483 mm) for standard 19 in EIA-compliant rack rails.
Is mounting hardware included?▾
No. The drawing notes state that mounting hardware is not included. The panel has 4 mounting points with 0.250 x 0.375 in slots.
What color and finish is this panel?▾
PBFS19005GY2 has a smooth powder coat finish in ANSI61 dark gray. The same 3U panel is also offered in matte black (PBFS19005BK), light gray (PBFS19005LG2) and matt white (PBFS19005WH).
What is the panel made from?▾
16-gauge mild steel (0.057 in) with formed, flanged edges that add rigidity while reducing weight compared to flat steel panels.
Is this panel suitable for government or federal projects?▾
The PBFS Series is TAA compliant and manufactured in North America; this part lists Country of Origin CA, USMCA compliant, RoHS and REACH compliant, and ECCN EAR99.
Why use a blanking panel in a rack?▾
Installing panels in unused rack space improves cooling efficiency by preventing hot and cold air from mixing and recirculating, and it gives the rack a cleaner, more organized appearance.
