Hammond CSP3523LG1 20U Solid Side Panel Pair for 23.6" Deep Frame

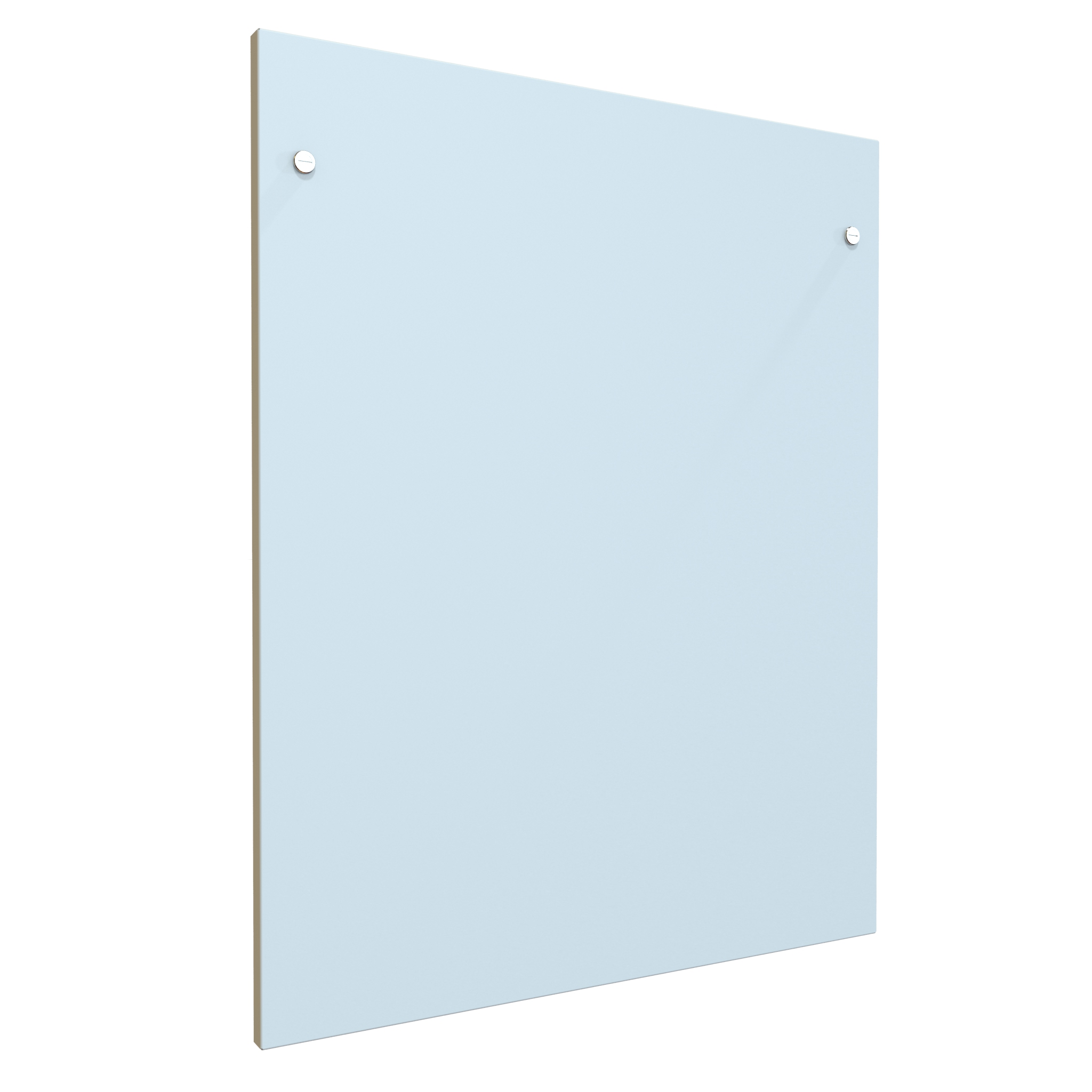

CSP3523LG1 is a pair of solid side panels finished in RAL 7035 light gray, made to close in a 20U C2 Series open frame with a 23.63 in (600 mm) depth. The panels are the matching enclosure component for the C2F193523 frame, so AV integrators, telecom technicians, lab and test engineers, and facilities teams can convert an open modular frame into a closed cabinet without changing platforms.

The C2 Series is a modular rack cabinet system: frames, mounting rails, doors, top and bottom panels, side panels and accessories are selected individually to build a configuration that matches the installation. Within that system, side panels are 16-gauge steel with a textured powder coat finish that is GREENGUARD, TSCA and RoHS compliant, supporting indoor air quality and environmental requirements. Each panel in this pair carries a #10-32 x 1/2 in ground stud so it can be bonded to the cabinet frame.

Two slotted quarter-turn latches are included per panel set as shown on the drawing, allowing the panels to be secured and removed for service access without dismantling equipment. Because the C2 platform uses grounding studs on frame, doors and panels, CSP3523LG1 fits into the same bonding scheme as the rest of the cabinet.

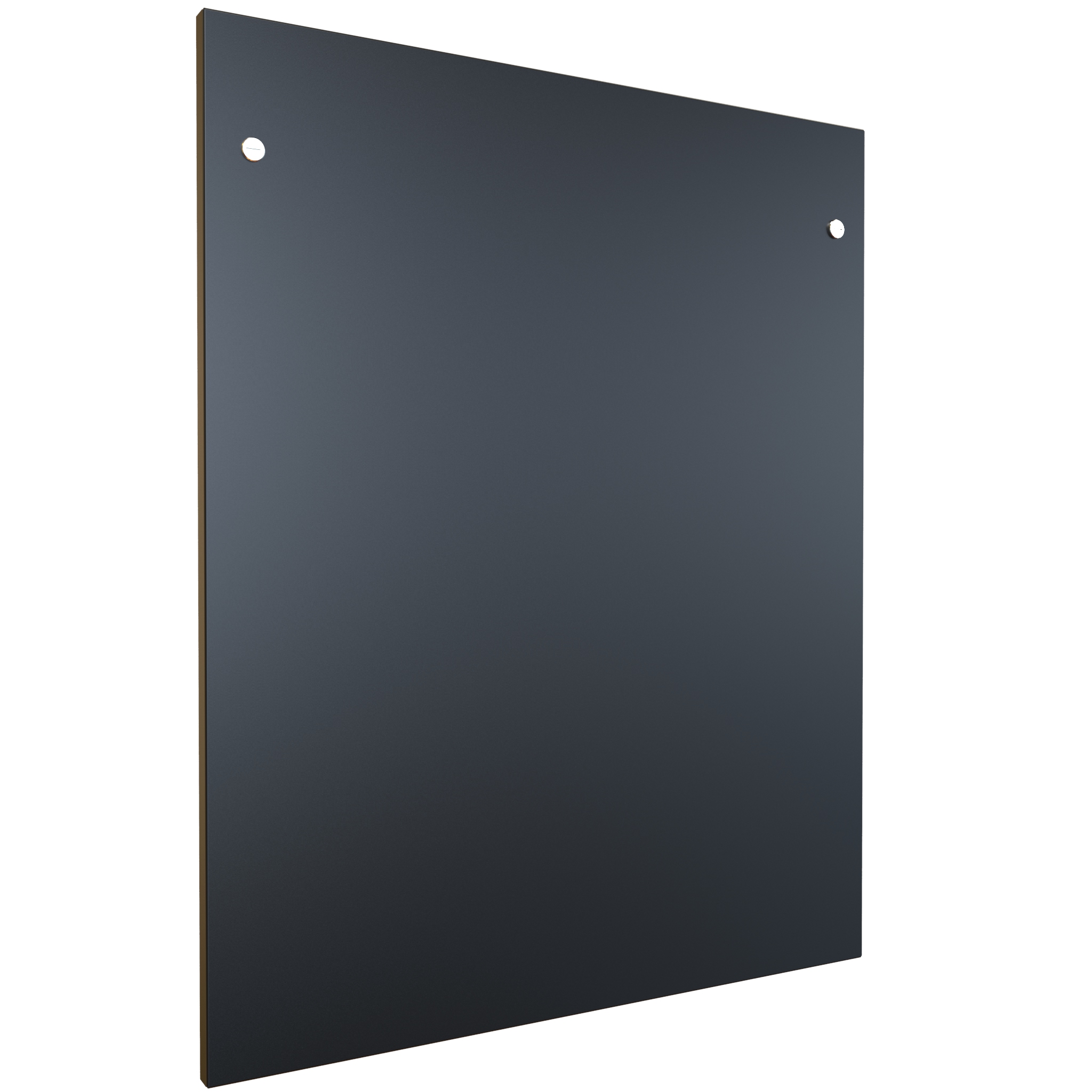

Order CSP3523LG1 for light gray cabinets; the equivalent black panels are CSP3523BK1. Shipping weight for the pair is 30 lbs (13.61 kg). The part is TAA-compliant and manufactured in North America, with a country of origin of CA, making it suitable for government and institutional procurement where sourcing requirements apply.
