Hammond CPL19436BK1 4in Black Plinth for 36in Deep Cabinets
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4.00 in (102 mm) overall height plinth for cabinets with a 36.00 in (914 mm) depth
- Adds cable entry space and access underneath C2, C2RR, C4 and C4RR cabinet frames
- All side and front/rear panels are easily removable for quick access
- Mild steel with RAL 9005 black textured powder coat finish
- Compatible with leveling feet and bolt down kits
- Supplied complete with all mounting hardware
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant
- Finish complies with Greenguard guidelines for indoor air quality; made in North America

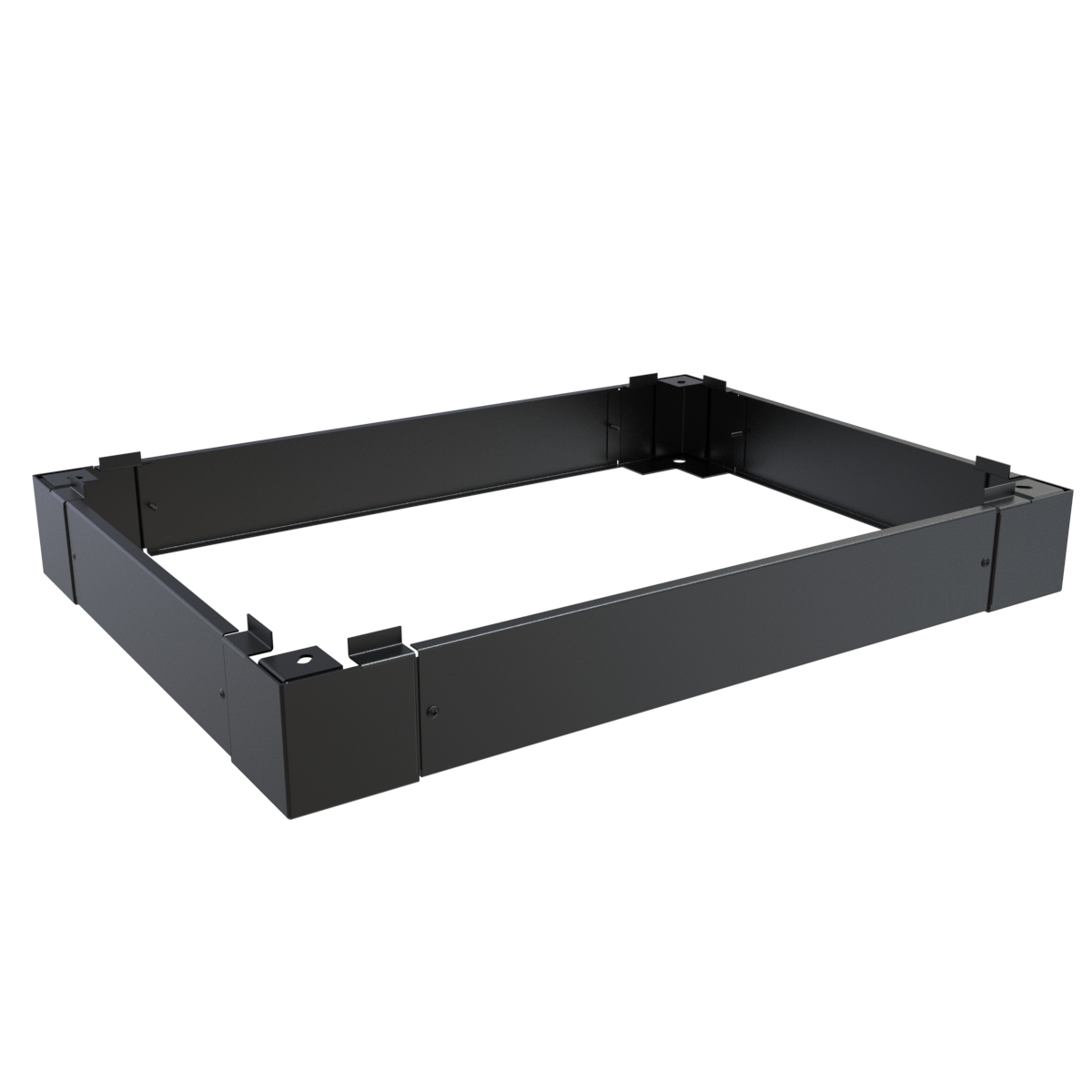

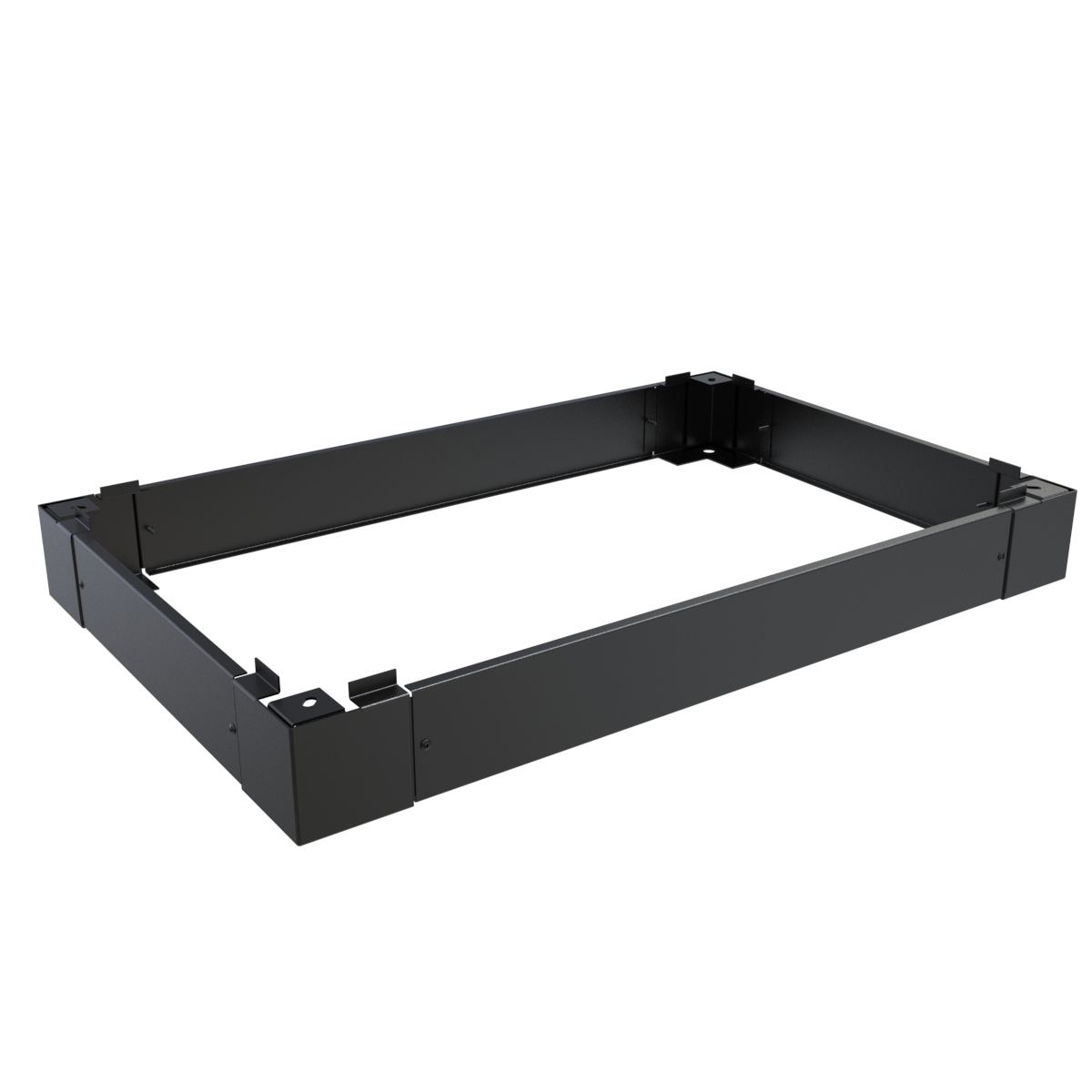

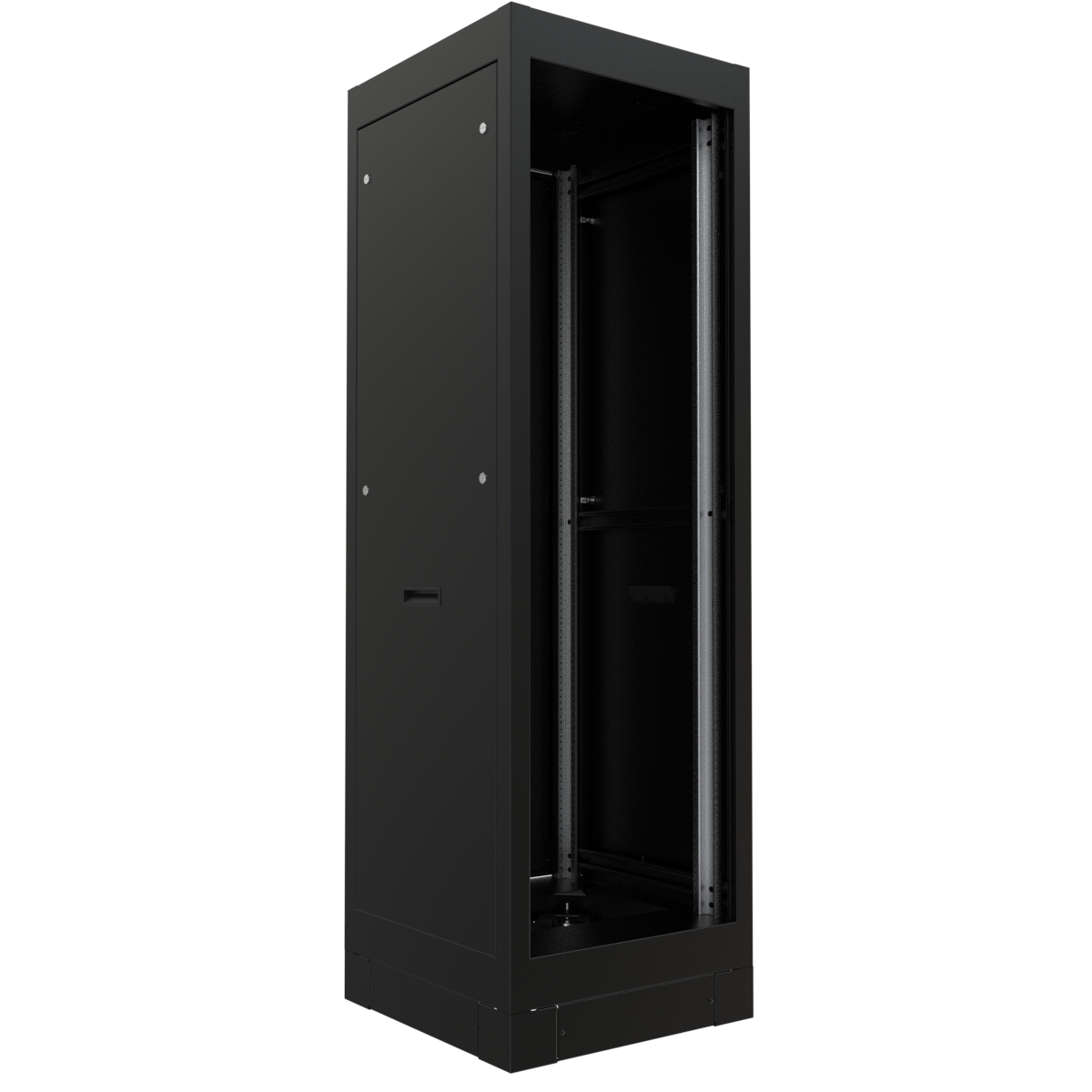

The CPL19436BK1 is a 4.00 in (102 mm) high cabinet plinth from the CPL Series, built to install under 36.00 in (914 mm) deep server and network cabinet frames. Plinths mount beneath the cabinet to create additional space for cable entry and access underneath the frame, which makes them useful for data centre, telecom room and industrial control installations where bottom feed cabling has to be routed and managed cleanly.
Construction is mild steel finished in a RAL 9005 black textured powder coat. The assembly is made up of four corner supports, four inner plinth brackets, two 4 in front/rear panels and two 4 in side panels. All of the panels are easily removable for quick access to cabling and the floor area inside the plinth, and all mounting hardware is included in the box.
This plinth is specified for use with the C2, C2RR, C4 and C4RR cabinet series, and it is compatible with leveling feet and bolt down kits. The base of CPL19436BK1 is provided with four 0.375 x 0.625 in slots and four 0.62 in (16 mm) diameter holes for anchoring and hardware. Drawing dimensions show a 33.64 in (854 mm) x 20.64 in (524 mm) top footprint with a 34.02 in (864 mm) x 20.71 in (526 mm) bottom, and an overall height of 4.00 in.
The powder coat finish complies with the Greenguard guidelines for indoor air quality. CPL19436BK1 is RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, USMCA compliant, and manufactured in North America. Shipping weight is 14 lbs (6.35 kg).
Ideal For
- Adding bottom cable entry space under 36 in deep server cabinets
- Data centre and network room cabinet installations
- Raising C2/C4 cabinet frames for under-cabinet access
- Bolt-down or leveling-foot cabinet installations
- Telecom and industrial equipment cabinet bases
Mounting
| Hardware | Hardware included; comes complete with all mounting hardware |
| Base Slots | 4X 0.375 x 0.625 slot |
| Accessory Compatibility | Compatible with leveling feet and bolt down kits |
Overview
| Series | CPL Series Cabinet Plinth |
| Part Number | CPL19436BK1 |
| Product Type | Cabinet plinth / base for rack cabinet |
| Short Description | PLINTH FOR 36D C2-C4 CABINET |
| Use With Cabinet Series | C2, C2RR, C4, C4RR |

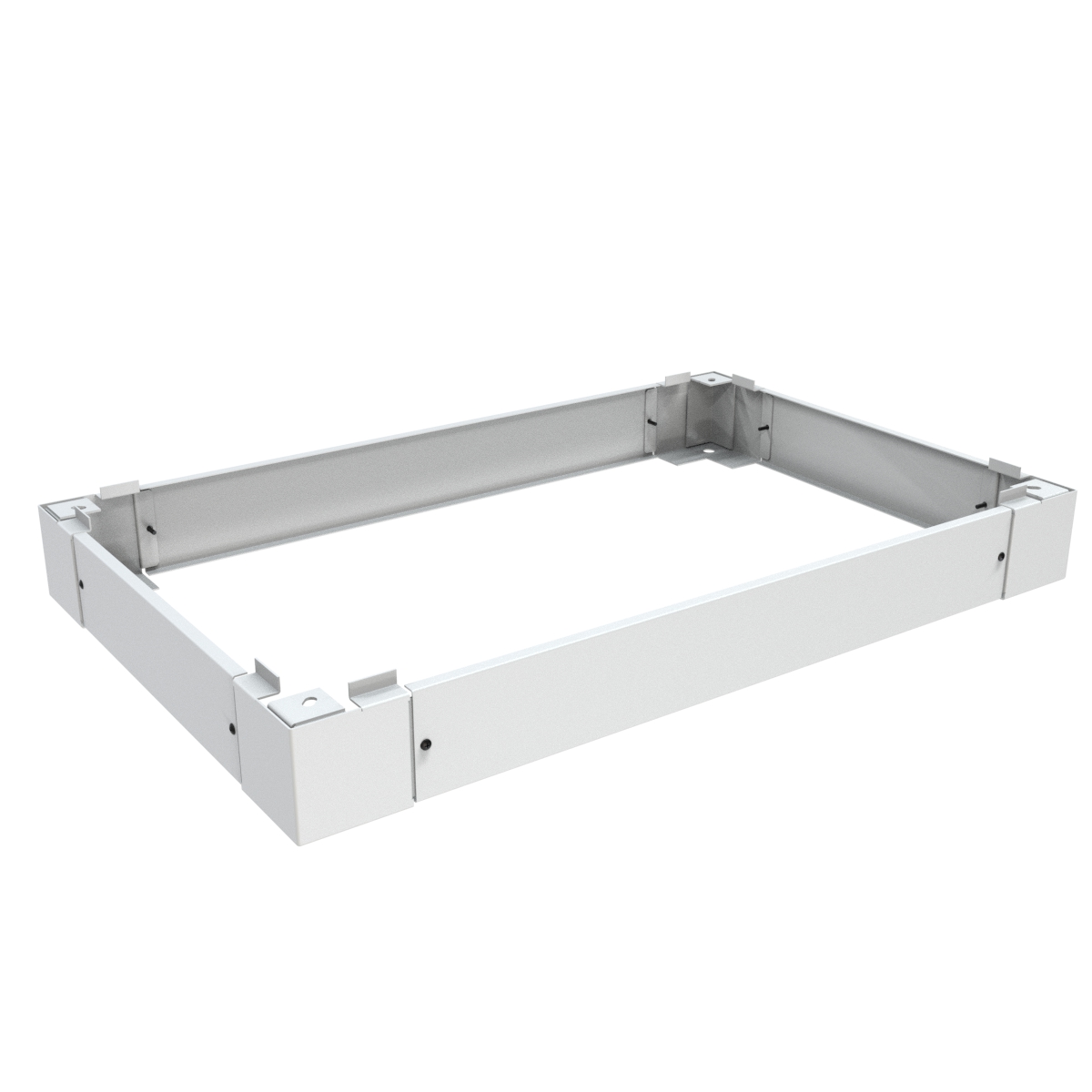

| Matching Light Gray Part No. | CPL19436LG1 (RAL 7035 light gray) |
Dimensions
| Overall Height | 4.00 in (102 mm) |
| Top View Depth | 33.64 in (854 mm) |
| Top View Width | 20.64 in (524 mm) |
| Bottom View Depth | 34.02 in (864 mm) |
| Bottom View Width | 20.71 in (526 mm) |
| Front View Dimension | 4.50 in (114 mm) |
| Use With Cabinet Depth | 36.00 in (914 mm) |
| Side View Dimension (L.S.) | 23.01 in (584 mm) |
| Side View Dimension (R.S.) | 36.01 in (915 mm) |
| Removable Side Panel Dimension | 27.74 in (705 mm) |
| Removable Front/Rear Panel Dimension | 14.74 in (374 mm) |
Identifiers
| UPC | 623980964645 |
| UNSPSC | 39121301 |
| GTIN-14 | 00623980964645 |
| UPC W/o Check Digit | 62398096464 |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 14 lbs (6.35 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Finish | Painted black textured, RAL 9005 black powder coat |
| Panels | All panels easily removable for quick access |
| Material | Mild Steel |
| Side Panels | 2 (CPL19436 4 in plinth side panel) |
| Front Panels | 2 (CPL19423 4 in plinth front panel) |
| Corner Supports | 4 |
| Plinth Inner Brackets | 4 |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Finish complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CPL19436BK1 fit?▾
It is made for use with Hammond C2, C2RR, C4 and C4RR cabinet frames that have a 36.00 in (914 mm) depth.
How much height does this plinth add?▾
The overall height of CPL19436BK1 is 4.00 in (102 mm).
Why install a plinth under a cabinet?▾
Plinths install under cabinets to provide additional cable entry space and/or access beneath the frame.
Is mounting hardware supplied?▾
Yes. The plinth comes complete with all mounting hardware, as noted on the part drawing.
Can the panels be removed after installation?▾
Yes. All of the front/rear and side panels are easily removable for quick access.
Is this part available in another colour?▾
Yes. The same plinth in RAL 7035 light gray is part number CPL19436LG1; CPL19436BK1 is the RAL 9005 black textured version.
Is CPL19436BK1 suitable for government contracts?▾
It is TAA-compliant for GSA Schedule purchases and is also RoHS, REACH and USMCA compliant, with a country of origin of CA.
