Hammond CLWS24 24 in Cable Ladder Wall Support Triangle
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Triangular wall support for 24 in cable ladder rack, holding runway off the wall for cable routing clearance
- 16-gauge mild steel construction with black powder coat finish (GREENGUARD, TSCA, RoHS compliant)
- Overall 28.00 in (711 mm) height x 1.78 in (45 mm) width x 28.00 in (711 mm) depth
- Assembly hardware and two J bolts included; wall mounting hardware not included
- Universal design supports CL Series ladder rack and most tube steel cable runway and basket tray systems
- Also compatible with fiber runner and basket tray systems
- Ladder support quantity: 4 at 6 in, 2 at 12 in, 1 at 18 in
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant

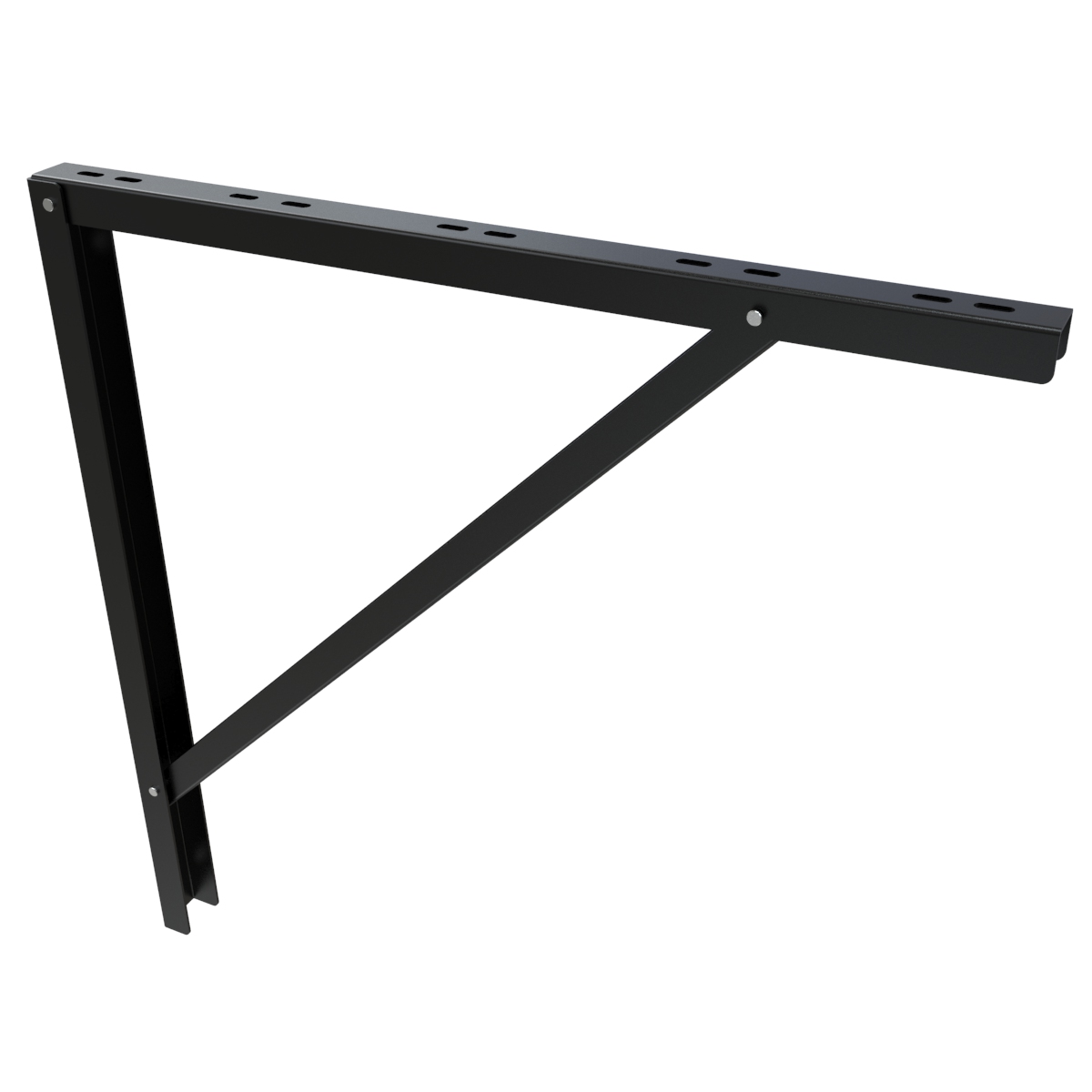

The CLWS24 is a triangular wall support bracket used to mount 24 in cable ladder rack off a wall surface, holding the runway at a fixed offset so cable can be routed and accessed cleanly. It suits data centers, server rooms, telecom and network rooms, and structured cabling environments where overhead pathways run along walls or need stabilizing at wall-mounted sections.
Construction is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The assembly consists of a CLWS wall support bracket, a CLWS tray support bracket and a 24 in angle support, joined with three 0.25 x 2.00 zinc-plated clevis pins and three 3/64 x 15/16 zinc-plated cotter pins. Assembly hardware and two J bolts are included; wall mounting hardware is not included, allowing the fastener to be matched to the wall substrate.
Overall dimensions of the CLWS24 are 28.00 in (711 mm) height by 1.78 in (45 mm) width by 28.00 in (711 mm) depth, with a 28.10 in (714 mm) outer profile shown on the drawing and a 24.00 in (610 mm) ladder support dimension. The nominal catalog size is listed as 22 in x 1.78 in x 22 in (559 mm x 45 mm x 559 mm). Shipping weight is 9 lbs (4.08 kg). Mounting slots are 0.34 x 0.88 in (8.74 x 22.23 mm) with 0.44 in (11 mm) holes.
Within the CLWS Series, this size provides ladder support quantities of four at 6 in, two at 12 in and one at 18 in. The universal design supports CL Series ladder rack and most tube steel cable runway and basket tray systems, as well as fiber runner systems. CLWS24 is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance for procurement documentation.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling environments with wall-mounted ladder rack
- Offset wall support for cable runway clearance
- Supporting fiber runner and basket tray systems
Overview
| Series | CLWS Series Cable Ladder Rack Wall Support Triangle Standoff Bracket |
| Description | Wall triangle for 24 in ladder |
| Part Number | CLWS24 |
| Product Type | Ladder rack wall support triangle / standoff bracket |
Dimensions
| Hole Diameter | 0.44 in (11 mm) |
| Overall Depth | 28.00 in (711 mm) |
| Overall Width | 1.78 in (45 mm) |
| Overall Height | 28.00 in (711 mm) |
| Top Profile Length | 24.95 in (634 mm) |
| Outer Profile (Drawing) | 28.10 in (714 mm) |
| Ladder Support Dimension | 24.00 in (610 mm) |
| Nominal Size (H X W X D) | 22 in x 1.78 in x 22 in (559 mm x 45 mm x 559 mm) |
Identifiers
| UNSPSC | 39131710 |
| GTIN-14 | 00623980008387 |
| UPC (With Check Digit) | 623980008387 |
| UPC (Without Check Digit) | 62398000838 |
Rack Mounting
| Compatibility | CL Series ladder rack, most tube steel cable runway and basket tray systems, fiber runner systems |
| Included Hardware | Assembly hardware included; J bolts included (2x) |
| Hardware Not Included | Wall mounting hardware not included |
| Ladder Support Qty - 6 In | 4 |
| Ladder Support Qty - 12 In | 2 |
| Ladder Support Qty - 18 In | 1 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 9 lbs (4.08 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Painted black / black powder coat (GREENGUARD, TSCA, RoHS compliant) |
| Material | Mild steel |
| Assembly Components | 1x CLWS wall support bracket, 1x CLWS tray support bracket, 1x 24 in angle support, 3x clevis pin 0.25 x 2.00 steel zinc-plated, 3x cotter pin 3/64 x 15/16 zinc-plated |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack width does CLWS24 support?▾
CLWS24 is the wall triangle for 24 in ladder. Its universal design supports CL Series ladder rack and most tube steel cable runway and basket tray systems, as well as fiber runner systems.
Is wall mounting hardware included with CLWS24?▾
No. Assembly hardware and two J bolts are included, but wall mounting hardware is not included so the fasteners can be matched to the wall substrate.
What are the overall dimensions of CLWS24?▾
Overall dimensions are 28.00 in (711 mm) height x 1.78 in (45 mm) width x 28.00 in (711 mm) depth. The nominal catalog size is listed as 22 in x 1.78 in x 22 in (559 mm x 45 mm x 559 mm).
What material and finish is used?▾
CLWS24 is 16-gauge mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant.
Is CLWS24 suitable for government projects?▾
It is listed as TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance and ECCN EAR99, which supports government procurement documentation.
What parts make up the CLWS24 assembly?▾
The assembly includes a CLWS wall support bracket, a CLWS tray support bracket, a 24 in angle support, three 0.25 x 2.00 zinc-plated clevis pins and three 3/64 x 15/16 zinc-plated cotter pins.
